Site Inspection Checklist

Edge sealing at sink cutout

Silicone + edge banding; no exposed core visible

Hinge alignment on all shutters

Even gaps; no sag; smooth soft-close confirmed

Drawer channel smooth operation

Full extension without binding; soft-close engages

Plywood grade matches BOQ spec

BWP IS:710 18mm confirmed on carton / invoice

Countertop joint quality

Seamless butt joints; silicon bead at wall junction

Backsplash tile grouting complete

Full grout; no hollow tiles; no cracks

Cabinet internal finish clean

No raw/rough edges; laminates pasted flush

Plumbing connections — no leaks

Tested 30 min under pressure; joints dry

Electrical points in correct position

Appliance points at correct height; earthing done

Sliding track quality

Smooth glide; no wobble; stoppers installed

Hinge / shutter alignment

All doors flush; no rattle; handles level

Plywood grade (carcass)

BWR IS:303 18mm confirmed; termite treatment done

Internal organizers fixed securely

Shelves level; dividers stable; no flex under load

Loft unit ceiling gap adequate

Minimum 50mm above loft for ventilation

Mirror (if included) — no loose edges

Bevelled edge; silicon backing; no rattle

Crack-free joints at board junctions

Joint tape + compound applied; no cracks

Level check across full area

Spirit level confirms <3mm variation over 2m span

Access panel present for concealed lines

Access panel with clean frame; opens without tools

Perimeter L-channel clean finish

Straight, gap-free; paint ready

Cove routing or step detail (if designed)

Consistent depth and width; no jagged edges

All downlight positions match drawing

Centre-of-tile / symmetric layout confirmed

MCB panel labeled per circuit

Each circuit labelled; no loose wires; cover secure

Cove LED strip — no dark spots

Uniform light; diffuser in place; no driver hum

Fan boxes at correct height

Boxes solid; depth sufficient; earthing done

Switch plate alignment

All plates flush; screws concealed; no tilt

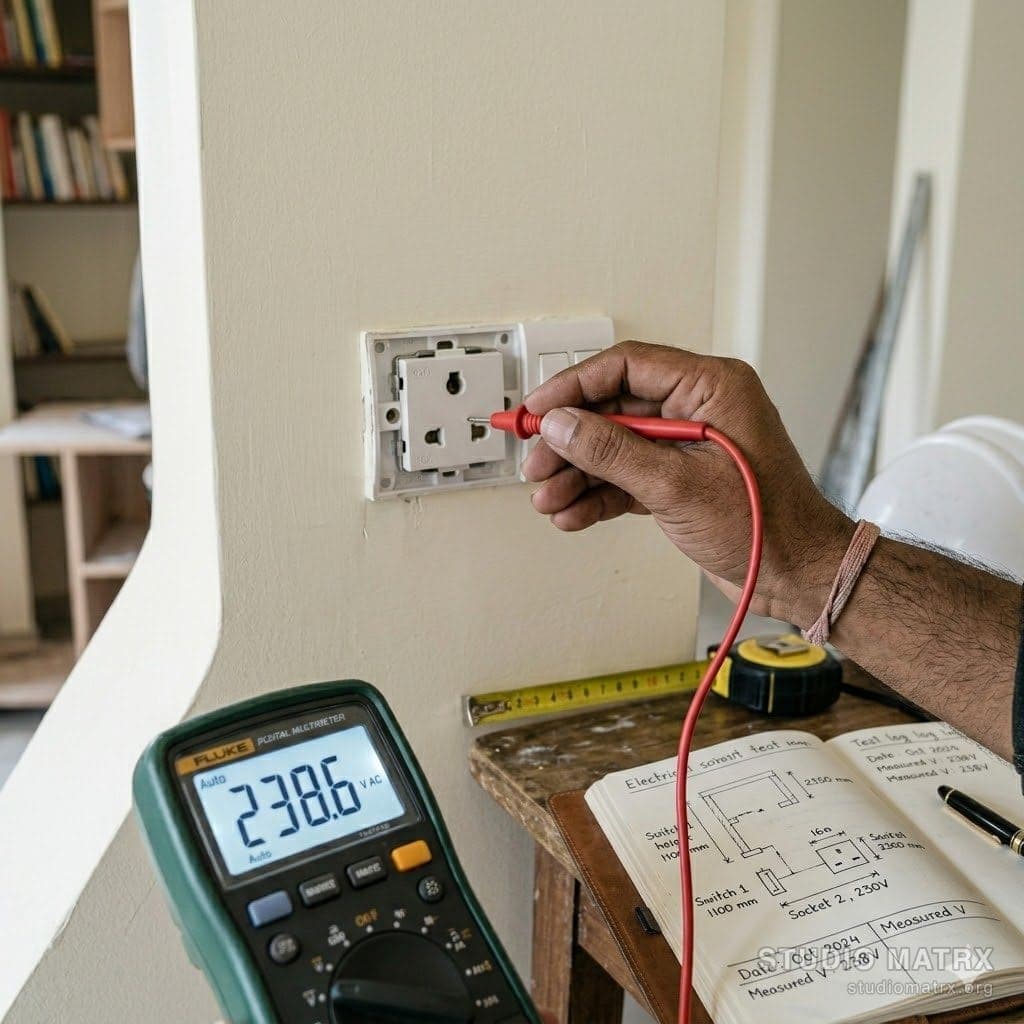

Socket heights uniform

Consistent height across room; earthing pin present

Hollow-tile test (tap test)

No hollow sound anywhere; full bed of adhesive

Grout joints uniform width

Consistent gaps; no missing grout; colour match

Lippage between tiles

Max 1mm lippage on any joint

Expansion gap at wall junction

6–8mm gap filled with flexible sealant

Threshold / transition strips

Strips fixed; no trip hazard; flush with tiles

Pattern / layout matches approved drawing

Border, direction, and medallion match approved plan

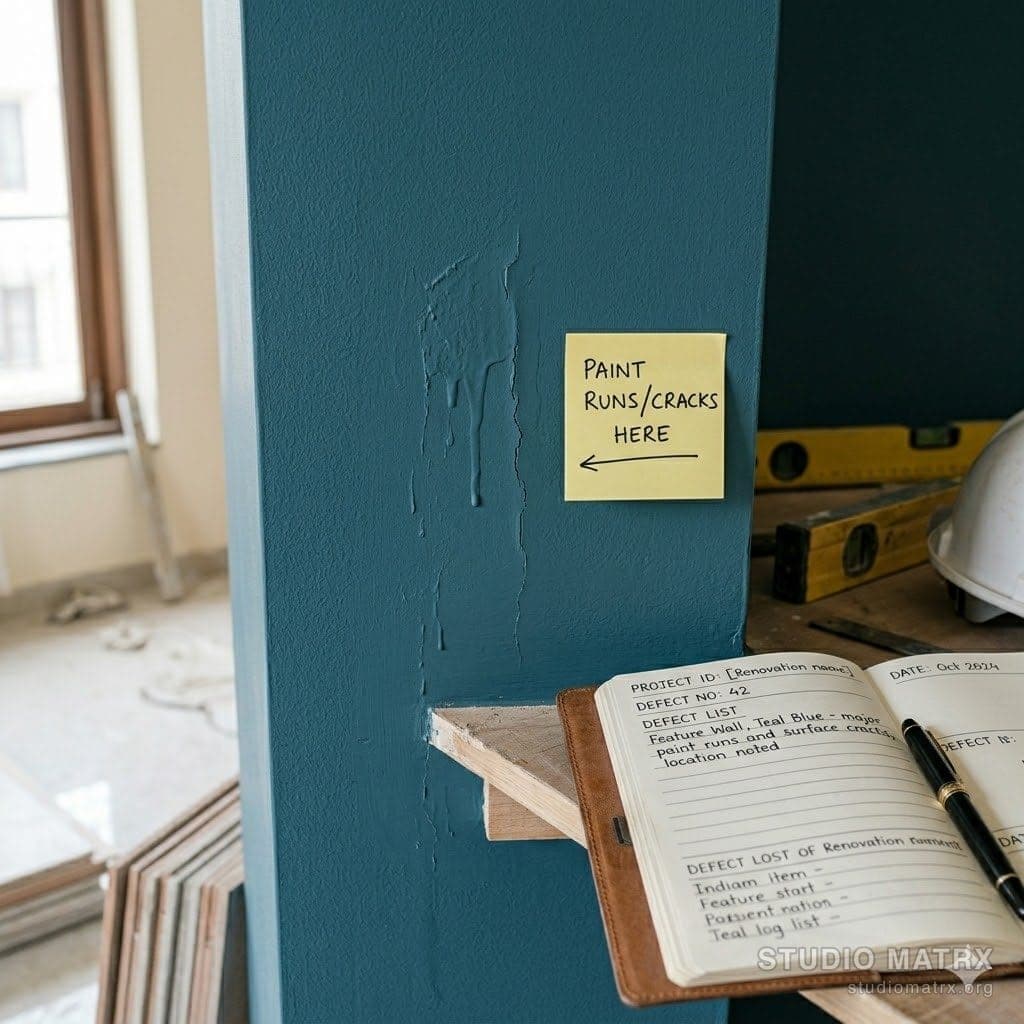

Putty coat — smooth and crack-free

No visible grinding marks; feels smooth to touch

Primer applied before topcoat

Invoice shows primer; surface shows even base

Topcoat — lap marks and roller streaks

Even sheen in raking light; no brush strokes

Colour match to approved shade card

Compare chip to wall in daylight — no visible shift

Masking quality — trims, ceiling, floor

Sharp edges; no bleed; masking tape removed cleanly

Waterproofing ponding test done

Ponding test 24 hr: no leakage below; dry after drain

Slope toward drain confirmed

Water flows freely; no pooling

Tile grouting — no gaps or cracks

Epoxy grout at wet areas; no hollow tiles

Vanity — no exposed ply edges

All edges sealed; silicone at junction with wall/floor

CP fittings — no drips at joints

All fittings hand-tight; valve operates smoothly

Exhaust fan functioning

Adequate suction; no vibration; duct clean

GWC / mirror — no loose fixings

Mirror/GWC flush; anchor bolts into wall not tile

BOQ materials match actuals on site

Brand / grade / spec on site matches signed BOQ

Snag list from previous visit resolved

All previously noted snags signed off

Waste / debris cleared

Floors clean; packaging removed; no debris in units

Doors and windows operate correctly

All open/close without binding; handles tight

Client's belongings protected

Dust sheets / protection in place; no scratches

Safety checks — no exposed wiring

All conduits capped; no live wires accessible

Instruction manuals and warranty cards

All appliance / hardware docs handed over

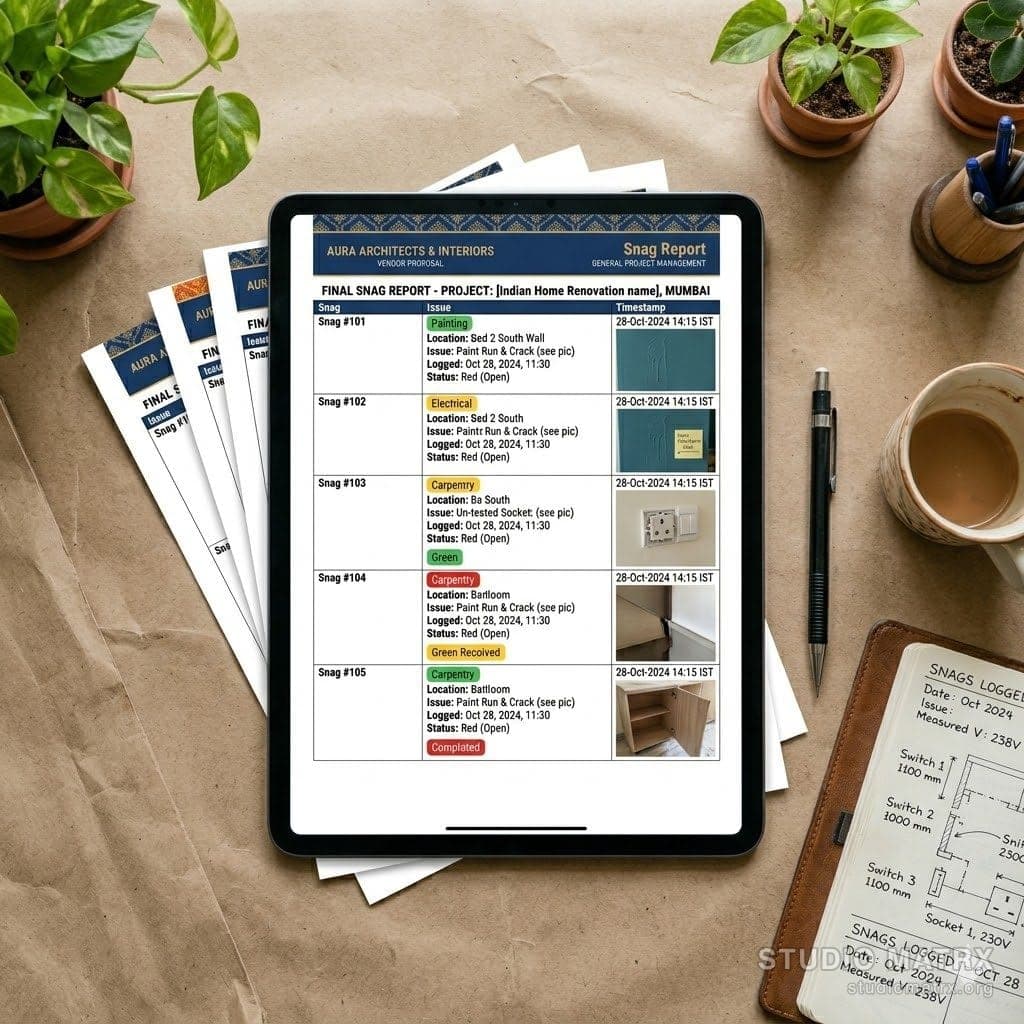

Final photos / site report prepared

Date-stamped photos; sign-off sheet ready
