Representing Urban Design

Beginners think of drawings as pictures of the design; professionals know each drawing is an argument about the design, and different arguments need different drawings. A figure-ground makes the case about built form and void; a section makes the case about human scale and enclosure; an illustrative aerial makes the case about atmosphere and life. No single drawing tells the whole story, and a common failure is to lean on one seductive rendering while the harder, more honest drawings go missing. The urban designer, unlike the building architect, is representing something larger than a single object: a piece of city, made of streets, blocks, ground and public life, much of which will be built by others over decades and never fully controlled. This changes what the drawings must do. They must communicate a framework robust enough to survive being built piecemeal, distinguish clearly between what is fixed and what is merely illustrative, and speak to non-designers who will vote on, fund or inhabit the result. This lesson walks through the core representational types in roughly the order a project uses them, from the abstract diagrams that fix the big moves, through the plans and sections that describe the scheme, to the models and precedents that make it real, and it closes on the single most important and most misunderstood distinction in the whole field: the difference between a regulatory plan that governs and an illustrative vision that merely inspires. Confuse those two and you will either strangle a place with false precision or promise a picture you have no power to deliver.

The most fundamental urban drawing is the figure-ground, a plan that blacks out the buildings and leaves the space between them white (or the reverse), so that the true structure of a place, its streets, squares, blocks and gaps, leaps out with a clarity no ordinary map allows. Colin Rowe and Fred Koetter made the figure-ground famous in Collage City, using it to contrast the solid-dominant fabric of the traditional city, where buildings press together to shape crisp public rooms, with the void-dominant modern city, where isolated towers float in undifferentiated space. Drawing your site as figure-ground is often the single most revealing analytical act available, and drawing your proposal the same way is the honest test of whether you have made real urban space or merely arranged objects. Alongside it sits the family of framework or structuring diagrams: the parti, that single distilled idea (a spine, a pair of crossing axes, a necklace of squares) that captures the scheme in one gesture; the movement framework showing the hierarchy of streets; the green framework of parks and links; the block or development framework showing the pattern of plots. These diagrams are deliberately abstract because their job is to fix the big, durable moves, the structure that must hold, while leaving the detail open. A good framework diagram is one a stranger can grasp in ten seconds and a developer cannot easily wreck. The figure shows a before-and-after figure-ground beside its distilled parti, the two drawings that, more than any rendering, prove whether an urban idea is sound.

When people picture urban design they usually picture the illustrative masterplan: the coloured, textured bird's-eye plan or aerial view showing streets, blocks, greenery, water and life as they might one day look, dotted with trees, shadows and tiny figures. This is the emotional heart of a presentation, the drawing that lets a client or a community fall in love with a place before it exists, and it is worth doing beautifully, with real trees, real shadows, real people at real density, not a sterile CAD abstraction. But the illustrative masterplan carries a professional hazard precisely because it is so persuasive: it depicts one possible built-out future in convincing detail, and audiences readily mistake that single picture for a promise. The mature designer therefore always pairs the seductive aerial with honest companions, the framework that will actually be enforced, and a clear label that the aerial is illustrative, showing intent and character, not a guarantee of every roofline. Good practice draws the masterplan at an honest density and with credible Indian trees, vehicles and street life rather than borrowing a European template, because a plan peopled with the wrong context quietly lies about who the place is for. The illustrative plan should also read at the scale it will be seen: a plan destined for an A0 board in a town hall needs bolder hierarchy than one meant for a report page. Used with that discipline, the illustrative masterplan is the drawing that wins hearts, provided its sober companions keep it honest.

Plans lie flat, but cities are experienced in section and in the round, so a scheme that is not drawn in the third dimension has not really been designed. The urban section, a vertical cut through a street or public space, is arguably the most important drawing an urban designer makes and the one most often skipped, because it is where human scale is decided. A section shows the ratio of building height to street width that governs whether a street feels like a canyon or a comfortable room, the crucial proportion Camillo Sitte and later Jan Gehl obsessed over; it shows where the sun falls, how the footpath, trees, cycle track, carriageway and building line share the ground, and whether a person stands in dignity or is dwarfed. A street section with a human figure and a tree at true scale is the fastest way to prove, or disprove, that a place will be humane. The axonometric or three-dimensional aerial, meanwhile, lets you show massing, block structure and the relationship of buildings to streets without the distortions of perspective, and the cut-away or worm's-eye axonometric can reveal how ground floors meet the pavement. Together, section and axonometric describe the volume of the public realm, the actual room that people will stand in, which no plan can convey. A designer who presents only plans and aerials is hiding the very dimension where success and failure are decided, and a sceptical reviewer is right to ask, first of all, for the section.

Urban design deals in atmospheres and qualities that abstract drawings struggle to convey, so two humbler forms of representation do essential work: the precedent study and the character or reference image. A precedent study presents a real, existing place that already achieves what your scheme aspires to, the fine-grained active frontage of Ahmedabad's pols, the arcaded shade of a Rajasthani bazaar, the human-scaled block of Barcelona's Eixample, the calm shared surface of a Kerala temple street, analysed for the specific lesson it teaches. Precedents are powerful because they answer the sceptic's deepest fear, will this actually work?, with proof that it already does somewhere real, and they anchor an abstract proposal in tangible, photographable reality. The related device is the palette of character or reference images, curated photographs that communicate the intended materials, planting, activity and feel of the future place, assembled as a mood board that sets expectations no line drawing can. The discipline here is honesty and relevance: choose precedents from comparable climates and cultures, not aspirational images of a Scandinavian waterfront pasted onto a hot Indian city, and be clear that a reference image shows a quality to aim for, not a place to copy. Used well, precedent and character imagery build trust, they show the designer has looked hard at what already succeeds, and they give a community a vocabulary to discuss what they want, turning a vague debate about aesthetics into a shared conversation grounded in real examples they can point to and argue about.

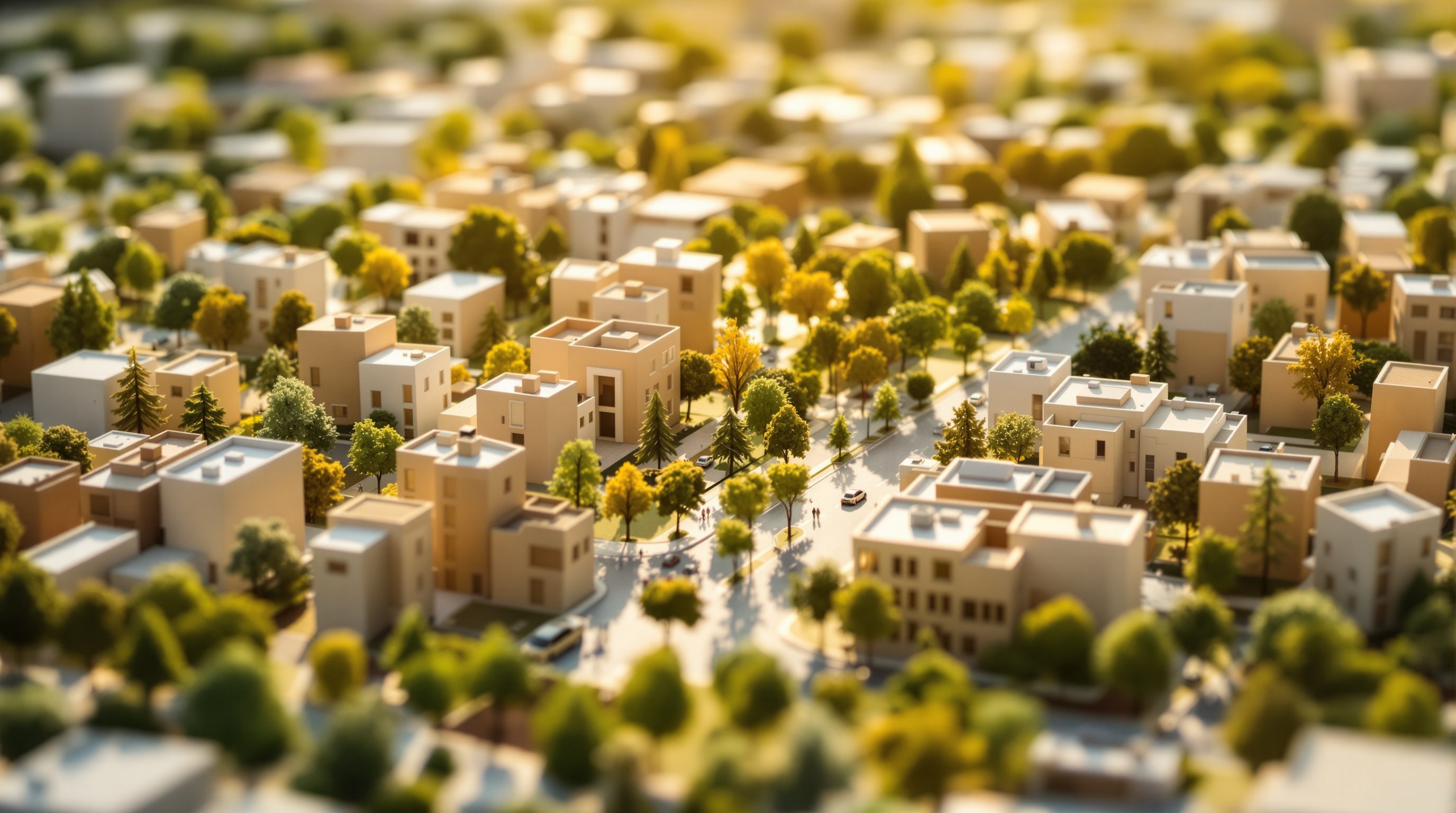

There is a moment in every urban project when flat drawings stop convincing and people need to grasp the whole in three dimensions, and this is the work of models, both physical and digital. The physical model, the massing model in card, timber or 3D print, remains uniquely powerful in a public setting: people who cannot read a plan instinctively understand a model they can walk around, point at and see from their own street, and a good massing model of a proposal set into a model of its context is one of the most democratic representations we have. Physical models also discipline the designer, because a mistake in massing that a rendering can flatter is brutally obvious in card. Digital 3D models do different work: they let you test many options quickly, study real sun and shadow across the year, generate views from any eye level, and increasingly place the scheme in an accurate model of the existing city drawn from survey or satellite data. The most advanced practice links the 3D model to the GIS data of Lesson one, so massing can be tested against real terrain, solar access and sightlines, and even walked through in virtual reality for a community. Yet sophistication carries a warning: a photorealistic render can lie more convincingly than any hand drawing, flattering light, absent traffic, impossible greenery, so the honest studio uses digital models to test and interrogate the design, not merely to seduce, and always keeps the humble massing model and the human-scaled section as the truth-tellers against which the beautiful renders are checked.

The single most important thing to understand about representing urban design is that two utterly different kinds of drawing masquerade under the word plan, and confusing them causes real damage. The regulatory plan, the zoning map, the development control plan, the coding drawing, is a legal instrument: it says what may and may not be built and it binds. It is deliberately abstract, precise about the few things it controls, use, height, plot lines, building lines, and silent about everything it leaves free, because whatever it draws, it commits to enforce. The illustrative plan or vision, by contrast, the seductive coloured aerial, the character render, has no legal force at all: it shows one attractive way the regulations could be built out, to inspire, persuade and communicate intent. Both are essential and they do opposite jobs, so the professional never lets them blur. Two failures follow from confusion. The first is over-promising: presenting a detailed illustrative render as if it were the plan, so a community expects, and later feels betrayed by, a specific building that was never guaranteed. The second, and more insidious, is over-controlling: baking illustrative detail into the regulatory drawing, freezing a specific roofline or facade into law, so the place can only ever be built exactly as one designer imagined on one day, robbing it of the adaptive, incremental life that makes real cities rich. The mature approach, embodied in tools like form-based codes, is to regulate the durable structure, streets, block, frontage, the things that must hold, while leaving the buildings free to vary within it, and to label every drawing unambiguously as either binding or illustrative. The figure sets the two side by side so the difference is unmistakable.
