IoT Devices & Actuators

The phrase 'IoT device' sounds exotic; the reality is a tidy little kit of four parts. There is a sensor (or several) - the transducer from Lesson 1.1. There is compute: a small microcontroller (MCU) running firmware that reads the sensor, timestamps and filters the value, decides what to send, and sometimes runs simple logic right there. There is a radio (or a wired interface) that carries the data out - Wi-Fi, Bluetooth, Zigbee, a LoRaWAN chip, or a wired bus. And there is power: mains, Power-over-Ethernet, or a battery.

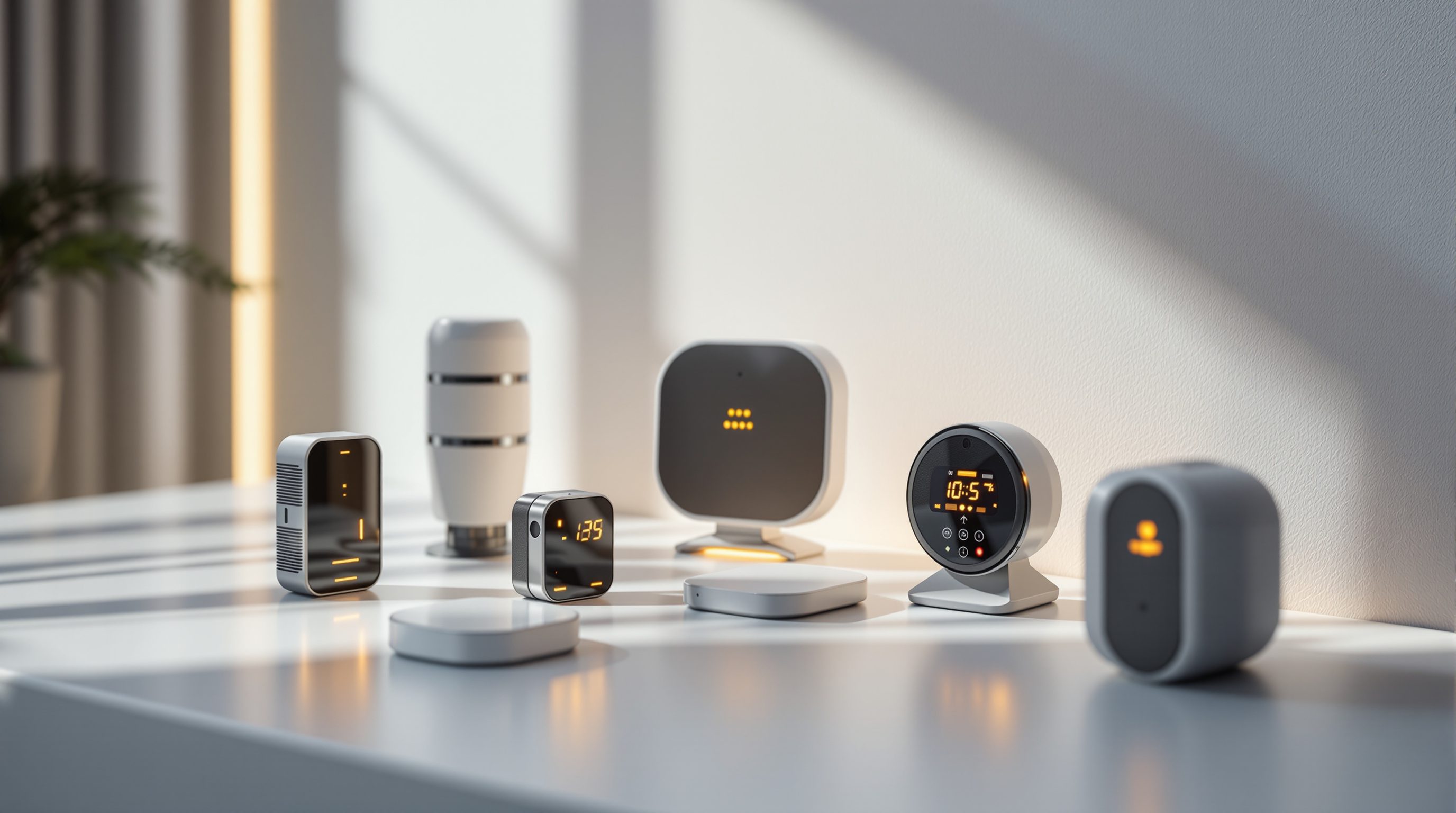

That is genuinely most of it. A smart thermostat, a wireless CO2 monitor, a people-counter, a leak detector - open any of them and you find those four blocks. The interesting variation is how much compute sits on the device. A 'dumb' node just reads and transmits raw values. A smarter edge device does real work locally - averaging, detecting a threshold, buffering data through a network outage, even running a small model - so it sends less and reacts faster. That local intelligence is the seed of edge computing, which Module 2 develops. For now, hold the mental model in the figure: four blocks, and a spectrum from 'just report' to 'think a little before you speak'.

If a sensor is an input transducer, an actuator is an output transducer - it converts an electrical command back into a physical action. This is the half beginners forget, and it is what turns data into effect. The common families are worth naming. Valves modulate the flow of water or refrigerant - a chilled-water valve opening a little more to cool a zone. Dampers are the air equivalent, motorised flaps that steer and throttle airflow in ducts, including the fresh-air dampers that answer a high CO2 reading. Relays and contactors are electrically-operated switches that turn larger loads fully on or off - a pump, a fan, a bank of lights. Dimmers and variable-speed drives modulate rather than switch, setting a light to 40 percent or slowing a fan to match demand. And motorised actuators drive blinds, windows, louvres and doors.

Actuators are where the physical stakes live. A stuck valve overheats a room; a failed damper can breach fire compartmentation; a mis-wired relay can be a safety hazard. This is precisely why control and life-safety actuation is engineered, commissioned and signed off by qualified professionals - not something to improvise. As a designer your job is to understand what can be actuated and why, and to leave room and provision for it; the detailed wiring and safety interlocks belong to controls and electrical engineers.

Now put the two halves together, because that pairing is the atom of every smart building. A sensor measures state; some logic compares it to a rule or setpoint; an actuator carries out a command; the action changes the building; and the sensor measures again. That circle - sense, decide, act, sense - is a control loop, and Module 3 goes deep on how a BMS runs thousands of them with techniques like PID control.

A concrete example makes it click. A CO2 sensor reads 1,100 ppm. The logic says 'above 1,000, act.' It commands a fresh-air damper to open. Fresh air enters, CO2 falls, and the next reading confirms it - so the damper eases back. Nobody touched anything; the building responded. The vital insight, drawn in the figure, is this: sensing without acting is just a dashboard. You can measure a building forever and change nothing. It is the actuator - and the loop closing back through it - that makes a building adaptive rather than merely observed. A digital twin that only visualises is a mirror; a twin wired through actuators can help the building steer itself.

Two design instincts separate robust devices from fragile ones. The first is how much to think on the node. A purely 'dumb' sensor streams every raw reading and depends utterly on the network and a distant server; a smarter edge device filters, averages, applies a threshold and buffers data through an outage, sending less and reacting faster. Edge intelligence cuts bandwidth, improves privacy (raw data need never leave the building) and lets a device keep working when the link drops - but it adds cost and complexity, and firmware running on a thousand nodes becomes something you must update and secure for years. The right amount of edge compute is a genuine trade-off, one Module 2 develops in depth.

The second instinct governs actuators and is a matter of safety: what should a device do when things go wrong - power fails, the network drops, the controller crashes? A well-engineered actuator has a defined fail-safe state. A heating valve is often fail-open so a building does not freeze if control is lost; a fresh-air or fire damper is set to fail to whichever position is safe for its duty; a controlled door must resolve a deliberate, code-driven choice between fail-secure and fail-safe for egress. These are not afterthoughts - they are life-safety and resilience decisions made by controls, fire and electrical engineers and signed off formally.

For a designer the takeaway is to think about behaviour at the edges of normal operation, not just the happy path. A device that behaves sensibly when it loses power, loses the network or receives a bad command is what makes automation trustworthy enough to live with. Smart is not only being clever when everything works; it is being safe and predictable when something does not.

One unglamorous choice colours an entire deployment: how each device is powered. Mains or Power-over-Ethernet (PoE) devices never run out - PoE is especially neat because a single cable carries both data and power to a node, ideal for cameras, access points and fixed sensors. But they must be wired, and running cable to every point is expensive and often impractical in an existing building. Battery devices flip the trade-off: you can stick one almost anywhere in minutes, which is why wireless battery sensors dominate retrofits - but now battery life rules your life. A node that reports every second dies in days; one that wakes briefly every fifteen minutes, sends a tiny packet over a low-power radio like LoRaWAN or Zigbee, and sleeps, can last five to ten years.

That is why battery sensors sample slowly and send little, while mains-powered devices can stream richly and, crucially, can actuate - moving a damper or driving a motor takes real energy a coin cell cannot supply. So a rough rule emerges: actuators and data-hungry devices want wired power; light, occasional sensors can go battery and wireless. Energy-harvesting devices (KNX and EnOcean have kinetic switches that need no battery at all, drawing the tiny jolt of energy from the press itself) sit at the frontier of this trade-off. There is also a hidden operational cost to batteries at scale: a thousand wireless nodes means a thousand batteries that will each, someday, need finding and replacing - a maintenance burden that quietly favours wired power for anything permanent and critical. For a designer, the takeaway is to decide power and data provision with the layout, not after it - because a beautiful sensing plan with nowhere to plug in is just a wish.
