Penthouse Sky-Deck — 30 × 40 ft G+2 Home

Most small-plot homes in India treat the roof as an afterthought - a place for the water tank, the washing line and a stub of staircase. This 30 x 40 ft plan does the opposite. It hands the best part of the house to the sky. By setting the top floor back from the street, it turns the roof into a generous, private penthouse sky-deck - a shaded, pergola-covered open terrace beside a master suite, with the city falling away beyond a glass rail.

This is the penthouse-on-a-small-plot move: you give up a little built-up area on the top floor and get back something a tight urban plot almost never offers - a real outdoor room, high up, private, and full of evening breeze. On a 1200 sqft plot in Bengaluru, Hyderabad, Pune or the NCR, where land is scarce and neighbours are close, that trade is often the best one in the whole design.

The plan is a 4 BHK across G+2: a public ground floor, a family bedroom floor, and the penthouse suite and sky-deck on top. It is conceived for the composite climate - hot summers, a real monsoon, cool winters - which rewards exactly this kind of layered, shaded, cross-ventilated section.

---

Site & Orientation

The plot is 30 ft wide at the road (frontage) and 40 ft deep, with the road on the east - an east-facing plot, the most sought-after orientation in much of India for its morning sun and favourable Vastu reading.

Setbacks (indicative, per typical Composite-zone bye-laws such as Bengaluru BBMP / Hyderabad GHMC for plots up to ~150 sqm):

Buildable footprint works out to roughly 23.4 x 31.7 ft ≈ 740 sqft per floor. Over a G+1 with a set-back penthouse, total built-up is about 1,950 sqft, giving an FAR of roughly 1.6 - comfortably within the ~1.75 typical for these cities. Always confirm FAR, setbacks and the permissible number of floors with your local authority before finalising.

---

Ground Floor Plan

The ground floor is the public, sociable level. Entry is from the east, through a covered car porch into a foyer that opens to a single large living-dining volume facing the morning sun. The kitchen sits south-east (Vastu-favoured) with a linked utility against the rear wall; a guest bedroom with attached bath occupies the north-west corner for parents or visitors.

Room Schedule — Ground Floor

---

First Floor Plan

The first floor is the family bedroom level. The larger master bedroom takes the east front with a cantilevered balcony for morning coffee; a second bedroom sits north-west, and a family lounge in the middle gives the children and the household a shared informal space away from the formal ground floor.

Room Schedule — First Floor

---

Penthouse Floor — The Sky-Deck

This is the floor the whole plan is built around. The top storey is set back about 14 ft from the front, so its built mass - a self-contained penthouse master suite (bedroom, walk-in wardrobe, ensuite) plus a stair head and a small pantry-bar - sits to the rear, and the front opens into a ~290 sq ft sky-deck terrace.

The terrace is shaded by a timber pergola, softened with planters, and edged by a glass railing so the view stays open. It becomes the most-used room in the house in the cool months - an evening lounge, a place to entertain, a private garden in the air. The master suite opens directly onto it through full-height sliding glass, so the bedroom borrows the whole terrace as its outlook.

Room Schedule — Penthouse

---

Facade — Street Elevation

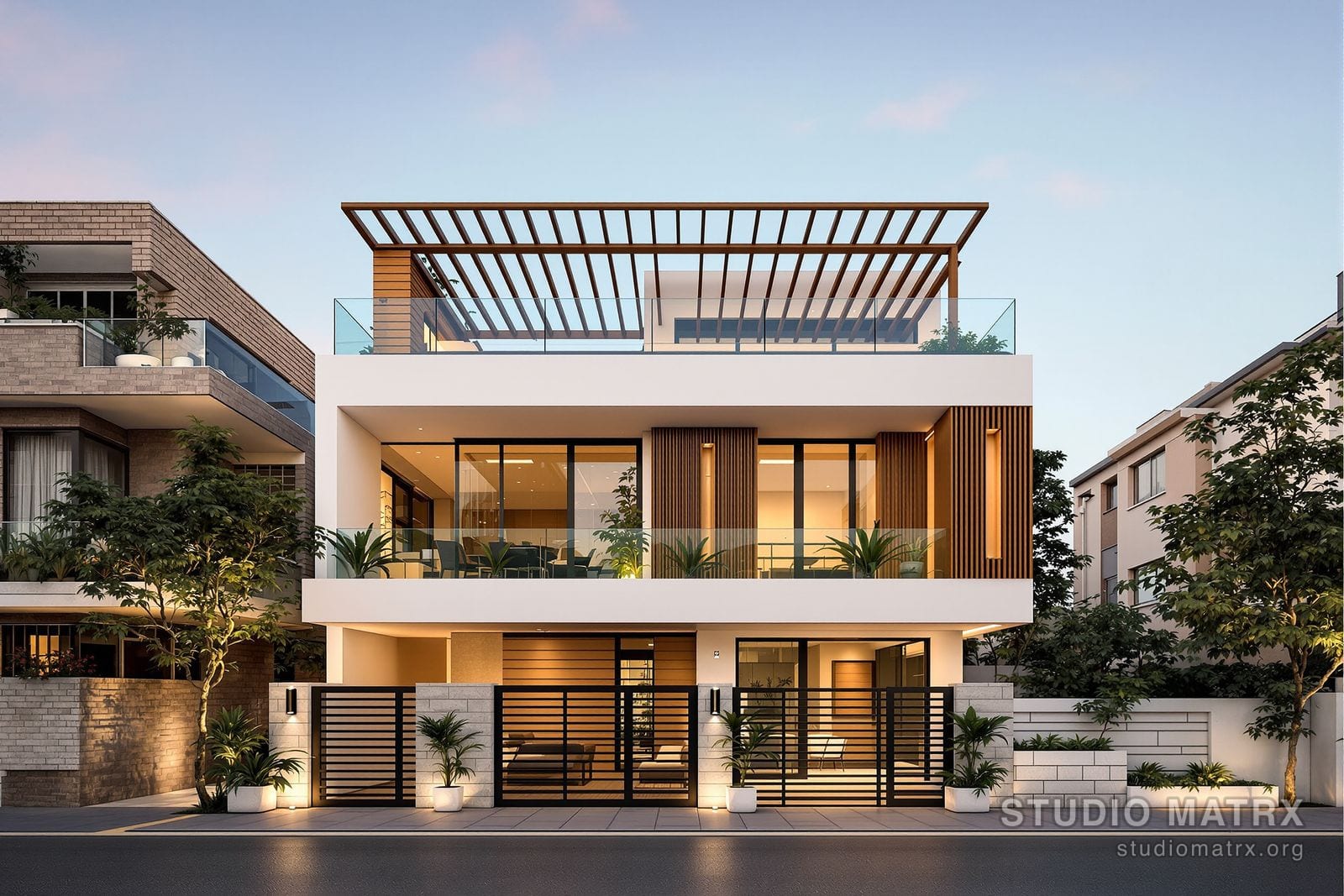

The street reads the stepped massing clearly: a grounded stone base, a lighter render-and-wood middle, and the set-back penthouse crowned by its pergola. The composition is calm and contemporary - a close relative of the Modern Farmhouse and Contemporary Indian idioms.

Materials palette (facade):

• Base — local stone cladding (Tandur / Kota / granite) over RCC, grounding the building
• Middle — white textured render with a warm wood-batten accent panel
• Penthouse — render + timber, with a glass parapet to keep the terrace view open
• Pergola — seasoned hardwood or powder-coated steel, for dappled shade
• Windows — slim black aluminium, large to the east, shaded by the floor above

See the Facade Design for Indian Climates and Indian House Front Elevation guides for the elevation logic.

---

Section — Stepped Massing

The section explains the whole idea in one drawing. Each floor is a clear 10 ft storey; the top floor steps back so the part of the roof that would have been built becomes the terrace. The first-floor balcony and the penthouse pergola both shade the windows below them - the building shades itself, which matters in the composite climate's fierce summers.

---

Biophilic Score — 72 / Strong

This design scores 72 / 100 on the 16-criterion biophilic framework.

Strategy classification: Balcony-gardened · Hybrid natural. The sky-deck and the stacked balconies are the biophilic and social heart - the small-plot answer to the courtyard. Check your own design with the Biophilic Score tool.

---

FAR / Setback Compliance Snapshot

Permissible number of floors and the treatment of a set-back terrace floor vary by city - some count it fully, some partially. Confirm with the local authority and a licensed architect before construction.

---

Cost — Indicative

For ~1,950 sqft built-up at composite-zone 2026 prices:

A penthouse terrace adds cost in two specific places: terrace waterproofing and drainage (do not cut corners here), and the pergola + deck finish. Both pay back in the room you gain. Estimate your own with the Cost Calculator.

---

Materials Schedule

---

Vastu Notes

Rating: Good. An east entry with a south-east kitchen and a south-west master is a strong Vastu spine. The set-back penthouse naturally places the heaviest mass to the rear (south-west), which Vastu favours. See Vastu for Modern Homes and check your plot with the Vastu Compass.

---

Buildability Notes

1. Terrace waterproofing is critical. A habitable sky-deck over living space must be detailed with a proper membrane, screed laid to falls, adequate drains, and the deck raised on pedestals above the waterproofing. Read the Waterproofing Guide and the Terrace Planning guide before you build.

2. Drainage. Provide at least two terrace rainwater outlets with leaf guards, sized for the local intensity; route them in dedicated pipes, not through habitable rooms.

3. Structure for the set-back floor. The penthouse and pergola loads transfer through the floors below - get the RCC frame designed by a structural engineer for the actual stacking and any future terrace additions.

4. Soil test first. A G+2 on a small plot needs a verified safe bearing capacity; design the foundation accordingly.

5. Rainwater harvesting. Mandatory in Karnataka, Telangana and many other states - design a recharge pit and, if you wish, a storage tank (Rainwater Tank Sizer).

6. Shading the glass. The large east openings need the stacked balcony/eave shading shown, plus internal blinds, to keep summer mornings comfortable.

---

Reading Pairings

• Penthouse Sky-Deck — 25 × 40 ft G+2
• Penthouse Sky-Deck — 20 × 30 ft G+2
• Modern Farmhouse Architecture in India
• Penthouse Design — Top-Floor Luxury
• Modern House Design India
• Terrace Planning India
• Sustainable Home Design India
• Cross-Ventilation in Indian Homes

Tools to Use With This Plan

• Cost Calculator
• Biophilic Score
• Vastu Compass
• Rainwater Tank Sizer

---

Author's note: The penthouse-on-a-small-plot idea works because of a simple bargain - the top floor is the one you can most afford to make smaller, and the roof is the one place a tight urban plot can still find a private, generous outdoor room. Set the top storey back, spend properly on waterproofing, shade the deck with a pergola, and a 1200 sqft plot gains the best room in the house: a garden in the sky.

Disclaimer: This is a reference design. Local building bye-laws, permissible FAR and floors, setbacks, soil conditions, and statutory approvals must be verified by a licensed architect and structural engineer before construction. Costs are indicative for 2026 and vary by city, contractor, site and finish.
