A 20 x 30 ft plot is about as small as an independent house gets in India - just 600 sq ft of land. The instinct is to cram every inch and forget the roof. This plan does the opposite: it builds a tight, efficient G+2 and then gives the very top back to the sky, setting the third floor back to carve out a small but genuine penthouse sky-deck. Even at 600 sqft, you get a private master suite with its own open-air terrace - the one luxury a cramped urban plot can still afford.

The plan is a compact 3 BHK: a public ground floor with the living-dining and kitchen, two bedrooms on the first floor, and the penthouse master suite + roof terrace on top. It is sized and shaded for the composite climate of Bengaluru, Chennai, Pune, Hyderabad and the NCR, where small-plot G+2 houses are the everyday reality.

Site & Orientation

The plot is 20 ft wide at the road and 30 ft deep, east-facing. On a plot this small the setbacks eat a large share of the land, so the layout is disciplined.

Setbacks (indicative, typical Composite-zone bye-laws for very small plots):

Setback	Used here
Front (east, road)	1.5 m (5 ft) — small car / two-wheeler park + entry
Rear (west)	1.0 m (3.3 ft) — light + ventilation
Sides (north, south)	0.6 m (2 ft) each

Buildable footprint is roughly 16 x 21.7 ft ≈ 347 sqft per floor. Over a G+1 with a set-back penthouse, total built-up is about 900 sqft - an FAR near 1.5, typical of what these cities allow on small plots. Setbacks, FAR and the permitted number of floors vary widely for small plots - confirm with your local authority and a licensed architect.

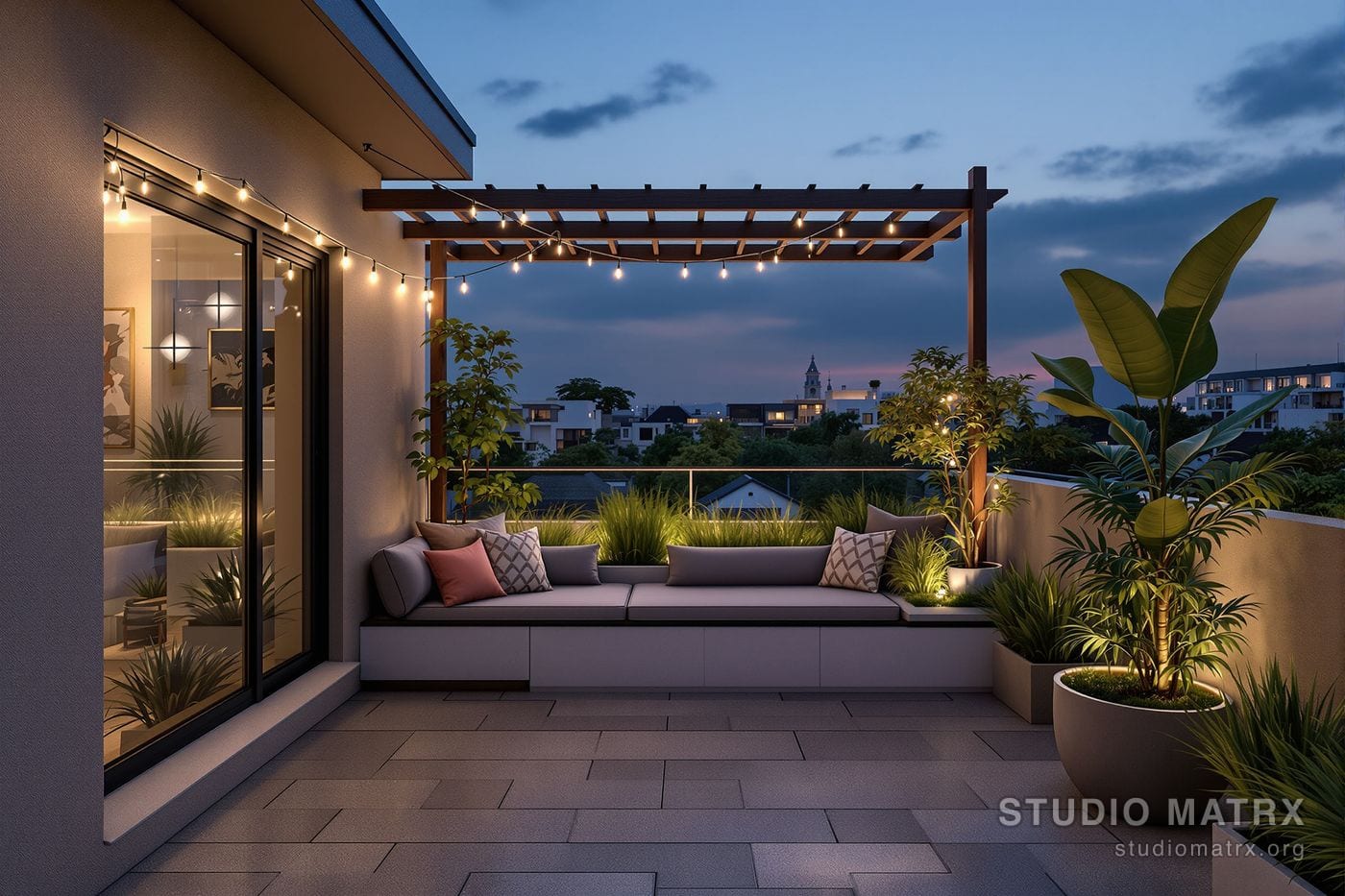

A compact private rooftop terrace on a small modern Indian home at dusk - a slim timber pergola overhead, a built-in bench, planters of ornamental grasses and a frangipani, warm string lighting, a glass parapet, with neighbouring rooftops beyond.

Ground Floor Plan

There is no room for a ground-floor bedroom at this size, so the whole floor is the public, shared volume. A single living-dining space faces the east and the street; the kitchen sits at the rear north-west with a small utility beside it; the stair and a WC run down the middle.

Room Schedule — Ground Floor

Space	Size	Notes
Car / two-wheeler park + entry	front setback	Covered porch + entry
Living + dining	11 x 16 ft	Single volume, east-facing
Kitchen	7 x 9 ft	North-west, rear ventilation
Utility	7 x 7 ft	South-west, wash + store
WC	~3 x 6 ft	Central, off the stair
Staircase	~3.5 x 11 ft	Central, top-lit

First Floor Plan

The first floor holds two bedrooms for the family. The larger one takes the east front with a small balcony; the second sits at the rear. A family nook beside the stair gives a little shared space - precious on a small plan.

Room Schedule — First Floor

Space	Size	Notes
Bedroom 1	11 x 11 ft	East, balcony + attached bath
Bedroom 2	10 x 9 ft	North-west
Shared bath	~5 x 7 ft	Off the corridor
Family nook	~9 x 8 ft	Opens to balcony

Penthouse Floor — The Sky-Deck

Dimensioned penthouse floor plan showing the built mass set back about 10 ft to the west with an 11 x 11 ft master bedroom, an ensuite bath and a stair head, and a sky-deck terrace of about 140 sq ft on the east under a timber pergola with a planter, edged by a glass railing.

This is the move that makes the plan special. The top storey is set back about 10 ft, so its small built mass - a master suite with ensuite and a stair head - sits to the rear, and the front opens into a ~140 sq ft sky-deck terrace. It is modest, but it is private, open to the sky, and shaded by a pergola - a real outdoor room on a plot that has none at ground level. The master bedroom opens straight onto it.

Room Schedule — Penthouse

Space	Size	Notes
Master bedroom	11 x 11 ft	Opens to the sky-deck
Ensuite bath	~7 x 8 ft	Natural light + vent
Sky-deck terrace	~140 sq ft	Pergola, planter, glass rail
Stair head	~6 x 8 ft	Serves the terrace

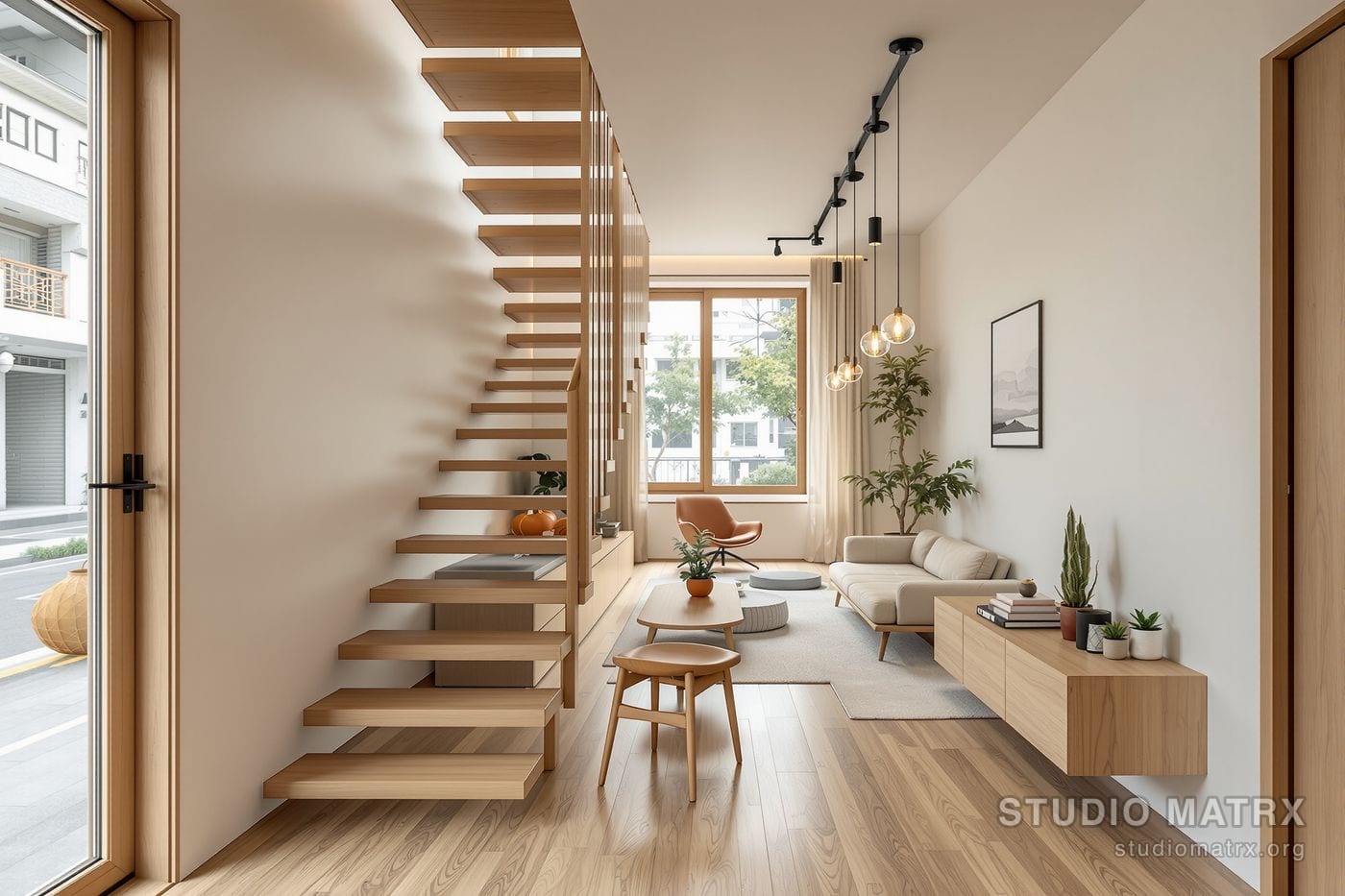

A compact open-plan living and dining space in a narrow modern Indian home - a slim floating timber staircase along one wall, a full-height window to the street, a light wood and white palette, warm space-efficient minimalist furniture.

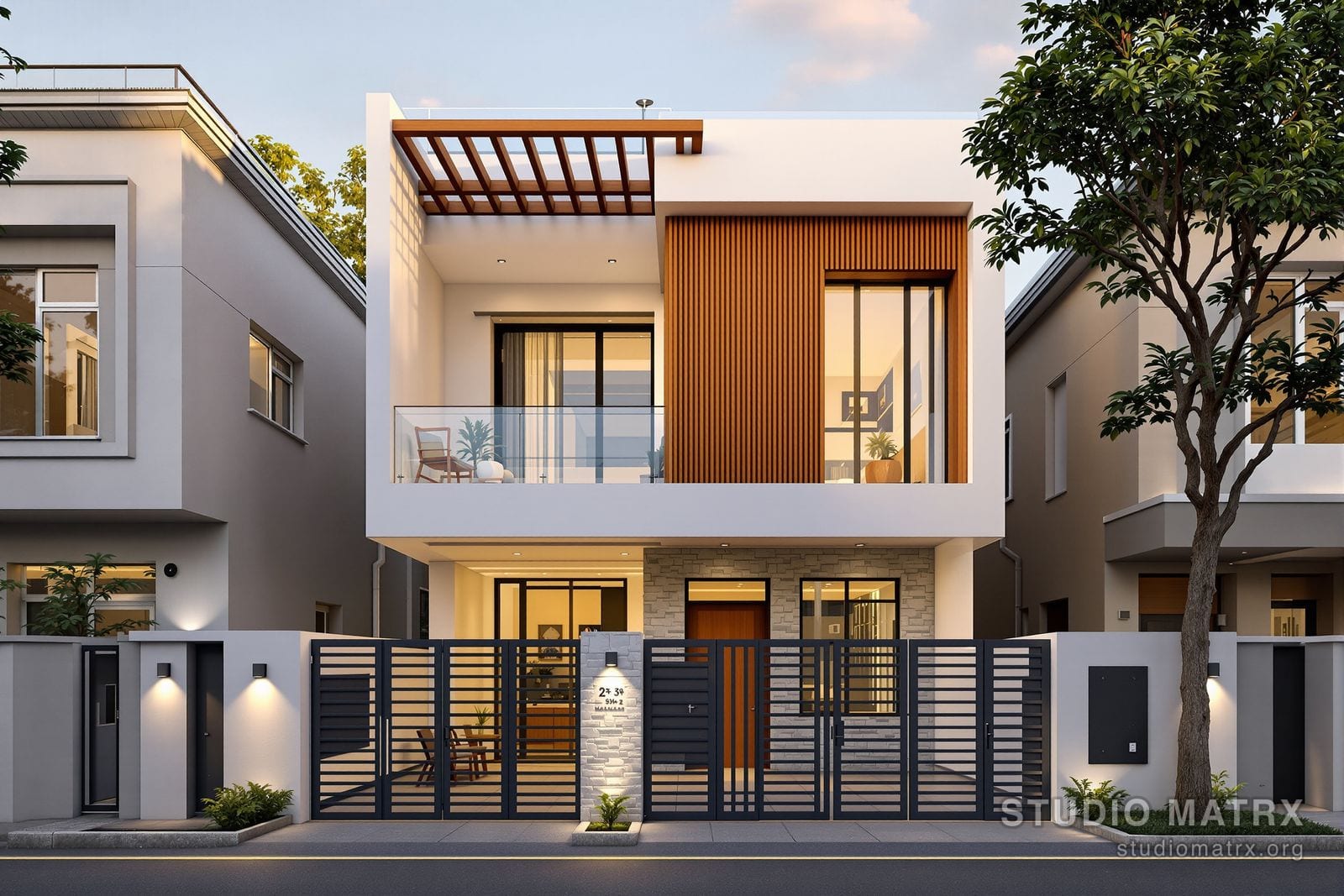

Facade — Street Elevation

East street elevation of the narrow three-storey home showing a stone base at ground with the gate and parking, a first floor of white render with a wood-batten panel and windows, and a set-back penthouse storey with a pergola and a glass-railed sky-deck terrace.

On a narrow 20 ft frontage, the stepped massing keeps the street face from feeling like a flat slab: a stone base, a render-and-wood middle, and the set-back penthouse with its pergola - the same calm, contemporary language as the Modern Farmhouse and Contemporary Indian idioms, scaled down. See Facade Design for Indian Climates and Indian House Front Elevation.

Section — Stepped Massing

Section through the narrow home with east to the right, showing the ground living floor, the first bedroom floor with a small balcony, the set-back penthouse master suite, the sky-deck terrace with its pergola in front, the central stair and 10 ft floor heights.

The section tells the story: three tidy 10 ft storeys, with the top one stepped back so the would-be roof becomes the terrace. The first-floor balcony and the penthouse pergola shade the windows beneath them - self-shading matters even more on a tight plot where you cannot push the building away from the sun.

Element	Function
Stepped top floor	Turns the roof into a private terrace
Pergola	Dappled shade over the deck
Central stair core	Stack ventilation; topped with a vent + skylight
Raised plinth	Above monsoon splash

Biophilic Score — 64 / Emerging

This design scores 64 / 100 - solid for a 600 sqft plot, where there is simply less room for nature than on a larger site.

Dimension	Score	Highlights
Nature in the Space	26 / 40	Good east daylight, the terrace garden, stair-core ventilation
Natural Analogues	20 / 30	Stone, timber and render - a hybrid-natural palette
Nature of the Space	18 / 30	The sky-deck is the one strong prospect-and-refuge moment

Strategy classification: Balcony-gardened · Hybrid natural. On a tight plot the sky-deck does the work a courtyard would on a bigger one. Test your own design with the Biophilic Score tool.

FAR / Setback Compliance Snapshot

City	FAR Used	FAR Allowed (indicative)	Notes
Bengaluru (BBMP)	~1.5	1.75 (small plot)	Confirm side-setback relaxation for ≤6 m frontage
Chennai (CMDA)	~1.5	1.5–2.0	Small-plot rules differ by road width
Pune (PMC / UDCPR)	~1.5	1.5 base + premium	Verify premium-FSI route for the third floor
Hyderabad (GHMC)	~1.5	up to ~2.0	Generous; G+2 readily permitted

Many cities relax side setbacks for plots under ~6 m wide and treat a set-back terrace floor differently from a full floor. Confirm locally before you build.

Cost — Indicative

For ~900 sqft built-up at composite-zone 2026 prices:

Tier	Per sqft (₹)	Total (₹ L)	Includes
Basic	2,200	19.8	Standard finishes, vitrified tile, basic terrace waterproofing
Recommended	2,600	23.4	Stone-clad base, wood-batten facade, proper terrace deck + pergola
Premium	3,000	27.0	Sky-deck landscaping, solar, premium joinery

The penthouse terrace adds cost mainly in waterproofing and the pergola/deck - small sums on a 900 sqft house, for the best room in it. Estimate yours with the Cost Calculator.

Materials Schedule

Element	Specification	Reason
Structure	RCC framed, M25, footing per soil test	Standard for small-plot G+2
External walls	150–200 mm AAC block + render	Light, insulating, fast
Base cladding	20 mm local stone	Grounds the narrow facade
Facade accent	Wood batten / WPC over render	Warmth against the white
Terrace waterproofing	APP membrane + screed-to-falls + protection tile	The critical detail
Terrace deck	WPC / timber deck on pedestals	Walkable, protects the membrane
Railing	Toughened laminated glass	Open view, code height
Windows	Slim black aluminium	Large to the east, shaded above

Vastu Notes

Element	Direction	Rating
Entry	East	Excellent
Kitchen	North-West	Acceptable (SE preferred; swap with utility if Vastu is the priority)
Master bedroom (penthouse)	South-West (set-back mass)	Good
Staircase	Central	Acceptable
Sky-deck	East / open	Good

Rating: Good. The east entry and the south-west penthouse mass are the strong Vastu moves; the kitchen is a compromise forced by the tight footprint. See Vastu for Modern Homes and the Vastu Compass.

Buildability Notes

1. Terrace waterproofing is non-negotiable - membrane, screed to falls, two outlets, deck on pedestals. Read the Waterproofing Guide and Terrace Planning guide.

2. Party walls. On a ≤6 m plot you may build to one or both side boundaries by agreement - settle this with neighbours and the bye-laws early.

3. Light + air. With narrow side gaps, rely on the front, rear and stair-core for ventilation; a stair skylight transforms a small plan.

4. Structure. Get the RCC frame and the set-back penthouse loads designed by an engineer; a soil test first.

5. Rainwater harvesting - mandatory in many states; fit a recharge pit (Rainwater Tank Sizer).

Reading Pairings

Tools to Use With This Plan

Author's note: On a 600 sqft plot every square foot is contested, which is exactly why the penthouse move is so valuable here. You cannot make a courtyard or a garden, but you can step the top floor back and gain a private terrace in the air - the only outdoor room the plot will give you, and often the one that makes the whole house worth living in.

Disclaimer: This is a reference design. Local bye-laws, permissible FAR and floors, setbacks, soil conditions and statutory approvals must be verified by a licensed architect and structural engineer before construction. Costs are indicative for 2026 and vary by city, contractor, site and finish.
