A 25 × 40 ft plot — exactly 1000 sq ft — is the workhorse site of South Indian cities. In Bengaluru, Mysuru, Hyderabad and Coimbatore it is the most-traded plot size of all, and the question every owner asks is the same: how do you get a comfortable 4 BHK out of it without the house feeling like a stack of boxes? This plan answers by building an efficient G+2 and then setting the top floor back, turning what would have been a flat terrace into a penthouse master suite with its own private sky-deck.

It is laid out as a real family home: a ground-floor guest bedroom (ideal for elders who should not climb stairs), the living-dining and kitchen below; two family bedrooms on the first floor; and the penthouse master suite + roof terrace on top. Sized and shaded for the composite climate of the Deccan and the southern plateau, where the 25×40 G+2 is the default residential plot.

Site & Orientation

The plot is 25 ft wide at the road and 40 ft deep, east-facing — the classic South-Indian dimension. The extra depth over a 20×30 plot is what buys the fourth bedroom and a proper covered car park.

Setbacks (indicative, typical Composite-zone bye-laws for ≤150 m² plots):

Setback	Used here
Front (east, road)	1.5 m (5 ft) — covered car park + entry porch
Rear (west)	1.2 m (4 ft) — light, ventilation, services
Sides (north, south)	0.75 m (2.5 ft) each

Buildable footprint is roughly 20 × 31 ft ≈ 620 sqft per floor. Over a G+1 with a set-back penthouse, total built-up is about 1,550 sqft — an FAR near 1.55, well within what these cities allow on a 1000 sqft plot. Setbacks, FAR and the permitted number of floors vary by city and road width — confirm with your local authority and a licensed architect.

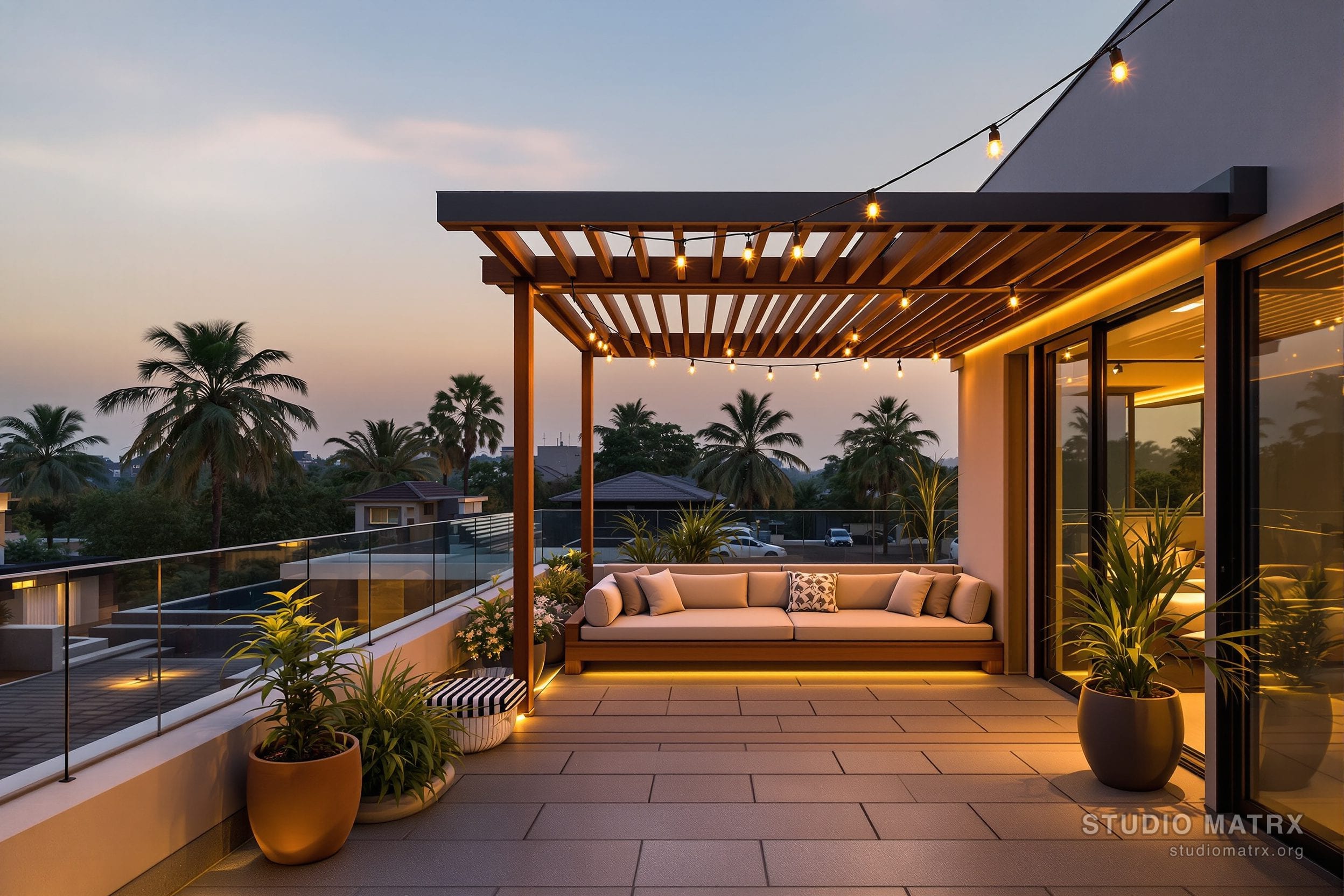

A private rooftop sky-deck on a modern South Indian home at golden hour — a timber pergola overhead casting striped shade, a built-in bench with cushions, planters of frangipani and ornamental grasses, a glass parapet, warm string lights, with palm trees and neighbouring rooftops beyond.

Ground Floor Plan

The ground floor carries the public life of the house plus a guest bedroom. A generous living-dining volume faces east and the street; the kitchen sits at the rear north-west with a utility behind it; a guest bedroom with attached bath occupies the south-west — the room elders or visitors use so no one has to climb. The stair and a common WC run down the middle, with a small pooja niche beside the entry.

Room Schedule — Ground Floor

Space	Size	Notes
Covered car park + entry porch	front setback	One car + two-wheeler
Living + dining	12 × 18 ft	Single volume, east-facing
Kitchen	8 × 10 ft	North-west, rear ventilation
Guest bedroom	10 × 11 ft	South-west, attached bath
Pooja niche	~3 × 4 ft	Near entry / stair
Utility	~6 × 7 ft	Behind kitchen, wash + store
Common WC	~3 × 6 ft	Central, off the stair
Staircase	~3.5 × 12 ft	Central, top-lit

First Floor Plan

The first floor holds two family bedrooms. The larger east-facing room takes the street front with a balcony and attached bath; the second sits at the rear north-west. A family nook beside the stair gives the children or the household a shared sitting space that opens to the balcony — the social heart of the upper house.

Room Schedule — First Floor

Space	Size	Notes
Bedroom 1	12 × 13 ft	East, balcony + attached bath
Bedroom 2	11 × 11 ft	North-west, attached bath
Family nook	~10 × 9 ft	Opens to balcony
Bathrooms	~5 × 7 ft ×2	Naturally ventilated
Staircase	~3.5 × 12 ft	Central, top-lit

Penthouse Floor — The Sky-Deck

Dimensioned penthouse floor plan showing the built mass set back about 12 ft to the west with a 13 x 13 ft master bedroom, a walk-in wardrobe, an ensuite bath and a stair head, and a sky-deck terrace of about 240 sq ft on the east under a timber pergola with planters, edged by a glass railing.

This is the move that lifts the plan above an ordinary 25×40 duplex. The top storey is set back about 12 ft, so its built mass — a master suite with walk-in wardrobe, ensuite and a stair head — sits to the rear, and the front opens into a ~240 sq ft sky-deck terrace. It is a genuine outdoor room: private, open to the sky, shaded by a pergola, big enough for a morning-coffee corner and a few planters. The master bedroom opens straight onto it — the best room in the house, and the one a flat plot could never give you.

Room Schedule — Penthouse

Space	Size	Notes
Master bedroom	13 × 13 ft	Opens to the sky-deck
Walk-in wardrobe	~6 × 8 ft	Off the master
Ensuite bath	~7 × 8 ft	Natural light + vent
Sky-deck terrace	~240 sq ft	Pergola, planters, glass rail
Stair head	~6 × 8 ft	Serves the terrace

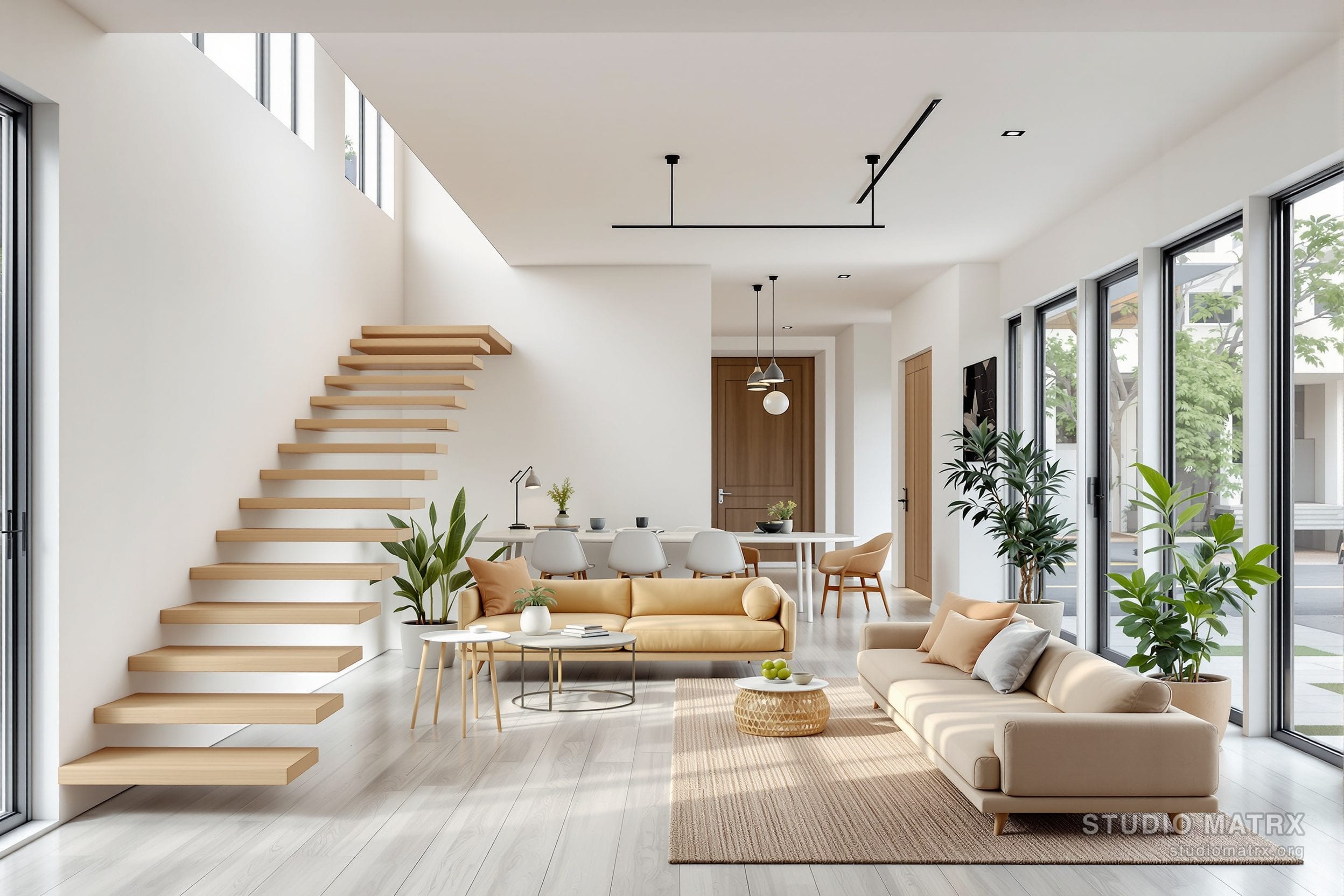

An open-plan living and dining space in a modern South Indian home — a floating timber staircase along one wall, full-height windows to the street, a light wood and white palette, indoor plants, warm contemporary furniture in a calm minimalist room.

Facade — Street Elevation

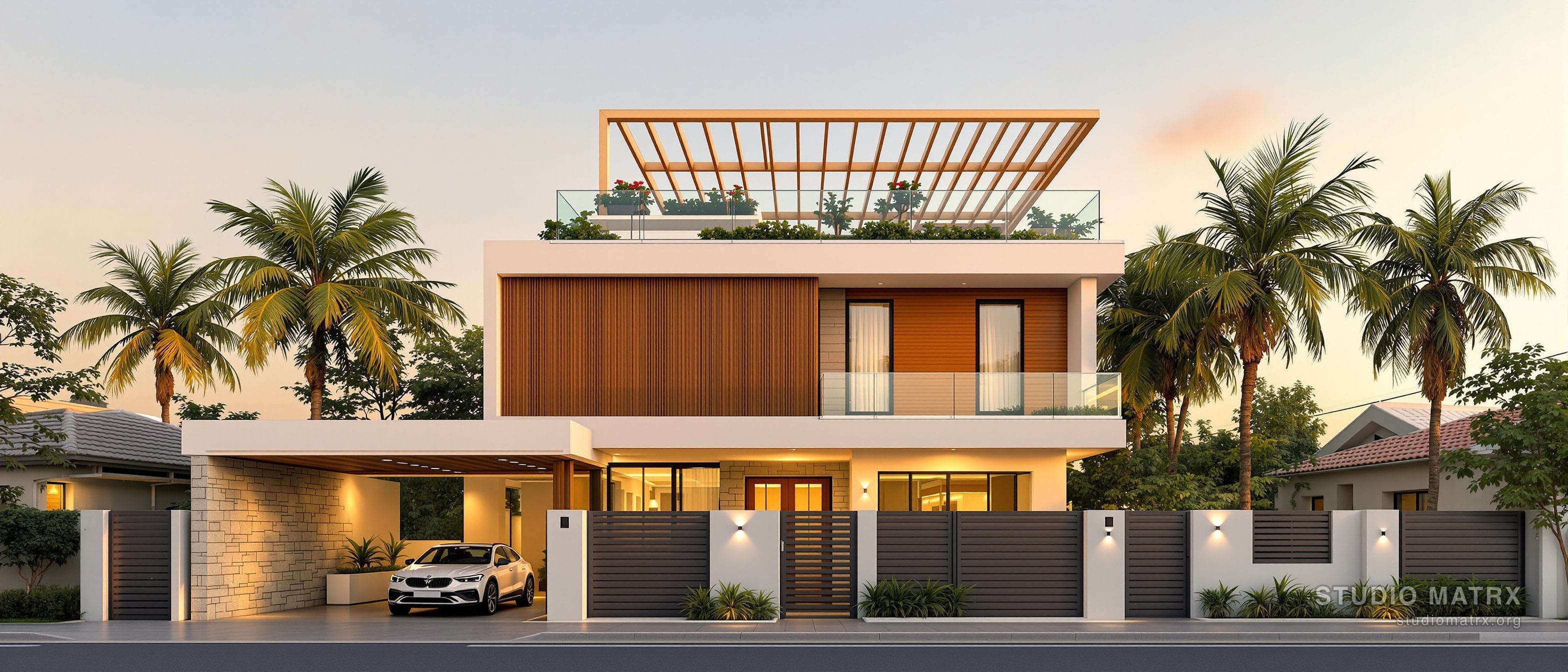

East street elevation of the three-storey home showing a stone base at ground with the gate and covered parking, a first floor of white render with a wood-batten panel and large windows, and a set-back penthouse storey with a pergola and a glass-railed sky-deck terrace.

The stepped massing keeps the 25 ft street face from reading as a flat slab: a stone base, a render-and-wood middle floor, and the set-back penthouse crowned by its pergola — the same calm, contemporary language as the Modern Farmhouse and Contemporary Indian idioms. See Facade Design for Indian Climates and Indian House Front Elevation.

Section — Stepped Massing

Section through the home with east to the right, showing the ground living floor, the first bedroom floor with a balcony, the set-back penthouse master suite, the sky-deck terrace with its pergola in front, the central stair and 10 ft floor heights.

The section tells the story: three tidy 10 ft storeys, with the top one stepped back so the would-be roof becomes a terrace. The first-floor balcony and the penthouse pergola self-shade the windows beneath them — useful on any plot, essential on a tight one where you cannot push the building away from the morning and evening sun.

Element	Function
Stepped top floor	Turns the roof into a private terrace
Pergola	Dappled shade over the deck
Central stair core	Stack ventilation; topped with a vent + skylight
Raised plinth	Above monsoon splash

Biophilic Score — 68 / Strong

This design scores 68 / 100 — strong for a 1000 sqft plot, helped by the deeper site, the larger sky-deck garden and good east light through the house.

Dimension	Score	Highlights
Nature in the Space	28 / 40	East daylight, the terrace garden, stair-core ventilation, balcony planting
Natural Analogues	21 / 30	Stone, timber and render — a hybrid-natural palette
Nature of the Space	19 / 30	The sky-deck gives a real prospect-and-refuge moment above the street

Strategy classification: Balcony-gardened · Hybrid natural. On a tight plot the sky-deck does the work a courtyard would on a larger one — and at 240 sq ft it is large enough to plant properly. Test your own design with the Biophilic Score tool.

FAR / Setback Compliance Snapshot

City	FAR Used	FAR Allowed (indicative)	Notes
Bengaluru (BBMP)	~1.55	1.75 (small plot)	25×40 is the standard BDA/BBMP site; G+2 routinely permitted
Mysuru (MUDA)	~1.55	1.5–1.75	Confirm road-width-linked FAR
Chennai (CMDA)	~1.55	1.5–2.0	Small-plot rules differ by road width
Hyderabad (GHMC)	~1.55	up to ~2.0	Generous; G+2 readily permitted

The 25×40 is one of the best-understood plot sizes in South India, so approvals are well-trodden — but a set-back terrace floor is sometimes treated differently from a full floor. Confirm locally before you build.

Cost — Indicative

For ~1,550 sqft built-up at composite-zone 2026 prices:

Tier	Per sqft (₹)	Total (₹ L)	Includes
Basic	2,200	34.1	Standard finishes, vitrified tile, basic terrace waterproofing
Recommended	2,600	40.3	Stone-clad base, wood-batten facade, proper terrace deck + pergola
Premium	3,000	46.5	Sky-deck landscaping, solar, premium joinery, false ceilings

The penthouse terrace adds cost mainly in waterproofing and the pergola/deck — a small share of a 1,550 sqft house, for what becomes the best room in it. Estimate yours with the Cost Calculator.

Materials Schedule

Element	Specification	Reason
Structure	RCC framed, M25, footing per soil test	Standard for small-plot G+2
External walls	150–200 mm AAC block + render	Light, insulating, fast
Base cladding	20 mm local stone	Grounds the facade at the street
Facade accent	Wood batten / WPC over render	Warmth against the white
Terrace waterproofing	APP membrane + screed-to-falls + protection tile	The critical detail
Terrace deck	WPC / timber deck on pedestals	Walkable, protects the membrane
Railing	Toughened laminated glass	Open view, code height
Windows	Slim black aluminium	Large to the east, shaded above

Vastu Notes

Element	Direction	Rating
Entry	East	Excellent
Kitchen	North-West	Acceptable (SE preferred; swap with utility if Vastu is the priority)
Guest bedroom	South-West (ground)	Good
Master bedroom (penthouse)	South-West (set-back mass)	Good
Pooja	North-East corner of plan	Excellent
Staircase	Central	Acceptable
Sky-deck	East / open	Good

Rating: Good. The east entry, the north-east pooja and the south-west sleeping mass are the strong Vastu moves; the kitchen is a compromise that can be swapped with the utility if Vastu is a priority. See Vastu for Modern Homes and the Vastu Compass.

Buildability Notes

1. Terrace waterproofing is non-negotiable — membrane, screed to falls, two outlets, deck on pedestals. Read the Waterproofing Guide and Terrace Planning guide.

2. Party walls. On a 25 ft frontage with 2.5 ft side gaps, settle boundary-wall arrangements with neighbours and the bye-laws early.

3. Light + air. Use the front, rear and stair-core for ventilation; a stair skylight transforms the central rooms. The deeper 40 ft plan makes a top-lit core especially valuable.

4. Structure. Get the RCC frame and the set-back penthouse loads designed by an engineer; a soil test first.

5. Rainwater harvesting — mandatory in many states; fit a recharge pit (Rainwater Tank Sizer).

Reading Pairings

Tools to Use With This Plan

Author's note: The 25×40 is the plot most South Indian families actually buy, which is exactly why it deserves a better answer than a plain duplex. The extra depth over a 20×30 gives you the fourth bedroom and a covered car park; the set-back top floor gives you a real terrace in the air. Together they turn a standard site into a house with a guest room downstairs and a private retreat on the roof.

Disclaimer: This is a reference design. Local bye-laws, permissible FAR and floors, setbacks, soil conditions and statutory approvals must be verified by a licensed architect and structural engineer before construction. Costs are indicative for 2026 and vary by city, contractor, site and finish.
