Understanding Hydraulic Retention Time (HRT) in STPs: The Complete Guide

Ask any STP designer what decides the size of an aeration tank, and the answer comes down to one deceptively simple number: how long the sewage needs to sit inside it. That length of time is the hydraulic retention time, or HRT — arguably the most-used design parameter in the whole of wastewater engineering, and one of the most misunderstood.

Get HRT right and the microbes have enough time to eat the pollution, the tank is neither wastefully huge nor dangerously small, and the treated water meets discharge norms comfortably. Get it wrong and you either overspend on concrete and land, or you build a plant that never quite meets its numbers. This guide explains what HRT is, the one formula you need, how it drives reactor sizing and treatment, the typical HRT you should expect for each major technology, and why HRT must never be confused with its sibling, SRT.

Hydraulic retention time is simply the average time a drop of wastewater spends inside a treatment tank. It is the tank's volume divided by the flow passing through it — and it quietly governs whether treatment succeeds or fails.

What hydraulic retention time actually means

Hydraulic retention time is the average time the wastewater stays inside a reactor before it flows out. If a tank holds 100 kilolitres and 100 kilolitres of sewage pass through it every day, then on average each drop lingers for one day — an HRT of 24 hours.

That "average time" matters because treatment is not instant. Biological treatment depends on living bacteria consuming the organic load (measured as BOD, COD and TSS). Those microbes need contact time with the sewage to do their work. Too little time and the water leaves before it is clean; too much and you have simply built a bigger tank than you needed to.

HRT is expressed in hours for most aerobic STP processes and in hours or days for anaerobic ones. It is a property of the tank and the flow together — change either, and the HRT changes.

The HRT formula

There is only one equation to remember, and it is genuinely this simple:

HRT = Reactor Volume ÷ Flow Rate

Or, written the way it appears on most design sheets:

HRT (hours) = V (m³) ÷ Q (m³/hour)

Where V is the effective working volume of the reactor and Q is the flow rate through it. Because Indian STP flows are usually quoted in KLD (kilolitres per day), it is worth being careful with units.

A worked example makes it concrete. Suppose a residential complex generates 300 KLD of sewage and the aeration tank has a working volume of 100 m³:

• Q = 300 m³/day = 12.5 m³/hour
• HRT = 100 ÷ 12.5 = 8 hours

Flip the formula and it becomes a sizing tool: if you want an 8-hour HRT at 300 KLD, you need a 100 m³ tank. That inversion — solving for volume once you fix a target HRT — is exactly how reactors are sized, and exactly what the Hydraulic Retention Time Calculator does for you in seconds. If you first need to establish the flow itself, the Sewage Generation Calculator converts occupancy into KLD.

How HRT drives reactor sizing and treatment

HRT sits at the exact intersection of two things every client cares about: how big the plant is and how well it treats.

Sizing. Volume is cost — cost of concrete, of steel, of the plot of land the tank stands on, and of the water it holds. Because V = Q × HRT, the retention time you choose is a direct multiplier on the size of the biological reactor. Double the design HRT and you double the tank. This is why designers do not pick HRT loosely: an over-generous HRT quietly inflates capital cost, while a stingy one starves the process. Sizing the plant as a whole starts one step earlier, with total capacity — see how to size an STP and the STP Capacity Calculator.

Treatment. HRT determines the contact time between the wastewater and the biomass. More retention time generally means:

• Lower effluent BOD and COD — microbes get longer to oxidise the organic load.
• Better nitrification — the slow-growing bacteria that convert ammonia to nitrate need generous contact time.
• More stable performance during shock loads and peak flows.

But there is a ceiling. Beyond a technology's useful HRT band, extra time buys almost no extra treatment — the pollution is already gone — and you are just paying to hold clean water. The engineering skill is landing HRT in the sweet spot for the chosen process and the incoming load. Organic strength matters here too: a high-BOD stream may need a longer HRT than a dilute one at the same flow, which is why HRT is always read alongside the organic loading rate.

A note on peaks: HRT is calculated on average flow, but real sewage arrives in surges. This is why an equalisation tank sits upstream — it flattens the morning and evening peaks into a steady flow so the reactor actually experiences the HRT it was designed for.

Typical HRT by technology

Different treatment technologies achieve the same clean water with very different retention times, because they hold very different amounts of biomass. A process that packs in more active microbes needs less time. The figures below are indicative design ranges for domestic sewage in Indian conditions — always confirm against your process guarantee and load.

A few things to read from this table:

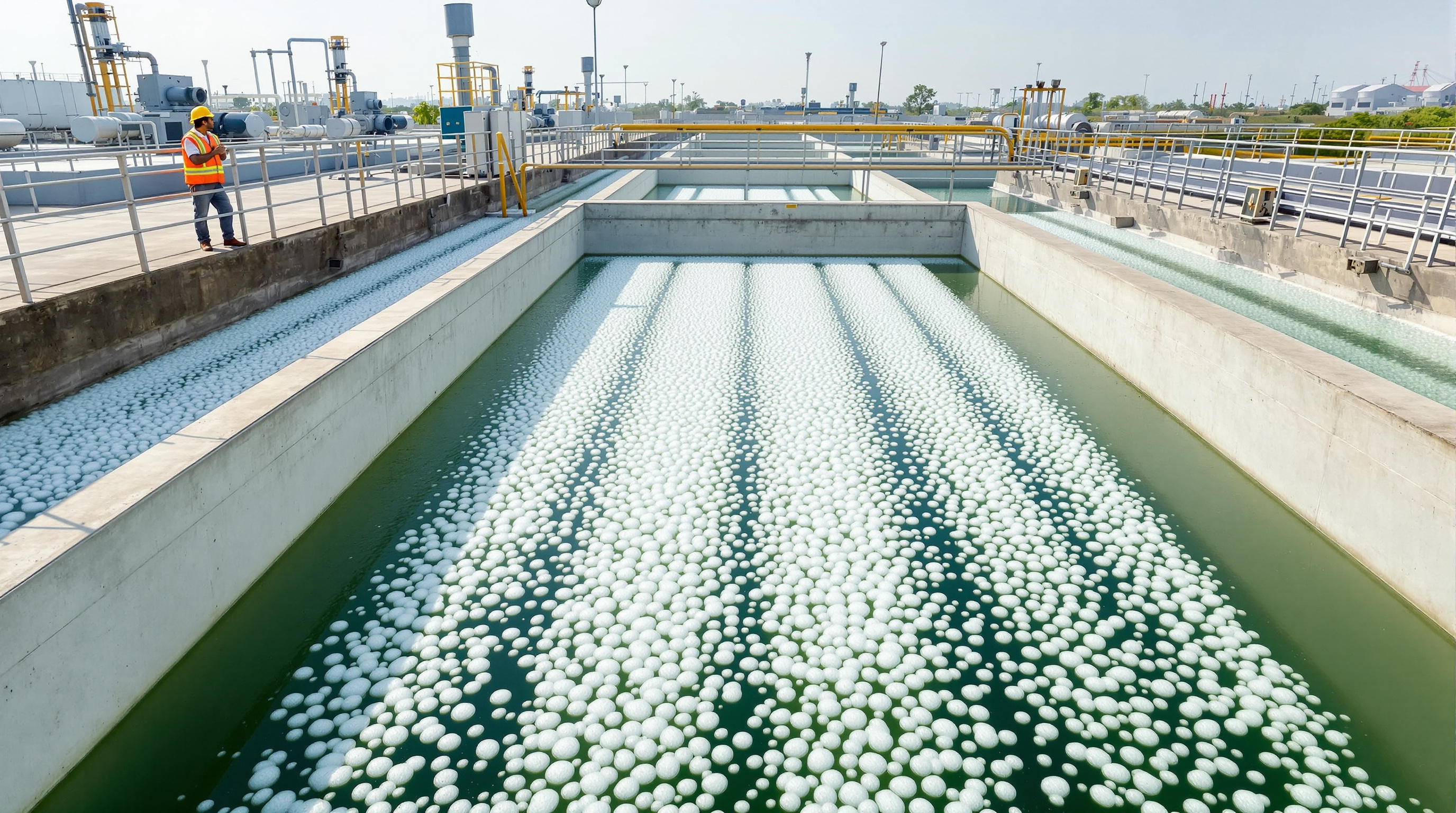

• ASP is the baseline — reliable, well-understood, and moderately hungry for volume.

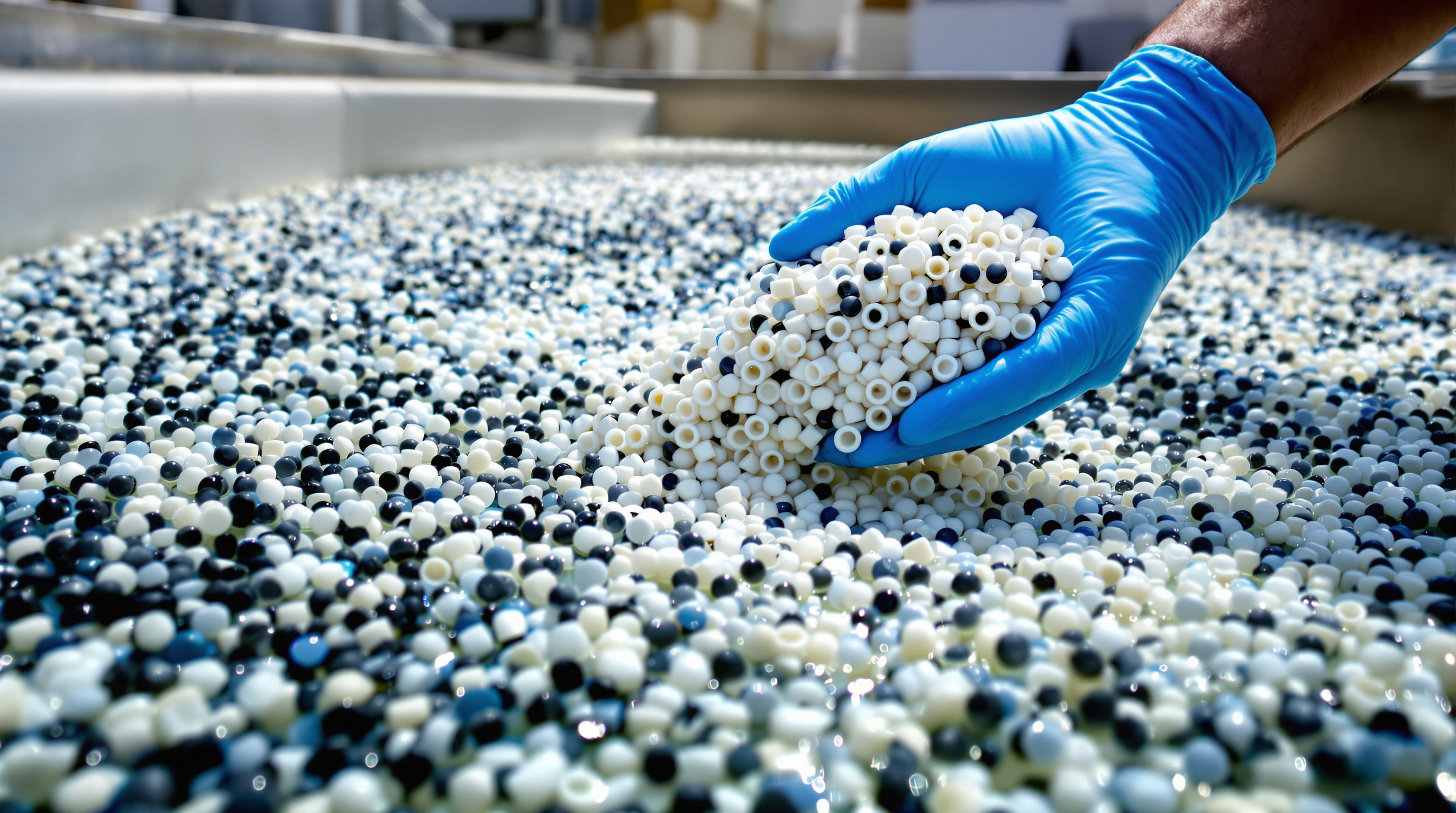

• MBBR and MBR shrink the tank because their biomass concentration is far higher, which is why they are favoured where land is tight.
• SBR is a special case: HRT is governed by the cycle time, since fill, react, settle and decant all occur in the same tank in sequence rather than in a continuous flow.
• UASB works anaerobically — no aeration — and is common on stronger or warmer wastewaters, though it usually needs an aerobic polishing step after it.

HRT versus SRT — two different clocks

This is where even experienced people slip. HRT is not the same as SRT (Solids Retention Time, also called sludge age or MCRT), and confusing them is a classic design error.

• HRT = how long the water stays in the reactor.
• SRT = how long the microbial solids (biomass) stay in the system before they are wasted.

In a simple tank with no recycling, the two would be equal — water and microbes leave together. But the entire trick of the activated sludge process is a clarifier that settles the biomass and a return line that pumps it back into the aeration tank. That recycling lets the solids stay far longer than the water. Water might pass through in 8 hours (HRT), while the biomass is retained for 10–15 days (SRT).

Why does this matter? Because the two parameters control different outcomes:

• HRT sets the tank volume and the water's contact time.
• SRT sets the type and health of the microbial community — long SRT grows the slow bacteria needed for nitrification and produces less waste sludge; short SRT favours fast growers and generates more sludge.

Good design tunes them independently: HRT to give the water enough contact time, SRT to cultivate the right, stable biomass. The amount of sludge finally wasted from the system — a function of SRT and load — can be estimated with the Sludge Generation Calculator.

The bottom line

Hydraulic retention time is the plainest idea in wastewater engineering and one of the most powerful: volume divided by flow — how long the sewage sits in the tank. It multiplies directly into reactor size and therefore cost, it governs how thoroughly the microbes clean the water, and it varies from around 4 hours in a compact MBBR or SBR to 6–10 hours in an anaerobic UASB. Above all, it is not SRT: the water and the microbes run on two separate clocks, and a good STP sets each one deliberately.

From here, two natural next steps. To see how HRT fits into the wider design sequence — flow, load, tanks and sludge — browse the Sewage Treatment Plants guide library. And to turn a flow and a target retention time into an actual tank volume, spend a minute with the Hydraulic Retention Time Calculator — the fastest way to move from a design intent to a number you can build to.
