Upflow Anaerobic Sludge Blanket (UASB): Anaerobic Sewage Treatment Explained

Most of the sewage-treatment world runs on oxygen. Blowers hum around the clock, pushing air into aeration tanks so that bacteria can breathe while they eat the waste — and that air is, by a wide margin, the single largest running cost of a conventional STP. The Upflow Anaerobic Sludge Blanket, or UASB, throws that assumption out. It treats sewage in a sealed tank with no oxygen at all, lets a different family of microbes do the work, and instead of spending energy, it produces energy — biogas — as a by-product.

For India's large municipal sewage plants, that trade is compelling. This guide explains how a UASB reactor actually works, why the sludge blanket and the gas-solid separator are the two clever ideas at its heart, what the biogas and energy story really looks like, and — just as important — why a UASB is almost never the whole answer, and always hands its water to an aerobic step afterwards.

An aerobic STP spends energy to force pollution out of water. A UASB does something closer to alchemy: it converts the pollution into methane. The same organic load that costs you electricity to aerate becomes fuel you can burn — provided you accept that anaerobic microbes are slower, fussier, and never quite finish the job.

New to the underlying ideas? It helps to first understand what a sewage treatment plant is and how an STP works stage by stage. This guide zooms into one specific, energy-defining technology within that world.

Aerobic vs anaerobic: two ways to eat sewage

Every biological treatment process is just microbes eating the organic waste (the BOD) in sewage. The difference is what they breathe.

• Aerobic processes — the Activated Sludge Process, MBBR, SBR, MBR — use bacteria that need dissolved oxygen. They are fast and produce very clean water, but you must pump air continuously, and they generate a large volume of surplus sludge that has to be handled.
• Anaerobic processes work in the absence of oxygen. A slower, specialised community of bacteria breaks the organic matter down in stages, ultimately into biogas — a mixture of roughly 65–75% methane and the rest carbon dioxide. No air is pumped in, far less sludge is produced, and the methane is recoverable fuel.

The UASB is the most successful anaerobic reactor ever built for treating dilute wastewater like municipal sewage. Anaerobic digestion was long thought suitable only for thick, concentrated industrial effluents; the UASB, developed by Gatze Lettinga in the Netherlands in the 1970s, made it work for ordinary sewage — and India adopted it enthusiastically for large city plants along the Ganga and elsewhere.

How a UASB reactor works

Picture a deep, sealed tank, typically 4–6 metres tall. Everything about it is arranged around one motion: the water flows upward, slowly.

1. Sewage enters at the bottom

Raw sewage (after screening and grit removal) is fed into the base of the reactor through a carefully designed network of inlet pipes that spread it evenly across the floor. From there it begins its slow rise toward the top. The upflow velocity is deliberately gentle — around 0.5 to 1.0 metre per hour — so the water drifts up rather than rushing.

2. It passes through the sludge blanket

This is the heart of the technology. Sitting in the lower half of the reactor is a dense layer of anaerobic biomass — the sludge blanket. Over weeks of operation, the bacteria clump together into dense, sand-like granules a few millimetres across. These granules are heavy enough that the gentle upflow cannot wash them out; they stay suspended, forming a living filter the sewage must pass through.

As the wastewater percolates up through this blanket, the granules make intimate contact with the organic matter and consume it. The pollution is digested in a chain — complex molecules broken to simpler acids, then those acids converted to methane. Because the biomass is so concentrated and the contact so thorough, a UASB removes a large share of the incoming BOD and COD in this single pass.

3. Biogas rises and does useful work

Digestion releases bubbles of biogas. As they rise, they gently stir the blanket, mixing the granules with fresh sewage without any mechanical stirrer or energy input — the reactor effectively mixes itself. The gas continues up toward the top of the tank, where it must be separated from the water before it escapes.

4. The gas-liquid-solid separator (GLSS) does the sorting

At the top sits the reactor's second brilliant idea: the gas-liquid-solid separator, a set of inverted funnels or hoods, sometimes called the three-phase separator. It performs three jobs at once:

• Gas bubbles hit the underside of the hoods, are funnelled into a collection dome, and piped off to a gas holder as biogas.
• Solids — any granules carried up with the flow — hit the sloped surfaces, lose their upward momentum, and slide back down into the blanket. This is what keeps the biomass in the reactor and the water clear.
• Liquid, now treated, rises into a calm settling zone above the hoods and overflows into launder channels for collection.

The result is a reactor with no moving parts inside it, no aeration, and no mechanical mixing — an elegantly passive machine.

The energy and biogas story

This is the whole reason UASB exists, and it is genuinely significant.

• It consumes almost no energy. With no blowers and no internal mixers, a UASB's only real power demand is inlet pumping. Compared with an aerobic plant of the same capacity — where aeration can be 60–70% of total energy use — the saving is dramatic.

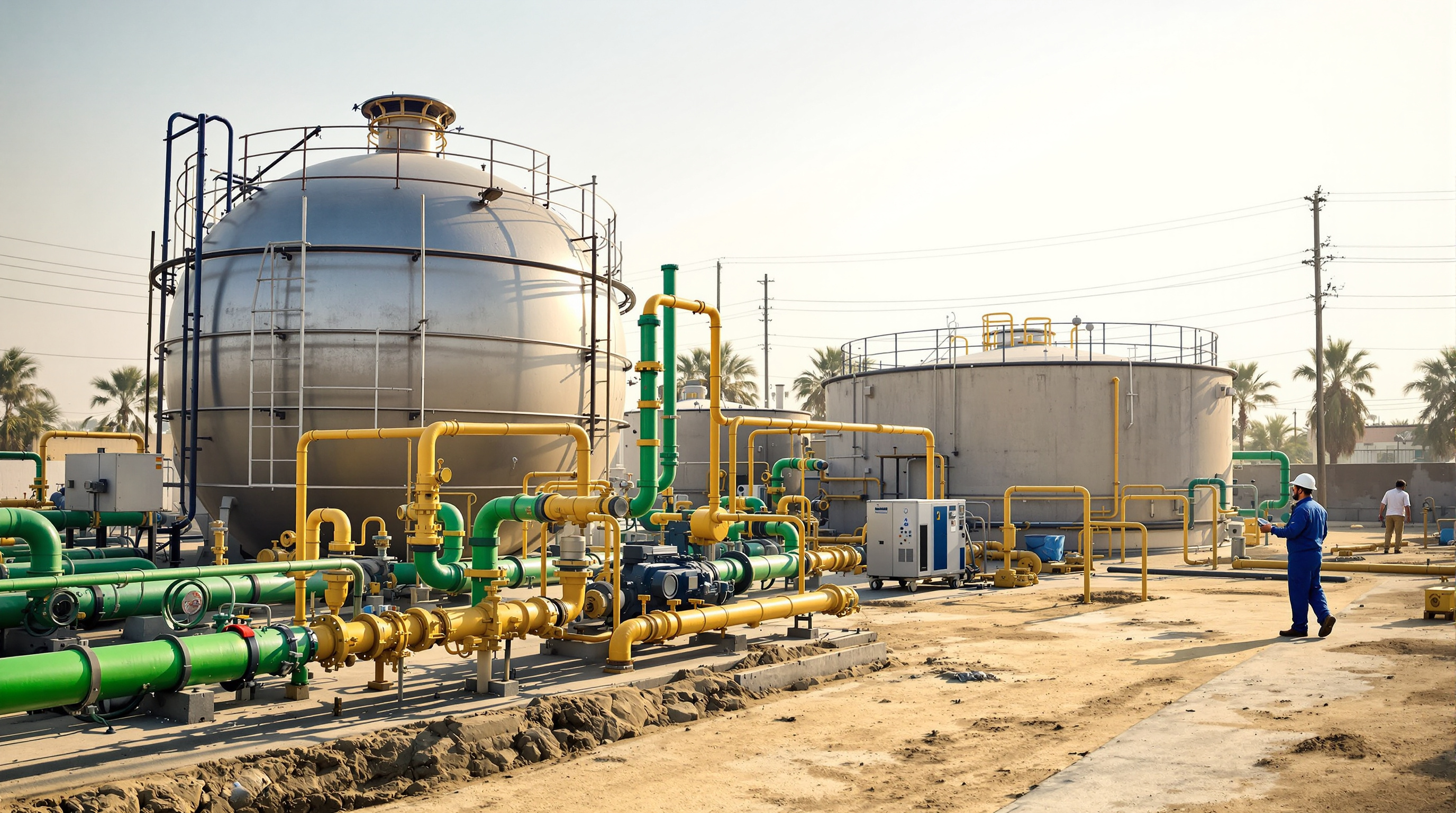

• It generates energy. A municipal UASB produces a real stream of biogas. Once cleaned, that methane can fuel a boiler, a gas engine driving a generator, or simply be flared where recovery is not economic. At large city plants it can offset a meaningful fraction of the site's electricity.
• It produces far less sludge. Anaerobic bacteria grow slowly, so much less surplus biomass is created than in an activated-sludge plant — and what does come out is already stabilised and easier to dewater on drying beds.

For a large municipal STP watching both its power bill and its sludge-disposal costs, those three advantages are exactly why UASB became a workhorse of Indian sewage infrastructure.

The catch: UASB never works alone

If UASB were a complete solution, aeration would be obsolete. It is not — and the reasons are firm.

• The water is not clean enough on its own. A UASB reduces BOD substantially, but its effluent still typically carries a BOD of 60–100 mg/L — well above the discharge and reuse norms that CPCB and state boards expect (directionally in the 10–30 mg/L band). It also does little to remove pathogens or nutrients.

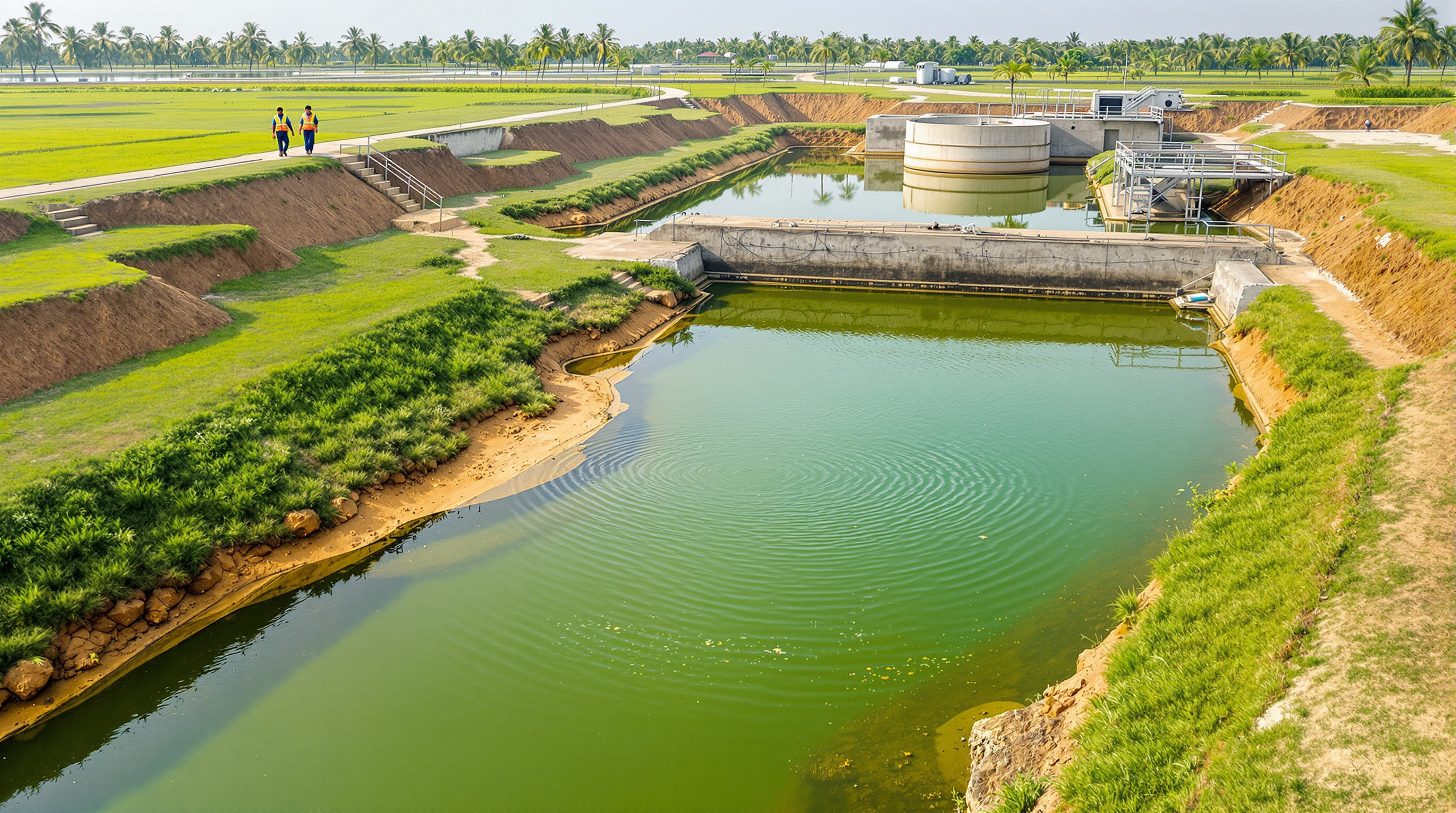

• So it always needs post-treatment. In Indian practice a UASB is followed by an aerobic polishing step — commonly a Final Polishing Unit (a facultative pond), an aerated lagoon, or a compact aerobic reactor — to bring BOD, TSS and pathogens down to standard. The UASB does the heavy, cheap bulk-removal; the polishing step does the finishing.
• It is temperature-sensitive. Anaerobic microbes slow markedly in the cold. UASB performs best around 20–35°C, which suits most of India for most of the year but makes it a poor fit for cold climates and a weaker performer in northern winters.
• It is slow to start and slow to recover. Growing a healthy granular blanket can take weeks to a few months, and a shock — a toxic slug, a pH crash, a temperature drop — can sour the reactor and take a long time to nurse back.
• Gas and odour must be managed. The biogas contains hydrogen sulphide, which is corrosive and foul-smelling, so gas handling and odour control are non-negotiable parts of the design.

UASB at a glance: pros and cons

Where UASB fits — and where it doesn't

UASB shines at large scale in warm climates treating dilute domestic sewage — precisely the municipal city-plant use case, where the energy and sludge savings compound across millions of litres a day and where land for a polishing pond is available. It is a poor fit for a single apartment complex or a compact commercial basement, where footprint is tight, loads swing wildly through the day, and operators want a plug-and-play aerobic package.

For those decentralised building-scale jobs, the aerobic technologies are usually the better answer — the Activated Sludge Process, the Moving Bed Biofilm Reactor (MBBR), the Sequential Batch Reactor (SBR), or the Membrane Bioreactor (MBR). UASB competes at the city scale, not the building scale. To see where a given building's load actually lands, the STP Capacity Calculator turns occupancy into a daily treatment load in litres per day.

The bottom line

The upflow anaerobic sludge blanket is one of the most economically important ideas in sewage treatment: a sealed, oxygen-free reactor in which sewage drifts upward through a self-forming blanket of granular microbes that eat the pollution and exhale it as biogas, while a clever three-phase separator at the top keeps the biomass in and lets the gas and water out. It slashes energy use, produces fuel, and generates little sludge. The price of that efficiency is that anaerobic microbes are slower and fussier and never fully finish — so a UASB is best understood not as a complete STP but as a superbly cheap first stage that hands its water to an aerobic polishing step. Used that way, at municipal scale in India's warm climate, it is one of the smartest bargains in wastewater engineering. To place it among the other options, browse the full Sewage Treatment Plants guide library.
