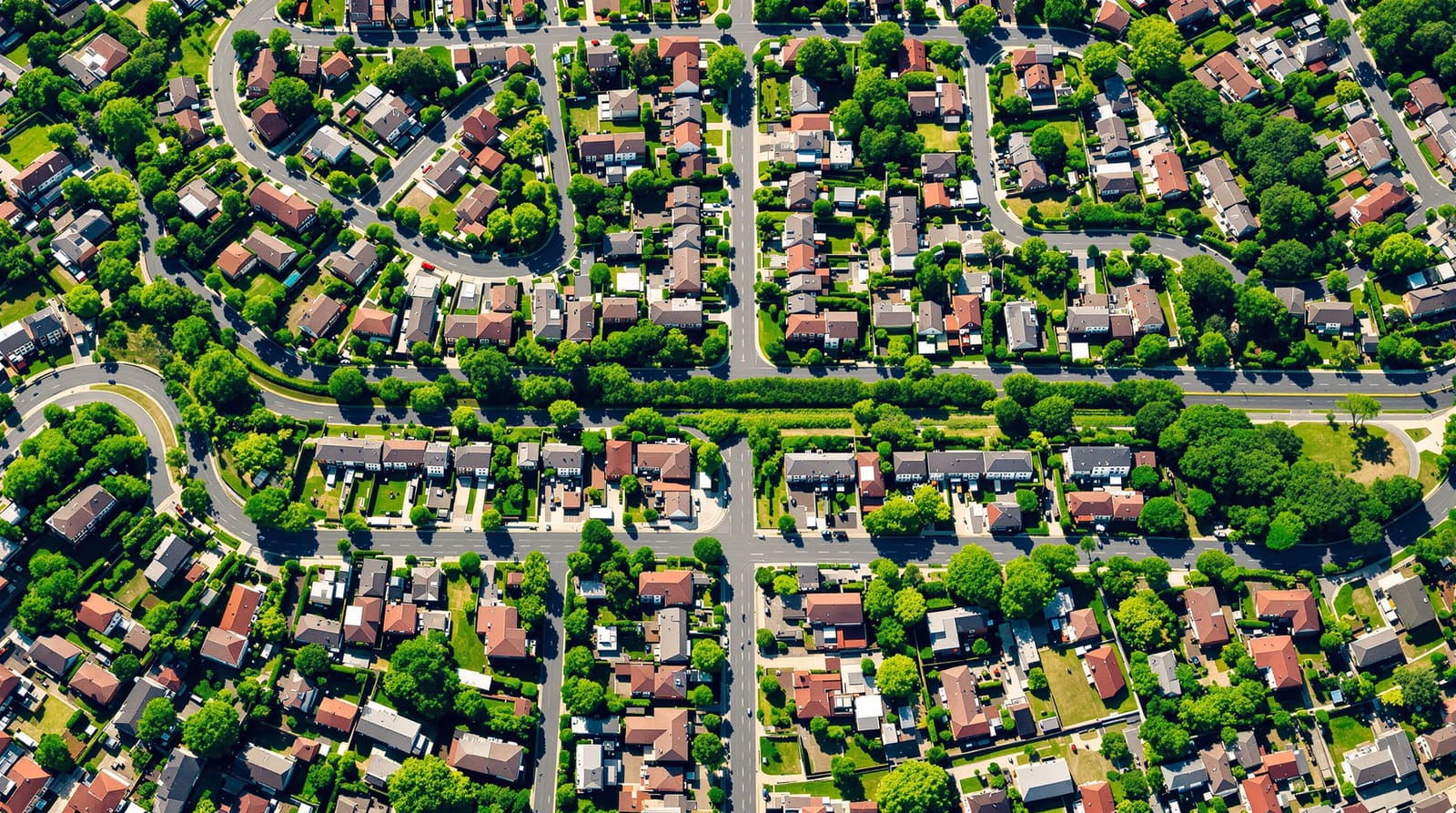

Layout Planning Principles

Drive into almost any new "township" or "enclave" on the edge of an Indian city and you can predict it before you arrive. A boundary wall. A gate with a security cabin. Inside, a relentless waffle of identical 30-by-40 and 40-by-60 plots, separated by streets that are all the same width, all meeting at the same blunt right angles, none of them seeming to lead anywhere in particular. There is a small rectangle marked "park" in one corner, usually the leftover piece nobody could sell, fenced and locked. The streets bake under a white sun because not a single one was turned to face the breeze, and not a single tree was planted before the plots were auctioned. It is efficient. It is approved. It is also, somehow, dead.

Two kilometres away sits an older colony from the 1970s — a layout the developer would today call inefficient. Its streets curve gently and narrow as you move inward. There is a tank-bund walk, a temple at a bend that everyone uses as a landmark, a row of shops where three roads meet, gulmohars arching over the lanes. Children cycle. Old people sit out. The land "wasted" on that crooked green spine is the very thing that made it a place people fight to live in. The difference between a layout that is merely a grid of saleable plots and one that becomes a loved neighbourhood is not budget or plot size — it is whether a handful of timeless planning principles were respected before the first peg went into the ground.

---

Why principles, not templates

A layout is a decision-making structure that will outlive everyone who signs it. The roads, blocks and reservations you draw cannot easily be re-cut once plots are sold and houses built; they harden into the bones of the place for a century. So the question is not "how do I fit the most plots in" — the pillar guide walks through that full step-by-step process — but "what makes the bones good." Principles are the answer. They are the rules of thumb, distilled from a century of planning thought, that explain why one arrangement of the same number of plots feels generous and another feels mean.

You do not need to memorise theorists to use them, but it helps to know the names, because Indian Development Control Regulations (DCR) rarely encode any of this. The bye-laws will tell you the minimum road width and the open-space percentage; they will not tell you whether your layout is legible, connected or climate-responsive. That judgement is yours. Below are the principles that matter most, each paired with what it actually means on the ground and the way it is most commonly botched in India.

The principles that separate good layouts from dumb grids

Connectivity and permeability. A network is good when there are many short ways to get anywhere, not one long way. A fine mesh of through-streets disperses traffic, shortens walks and gives the fire engine and the auto a choice of routes. The opposite — a tree of dead-ends hanging off one spinal road — concentrates every trip onto that spine and chokes it. Jane Jacobs argued for short blocks precisely because they multiply the routes and the street-corner life. The common Indian failing is the single-entry "gated enclave" whose one gate becomes a daily jam, and whose long internal cul-de-sacs force a five-minute walk to reach a neighbour fifty metres away as the crow flies.

A clear road hierarchy. Not every street should do the same job. A good layout sorts its streets into a graded family — arterial, sub-arterial, collector, local street, access lane — each with a matching width and character, so fast through-traffic and quiet doorstep life never have to share the same tarmac. We treat the full mechanics in street hierarchy explained; the principle here is simply that uniform-width streets are a design failure. When every road is a 9 m strip, the layout has no fast roads (so the arterial is overwhelmed) and no slow roads (so children play nowhere).

Legibility. Kevin Lynch, in The Image of the City, showed that people hold a mental map of a place built from five elements — paths (the streets you move along), edges (the boundaries: a canal, a wall, a railway), districts (areas with a shared character), nodes (junctions and gathering points), and landmarks (the temple, the water tank, the big tree). A legible layout deliberately composes these so a first-time visitor can find their way and a resident feels rooted. The Indian failing is the anonymous grid where every junction looks identical, addresses run "5th Cross, 11th Main" with no landmark to anchor them, and you genuinely cannot tell which street you are on.

A density gradient. Good layouts are not uniformly dense. They concentrate intensity — taller buildings, smaller plots, shops — near the main road and transit, and ease into larger, quieter plots as you move into the interior. This is the logic behind the Transect in New Urbanism and behind the idea of the 15-minute neighbourhood, where daily needs sit within a short walk of the densest core. The deeper mechanics of dwelling units per hectare, FSI and ground coverage belong to residential density planning; the principle is that a flat, single-density grid wastes the locations near the main road on the same bungalow plots that sit deep inside.

Mixing uses and plot sizes. A monoculture of identical plots produces a monoculture of households — all the same income, all needing the car to buy a litre of milk. Mixing plot sizes (and permitting a corner shop, a clinic, a crèche) lets a layout house a young couple, a joint family and a retiree, and gives it the local commerce that makes Jacobs' "eyes on the street." How to actually carve and distribute that mix is the subject of residential plot distribution. The failing: zoning that bans every non-residential use, then watching residents illegally run shops out of front rooms because the layout left them nowhere legitimate.

A connected green network. Open space should be a system — a spine, fingers and pocket greens linked by walkable, tree-lined streets — not a single leftover rectangle. A connected green network doubles as the drainage and cooling infrastructure of the layout, the core idea of water-sensitive urban design. The Indian failing is treating the mandated open-space reservation (often around 10 per cent, varying by state) as a tax to be parked in the least valuable corner, rather than a green armature the layout is composed around.

Designing for people before cars. The Radburn layout pioneered separating pedestrians from vehicles with a continuous greenway; Jeff Speck's Walkable City and the Complete Streets movement push the same idea — design the walk first, the drive second. A footpath that is continuous, shaded and at least comfortable for two to pass is worth more to daily life than an extra metre of carriageway. The failing is laying out streets entirely to car-turning radii and parking, then bolting on a 0.6 m "footpath" that vanishes under parked two-wheelers.

Site, climate and the shape of blocks

Two more principles are quieter but decisive, because they tie the abstract network to the actual ground.

Respond to the site and the climate. The orientation of streets and plots is a free, permanent comfort decision. In most of India the punishing exposure is the low west sun and the goal is to catch the prevailing breeze (often from the south-west or south-east, monsoon depending) while shading the streets. Aligning the long axis of plots and the main streets to favour north-south building faces, and reserving the harsh western edge for buffer planting or service uses, can lower indoor temperatures for the entire life of the colony at zero running cost. Good street trees do the rest. This is layout-scale climate response; the plot-scale version lives in site analysis for homeowners.

Get the block and plot proportions right. Blocks that are too long kill connectivity and tempt people to cut through; blocks that are too short waste land on roads. A workable residential block is often in the rough range of 60 to 150 m on its long side, deep enough to fit two rows of plots back-to-back so rear walls meet rather than facing a road. Plot proportions matter too: very narrow deep plots produce dark, hot middles. The failing is the developer's instinct to maximise road frontage (frontage sells), which produces shallow plots strung along excessive road — expensive to service and poor to live in.

Good edges and transitions. A layout does not exist in a vacuum; it meets a busy arterial on one side, a neighbour's land on another, perhaps a stream or a field on a third. How it meets each is a design problem. A residential street should never dump straight onto a high-speed arterial — it needs a service road, a buffer or a controlled node. A natural feature deserves a soft, public, accessible edge, not a row of back walls turning their rear to it. Lynch's "edges" can either divide or stitch; a good layout chooses.

Three layout patterns, honestly compared

Most real layouts are a blend, but it helps to know the three archetypes and what each is good and bad at.

The gridiron — straight streets crossing at right angles — is supremely connected and legible, easy to survey, plot and extend, and land-efficient. Its weaknesses are real: a pure grid invites speeding through-traffic on every street and can be monotonous, with no hierarchy unless you deliberately impose one. The curvilinear or organic layout bends streets to the contours, calms traffic by design and creates the sense of place and surprise the grid lacks — but it sacrifices connectivity (curves become circuitous), is harder to plot efficiently, and produces odd leftover plots. The Radburn loop-and-cul-de-sac / superblock wraps a large block in a perimeter collector and feeds the interior with short loops and dead-ends opening onto a continuous pedestrian greenway, separating people from cars beautifully — but at the cost of connectivity (the cul-de-sac is the enemy of permeability), and it can feel inward-turned and confusing.

In India: fixing the soulless plot-grid

Why do so many Indian layouts default to the soulless grid? Because the incentives reward it. The developer's spreadsheet maximises net saleable plot area, and every curve, every generous green finger, every node looks like "lost" land. The approving authority — the local Town and Country Planning department or Development Authority (DTCP, BDA, CMDA, HMDA, MCGM and their peers) — checks the layout against the master plan land-use, the road widths, the open-space reservation (commonly around 10 per cent, varying by state), the amenity and EWS reservations some states mandate, and the relevant NOCs (fire, environment, airport where applicable). RERA registration is now required for plotted developments in most states. But note what that checklist measures: compliance, not quality. A perfectly soulless grid passes every box. Legibility, permeability and a sense of place are not on the form.

The fix is not to fight the regulations but to spend the same land budget intelligently. Take the open-space reservation you must give anyway and shape it as a connected green spine the layout wraps around, rather than a corner offcut. Impose a road hierarchy within the same total road area. Vary plot sizes within the same yield. Turn the main streets for breeze at no cost. Place the mandated commercial and amenity plots at a genuine node where roads meet, so they become the neighbourhood's heart instead of dead frontage. These moves do not lower the plot count meaningfully — they change which layout, of the many that yield the same number of plots, you choose to build. For the broader theory behind all of this, urban design concepts is the reference; for how these principles add up to a place that actually feels alive, see the anatomy of a good neighbourhood. Keep in mind throughout the distinction between layout approval — the network, plots and reservations — and the separate building-plan sanction each plot-owner later seeks; the principles here govern the former, and they quietly determine whether the latter produces a street worth living on.

References

• Clarence Perry, The Neighbourhood Unit (1929), in the Regional Plan of New York.
• Kevin Lynch, The Image of the City (MIT Press, 1960).
• Jane Jacobs, The Death and Life of Great American Cities (Random House, 1961).
• Jeff Speck, Walkable City: How Downtown Can Save America, One Step at a Time (2012).
• URDPFI Guidelines, 2014 (Ministry of Urban Development, Government of India).
• Relevant State Town and Country Planning Act and Development Control Regulations (vary by state/authority).
• National Building Code of India, 2016 (Bureau of Indian Standards).
