Street Hierarchy Explained
Residential Layout Design

Street Hierarchy Explained

Arterial to access lane — the function, width and connectivity of every street level, plus cross-sections, junction types and the movement-versus-access trade-off

15 min readAmogh N P16 June 2026Last verified June 2026

Drive into almost any plotted layout on the edge of an Indian city and you can read its quality from the road alone. Sometimes you turn off a roaring six-lane corridor straight onto the lane outside someone's gate — autos braking, a school van reversing, a cement lorry blocking both directions while children weave between bumpers. Other times the transition is graceful: the highway hands you to a tree-lined avenue, the avenue feeds a quieter collector, and only then does a calm 9-metre lane deliver you to the doorstep, where a watchman waves and a dog sleeps in the middle of the carriageway because nothing fast ever comes this way.

The difference is rarely about money or even about how wide the roads are. It is about whether the layout's roads are organised — whether each one knows what job it is meant to do. A good road network is not a flat web of equal streets; it is a graded system in which fast, high-volume roads carry you across the area and slow, low-volume roads carry you in. A residential layout works only when its streets form a deliberate hierarchy — each level tuned for either movement or access, never asked to do both at once.

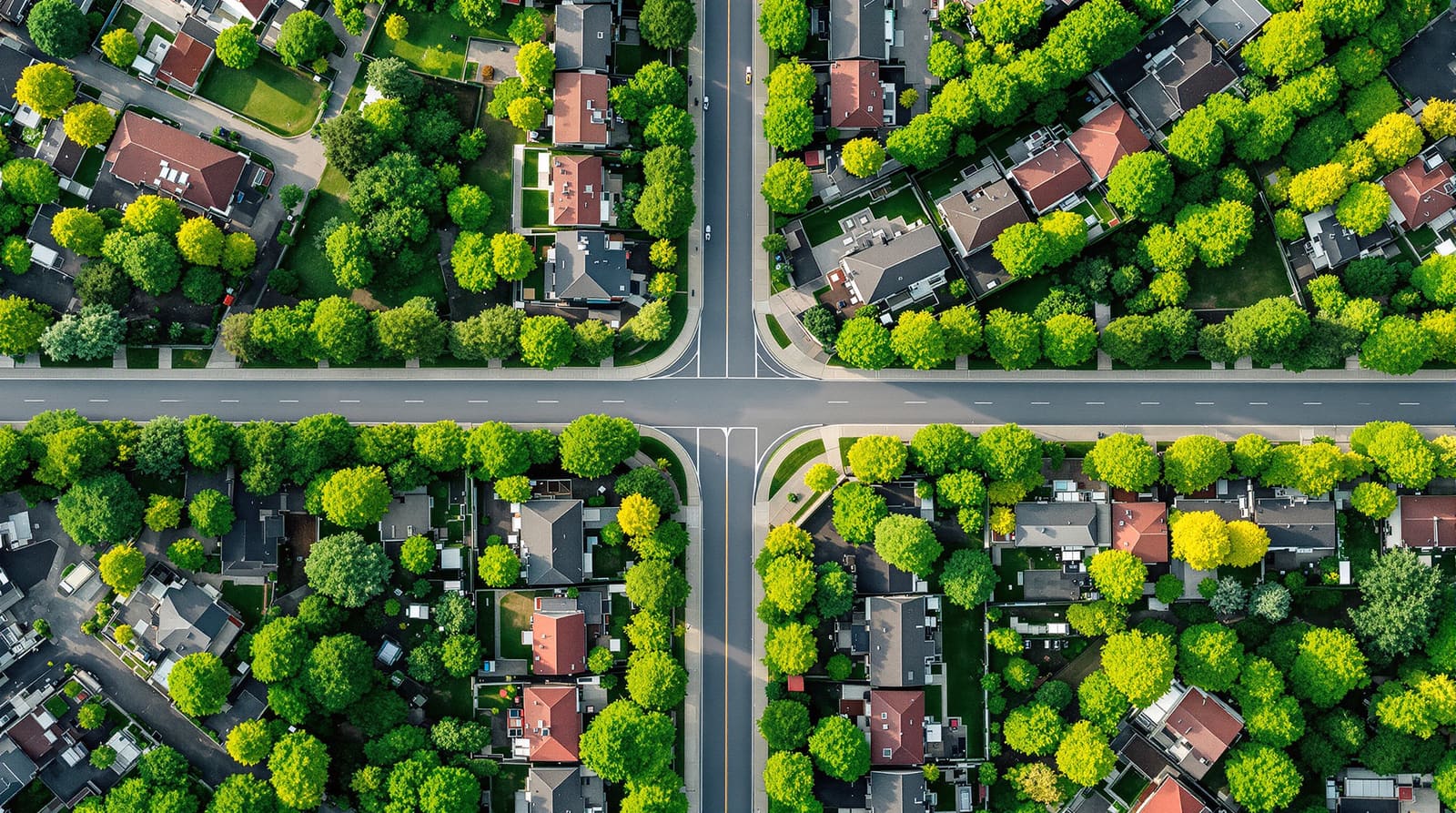

An aerial view of a residential layout showing a clear hierarchy of streets — a wide tree-lined arterial, collector roads branching off, and quiet narrow local lanes serving the plots

The movement–access trade-off

Every road does two contradictory things. It moves traffic through a place, and it provides access to the plots beside it. The two pull in opposite directions. Movement wants speed, continuity, few interruptions and no parked cars. Access wants slow speeds, frequent driveways, on-street parking, pedestrians stepping out and vehicles turning across the flow. A single road cannot serve both well: the moment a fast through-road sprouts shop fronts and gate openings, it becomes dangerous and congested; the moment a quiet residential lane is used as a shortcut, it stops being safe to live on.

The hierarchy is simply the planner's answer to this conflict. At the top, arterials are almost pure movement — you reach them, you don't front onto them. At the bottom, access lanes are almost pure access — they front everything and move almost nothing. The levels in between trade the two functions in shifting proportions. Get the grading right and traffic finds its natural level, draining from many small slow streets into fewer large fast ones, the way water finds a river. Get it wrong — by letting plots open directly onto a road meant for through-movement, or by funnelling regional traffic down a residential lane — and the whole network underperforms. This logic sits underneath the broader layout planning principles that govern the whole subdivision.

Reading the five levels

A residential layout typically nests within five tiers of road, from the regional corridor it connects to down to the lane at your gate. The right-of-way (ROW) — the full public width including carriageway, footpaths and verges, not just the tarred portion — narrows as you descend, while the number of plots fronting each road rises.

A diagram of the residential street hierarchy — arterial, sub-arterial, collector, local street and access lane — each shown with its function and typical right-of-way width

The arterial is the city-scale corridor — the main road your layout connects to but rarely sits directly on. It is built for high speed and high volume, moving traffic between districts. Frontage is discouraged; ideally only the layout's main entrance touches it, via a controlled junction. Illustrative ROW: roughly 24–30 m, though major arterials in master plans run far wider.

The sub-arterial distributes traffic from the arterial into a neighbourhood or a cluster of layouts. Still movement-dominant, slightly lower speeds, some controlled accesses. Illustrative ROW: around 18–24 m. This is often the road carrying the bus route and the layout's commercial frontage.

The collector is the hinge of the system — it collects traffic from many local streets and feeds it up to the sub-arterial, balancing movement and access in roughly equal measure. It commonly carries community-scale frontage: the park edge, the temple, a few shops. Illustrative ROW: about 12–18 m.

The local street is residential proper. Its only job is to give plots access; through-traffic has no reason to be here. Low speeds, low volumes, homes fronting on both sides. Illustrative ROW: roughly 9–12 m.

The access lane or cul-de-sac is the finest grain — a short dead-end or loop serving a handful of plots, with the calmest speeds and most intimate scale, frequently shared by cars, children and pedestrians together. Illustrative ROW: around 6–9 m.

These widths are illustrative. Actual minimums are fixed by the local Development Control Regulations (DCR) and vary considerably between authorities — what BDA in Bengaluru permits differs from CMDA in Chennai or HMDA in Hyderabad. Always design to the controlling DCR, not to a remembered number.

Street levelPrimary functionIllustrative ROWSpeed & volumeWhat fronts onto it
ArterialMovement (through)24–30 mHigh speed, high volumeAlmost nothing — access controlled
Sub-arterialMovement & distribution18–24 mModerate–highBus routes, commercial edge
CollectorBalanced movement & access12–18 mModerateParks, community uses, some shops
Local streetAccess9–12 mLow speed, low volumeHomes both sides
Access lane / cul-de-sacAccess (terminal)6–9 mVery low, calmedA handful of plots, shared space

How plots line up along these streets — orientation, frontage ratios, corner plots — is a study in itself, covered in residential plot distribution.

What lives inside the right-of-way

A road is not just the strip cars drive on. The right-of-way is a public corridor that must be carved up between many competing users, and how you divide it — the cross-section — matters as much as how wide it is. The drivable carriageway is only one element. Alongside it sit the footpath for pedestrians, a verge or planting strip that holds street trees and creates shade, on-street parking bays, sometimes a dedicated cycle track, and — out of sight — a stack of underground utilities: water mains, sewers, storm drains, electrical and telecom ducts, all needing space and access without tearing up the road every time something fails.

Cross-sections of streets at different levels of the hierarchy, showing how the right-of-way is divided into carriageway, footpath, planting verge, parking and underground utilities

A well-designed cross-section changes with the level of the road. On an arterial, the carriageway dominates and pedestrians are protected by generous footpaths and a buffer of trees. On a local street, the carriageway shrinks, parking and planting take a fair share, and the footpath stays continuous and unbroken — because this is where people actually walk. The discipline is to allocate every metre on purpose: a 12-metre collector with 11 metres of tarmac and a token kerb has been designed for cars only, while the same 12 metres split into a calmer carriageway, two real footpaths and a tree line serves an entire community. The placement and sizing of the buried services deserves its own treatment — see utility planning for residential layouts for how the trenches, ducts and chambers are sequenced under the road.

Connectivity: how the streets join up

Width and cross-section describe individual roads; connectivity describes how they knit into a network — and this shapes how the whole layout feels to move through. Planners since Kevin Lynch (whose Image of the City gave us paths, edges, nodes and landmarks) have understood that a network's legibility and permeability come from its pattern, not its parts.

A diagram comparing street connectivity patterns — the high-connectivity gridiron, the calm but car-dependent loop and cul-de-sac, and the balanced fused grid — with their effect on permeability

The gridiron is the classic chessboard of intersecting streets. Its great virtue is connectivity: many routes between any two points, high intersection density, excellent permeability for walkers, and traffic spread thinly across many streets rather than concentrated. Its weakness is that a pure grid is hard to calm — every street is continuous, so every street invites a shortcut, and four-way junctions multiply conflict points.

The loop and cul-de-sac pattern, popularised by Clarence Stein and Henry Wright's Radburn (1929) and beloved of late-20th-century suburbia, does the opposite. By breaking the network into dead-ends and curving loops, it strips through-traffic out of residential streets entirely — wonderfully calm and safe inside. But it is also poorly connected and deeply car-dependent: a destination 200 metres away as the crow flies may be a kilometre by road, and walking becomes pointless, so everyone drives. It also dumps all traffic onto a few collectors, which then choke.

The modified or fused grid is the contemporary reconciliation, central to New Urbanism and Traditional Neighbourhood Development. It keeps the grid's connectivity for pedestrians and cyclists — short blocks, frequent junctions, many walking routes, the "eyes on the street" and human density that Jane Jacobs championed — while interrupting the through-routes for cars with bends, T-junctions and occasional pedestrian-only links. High permeability for people, calmed permeability for cars. This balance is the backbone of a walkable neighbourhood, where the pedestrian experience and traffic-calming detail are explored properly; here it is enough to say the network pattern is what makes walkability possible or impossible in the first place.

Junctions and Complete Streets

Wherever streets meet, conflict concentrates — so junction design is where networks succeed or fail. Three forms dominate residential layouts. The T-junction is the safest workhorse: traffic from the minor road must give way, conflict points are few, and it naturally discourages high speeds, which is why fused grids favour it. The cross-junction (four-way) maximises connectivity but multiplies conflict points and needs control — signage, signals or a deliberate slow-down. The roundabout keeps traffic flowing without signals and reduces high-speed, head-on conflicts, but eats space and can baffle pedestrians if crossings aren't designed in.

A diagram of residential junction types — the T-junction, the cross-junction and the roundabout — and how each handles turning movements and safety

Running through all of this is the Complete Streets philosophy — the principle that a street is a public room shared by everyone, not a pipe for cars. A complete street is designed from the start for pedestrians, cyclists, bus users, street vendors and motorists together, with continuous footpaths, safe crossings at junctions, shade trees and clear space allocation. It is the opposite of the default Indian habit of designing the carriageway first and squeezing pedestrians into whatever is left.

In India: norms, gradients, footpaths and encroachment

In India the street hierarchy is not just good practice — it is largely prescribed. When you submit a layout for approval, the local Town & Country Planning department or Development Authority (DTCP, BDA, CMDA, HMDA, MCGM and their peers) checks your road widths against the DCR. Minimum ROW is tied to road length and the number of plots served: a long internal road or one serving many plots must be wider, stepping up through the hierarchy. The URDPFI Guidelines (2014) offer a national reference framework, but the binding numbers come from the state Town & Country Planning Act and local bye-laws — and plotted developments now also fall under RERA registration. Note too the distinction between layout approval (which fixes the roads, plots and reservations) and the individual building-plan sanction that comes later for each plot.

Two failures recur. The first is gradient: layouts on sloping ground need road longitudinal gradients gentle enough to be walkable and to let storm water drain — too flat and water pools, too steep and footpaths become unsafe — yet gradients are often ignored until the first monsoon reveals the ponding. The second, and most chronic, is the missing footpath. Vast numbers of Indian layout roads are built kerb-to-kerb in tarmac with no usable footpath at all, forcing pedestrians into the carriageway. Where footpaths do exist, encroachment swallows them — parked two-wheelers, shop extensions, building material, transformer boxes — until the pedestrian is back on the road anyway. Designing a generous, continuous, protected footpath into the cross-section from day one, and defending it, is the single highest-value street decision most Indian layouts never make. This is precisely the kind of human-scale thinking explored across the pillar guide to designing a residential layout.

References

1. Clarence A. Perry, The Neighbourhood Unit (Regional Survey of New York and Its Environs, 1929).

2. Kevin Lynch, The Image of the City (MIT Press, 1960).

3. Jane Jacobs, The Death and Life of Great American Cities (Random House, 1961).

4. Jeff Speck, Walkable City: How Downtown Can Save America, One Step at a Time (2012).

5. URDPFI Guidelines, 2014 — Ministry of Urban Development, Government of India.

6. Indian Roads Congress (IRC) guidelines on urban road geometry and cross-sections; relevant State Town & Country Planning Act and Development Control Regulations.

7. National Association of City Transportation Officials (NACTO), Urban Street Design Guide (Complete Streets reference).
