Annual STP Maintenance & Overhaul: The Complete Yearly Shutdown Checklist

Every STP has a rhythm. Daily rounds keep it breathing, weekly and monthly tasks keep it tuned — but once a year the plant needs something the routine checklists cannot deliver: a full stop, a drain-down, and an honest look at everything the day-to-day never reaches. This is the annual overhaul, and it is the single most important intervention in the life of a building STP. Skip it for a few years and the plant does not fail dramatically; it fails slowly — silting up, losing efficiency, and quietly running your power bill and your discharge numbers in the wrong direction.

The annual overhaul is not a bigger version of your monthly service. It is the one time each year you empty tanks, open equipment, and check the things that are invisible while the plant is running — the tank floor, the diffuser grid, the membrane, the concrete, and the contract that pays for it all.

This guide walks facility managers and operators through what a proper annual stp maintenance shutdown covers, in the order that makes sense, so nothing gets missed and the plant comes back stronger than it went down.

Plan the shutdown before you touch a valve

An overhaul is a controlled event, not an emergency. Give it two to four days depending on plant size, and schedule it for a low-occupancy window — a long weekend, or a period when the building's sewage load is lightest. Sewage does not stop arriving, so plan the interim: arrange tanker evacuation for incoming flow, or stagger the work tank-by-tank so at least part of the biological process keeps running.

Before the date, assemble:

• The plant's as-built drawings, equipment manuals and the previous overhaul report.
• A spares list — diffuser membranes, mechanical seals, gaskets, valves, instrument sensors — ordered in advance so the plant is not waiting on a courier mid-shutdown.
• Confined-space entry arrangements: gas testing, forced ventilation, harnesses, standby personnel. Empty STP tanks hold hydrogen sulphide and can be oxygen-deficient. This is the most dangerous part of the whole job — never enter a tank on trust.
• Your AMC vendor booked to attend, if servicing is contracted out.

Tank de-silting and structural inspection

With flow diverted, drain each tank in sequence and get to the floor.

Over a year, grit, inert solids and dead biomass accumulate below the working volume — especially in the equalisation tank, the anoxic zone and the sludge holding tank. This dead volume steals capacity you paid for and creates anaerobic pockets that generate odour and corrode concrete. De-silt every tank fully; this is the deep version of routine STP sludge removal, reaching the settled grit the operating plant can never pull out.

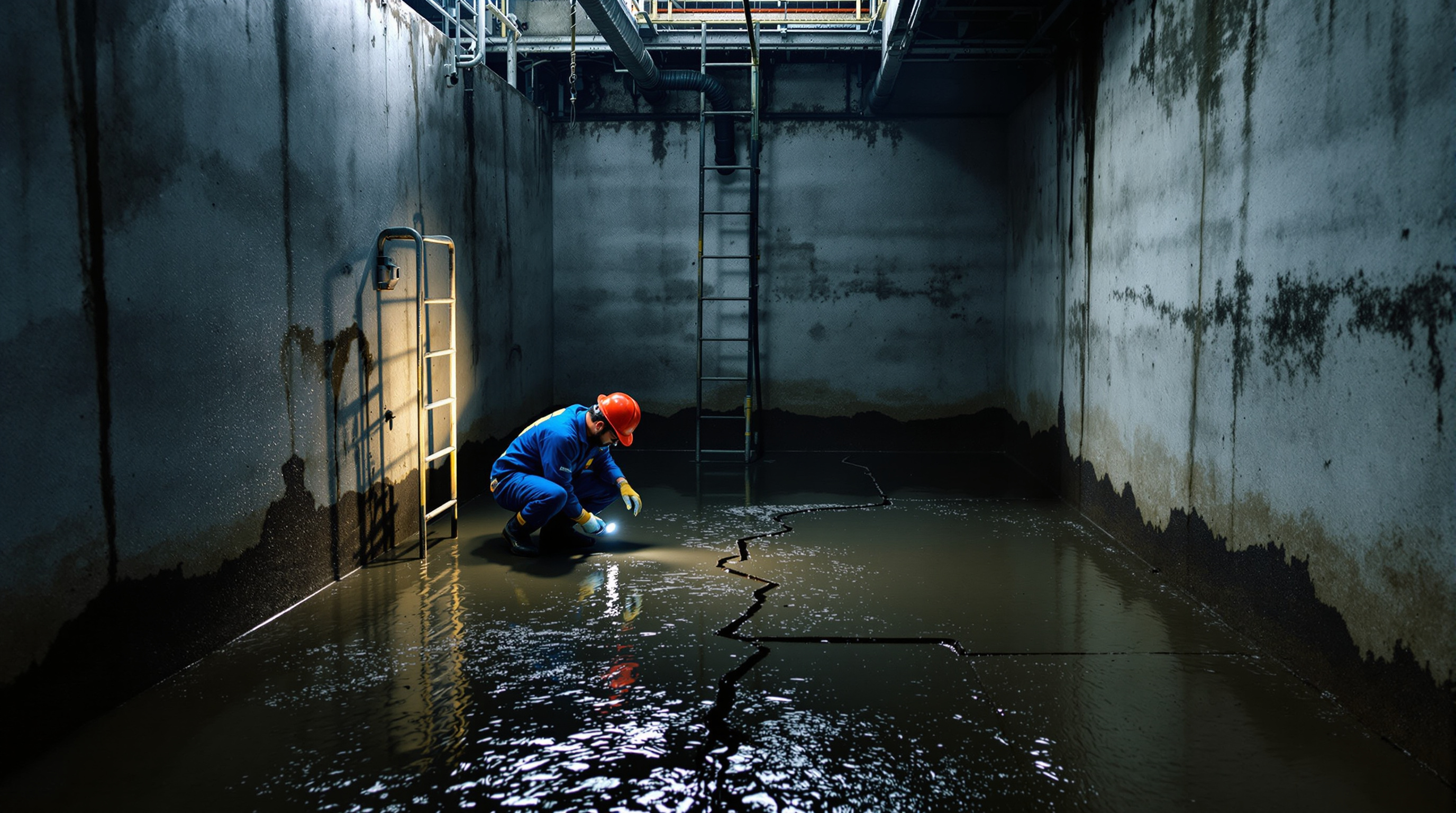

Once a tank is empty and safely ventilated, inspect the structure itself:

• Concrete and waterproofing — look for cracks, spalling, exposed reinforcement and signs of leakage between tanks or into the surrounding soil. Check the internal protective coating; sewage tanks live in a corrosive, acidic environment and coatings wear.
• Baffles, weirs and launders in the clarifier — check they are level and undamaged, because a tilted weir wrecks settling.
• Handrails, gratings, ladders and covers — safety items that rust quietly.

Log every defect with photos. Waterproofing and structural repairs are far cheaper to catch here than after a tank starts leaking sewage into a basement.

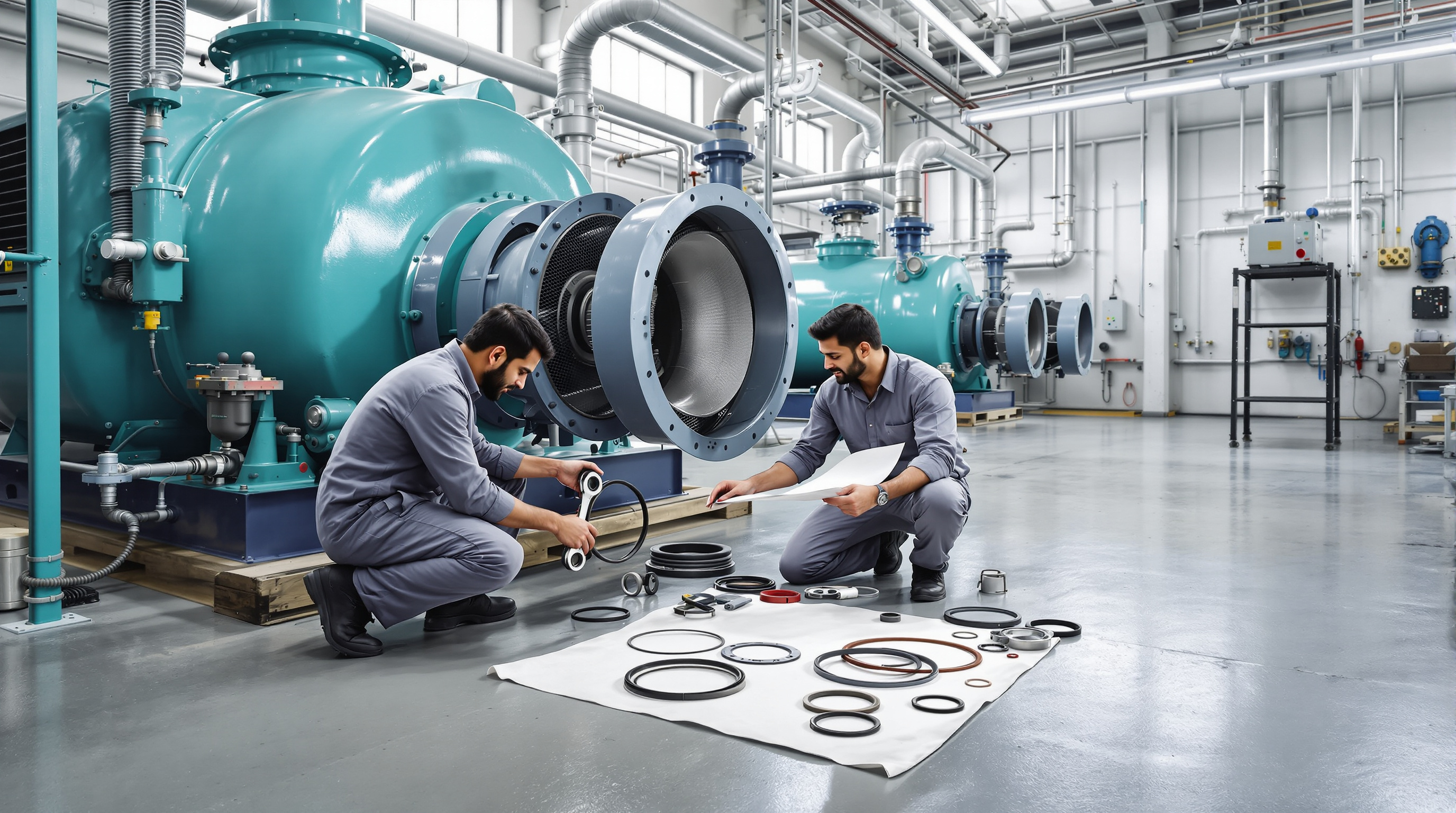

Service the rotating and aeration equipment

This is where the annual service goes deeper than the monthly maintenance round.

Blowers are the heart — and the biggest power draw — of the plant. Annually, go beyond routine checks into the manufacturer's overhaul: change oil, replace air filters, inspect or replace belts and couplings, check bearing condition and clearances, and measure delivered pressure and current against the nameplate. A blower drawing more amps for less air is telling you its efficiency is gone. See blower maintenance for the detail.

Diffusers are only reachable when the aeration tank is drained — which is exactly why this is an annual job. Inspect the whole grid for torn, fouled or clogged membranes and uneven bubble patterns. Clean or replace as needed; clogged diffusers force the blower to work harder for less oxygen transfer. Our diffuser cleaning guide covers the method.

Pumps — raw sewage, transfer, recirculation, filter feed and sludge pumps all get the full treatment: replace mechanical seals, check impeller wear and clearances, inspect wear rings, and confirm flow and head. Details in pump maintenance.

Use the drained window to note any equipment running well outside its efficient point — the annual shutdown is the natural moment to right-size a mis-matched blower or pump using the blower size calculator or pump size calculator.

Filters, membranes and the tertiary train

The polishing stages need annual attention too.

• Pressure sand and activated carbon filters — do a deep backwash, inspect the media bed for channelling and mud-balls, top up or replace media on its cycle (carbon is typically replaced every 1–2 years), and check the underdrain and internals.
• UF membranes / MBR modules — this is the year's key membrane decision. Perform a deep clean (Clean-In-Place) beyond the routine cycle, and assess condition against transmembrane pressure and flux trends. If recovery is fading despite cleaning, this is when you plan replacement — membranes are a major capital line and need budget lead time, so decide during the overhaul, not when they fail. See membrane cleaning.
• Chlorination / disinfection — service dosing pumps, clean the contact tank, calibrate the dosing rate, and check UV lamps and quartz sleeves if fitted.

Instrument recalibration

Instruments drift. Over a year, an uncalibrated pH probe or DO sensor can be reading a full unit off — and every dosing and aeration decision built on it is wrong. During the overhaul, recalibrate or replace:

• pH, DO and MLSS sensors and their transmitters.
• Flow meters on inlet and treated-water lines.
• Level sensors, floats and pressure gauges on tanks and filters.
• Control-panel timers, PLC logic and interlocks — confirm auto/manual changeovers and alarms actually trigger.

Accurate instruments are what let you run the plant lean the rest of the year, which flows straight into reducing STP electricity consumption.

Rebuild the biology and restart in sequence

Draining tanks knocks back the biological culture. Plan the restart deliberately: refill, re-seed if needed, restore aeration, and bring load back gradually over several days while MLSS rebuilds. Do not slam full occupancy load onto a freshly restarted plant and expect compliant effluent on day one.

The annual overhaul checklist

Review the AMC before you close out

Finish the overhaul with paperwork, not just wrenches. Sit down with your Annual Maintenance Contract and ask hard questions: Did the vendor attend the breakdowns they were meant to? Are consumables and spares actually covered, or billed extra every time? Are effluent results consistently within CPCB norms? Is the response time realistic for your building? The overhaul report — defects found, parts replaced, membrane life remaining, next year's likely capex — is exactly the evidence you need to renew, renegotiate or replace the contract from a position of knowledge.

An annual overhaul done properly costs a planned few lakh rupees and a weekend of disruption. Done never, it costs a flooded basement, a compliance notice, and a plant limping at half capacity. For where this fits in the wider maintenance rhythm, start from the Sewage Treatment Plants guide library and work back through the daily, weekly and monthly routines the annual overhaul sits on top of.
