Concealed Plumbing in India: Chasing, Fixing & Pressure-Testing In-Wall Pipes

Walk into almost any new Indian home and the plumbing has vanished. No pipes run up the corner of the bathroom, no elbows poke out below the basin — just clean tile with a tap and a shower arm emerging from the wall. That is concealed plumbing: supply pipes buried inside walls and floors, then plastered and tiled over so nothing shows.

This is an installation how-to within the Studio Matrx Plumbing Pipes guide. It sits alongside the domestic water distribution guide for how the whole supply is laid out, and the CPVC pipes guide for the material most concealed lines are made of. The clean look has one hard rule attached: once the pipe is plastered over, every mistake becomes a wall-breaking repair. Everything below exists to make sure that never happens.

The single most important sentence in this guide: pressure-test the line and hold it before you allow anyone to plaster. A concealed leak found after tiling can cost twenty times what the pipe did to fix.

Concealed vs exposed — one line

Exposed plumbing runs pipes on the wall surface behind clamps, which is cheaper and instantly repairable but visible. Concealed plumbing hides them for a premium finish at the cost of accessibility. This guide is only about doing concealed work well; for the full head-to-head, see the concealed vs exposed plumbing comparison and the exposed plumbing installation guide.

Step 1 — Mark the route before you cut anything

Concealed plumbing is decided on paper, not on the wall. Fixture positions, tap heights and the path from the shaft or riser to each outlet are marked in chalk first, then checked against the tile layout so a joint never lands where a tap or accessory must sit.

• Standard heights (indicative). Wall-mixer around 1100–1200 mm, shower arm 2000–2100 mm, health-faucet point 400–500 mm, basin taps 550–600 mm above finished floor. Confirm against your actual fittings.
• Keep runs vertical or horizontal, never diagonal. Diagonal chases are impossible to trace later and weaken the wall unpredictably. Pipes should drop straight down or run level, so anyone drilling later can guess where they are.
• Group the routes. Hot and cold together, sensible spacing between them, so one chase serves the whole fixture wall.

Step 2 — Chasing without cutting structure

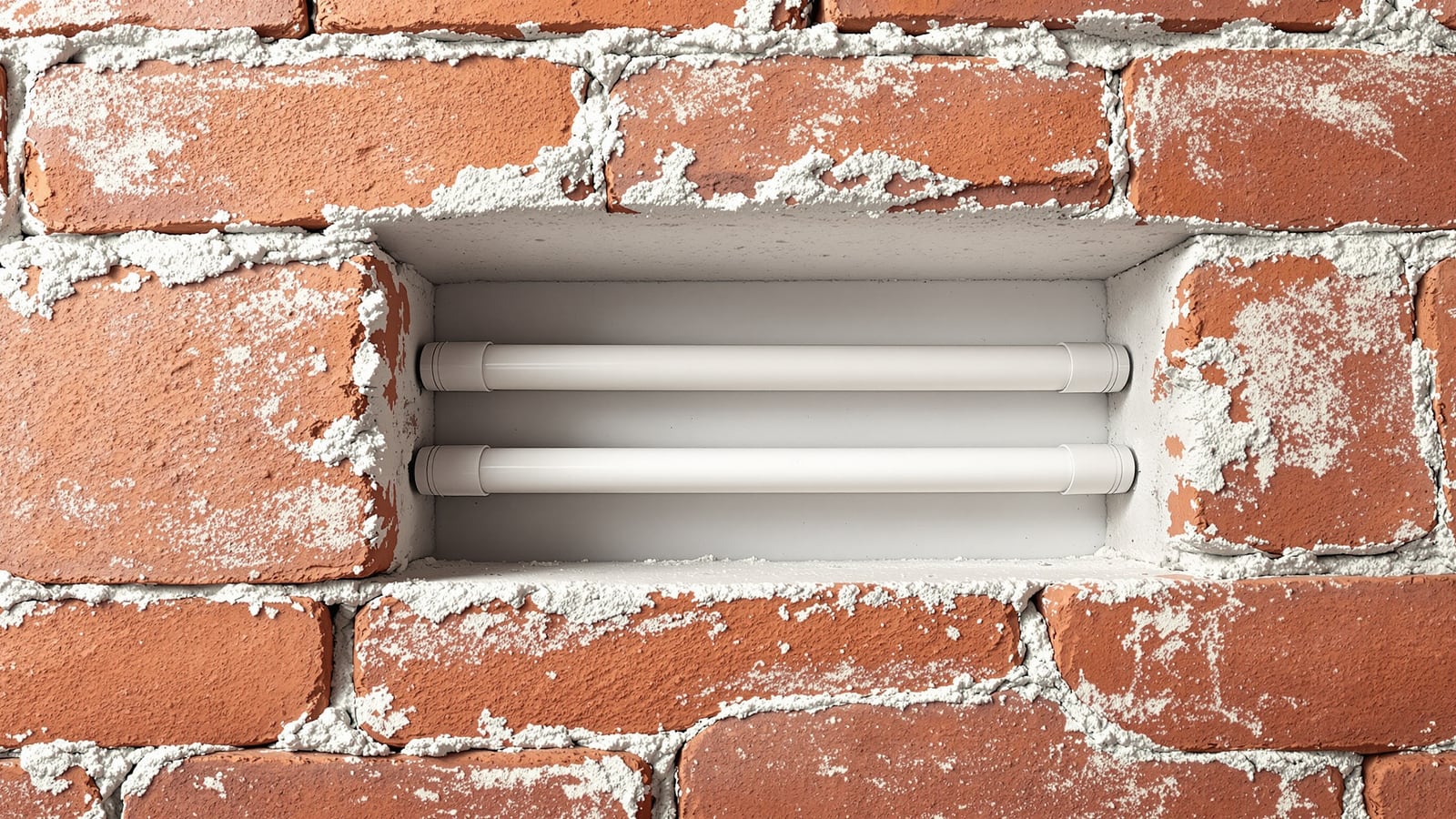

A chase is the groove cut into masonry to lay the pipe. This is where the most dangerous mistakes happen, because the wall carrying your pipe may also be carrying the building.

Never chase into structural members. RCC columns, beams, slabs and shear walls carry load and often hold the pipe's-worth of steel you must not touch. Cutting a chase into a column to hide a pipe can nick reinforcement and is a genuine structural risk — route around them in the brick or block infill instead.

• Cut clean, not with brute force. A wall-chasing machine or angle grinder with a guide gives two parallel cuts; the waste between is knocked out. Random hammering shatters the surrounding masonry and makes a chase far deeper and wider than needed.
• Depth and width discipline. The chase should be just deep enough to bury the pipe with cover for plaster over it — not so deep it punches through a half-brick wall. Over-deep vertical chases in a load-bearing wall reduce its effective thickness and are best avoided or kept shallow.
• Respect wall thickness. In a 115 mm (half-brick) partition, a deep chase leaves very little wall behind the pipe. Prefer to run heavy concealed work in thicker walls, or use a surface duct rather than gutting a thin partition.

Step 3 — Fixing and spacing the pipe in the chase

A pipe laid loose in a chase will shift when the plaster is packed in and can end up kinked or sitting proud of the wall. It must be fixed — clipped or clamped into the chase at regular intervals — before anything closes over it.

• Support spacing matters. Plastic supply pipe sags between supports, especially hot lines that soften slightly. Closer clip spacing keeps the run straight and holds it flush inside the chase.
• Allow for expansion on hot lines. CPVC and PPR grow with heat. Clips should locate the pipe without pinning it so tight it cannot move at all; long straight hot runs need a little slack or a change of direction to absorb expansion.
• Keep joints minimal and accessible-in-spirit. Every concealed joint is a future leak candidate, so plan runs to use as few as possible, and avoid burying a joint directly behind where a heavy fixing screw will later go.

Indicative site practice; follow the pipe manufacturer's published support-spacing table for your product and class.

Step 4 — Pressure-test BEFORE you close the wall

This is the step that separates a professional concealed job from a future disaster. Before a single trowel of plaster touches the pipes, cap the outlets, connect a pressure-test pump, and hold the line under pressure.

• How it is done. All open ends are plugged, the system is filled with water to purge air, then pumped up with a hand pressure-test pump fitted with a gauge. The pressure is raised above working pressure and held.
• What you are watching. The gauge must hold steady. A falling needle means a joint or pipe is leaking — you find it now, while the pipe is open and a repair is a fitting, not a demolition.
• Hold time. Keep the line under test long enough to be confident — commonly held for a sustained period (indicative: an hour or more, longer for larger systems) with the gauge unmoving.
• Test with the pipes visible. The whole point is to catch the leak before it is hidden. Never let a mason plaster a chase that has not passed and been signed off.

Photograph the tested, open chase — every run, every joint, every clip — before it disappears. On the day the wall gets drilled for a mirror in five years, those photos are the only map that exists.

Step 5 — Access panels for concealed cisterns and valves

Some concealed components are meant to be serviced. A concealed cistern (the in-wall flush tank behind a wall-hung WC) and concealed control valves will one day need their internals changed — and if they are sealed behind solid tile, that means breaking the wall.

• Concealed cisterns come with a matching flush plate that doubles as the service access to the tank's inlet valve and flush mechanism. Fit the frame and inspection opening so the plate can be lifted and the parts reached without demolition.
• Concealed valves and manifolds should sit behind a removable access panel — a tiled hatch, a hinged panel or a magnetic tile — wherever a stop-valve, mixer cartridge or diverter body is buried. Never entomb a serviceable valve behind fixed tile.

Step 6 — Suitable materials for concealed work

Because a concealed pipe cannot be watched or easily replaced, material choice leans toward pipes with strong, reliable joints and long life.

• CPVC — the most common Indian concealed choice, solvent-welded joints, handles hot and cold, moderate cost. See the CPVC pipes guide.
• PPR — heat-fused joints that effectively become one piece of pipe, favoured in apartments and larger buildings for its near jointless-in-behaviour continuity.
• Older concealed work used GI, which corrodes and eventually leaks inside the wall — a strong reason old homes with hidden GI need plumbing renovation.

Whatever the material, the joint is the weak point, so use the manufacturer's own fittings, solvent or fusion process and cure/cool times exactly.

Why concealed leaks are so expensive

An exposed pipe leak is a wipe, a spanner and a new washer. A concealed leak is different: water tracks along the pipe inside the wall, shows up as a damp patch or peeling paint somewhere else entirely, and reaching it means chiselling out tile, plaster and part of the chase — then re-doing all three. That asymmetry is the whole argument for testing and photographing before you close up.

Repair figures are indicative and vary widely with tile cost, access and finish.

References

• National Building Code of India 2016, Part 9 (Plumbing Services) — water supply and building plumbing practice.
• Bureau of Indian Standards CPVC and PPR pipe product standards, and pipe manufacturers' published installation and support-spacing instructions.
• Always confirm structural do-not-chase zones with the project's structural drawings or engineer before cutting any wall.
