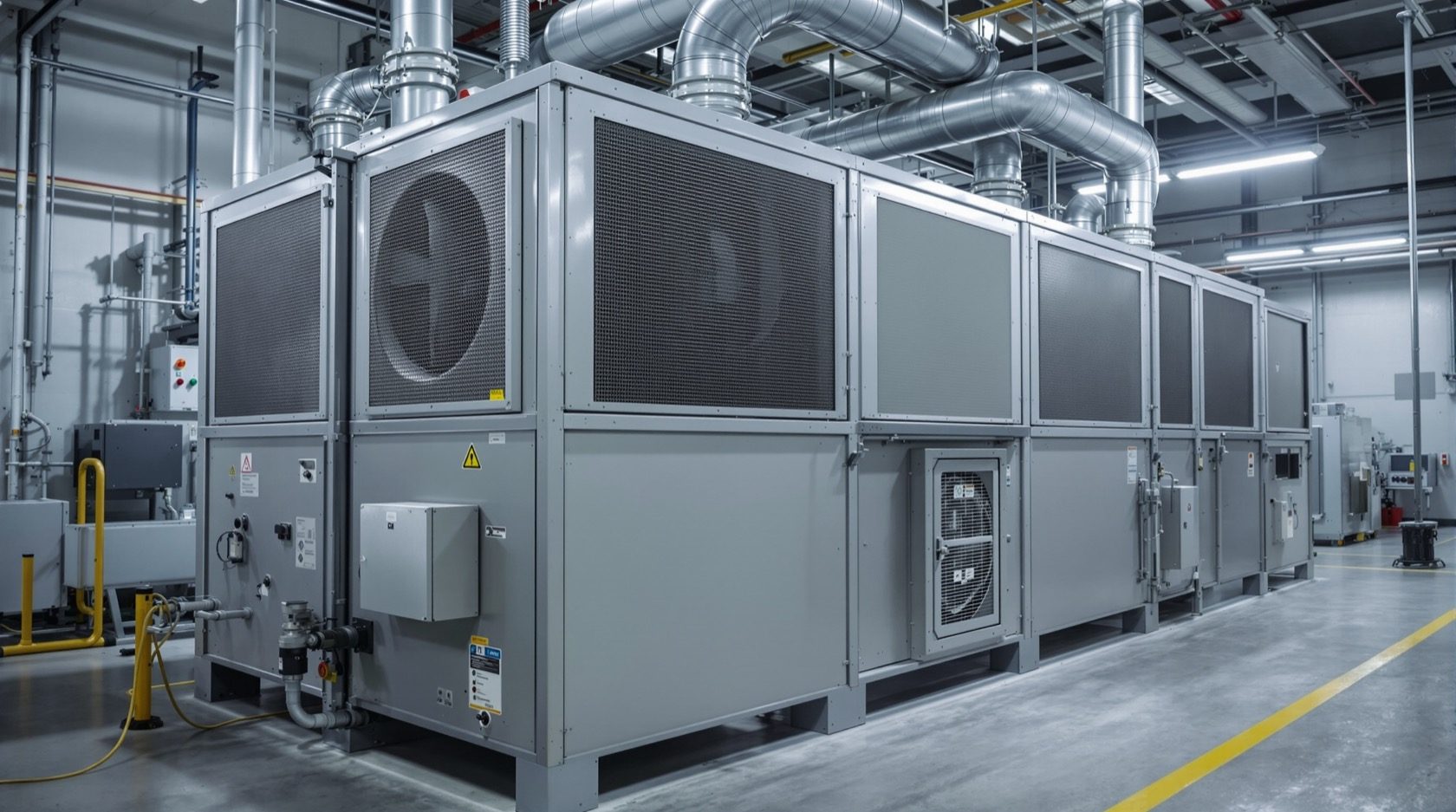

Air Handling Units (AHU): The Workhorse of Building Air Conditioning

In any ducted or central air-conditioning system, one box does the heavy lifting of actually conditioning the air: the Air Handling Unit (AHU). It takes in a mix of return air and fresh outdoor air, cleans it, cools (and dehumidifies) it, and pushes it through the ducts to the spaces — over and over. Understanding the AHU is understanding how big buildings breathe and cool. This guide explains what's inside an AHU, how it works, its types, and how it differs from a fan-coil unit.

It builds on the HVAC Equipment Guide, part of the HVAC Knowledge Hub.

The safety line & scope. AHUs are engineered building-services equipment — selection, sizing, installation and servicing are qualified MEP/HVAC work. This guide helps you understand and specify.

What's inside an AHU

An AHU is essentially a large insulated box through which air flows past a sequence of components:

• Dampers (mixing box) — control the mix of return air (from the spaces) and fresh outdoor air, and can shut off flow.
• Filters — clean the incoming air (from pre-filters to fine/HEPA), protecting the coil and the indoor air quality.
• Cooling coil — the heart: chilled water (from the chiller) or refrigerant passes through it, cooling and dehumidifying the air as it flows across.
• Heating coil (where needed) — for warming, reheat or humidity control.
• The fan (blower) — draws air through the components and pushes it out into the ducts at the required pressure.
• Drain pan — collects the condensate from dehumidification.
• Sometimes — a humidifier, energy-recovery section, or sound attenuators.

Air enters, is mixed, filtered, cooled and pressurised, then leaves for the building — continuously.

How an AHU works in the system

The AHU is the air-side interface between the plant and the spaces:

• Chilled water from the chiller plant feeds the AHU's cooling coil (the AHU makes cold air from cold water).
• The AHU conditions and distributes air through ducts and diffusers to the zones it serves.
• Return air comes back to the AHU, is re-mixed with fresh air, and re-conditioned.
• Fresh air is brought in for ventilation (often via a dedicated treated-fresh-air unit).
• Controls modulate the coil valve, fan speed and dampers to hold conditions.

One AHU typically serves a zone, floor or area; a big building has many.

Types of AHU

• By construction — factory-built packaged AHUs vs built-up site-assembled units for large or custom applications.
• By fresh air — a standard AHU (mostly recirculated air) vs a Treated Fresh Air (TFA) unit / DOAS that conditions 100% outdoor air for ventilation.
• By fan — with variable-frequency drives (VFDs) for efficiency (modulating airflow to demand) vs constant-volume.
• Specialised — hospital AHUs (high filtration, pressure control), clean-room AHUs, etc.

AHU vs FCU — the difference

A common confusion:

• AHU (Air Handling Unit) — a larger unit serving a whole zone/floor/area through ducts; handles fresh air, heavy filtration and larger volumes.
• FCU (Fan Coil Unit) — a smaller unit (fan + coil + basic filter) serving a single room/space, usually without ducted fresh air (fresh air comes separately).
• In short: AHU = big, ducted, area/fresh-air; FCU = small, per-room. Buildings use both — AHUs for large zones and common areas, FCUs for individual rooms (like hotel rooms).

The one-line answer

An Air Handling Unit is the workhorse that conditions a building's air: a large insulated box through which air flows past dampers (mixing return and fresh air), filters (cleaning it), a cooling coil (chilled water cools and dehumidifies it), and a fan (pushing it out through the ducts to the spaces) — continuously taking return air, re-mixing it with fresh air, and re-conditioning it. Fed with chilled water from the chiller plant, one AHU serves a zone, floor or area, and a big building has many, in types from packaged to built-up, standard to 100%-fresh-air (TFA/DOAS), constant-volume to variable-speed (VFD) for efficiency. It differs from a fan-coil unit, which is a smaller, per-room unit — AHU = big, ducted, area/fresh-air; FCU = small, per-room. All engineered by qualified MEP/HVAC professionals.

Where to go next

• The equipment overview: HVAC Equipment Guide.
• What feeds it: Chiller Guide · Central Air Conditioning Guide.
• What it feeds: HVAC Duct Design Guide.
• The air it cleans: Indoor Air Quality Guide.

References

• National Building Code of India, SP 7 (Part 8 — Building Services; verify current edition), Bureau of Indian Standards.
• IS 655 : 2006 (reaffirmed) Air Ducts; ISHRAE — AHU & air-side design guidance.
• ASHRAE Standards 62.1 (ventilation & filtration) and 90.1 (fan energy); Bureau of Energy Efficiency (BEE) — ECBC: https://beeindia.gov.in/

AHU selection, sizing, installation and servicing are qualified MEP/HVAC engineering work. Verify any standard's current status via the BIS catalogue before relying on it.
