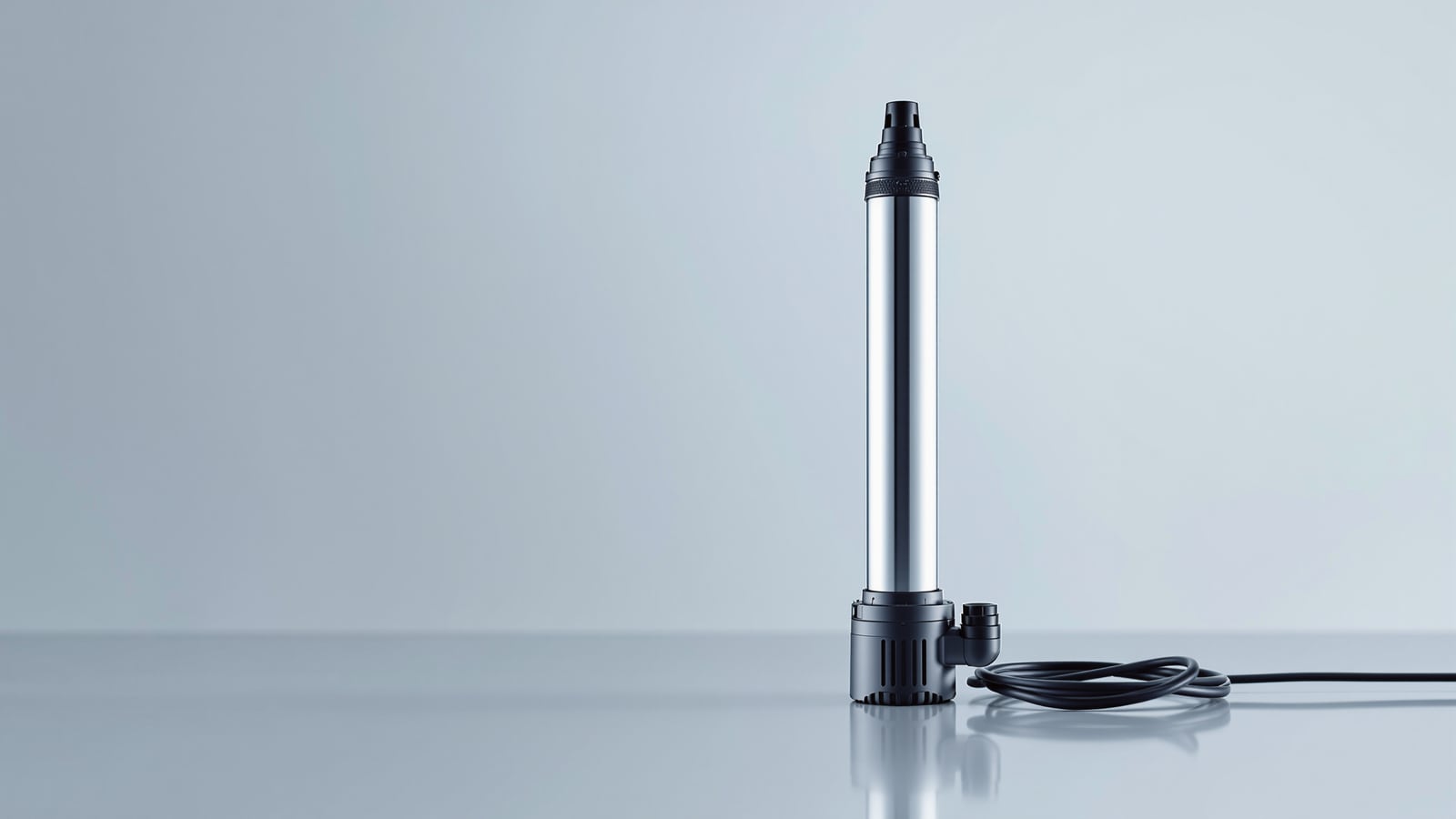

Submersible Pumps in India: How They Work, Types, Sizing & Cost

A submersible pump is a pump that works while fully sitting inside the water it moves, instead of standing on the surface and sucking water up to it. Motor and pump are sealed into one slim body, dropped below the water level, and the water pushes out through a pipe from below. Because it pushes rather than sucks, it sidesteps most of the problems that plague surface pumps — no priming, no lost suction, no cavitation and very little noise.

This guide sits under the Studio Matrx water pumps pillar and explains the submersible as a type of pump. For the specific deep-borewell version — the long, thin pump that lives 100–300 ft down a 4-inch or 6-inch bore — read the dedicated borewell pumps guide; this page covers the family and the shallower home uses. For actual numbers when you buy, size it with the Studio Matrx pump size calculator.

How a submersible pump works

Inside the sealed body are two parts stacked in line: an electric motor at the bottom and a pump end of several impellers above it. The whole assembly hangs in the water with a discharge pipe and a power cable running up to the surface.

• Water-cooled motor. A surface pump's motor is cooled by air; a submersible's motor is cooled by the water around it. That is why it can be so slim and why it must never be run dry — with no water to carry heat away, the motor cooks itself in minutes.
• Multistage impellers. A single impeller can only lift water so high. A submersible stacks several impellers ("stages") one above another; each stage adds a slice of pressure, so the water climbs from stage to stage and leaves the top with enough push to reach a rooftop tank. More stages means more head (lift), not more flow.
• It pushes, never sucks. Sitting under the water, the pump only ever pushes water upward. There is nothing to prime, no foot valve on a suction line, and no air gap to lose — the reasons a surface pump so often "loses water" simply do not apply.

The one-line difference: a surface (monoblock) pump pulls water up to itself and struggles past about 7–8 m of suction lift; a submersible sits in the water and pushes, so suction lift is a non-issue — its limit is how high it can push, set by its stages.

Types of submersible pump for Indian homes

The word "submersible" covers several shapes for very different jobs. Match the type to where your water actually is.

• Openwell submersible. A short, fat pump built to sit in an open source — a sump tank, an open dug well, or a large underground tank. It handles higher flow at moderate head and is the workhorse for filling an overhead tank from a ground sump. This is the one most homes call "the submersible."
• Borewell submersible. The long, thin 4-inch/6-inch pump for deep, narrow bores. Same principle, many more stages for the huge lift. Because it is a whole topic on its own, it has its own guide — do not size a borewell pump off this page.
• Pressure-booster submersible. A quiet, multistage unit dropped into a break-tank or sump to push a strong, steady pressure to taps and showers across a home. For bathroom pressure specifically, size it with the shower pump calculator.
• Dewatering / drainage submersible. A rugged pump for pumping out flooded pits, basements, lift shafts and construction excavations — often passing muddy or gritty water. A dirty-water variant handles small solids; for foul water and sewage the job moves to a dedicated sewage pump feeding an STP, covered in STP pumps and instrumentation.

For clean-water home supply, the choice is usually between an openwell submersible in your sump and the sump pumps guide options, versus a borewell submersible if you draw straight from a bore. If your source is an open dug well, see the open well water system guide.

Why homeowners choose a submersible

• No priming, ever. It is always underwater, so it never loses its water and never needs coaxing back to life after the supply is off.
• No cavitation. Cavitation — the damaging collapse of vapour bubbles that pits a struggling suction pump — needs a suction line. A submersible has none, so it simply cannot cavitate.
• Quiet. The water muffles almost all the noise. Where a surface monoblock hums through the house, a submersible in the sump is close to silent.
• Space and weather. Nothing sits in your pump room or bakes in the sun; the pump is out of sight and out of the weather.

The trade-offs: it is harder to inspect (you must pull it out), a motor rewind means lifting the whole unit, and a good one costs more up front than a bare monoblock of the same duty.

Head, flow, HP and stages — the four numbers that matter

Two numbers define the duty you need, and two define the pump that meets it.

• Head is the vertical lift plus friction, in metres (m). Roughly 3.3 ft = 1 m; a G+2 rooftop tank from a ground sump is often 12–18 m of static lift, plus friction.
• Flow is how fast it delivers, in litres per minute (LPM) or litres per hour. Filling a 1,000-litre tank in ~20 minutes needs about 50 LPM.
• HP / kW is motor power. It follows from head × flow, not the other way round — a bigger HP is not "better" if the head is wrong.
• Stages set the head. More stages = more lift at the same flow; that is how a slim borewell pump reaches 100 m+.

Do not guess these. Get the real figures from the Studio Matrx pump size calculator before you buy — an oversized pump wastes power and money for its whole life.

Prices are indicative for 2026 and vary by brand, material and city — confirm locally with a dealer.

Single-phase vs three-phase

Most homes run single-phase (1φ, 230 V) pumps up to about 2 HP. Above that, or where a reliable three-phase (3φ, 415 V) connection exists, 3φ pumps run cooler and more efficiently for the same power. If you only have a single-phase supply, do not chase a large 3φ pump — match the pump to your connection.

Sealing, cable and the parts that keep it alive

A submersible lives underwater on mains electricity, so two things must be perfect.

• Sealing. Mechanical seals and O-rings keep water out of the motor windings. A failed seal lets water in and shorts the motor — one of the most common causes of a burnt-out submersible. Buy a reputable sealed unit and never open it casually.
• Cable and joints. The power cable runs from the pump up to the surface, and any underwater joint must be a proper heat-shrink waterproof joint, not tape. Use submersible-grade cable of the correct size for the run; an undersized cable drops voltage and overheats.
• Discharge and non-return valve. Fit a non-return valve (NRV / check valve) on the discharge so water does not run back down when the pump stops — see the check valves guide. Support the riser pipe so its weight does not hang off the pump.

Dry-run protection — the one thing you must not skip

The single biggest killer of submersible pumps is running with no water. Because the water cools the motor, a pump that keeps running after the sump or bore empties overheats and burns out. Protect it with:

• A dry-run preventer / water-level controller that cuts power when the level drops.
• A float switch in the sump for openwell and dewatering units.
• A control panel with overload and dry-run cut-off for larger and 3φ pumps.

This small add-on costs a fraction of a rewind and pays for itself the first time the water runs out.

Energy and running cost at a glance

A submersible's running cost is set by its power and hours, not by being submerged. A 1 HP pump draws roughly 0.75 kW; run two hours a day at ~₹8/unit and that is about ₹360 a month. The real waste comes from oversizing — a pump one HP bigger than the duty needs runs the same hours at higher draw for years. Size it correctly and pick a BEE star-rated pump where available.

Common problems and quick checks

Bringing it together

A submersible pump earns its place by sitting inside the water: no priming, no cavitation, low noise and a small footprint. Get four numbers right — source, head, flow and HP/stages — match the phase to your supply, and never install one without a non-return valve and dry-run protection. For the deep-bore version, follow the borewell pumps guide; for sump-based supply see sump pumps; for an open source, the open well water system; and for the whole picture, the water pumps pillar. Then confirm your exact duty with the pump size calculator.

References

• Bureau of Energy Efficiency (BEE) — star-labelling programme for water pumps.
• Bureau of Indian Standards — IS specifications for submersible pump sets and motors.
• Manufacturer pump-selection curves and datasheets — always match head and flow to the published curve.
