Home Garage Door in India: Types, Motorisation, Sizes and Cost (2026) — The big vehicle door for your car porch or garage - sectional overhead, roller shutter, side-hinged and up-and-over compared, with motorisation, safety sensors, weather sealing, car and SUV sizing and indicative rupee costs.

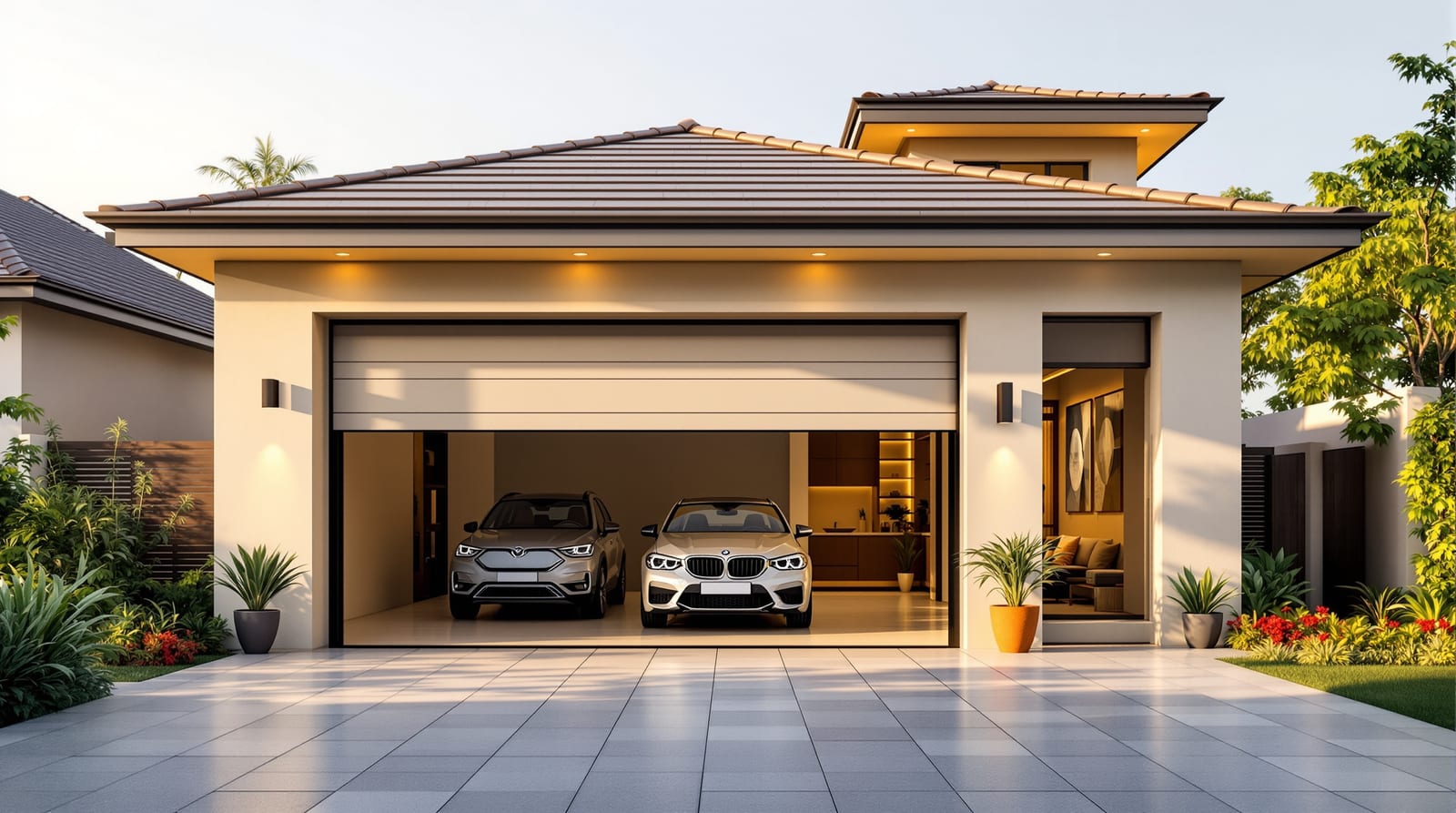

Motorised sectional overhead garage door on an Indian home, half open with a parked SUV inside

The garage door is the largest moving thing on most Indian homes - a single panel two to three metres wide that your family operates more often than the front door, in monsoon, dust and 45 degree summers. Get it wrong and you live with a screeching shutter, a leaking porch and a security weak point. Get it right and a car porch becomes a clean, quiet, motorised, weather-tight space you control from the car seat. This guide ranks the four garage-door families used in India, then walks through motorisation, safety sensors, security, weather sealing, sizing for a hatchback versus an SUV, and what each option actually costs.

What a garage door has to do that other doors do not

A garage door is its own category because the demands are unusual:

Span and weight. A single-car opening is roughly 2.4-3.0 m wide; a double is 4.5-5.5 m. No hinged leaf carries that without sagging, so the door either coils up, folds into panels, or slides sideways.
Vehicle clearance. You need full head clearance for an SUV roof and roof rails, and the door must clear the opening completely - a half-retracting shutter that drops 200 mm is a roof-scratch waiting to happen.
Weather and dust. The car porch faces the street. Driven monsoon rain, road dust and afternoon heat all attack the door and anything stored inside.
Security. It is a large, street-facing panel. A flimsy shutter with a single centre lock is the easiest break-in point on the plot.
Frequency and convenience. Operated two to six times a day, often in the rain. This is the door that most justifies a motor and remote.
Sizing for the actual vehicle. Width and especially headroom must suit your car today and the SUV you might buy next - retrofitting a wider opening means breaking the lintel.

These drivers - not looks alone - decide which family fits. For the door types around the rest of the house, see the broader doors by space guide for India.

The four garage-door families

1. Sectional overhead (premium). Horizontal panels hinged together; the door rolls up on tracks and parks flat against the garage ceiling. Insulated double-skin steel or aluminium panels, near-silent on nylon rollers, almost always motorised. The default in Western markets and the rising premium choice in Indian gated communities and villas. Best insulation, security and looks; needs interior ceiling depth and headroom.

2. Roller / rolling shutter (popular, economical). Interlocking slats coil onto a drum above the opening. The everyday Indian garage and car-porch door - galvanised MS (mild steel), aluminium, or insulated double-walled aluminium slats. Cheapest to motorise, compact (no ceiling tracks), available everywhere, easy to repair. Plain single-wall MS shutters rattle, rust and offer modest insulation; insulated aluminium versions are far better. See shutter doors in India for the full slat-and-drum mechanism.

3. Side-hinged / sliding gate. Two large leaves that swing outward, or panels that slide sideways on a top or floor track. Cheapest, simplest, no overhead mechanism, easy partial opening for pedestrians. But swing leaves need clear apron space and obstruct the driveway; sliding gates need side run-off room. Common where the porch doubles as a compound gate; see collapsible gate and grill type doors for the grill-style sliding variants.

4. Up-and-over (canopy / retractable). A single rigid slab that tilts up and out, then slides back under the ceiling. Once common, now largely superseded by sectional doors. The leaf swings outward as it lifts (so you cannot park tight to the door), and it gives a single uninsulated panel. Reasonable budget motorised option but fewer suppliers in India today.

Sectional overhead vs roller shutter - the two that matter

For most Indian homeowners the real choice is sectional overhead versus roller shutter. This section shows how they move and park.

Sectional doors need ceiling depth and 200-400 mm of headroom above the opening for the curved track, but reward you with insulation, silence and tidy storage. Roller shutters need only a compact drum box above the lintel - ideal for a low-ceiling porch - but the slats sit exposed and plain MS versions are noisier and less secure.

Type comparison - suitability, security and cost

Costs are indicative 2026 supply-and-fit figures for a single-car opening (roughly 2.5 m wide x 2.1-2.4 m high), before 18% GST, and vary by size, slat or panel grade, finish and city. Motorisation is an add-on shown separately below.

Door family	Best for	Insulation / weather	Security	Indicative cost (single-car, manual unless noted)
Sectional overhead (insulated steel/alu)	Villas, premium homes, attached garages used as a room	Excellent (double-skin foam-filled)	High - rigid panels, multi-point, no easy pry point	90,000-2,50,000+ (usually sold motorised)
Roller shutter - insulated aluminium	Most modern car porches wanting quiet + warmth	Good	Medium-high	45,000-1,10,000
Roller shutter - galvanised MS	Budget, utility, frequent use	Modest	Medium (upgrade the lock)	18,000-45,000
Side-hinged / sliding gate (MS/alu)	Porch that doubles as compound gate, partial pedestrian access	Low (gappy)	Medium (depends on infill + lock)	20,000-70,000
Up-and-over (canopy)	Budget single-panel, simple motorising	Low-modest (single skin)	Medium	35,000-80,000

For the metal options, the slat or leaf material drives both cost and life: see steel and MS doors in India and aluminium doors in India for corrosion behaviour, gauges and finishes in Indian climate. A coastal home should lean aluminium or galvanised-plus-powder-coat MS over bare steel.

Motorisation, remotes and safety sensors

Motorising the garage door is the single biggest convenience upgrade, especially in the monsoon. Indian-available systems include:

Tubular motor (roller shutters). Motor sits inside the drum tube; the most common, economical home garage automation. Add-on cost roughly 12,000-40,000 depending on door weight and brand.
Trolley / rail operator (sectional and up-and-over). A ceiling-mounted motor pulls the door along the track. Roughly 25,000-75,000 fitted, often bundled with premium sectional doors.
Swing/sliding gate operators for hinged or sliding leaves - underground, articulated-arm or rack-and-pinion. These overlap with driveway gates; the full mechanism, sensors and access options are covered in motorised gate automation in India.

Whatever the drive, insist on these:

Remote handsets (rolling-code). Two or more remotes, rolling-code encrypted so a captured signal cannot be replayed.
Wall button and key/manual override. Essential for power cuts - a manual release lets you raise the door by hand.
Battery backup / inverter feed. Common Indian power cuts make a battery-backed operator genuinely useful.
Auto-reverse and obstruction sensing. The motor must reverse if it meets resistance.
Photo-eye safety beam. An infra-red beam across the opening reverses the door if a child, pet or bumper breaks it. Treat this as non-negotiable where children use the porch.
App / Wi-Fi control (optional). Many operators now pair with a phone app or integrate with door access control systems in India for shared villa entries.

Security, weather sealing and insulation

Security: a garage door is only as strong as its locking and its skin. Plain single-wall MS shutters with one centre lock are easy to lever; upgrade to a double-wall slat, side locks both ends, and an anti-lift device on motorised units (so the shutter cannot be pushed up manually). Sectional doors win here - rigid panels and multi-point latching leave no pry gap.

Weather: fit a bottom rubber gasket to seal against the floor (keeps out driven rain and dust), brush or rubber side and lintel seals, and a slight floor slope to drain water out of the porch. Insulated doors also cut heat - useful if the garage adjoins living space or stores anything heat-sensitive. For the broader principle, the same sealing logic behind energy-efficient doors in India applies: an air-tight, insulated skin keeps the space cooler and quieter.

Sizing for your car or SUV

Get the opening right before you order - widening it later means breaking the lintel.

Hatchback / sedan single garage: clear opening width 2.4-2.7 m, height 2.1 m is usually enough.
SUV / MPV (Fortuner, XUV700, Innova class): width 2.7-3.0 m, and crucially height 2.3-2.4 m for roof rails and roof boxes.
Two cars, single door: 4.5-5.5 m wide. Wide spans favour sectional or two roller shutters rather than one floppy leaf.
Drive-through / caravan: confirm height against the tallest vehicle plus 150 mm clearance.
Headroom above the opening: sectional needs 200-400 mm of lintel-to-ceiling depth for the track; rollers need room only for the drum box.

Add a margin: mirror-to-mirror width plus comfortable side clearance, and remember an electric tailgate or roof box needs vertical room when raised inside.

Costs at a glance

Beyond the type table above, budget for these in 2026 (before 18% GST, varies by size and city):

Item	Indicative cost
Tubular motor + 2 rolling-code remotes (roller)	12,000-40,000
Sectional/rail operator fitted	25,000-75,000
Photo-eye safety beam pair	3,000-8,000
Battery / inverter backup	4,000-12,000
Bottom gasket + side weather seals	2,000-6,000
Powder-coat / colour finish upgrade	5,000-20,000
Wider SUV opening (double-car sectional, motorised)	1,50,000-3,50,000+

For a tailored estimate by type, size and motorisation, use the Studio Matrx garage door cost calculator.

Maintenance

Garage doors are mechanical, so a little routine care prevents the classic screeching, jamming shutter:

Lubricate rollers, hinges, springs and tracks every 3-6 months with silicone or light machine oil - not grease that catches dust.
Clean tracks and guide rails of porch dust and grit, the main cause of jamming.
Check the springs and cables annually; tensioned springs are dangerous to adjust - call the installer.
Test the auto-reverse and photo-eye monthly: the door must reverse on obstruction.
Wash and inspect the skin for rust on MS, touch up powder coat, and reseat the bottom gasket each pre-monsoon.
Service the motor per the maker's schedule and keep the manual-release working for power cuts.

Do and don't

Do size for the SUV you might buy next, especially height.
Do insist on a photo-eye safety beam and manual override on any motor.
Do choose insulated double-wall slats or panels if the garage adjoins living space.
Do add an anti-lift device and side locks on motorised shutters.
Don't accept a single-wall MS shutter with one centre lock as your only street-facing security.
Don't skip the bottom gasket and floor drainage - the porch will flood every monsoon.
Don't install a sectional door without confirming ceiling headroom first.

Frequently asked questions

Which is better for an Indian home - a roller shutter or a sectional overhead door?

For most homes a good insulated aluminium roller shutter is the practical choice: compact, economical, easy to motorise and repair, and fine for a typical car porch. Choose a sectional overhead door if you have an attached, ceiling-height garage you want quiet, insulated and premium - it has the best security and weather performance but costs more and needs headroom.

How much does a motorised garage door cost in India in 2026?

Indicatively, a motorised galvanised MS roller for a single car runs around 30,000-70,000 fitted; an insulated aluminium roller 60,000-1,40,000; and a motorised insulated sectional door 1,10,000-2,50,000 and up - before 18% GST, varying by size, slat or panel grade, brand and city. Use the garage door cost calculator for a figure matched to your opening.

What size garage door do I need for an SUV?

Aim for a clear opening of about 2.7-3.0 m wide and 2.3-2.4 m high for SUV and MPV-class vehicles, allowing for roof rails or a roof box. A hatchback or sedan is comfortable at 2.4-2.7 m wide and 2.1 m high. Always confirm headroom above the opening, since sectional doors need track depth.

Is motorising my garage door safe with children around?

Yes, if specified correctly. Demand auto-reverse (the door reverses on hitting resistance), a photo-eye infra-red safety beam across the opening that stops and reverses the door when broken, and a manual release for power cuts. Test these monthly. Without obstruction sensing, a powered door is a genuine hazard - do not skip it.

Can I make my garage door more secure and weatherproof?

Yes. Upgrade to double-wall slats or rigid panels, add side locks at both ends plus an anti-lift device on motorised shutters, and fit a bottom rubber gasket with side and lintel seals against rain and dust. A slight floor slope drains the porch. For the locking and access side, pair it with proper door access control on premium installations.
