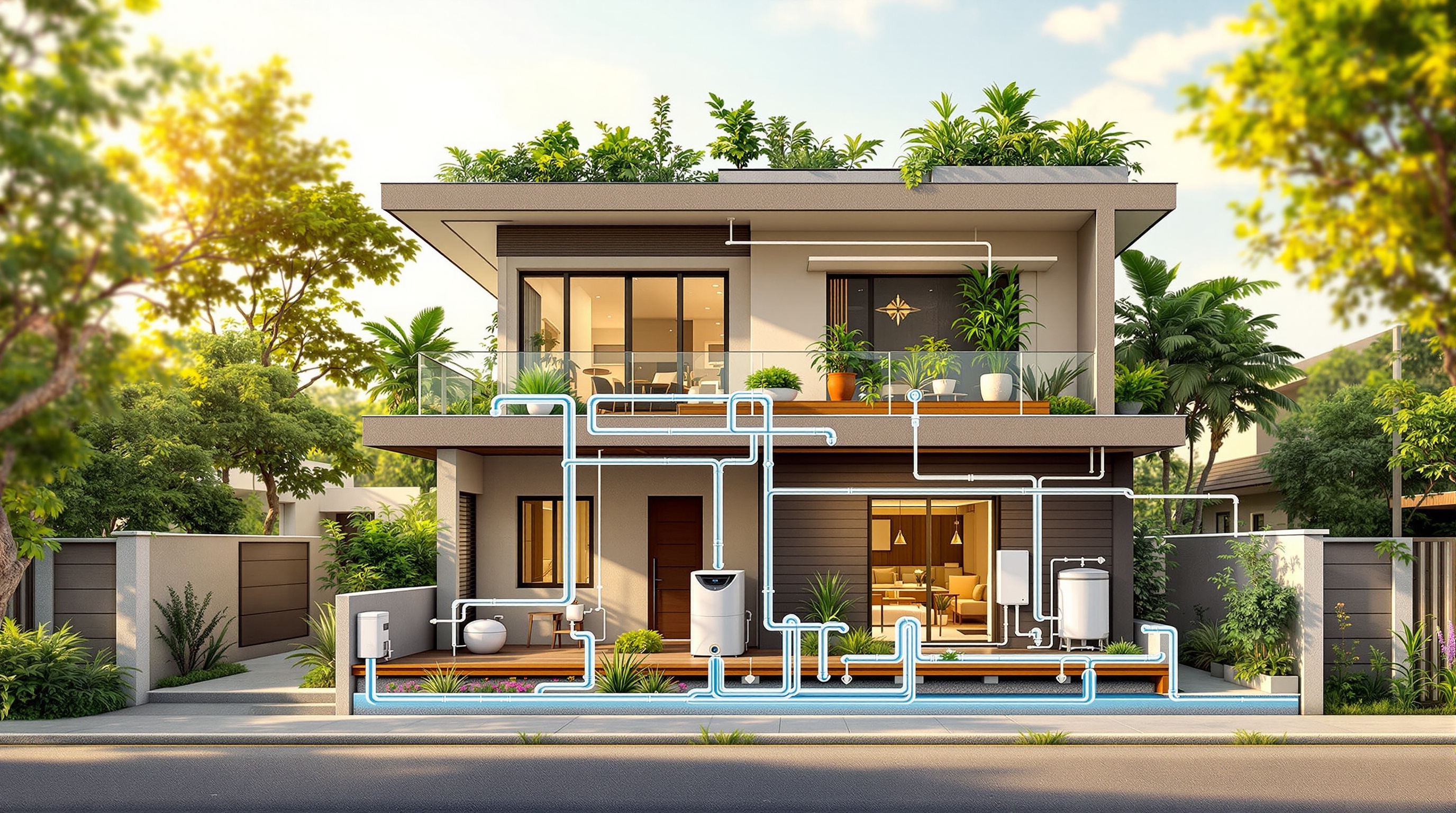

Rooftop Water Recycling Integration in Homes: One Non-Potable System from Rain and Greywater

Most homes that try to save water do one thing: they either put in rainwater harvesting, or they recycle greywater, or they install a small STP. Each works — and each disappoints, because on its own no single source is both abundant and reliable. Rain pours for three months and then vanishes for nine. Greywater and treated sewage trickle in steadily every day but never in a flood. The interesting move — the one that actually gets a home off tanker water for most of the year — is to stop treating these as three separate projects and wire them into one non-potable water system.

That is what rooftop water recycling integration means: rainwater from the roof, greywater from bathrooms and washing, and STP effluent from the whole house, all polished to a common standard, pooled in shared storage, and pumped back through a single dedicated set of pipes for flushing, gardening, washing and recharge.

Rain and wastewater are opposites in the best possible way. One is seasonal and huge; the other is daily and small. Put them behind one storage tank and they cover each other's gaps — the roof fills the tank in the monsoon, the drains keep it topped up through the dry months.

The water profile of an integrated home

Before sizing anything, understand what the three sources actually deliver — because their timing and quality are completely different, and that difference is the whole design.

• Rooftop rainwater is clean, low in dissolved solids, and effectively free of organic load — but it arrives in violent bursts. A 200 sq m roof in a 900 mm rainfall city can shed lakhs of litres in a single monsoon, and almost nothing in April. Its enemy is the first flush: dust, bird droppings and roof grit in the opening minutes of a storm.
• Greywater — from showers, washbasins and the washing machine — is a steady daily stream, moderately loaded with soap, hair, skin oils and lint. It has low-to-moderate BOD and needs real biological or filtration treatment, not just settling. Our home greywater recycling systems guide breaks this stream down in detail.
• STP / blackwater effluent — the fully treated output of the home's sewage system, including toilet and kitchen waste — is the most heavily loaded source but, once treated to reuse grade, the most dependable in volume. It tracks occupancy, not weather.

The key insight for a designer: rainwater is a quality asset and a timing liability; greywater and STP effluent are timing assets and quality liabilities. The system exists to net those out.

How the sources complement each other seasonally

Think of the shared non-potable tank as a bank account with three depositors on different schedules.

In the monsoon, rainwater dominates — you may divert the overflow straight to recharge because the tank is full. In the long dry season, rainwater is zero and the recycled greywater and STP effluent carry the entire non-potable demand. There is rarely a month when all three run dry at once, which is exactly why the blended system needs far less buffer storage than a rain-only tank would. You are not storing six months of water; you are storing a few days, because a source is always flowing in.

One standard, one tank: the storage question

The temptation is to keep three tanks. Resist it where you can. A single blended non-potable reservoir is simpler to plumb, simpler to pump from, and self-balancing — but it forces a discipline: every source must be treated to the same reuse standard before it enters. You cannot let raw rainwater grit and treated STP effluent share a tank unless both are clean, or the dirtier stream drags down the whole reservoir.

A workable arrangement for a mid-size home:

• First-flush + rainwater filter on the roof downpipes, feeding the blended tank (or a recharge pit once the tank is full).
• Greywater treatment — a compact filtration or media unit — discharging to the same tank.
• STP tertiary outlet (sand + carbon filter, then chlorine or UV) discharging to the same tank.
• A single disinfection point on the tank outlet as a final safety net before reuse.

Size the blended tank for 1–2 days of non-potable demand, not the monsoon inflow. Overflow goes to groundwater recharge — which the National Building Code and most city bye-laws already require for rooftop rainwater anyway, so you are satisfying compliance and protecting the aquifer in the same move. To ground the numbers, the water consumption calculator gives you the household demand, and the STP capacity calculator sizes the treatment side.

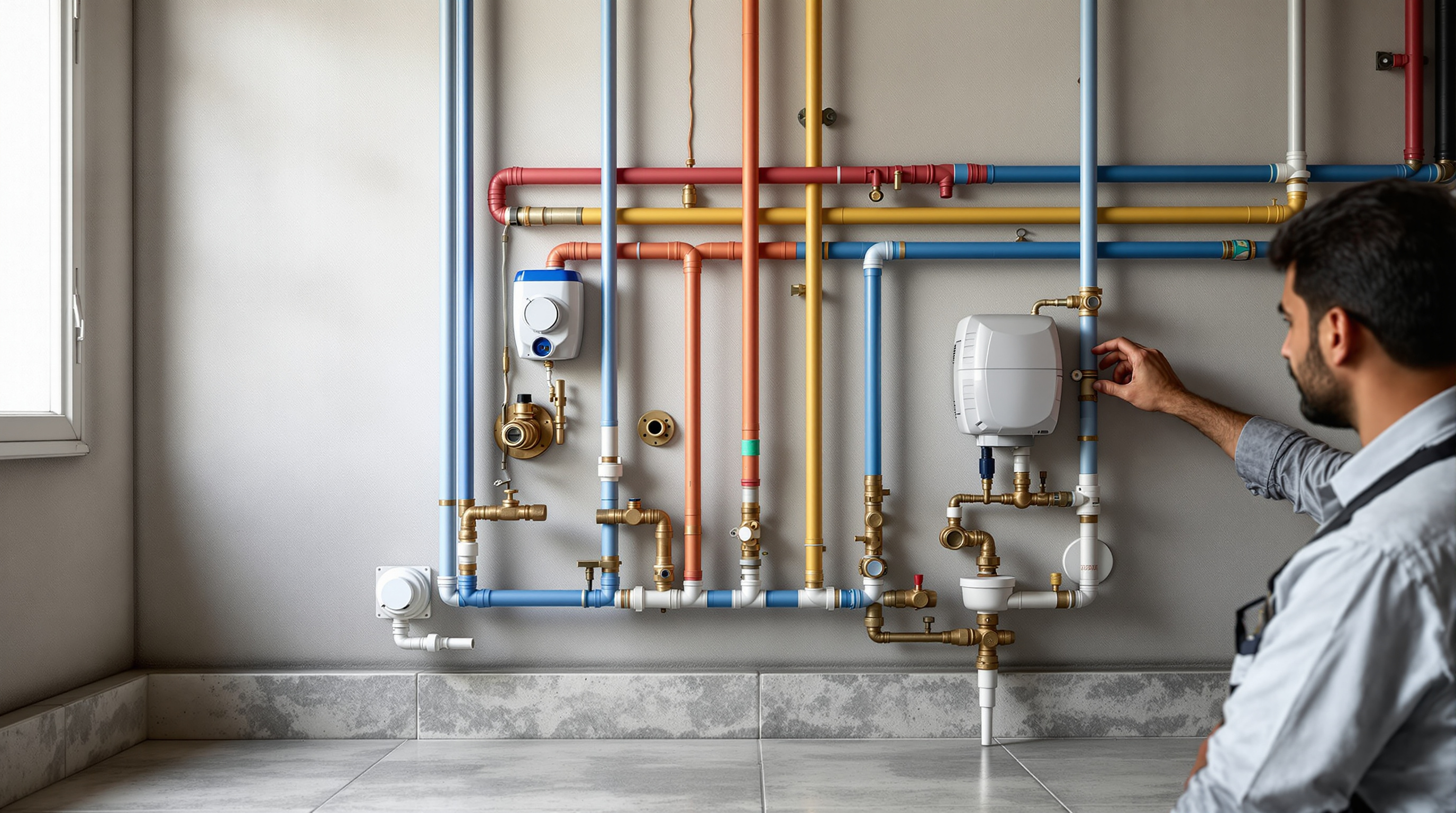

Dual plumbing: the non-negotiable

None of this works without two separate plumbing networks in the house — and this is the single decision that must be made at the drawing-board stage, because retrofitting it into finished walls is brutal.

• A potable line (municipal or borewell + softener/RO) serving kitchen taps, drinking points and showers.
• A non-potable line, colour-coded and clearly labelled, serving toilet cisterns, garden taps, the washing-machine cold feed (optional), floor and vehicle washing, and any water feature.

Cross-connection between the two is the cardinal sin of water reuse — it is how treated wastewater ends up at a drinking tap. Use physical separation, air gaps at every tank, and a distinct pipe colour (typically a marked line, never plain white) so no plumber five years later mistakes one for the other. In an integrated home this dual network is more important than in a rain-only home, because the non-potable line now carries treated sewage-origin water, not just filtered rain.

Controls: making three sources behave like one

The intelligence of an integrated system is modest but essential — you do not need a building-management system, just a few interlocks:

• Level-based source priority. When the tank drops below a set level, draw from the steadiest source (STP/greywater); when rain is flowing, let it lead and send treated wastewater to recharge instead.
• A municipal top-up valve with an air gap, so a long dry spell with low occupancy never leaves toilets dry — but positioned to fire last, after all recycled sources.
• Overflow-to-recharge logic, so a full tank in the monsoon feeds the borewell zone rather than spilling to the drain.
• A disinfection interlock so nothing is pumped to reuse without passing the final UV/chlorine stage.

Float switches, a couple of solenoid valves and a small controller handle all of it. The sewage treatment process flow guide shows where the tertiary and disinfection stages sit, which is exactly where your reuse-grade output is tapped.

Reuse opportunities in a home

Blended non-potable water comfortably covers the largest slices of household demand:

• Toilet flushing — typically 25–30% of home water use, and the anchor reuse.

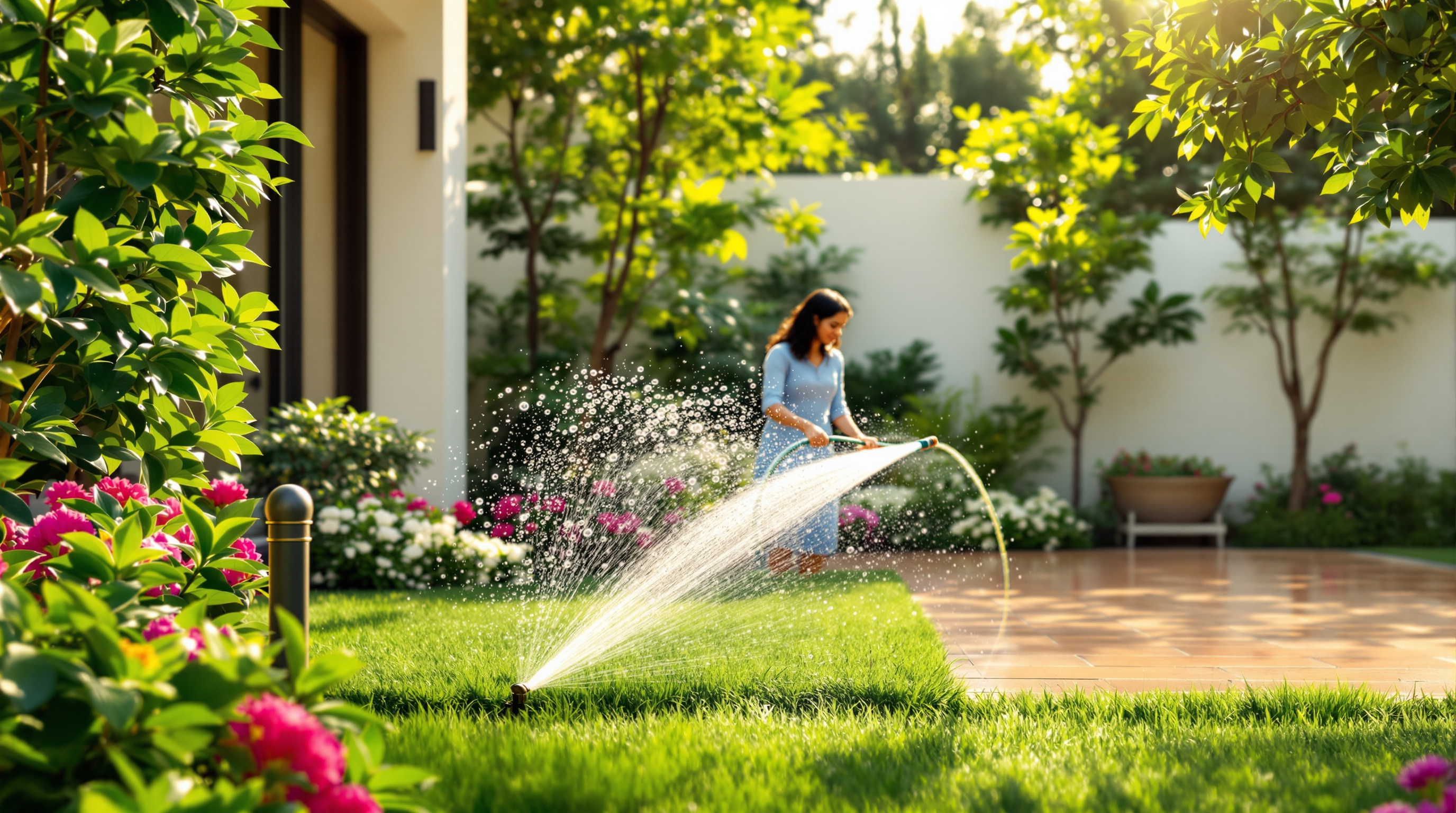

• Garden and landscape irrigation — often the biggest single draw in a villa with lawns.
• Floor, driveway and vehicle washing.
• Water features and cooling for homes that have them.
• Groundwater recharge for the surplus, which is what keeps the borewell alive.

Between them, these can absorb well over half of a home's total water consumption — the fraction that never needed to be drinking-quality in the first place.

Compliance notes

Two regulatory threads meet here, and the good news is they pull the same way:

• Rainwater harvesting is mandated for most plots above a threshold size by state building bye-laws and the NBC — usually as recharge, sometimes as storage. An integrated system satisfies this by design.
• Sewage/greywater reuse follows CPCB-directional norms: treated water reused on site must meet reuse-grade quality (low BOD, low TSS, disinfected), and it must be physically separated from potable supply.

Keep the reuse water to non-contact, non-potable end-uses, maintain the disinfection stage, and document the dual-plumbing separation for approvals. This is standard territory for villa-scale STPs, where reuse is expected rather than optional.

Common mistakes

• Skipping the first flush. Roof grit in a shared tank fouls the whole reservoir and the pumps. It is the cheapest component and the one most often left out.
• Over-sizing rain storage, under-sizing treatment. People build a giant rain tank that sits empty nine months a year, while the daily greywater/STP flow — the reliable source — is throttled. Size storage for days, not seasons.
• No air gap on the municipal top-up. A direct connection risks back-siphoning recycled water into the city main — a serious violation.
• Retrofitting dual plumbing. Decide on two networks before slabs are poured. After that, it means chasing walls.
• Neglecting maintenance. Filters clog, UV lamps age, chlorine runs out. An integrated system has more failure points than a single source; a simple monthly checklist keeps all three streams reuse-grade.

The bottom line

Rainwater, greywater and STP effluent are not three competing projects — they are one water system waiting to be wired together. Treat each to a common standard, pool them behind a single modest tank, run a dedicated non-potable line, and add a handful of level and disinfection interlocks, and a home draws most of its flushing and gardening water from its own roof and drains all year. To go deeper on the treatment side that anchors the whole system, start with the Sewage Treatment Plants guide library.
