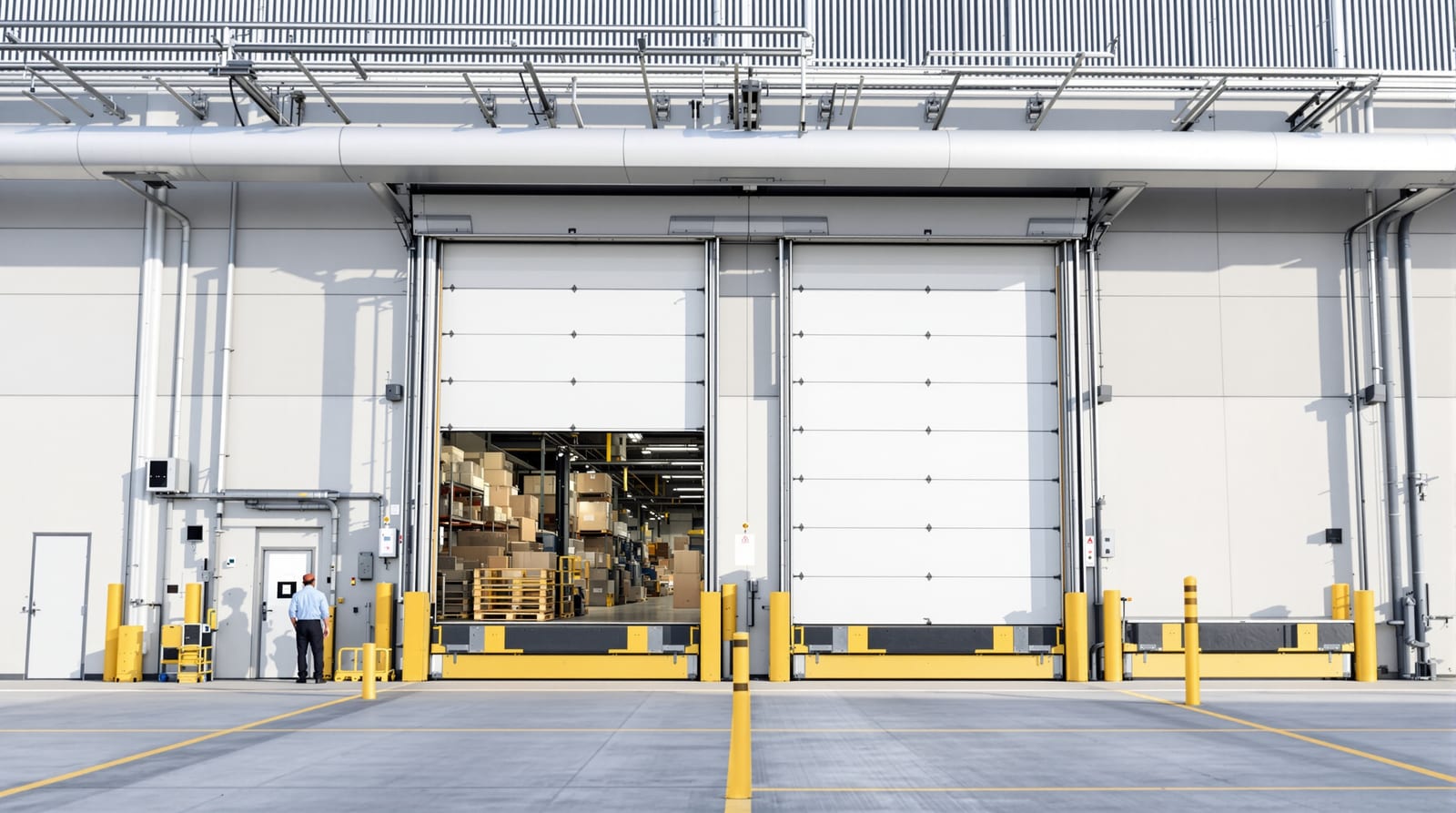

In any conditioned facility, the door is the weakest point in the thermal envelope. A bare single-skin shutter can leak more heat per square metre than the entire surrounding wall, and every degree the plant has to claw back shows up on the electricity bill. Insulated industrial doors close that gap: a foam core sandwiched between two steel skins, set in a thermal-break frame and sealed all round, turns a hole in the wall into a continuation of the insulated envelope. For temperature-controlled warehouses, cold-chain dispatch docks and conditioned production halls, the question is rarely whether to insulate the door, but to what U-value — and that answer comes from the temperature delta, the duty cycle and the payback maths, not from a catalogue default.

This guide is for specifiers, facility and plant managers, and architects sizing the thermal performance of door openings. As with all specialty doors, treat the numbers below as planning bands: the final leaf build-up, U-value and price come from a vendor engineering the door against your temperature class and opening size. For the colder end of the spectrum — sub-zero rooms — see freezer doors, and for the throughput side, high-speed doors.

Why insulated industrial doors matter

A door earns its insulation in three ways. First, conductive loss through the closed leaf — governed by the panel U-value and the door area. Second, air infiltration through gaps at the perimeter, between sections and under the bottom rail — governed by the seal quality. Third, air exchange during opening cycles — governed by how often and how long the door stands open, which is where pairing with a fast door or strip curtain matters.

An insulated leaf only fixes the first of those, so a genuinely energy-efficient opening treats all three together. A 100 mm PUF sectional door with a poor bottom seal and a 90-second open cycle will still bleed energy; conversely, a well-sealed insulated door behind a high-speed door or PVC strip curtain gives you the full benefit. Think of the insulated door as the night-time and idle-period barrier, and the fast door or curtain as the working-hours barrier.

Where they belong

• Temperature-controlled and ambient-plus warehouses — dry stores held at 18-25°C, FMCG and pharma ambient zones.
• Cold-chain dispatch and loading dock doors — chiller (2-8°C) bays where the door faces a dock leveller and shelter.
• Conditioned production halls — electronics, food processing and assembly lines where stable temperature and humidity protect product or process.
• Cold rooms and cold storage — though deep-freeze (-18 to -25°C) crosses into dedicated freezer-door territory.

Panel construction: PUF vs PIR vs mineral wool

The core material sets the thermal conductivity (lambda, W/m·K) and the fire behaviour. The two steel skins (typically 0.4-0.6 mm galvanised, polyester pre-painted) provide rigidity and the weather face; the core does the insulating.

PUF and PIR are close on raw insulation; PIR is chosen where fire char behaviour or food-safety standards push for it. Mineral wool insulates less per millimetre, so a mineral-wool leaf must be thicker to hit the same U-value, but it is the route to a non-combustible insulated leaf — relevant where the door also has a fire role (see fire-rated rolling shutters, which serve a fundamentally different function).

Panel thickness and U-value

For a double-skin PUF/PIR sectional panel, thickness drives the centre-of-panel U-value roughly as below. Note that the installed door U-value is always worse than the bare panel figure once frame, seals, joints and the bottom rail are included — a good vendor quotes both.

As a rule of thumb, double the panel thickness and you roughly halve the conductive loss through it — but only down to the point where infiltration and opening losses dominate, after which spending on seals and a fast door beats spending on more foam.

Anatomy of an insulated opening

The SVG below shows where the heat actually escapes and what each component does.

Thermal-break frames and seals

A steel frame and steel section ends form a continuous metal path from warm to cold side — a thermal bridge that condenses moisture and frosts up. A thermal-break frame interrupts that path with a polyamide or PVC strip, and section ends use end-caps that break the skin-to-skin contact. On cold-chain doors the frame and gaskets may be heated (a low-wattage trace element) to stop the gasket freezing to the frame.

Seals are the unglamorous half of the performance:

• Perimeter gaskets (jambs and head) — EPDM or brush, compressed by the closed leaf.
• Inter-panel seals — flexible joints that also act as finger-protection on sectional doors.
• Bottom seal — a flexible rubber profile that conforms to floor unevenness; the single biggest infiltration culprit when worn.

Across a fleet of doors, a maintenance regime that replaces tired seals returns more saved energy per rupee than any leaf upgrade. Build it into a planned schedule — an industrial door AMC scheduler keeps seal checks from slipping.

Insulated vs non-insulated: the payback

The case for insulation is an energy-cost argument, so make it numerically. Take a 4 m x 4 m (16 m²) door on a chiller bay (8°C inside, 32°C ambient, delta 24 K), running roughly 8,000 hours a year, with grid power at a representative industrial tariff.

*Conductive-loss heat must be removed by refrigeration, so multiply by the plant COP and tariff for the rupee figure; infiltration and opening losses sit on top. Treat the percentages as directional, not guaranteed.

The jump from single-skin to any insulated leaf captures most of the saving; the jump from 40 mm to 80 mm is real but smaller, and justified mainly by larger temperature deltas. Run your own opening size, delta and tariff through a cold-store door heat-load calculator and a high-speed door savings calculator before committing — payback periods of 1-3 years are typical when replacing single-skin shutters in a conditioned space, but a warm, lightly-conditioned dry store may not justify a premium leaf.

Cost bands (India 2026)

Pricing is per door, custom to opening size, and quoted supply-only or installed — installation, dock integration and electricals add materially. GST on doors is 18%. These are planning bands; specialty insulated doors are project-engineered, so get a vendor quote against your spec.

Indian and global suppliers active in this segment include Gandhi Automations, Shakti Hörmann, Hörmann, ASSA ABLOY, Avians and Envirotech, among others — frame any quote against the temperature class and opening, not a list price.

Specifying the right insulated door

Work in this order: (1) fix the temperature delta and humidity to target a U-value and decide if a heated frame is needed; (2) size the opening and weight, which sets manual vs motorised and the operator; (3) define the duty cycle — high cycle counts push you toward pairing with a fast door rather than thicker foam; (4) check fire and hygiene overlaps that might force PIR or mineral-wool cores or a food-grade build (see food-grade doors); (5) detail the seals, thermal break and floor condition. For the wider menu of industrial openings and how insulated types fit, see industrial door types, and for the engineering layer overall, specialty doors and the cluster complete door guide.

Frequently asked questions

What U-value should an insulated industrial door have?

Match it to the temperature delta. Lightly conditioned and ambient-plus warehouses are well served by a 40 mm panel (~0.55-0.65 W/m²K). Chiller bays and conditioned production justify 60-80 mm (~0.30-0.50). Cold rooms want 100 mm (~0.25-0.32), and deep-freeze crosses into dedicated freezer-door territory at 120-150 mm. Always ask for the installed U-value, not just the centre-of-panel figure.

Is PUF or PIR better for cold-chain doors?

Thermally they are close (lambda ~0.022-0.026 W/m·K). PIR has better char resistance and fire behaviour, so it is preferred where fire sensitivity or food-safety standards favour it. PUF remains the standard, cost-effective core for most insulated sectional and roller doors. Where the door must be non-combustible, a thicker mineral-wool leaf is the route.

Do insulated doors need a heated frame?

For chiller bays around 2-8°C, usually not. For sub-zero and demanding cold-chain doors, a heated frame and gasket prevent the seal freezing to the frame and stop frost build-up that jams the door. It adds roughly ₹15,000-40,000 and a small running cost, but protects reliability where it matters.

How quickly do insulated doors pay back?

Replacing a single-skin shutter on a conditioned space typically pays back in about 1-3 years through reduced refrigeration load, with the biggest saving in the first step from single-skin to any insulated leaf. A warm, lightly-conditioned dry store may not justify a premium thick leaf — run your opening size, delta and tariff through a heat-load calculator first.

Should I insulate the door or add a high-speed door?

Do both where the duty cycle is high. An insulated leaf controls night-time and idle conductive loss; a high-speed door or strip curtain controls the much larger air-exchange loss during working hours. Beyond a point, spending on seals and a fast door beats spending on ever-thicker foam.

Are insulated industrial doors custom-made?

Yes. They are project-engineered to the opening size, temperature class, duty cycle and dock integration, and quoted supply-only or installed with custom lead times. Treat all cost and U-value bands here as planning figures and obtain a vendor specification against your code and conditions.
