Hangar Doors India 2026: Spans, Wind Load & Drive Types

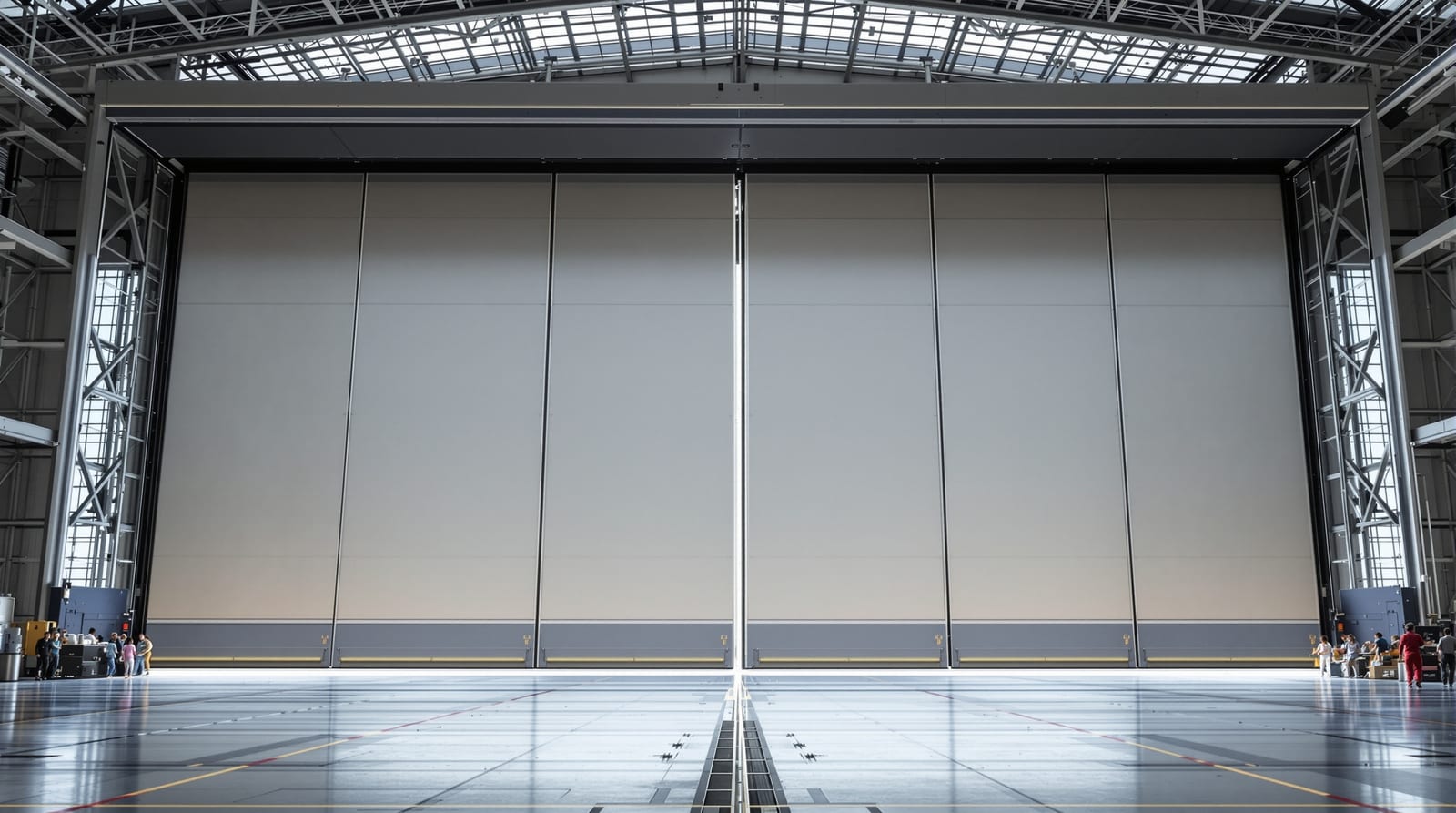

Hangar doors in India are the largest moving elements most buildings will ever carry — leaves that span tens of metres and stand the full height of an aircraft, closing the open face of an MRO hangar, a defence shelter or a very large industrial shed. Unlike any domestic or even ordinary factory door, these are structural-scale, project-engineered systems where the governing problem is not security or fire but span and wind: a 40 m wide, 12 m high opening presents a sail area on which IS 875 (Part 3) wind pressure acts with tonnes of force. Get the door type, drive and bracing right and the hangar opens in two minutes in a crosswind; get it wrong and you have a buckled leaf, a jammed track or a safety incident. This guide on hangar doors India compares the main hangar door types used here, the wind-load engineering behind them, drive and sealing choices, and realistic ₹ bands — but every hangar door is bespoke, so treat figures as planning numbers and get a vendor spec against your site's wind zone.

Why hangar doors are a category of their own

A hangar door is closer to a piece of moving structure than to a door. The leaf carries its own dead weight (often several tonnes), transfers horizontal wind load into the building frame, and must seal a very large perimeter against rain and dust. Three numbers dominate the design:

• Clear opening — width and height needed to roll the tallest, widest aircraft (tail height drives the height; wingspan plus margin drives the width).
• Design wind pressure — from IS 875 (Part 3) using the site basic wind speed, terrain, height and an importance factor (defence and aviation assets often take a higher factor).
• Operating wind — the speed up to which the door may be safely operated, always lower than the survival (closed-and-locked) pressure.

Because these openings can exceed the practical limit of any single rigid leaf, hangar doors are built as multiple leaves or panels that stack, fold or lift. The choice between them is set by available side-room, headroom, the number of operations per day and budget. For the broader family of large openings see industrial door types and the cluster complete door guide; hangar doors are the very large end of that spectrum.

The main hangar door types

Bottom-rolling sliding doors

The traditional workhorse for big hangars. Each leaf runs on steel wheels (bogies) along rails cast into the apron, with top guides restraining it against wind. Leaves park to one or both sides, often nesting on multiple parallel tracks. Bottom-rolling doors carry their own weight into the slab, so the building frame is relieved of vertical load — attractive for very heavy, very wide leaves. The trade-off is the floor rail: it must stay clear of snow, debris and FOD (foreign-object debris, a serious aviation concern), and the apron must be level and drained. Best for the widest openings where side-room exists.

Top-supported (top-hung) sliding doors

Here the leaves hang from an overhead beam and rail, with only light bottom guides. The slab stays clean — no load-bearing floor rail to trap FOD — which suits aviation. The penalty is that the full door weight and wind reaction go into the header beam and columns, demanding a stiffer building frame. Top-hung suits medium-to-large hangars and large sheds where a clean threshold matters. See sliding-folding industrial doors for the related stacking-leaf principle.

Vertical-lift (one-piece or stacking) doors

The whole door, or a set of horizontal panels, lifts vertically clear of the opening. A one-piece lift door rises into a pocket above the lintel; a multi-panel lift stacks panels under the roof. Vertical-lift gives an unobstructed, fully clear opening with no side-room needed and no floor track — ideal where wingtips must pass close to the jambs. It demands generous headroom and a robust counterweight or hoist system, and the leaf weight bears on the top structure. Common on modern MRO hangars.

Bi-fold and strap-lift doors

A bi-fold door is hinged across its middle: the lower half pivots out and up while the upper half folds back, opening the full height in one fast motion driven by hydraulic rams or lifting straps (a strap-lift or hydraulic one-piece variant tilts the whole leaf outward). These open very fast and clear the opening completely, with the moving leaf acting as a canopy. They suit small-to-medium hangars (general aviation, helicopters, agricultural sheds) up to moderate spans, and are popular where speed and a clean opening matter more than the very largest width.

Fabric (membrane) hangar doors

For large spans at lower cost and weight, a PVC-coated polyester or PTFE fabric door rolls or folds on a light steel frame. The membrane is tensioned and wind-rated by its frame and reinforcing webbing. Fabric doors are dramatically lighter than steel, reducing the demand on the building frame, and open quickly; they are widely used for large sheds, military quick-shelters and some general-aviation hangars. They offer less impact resistance and insulation than insulated steel and rely on the fabric specification for wind performance.

Type comparison

Wind-load engineering (IS 875 Part 3)

Wind is the design driver. The closed door is a large flat surface; the design wind pressure p_z = 0.6 × V_z² (N/m²) where V_z is the design wind speed derived from the basic wind speed for the site, modified by terrain, height and importance factors. Coastal and cyclone-prone zones (parts of the eastern and western seaboard) carry the highest basic speeds; for the coastal context see cyclone-shelter doors. The door and its supports must resist this pressure in both the closed-and-locked (survival) state and, at a lower threshold, while operating.

What the wind load decides

• Leaf stiffness — depth of the door's internal trusses/ribs and the steel section sizes.
• Wind posts and locking — intermediate wind columns or multi-point bottom/top latching that transfers leaf wind reaction into the apron and header.
• Building frame — top-hung and lift doors push large horizontal and vertical reactions into columns and the lintel beam; these must be designed together with the door, not afterward.
• Operating limit — the door is interlocked or procedure-controlled to stop operation above a set wind speed, protecting the drive and tracks.

Drive systems

Large leaves are moved by electric motor-and-gearbox units driving the bogie wheels or a rack/chain, by hydraulic rams (bi-fold and strap-lift), or by counterweighted hoists (vertical-lift). Key drive considerations:

Every hangar door must have a manual/emergency means of operation and safety devices — safety edges, photocells, audible/visual warning, and operating-wind interlocks. Speeds are deliberately modest (a full hangar door takes one to a few minutes), prioritising controlled load transfer; for fast small openings inside the hangar use high-speed doors. Insulated personnel wickets are usually built into one leaf for daily access — see insulated industrial doors.

Weather sealing and weather-tightness

A hangar perimeter is enormous, so sealing matters for energy, dust and FOD. Standard measures: compressible brush or rubber seals between leaves and at jambs, a flexible bottom seal sweeping the apron, a labyrinth top seal at the header, and shaped meeting stiles where leaves close. Bottom-rolling doors must also detail the slab rail so water drains and grit doesn't accumulate. Driving-rain coastal sites take a heavier seal package, and insulated steel skins or PUF cores can be added where the hangar is climate-controlled.

Cost bands (India 2026)

Hangar doors are wholly bespoke; price scales with opening area, wind rating, drive and sealing, and is best read as ₹ per square metre of opening, supply-only vs installed. As planning bands only:

Add installation, foundations/apron works, building-frame strengthening, and 18% GST. A complete large MRO hangar door is frequently a multi-crore line item. Use the door cost calculator for a rough area-based estimate and the industrial door selector to narrow the type, then obtain a vendor design against your IS 875 wind zone. For maintenance budgeting of motorised leaves see industrial doors.

Choosing hangar doors India: a decision sequence

1. Fix the clear opening from the design aircraft (tail height, wingspan + margin).

2. Establish the design wind pressure from IS 875 (Part 3) for your site, with the right importance factor for defence/aviation.

3. Check side-room and headroom — these eliminate types fast (no side-room → lift or bi-fold; no headroom → sliding).

4. Decide on the threshold — FOD-sensitive aviation favours clean (top-hung, lift, fabric) over a load-bearing floor rail.

5. Match drive and backup to operating frequency and the must-open-on-power-failure requirement.

6. Co-design with the structural engineer so frame reactions are carried.

Because the door and the building are a single engineered system, the specification, wind calculation and price must come from the door vendor working with your structural consultant. For the wider specialty range see specialty doors.

Frequently asked questions

What is the maximum span a hangar door can cover?

There is no single limit because hangar doors are made of multiple leaves or panels. Bottom-rolling and top-hung sliding systems regularly close openings of 30-60 m and can be extended further with more parking tracks. The practical limit is set by available side-room, the building frame's capacity to carry wind reactions, and budget — all resolved in a bespoke design.

Which standard governs hangar door wind design in India?

IS 875 (Part 3) governs wind loads, giving the design wind pressure from the site's basic wind speed, terrain, height and importance factor. Defence and aviation assets typically take a higher importance factor. The door's leaf, locking and the supporting frame are designed to this pressure for the closed (survival) state, with a lower threshold set for safe operation.

Bottom-rolling or top-hung — which is better for an aircraft hangar?

It depends on FOD tolerance and frame economy. Bottom-rolling carries weight into the slab (cheaper frame) but needs a clean, drained floor rail — a FOD risk. Top-hung keeps the threshold clear (better for aviation) but pushes the full weight and wind reaction into the header beam and columns, demanding a stiffer building frame. Both are valid; the structural trade-off decides.

Are fabric hangar doors strong enough for cyclone-prone coasts?

Fabric (PVC-coated polyester or PTFE) doors can be wind-rated, but their performance depends entirely on the frame and reinforcing-web specification. In high-wind or cyclone zones they must be engineered to IS 875 for that site, and insulated-steel sliding or lift doors are often preferred for impact and durability. Get a site-specific wind rating in writing.

How long does a hangar door take to open, and what happens in a power cut?

Full hangar doors open in roughly one to a few minutes — speed is deliberately modest to control the large moving mass. Every hangar door must have a manual or emergency means of operation (hand chain, manual release or backup drive) so a critical asset can still be opened during a power failure.

Why can't I just price a hangar door from cost-per-square-metre?

The ₹/m² bands here are planning figures only. Real cost depends on wind rating, leaf count, drive type, sealing, apron/foundation works and building-frame strengthening, plus 18% GST and a long lead time. A hangar door is project-engineered as part of the structure, so the final specification and price must come from the vendor working with your structural consultant against IS 875.
