Anti-Static & ESD Flooring in India: Conductive vs Dissipative Floors, Resistance Ranges, IEC 61340, Cost & Earthing

A person walking across an ordinary vinyl or carpet floor on a dry Delhi winter day can build up several thousand volts of static charge on their body — and discharge it in a single spark when they touch a doorknob, a circuit board or a server rack. In a home that is a nuisance. In a semiconductor fab, a server room, an explosives store or an operation theatre, that same spark can destroy a microchip, corrupt data, ignite vapour or interfere with life-support equipment. Anti-static and ESD (electrostatic-discharge) flooring is the engineered floor that quietly prevents this: it conducts the charge off the body, through the floor, and into the building earth before it can do harm.

This guide is written for facility engineers, project managers, MEP consultants and contractors specifying floors for static-sensitive spaces in India. It covers how these floors actually work, the difference between conductive and dissipative grades, the resistance numbers you must specify and test, the main floor types and their costs, earthing and install, the IEC 61340 standard, and how to maintain the floor so it keeps working.

What "static control" actually means

Static electricity builds when two surfaces rub and separate — shoe against floor, fabric against chair, a part sliding out of its bag. The charge sits on insulating surfaces with nowhere to go. An ESD floor breaks this by being mildly conductive: it offers a controlled, deliberate path for charge to bleed away to earth, slowly enough that there is no dangerous shock and fast enough that no damaging build-up occurs.

The key idea is that the floor is one half of a system. The other half is the operator's footwear — ESD shoes, heel straps or conductive overshoes — that connect the body to the floor. A conductive floor under ordinary rubber-soled shoes does almost nothing; an ESD floor with ESD footwear gives a complete, measured path from the person to earth. Specifying the floor without mandating the footwear is one of the most common and expensive mistakes in Indian fit-outs.

Conductive vs static-dissipative — and the resistance numbers

ESD floors are classified by their electrical resistance, measured in ohms, between the floor surface and an earth (ground) point. Lower resistance means charge drains faster. There are two broad grades, and choosing the right one matters because "more conductive" is not automatically "better" — a too-conductive floor can be unsafe where mains voltages are present.

Two practical notes. First, "anti-static" in marketing is often used loosely — a vinyl that merely resists charging is not the same as a tested dissipative or conductive floor wired to earth. For genuine ESD protection, specify a measured resistance band, not a brand adjective. Second, in spaces with exposed mains equipment (some data centres, hospital theatres), a static-dissipative floor in the 10⁶–10⁹ range is preferred over a fully conductive floor, because it limits the current that could flow through a person who simultaneously touches a faulty live part — it is a safety trade-off, not just an ESD one.

How an ESD floor works — the conductive path to earth

Every ESD floor, regardless of material, is built around the same three-part chain: a conductive surface, a conductive adhesive or backing carrying carbon, and a copper grounding network bonded to the building earth.

When the operator touches the floor through ESD footwear, charge flows from the body into the conductive surface, sideways through the carbon-rich adhesive into the copper strips, down the bonding cable, and into the building earth pit. The whole journey happens in a fraction of a second and at a current far too small to feel. Remove any link — a non-conductive adhesive, a broken copper joint, a disconnected earth, or ordinary shoes — and the floor stops working even though it looks identical.

The main types of ESD flooring used in India

A few selection rules of thumb. ESD vinyl (tiles or sheet) is the workhorse for clean electronics environments — fast to lay, easy to keep clean, and available welded-seamless for cleanrooms and operation theatres. ESD epoxy and PU are the choice where the floor also faces forklifts, chemicals, thermal shock or heavy abrasion — a fab, a battery line, a cold store. ESD raised-access panels suit data centres because they combine static control with the underfloor void for cabling and cooling — pair this guide with our raised access flooring in India guide. Conductive rubber adds underfoot comfort for staff who stand all day. For the seamless, hygienic roll vinyl family more broadly, see our PVC roll flooring in India guide; for the resin systems it overlaps with, see epoxy flooring in India and PU resin flooring in India.

Where ESD flooring is required

Static control is a hard requirement, not a preference, in a defined set of environments:

• Electronics and semiconductor manufacturing — SMT/PCB assembly, chip fabs, EMS plants, mobile and electronics factories. A single ESD event can latently damage a component that fails weeks later in the field.

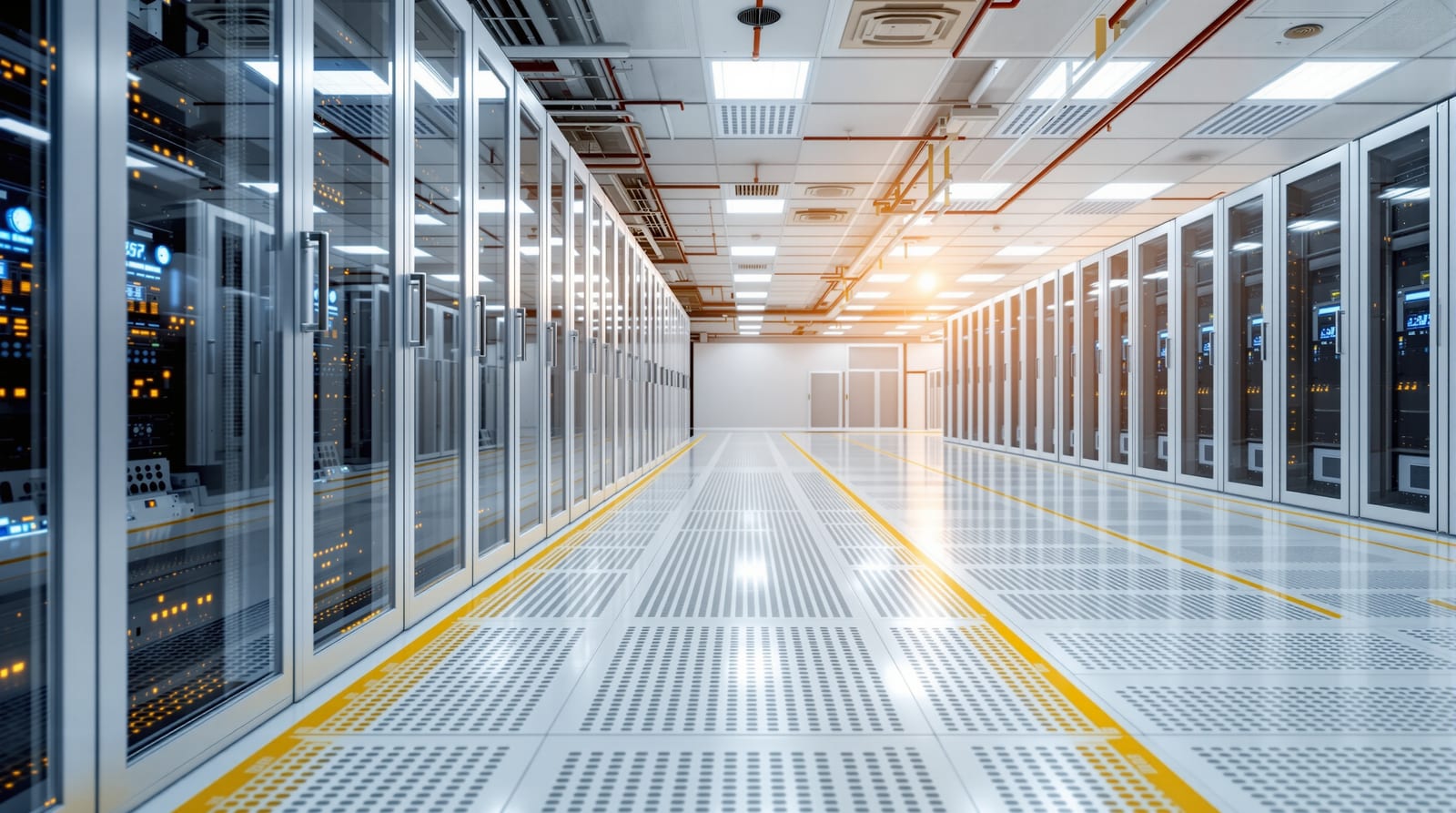

• Server rooms, data centres and telecom — protecting racks, switches and storage from discharge; usually paired with raised-access flooring.
• Operation theatres and critical-care areas — historically driven by anaesthetic-vapour ignition risk and to protect sensitive monitoring/imaging equipment; Indian hospital specs often call for static-dissipative or conductive floors in OTs.
• Laboratories and cleanrooms — pharma, diagnostics, R&D, where both ESD and contamination control matter (seamless welded vinyl).
• Defence, ammunition and explosives, fuel and flammable-vapour areas (ATEX-type zones) — here conductive floors prevent a static spark igniting vapour or energetic material; this is a life-safety requirement.
• Battery, EV and energy-storage manufacturing — a fast-growing Indian use as cell and pack lines scale up.

If a space does not fall in one of these categories, a standard resilient or resin floor is usually the right, far cheaper answer — do not over-specify ESD where it is not needed.

Standards: IEC 61340 and what to specify

The governing international standard family is IEC 61340-5-1 (and its user guide 61340-5-2), which defines the requirements for protecting electronic devices from electrostatic phenomena, including floor performance, and ANSI/ESD S20.20 in the American scheme. The relevant test methods sit in IEC 61340-4-1 (resistance of floor coverings) and IEC 61340-4-5 (the walking-test that measures the body-voltage a person actually generates on the floor while wearing the specified footwear). India's electronics and pharma facilities are typically specified directly against IEC 61340-5-1.

What this means on a spec sheet: do not write "anti-static floor". Write the measured targets — for example, resistance to ground in the 10⁶–10⁹ ohm band for a dissipative server-room floor, plus a body-voltage generation limit (commonly under 100 volts in the walking test). Conductive floors for ATEX/explosive zones are specified to the lower 10⁴–10⁶ band. Always require the floor and the footwear to be qualified together, and require a commissioning test report. For general flooring standards and IS codes in the Indian context, see our natural stone standards in India guide.

Earthing and installation — where ESD floors are won or lost

The single biggest cause of a "failed" ESD floor is bad earthing, not bad material. Installation discipline is everything:

1. Substrate. The concrete or screed must be sound, level, dry and free of old non-conductive coatings or laitance. Moisture is critical for resin systems — test slab moisture as you would for any epoxy.

2. Conductive primer / preparation. For epoxy and PU, a carbon-loaded conductive primer is applied first; for vinyl, the right conductive adhesive is mandatory — ordinary tile adhesive defeats the system.

3. Copper grounding grid. Self-adhesive copper strips are laid in a grid across the floor (typically one earthing point per defined area, with copper runs sized to the room), so every part of the surface has a low-resistance path to a strip. The grid is laid before the surface goes down and the strips are kept under, but in electrical contact with, the conductive layer.

4. Bonding to building earth. The copper grid is bonded — via at least two independent earth connections per room is good practice — to the building's protective/clean earth. This must be a low-impedance, dedicated ground, signed off by the electrical contractor.

5. Seamless welding (vinyl/rubber). For cleanrooms, OTs and pharma, sheet joints are hot-air welded with conductive weld rod for a continuous hygienic, conductive surface, often coved up the wall.

6. Footwear and protocol. Commission the space with the ESD footwear, wrist-strap stations and walk-test protocol the operators will actually use.

The earthing layer is invisible once the floor is down, which is exactly why poor copper joints, a missed bond or a primer skipped to save a day go undetected until a commissioning test fails — or worse, until a component dies in service. Insist on the copper-grid layout drawing and the earth-bonding sign-off as deliverables.

Cost in India (2026, indicative)

ESD floors cost more than ordinary floors because of the conductive material, the copper grid, the conductive adhesive/primer and the testing — but they are cheap insurance against scrapped product or a data-centre incident. Prices are indicative and vary by city, system, area and vendor; add 18% GST, and the figures below are material — the copper grid, earthing, surface prep and laying are extra and significant.

So a welded ESD vinyl floor for an electronics line typically lands around ₹350–550 per sq ft installed and commissioned, and a conductive epoxy for a fab can run higher once primer, grid, earthing and testing are added. To budget the resin component, our floor sealer and resin-system calculators and the flooring cost per square foot in India guide give a starting frame; for the underfloor-void portion of a data centre, size it with the raised access flooring guide and tools. Compare alternative seamless systems in our specialty flooring guide for India.

Testing — prove it works, then keep proving it

An ESD floor is the rare floor that must be measured, not just inspected. At commissioning, test resistance-to-ground at a grid of points across the room with a calibrated megohmmeter (per IEC 61340-4-1), and run the walking body-voltage test (IEC 61340-4-5) with the actual footwear — confirming the floor falls in the specified ohm band and keeps generated body voltage under the limit. Keep the report.

Crucially, ESD performance drifts over time — sealers, wax, dirt films and wear can raise resistance and quietly disable the floor. Re-test periodically (commonly quarterly to annually depending on criticality) and after any re-coating or major cleaning change. A floor that has slipped out of band is no protection at all.

Care and maintenance — do not wax it shut

The cardinal rule: never apply an ordinary acrylic floor polish, wax or non-ESD sealer to an ESD floor. A conventional polish is an insulator and will smother the conductive surface, raising resistance out of band — the most common way a working ESD floor is accidentally destroyed.

• Clean with a neutral or ESD-approved cleaner only, well diluted; heavy detergent residue also raises resistance.
• Use damp-mop or auto-scrubber routines; rinse to avoid film build-up.
• If a finish is wanted, use only a conductive ESD-rated maintenance product and re-test resistance afterwards.
• Keep the copper-to-earth bonds inspected; a corroded or disconnected bond silently disables the system.
• Train cleaning contractors specifically — most ESD failures in service are caused by well-meaning housekeeping using the wrong product.

For general resilient-floor cleaning principles, our floor cleaning guide for India applies — but ESD floors add the hard "no insulating polish, re-test after cleaning" rule on top.

Frequently asked questions

What is the difference between conductive and static-dissipative flooring?

Both drain static charge to earth, but at different speeds set by their resistance. Conductive floors measure roughly 2.5 × 10⁴ to 1 × 10⁶ ohms to ground and drain charge fastest — used in semiconductor assembly and explosive/ATEX zones. Static-dissipative floors measure about 1 × 10⁶ to 1 × 10⁹ ohms, draining more slowly in a controlled way — preferred for server rooms, telecom, labs and operation theatres because they limit the current that could flow through a person near live mains equipment.

Does an ESD floor work on its own?

No. The floor is one half of a system; the operator must wear ESD footwear, heel straps or conductive overshoes that connect the body to the floor. A conductive floor walked on in ordinary rubber-soled shoes provides almost no protection. Specify and enforce the footwear, and commission the floor and footwear together with a walking body-voltage test.

How much does anti-static / ESD flooring cost in India?

Material runs roughly ₹150–600 per sq ft depending on the system — ESD vinyl tiles ₹150–350, welded vinyl sheet ₹180–400, conductive epoxy ₹200–500, PU ₹300–600, and ESD raised-access panels ₹250–600+. The copper grounding grid, earthing, surface prep, laying, commissioning tests and 18% GST are extra, so an installed electronics-grade vinyl floor often lands around ₹350–550 per sq ft. Rates are indicative and vary by city and vendor.

Why does the floor need a copper grid and earthing?

The conductive surface only protects equipment if the charge it collects has a complete, low-resistance path to the building earth. Self-adhesive copper strips laid in a grid under the floor carry charge sideways to earthing points, which are bonded to the building's protective ground. Without the grid and a sound earth bond, the floor looks identical but does nothing — bad earthing, not bad material, is the commonest cause of a failed ESD floor.

Can I wax or polish an ESD floor to keep it shiny?

No — never apply ordinary acrylic polish, wax or a normal sealer. These are electrical insulators and will smother the conductive surface, pushing resistance out of the specified band and disabling the floor, often without anyone noticing until a test fails. Use only ESD-rated maintenance products and a neutral cleaner, and re-test resistance after any change to the cleaning regime.

Which standard governs ESD flooring in India?

Indian electronics, pharma and data-centre facilities are typically specified to IEC 61340-5-1 (with user guide 61340-5-2), using test methods IEC 61340-4-1 for floor resistance and IEC 61340-4-5 for the walking body-voltage test; ANSI/ESD S20.20 is the parallel American scheme. Specify a measured resistance band and a body-voltage limit on the drawings, require the floor and footwear to be qualified together, and keep the commissioning test report.
