Lift Shaft Size Calculator
Size the hoistway for a home lift in India. Pick a capacity and drive type to get the clear shaft width and depth, car size, door opening, pit depth and headroom (overhead) you need to leave.
Quick scenarios — drive type
Ropes + counterweight, machine in the hoistway (MRL is the 2026 norm). Energy-efficient, smooth, faster.
Required clear dimensions
Shaft W x D
0 x 0
mm (clear hoistway)
Car W x D
0 x 0
mm (clear inside)
Door opening
0
mm (clear)
Wheelchair
Tight
CPWD ≥ 1100 x 1400
Pit depth (below lowest floor)
0 – 0 mm
Headroom / overhead (above top floor)
0 – 0 mm
Shaft footprint area by capacity
Clear hoistway area in square metres. Your choice is highlighted.
Bigger cars need a bigger hoistway. A 4-person car (1,500 mm x 1,750 mm) is the smallest that comfortably takes a wheelchair and attendant under CPWD/RPwD guidance.
Shaft sizes are clear (finished) internal dimensions. Add wall thickness on top to set out the structure.
Shaft build notes
- RCC shaft walls are typically 150–200 mm thick; leave the inner face unplastered so the clear dimension holds.
- The shaft must be plumb (vertical) within tolerance, top to bottom — out-of-plumb shafts reject the guide rails.
- Pit is measured below the lowest served floor; headroom is the clear overhead above the top floor finished level.
- Pneumatic vacuum (PVE) is self-supporting — it needs no separate RCC shaft and no pit, only the headroom band.
Indicative June 2026 dimensions derived from India market and IS 17900 / NBC 2016 ranges. Always build to the vendor's approved GA drawing.
Lift shafts and hoistways

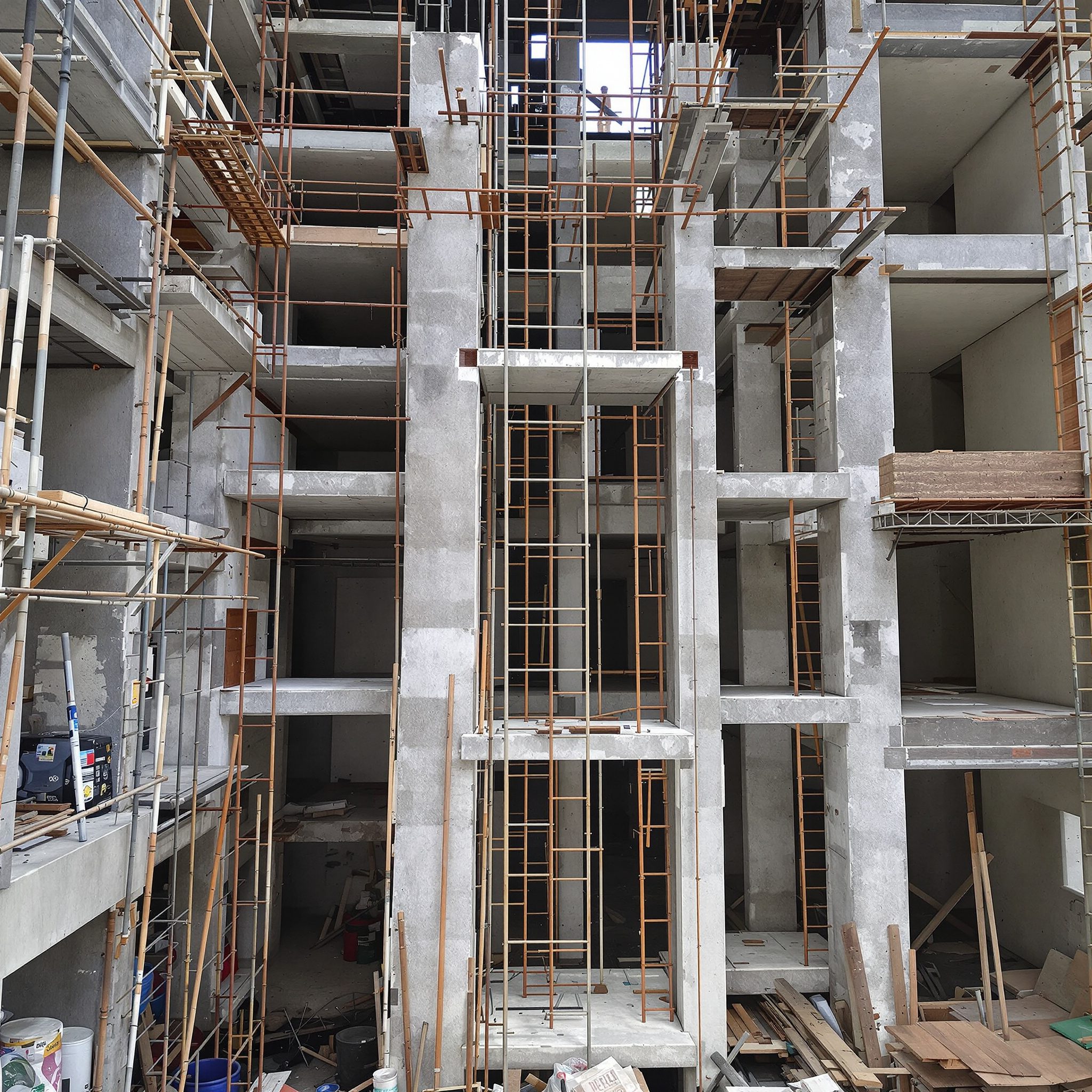

RCC · hoistway

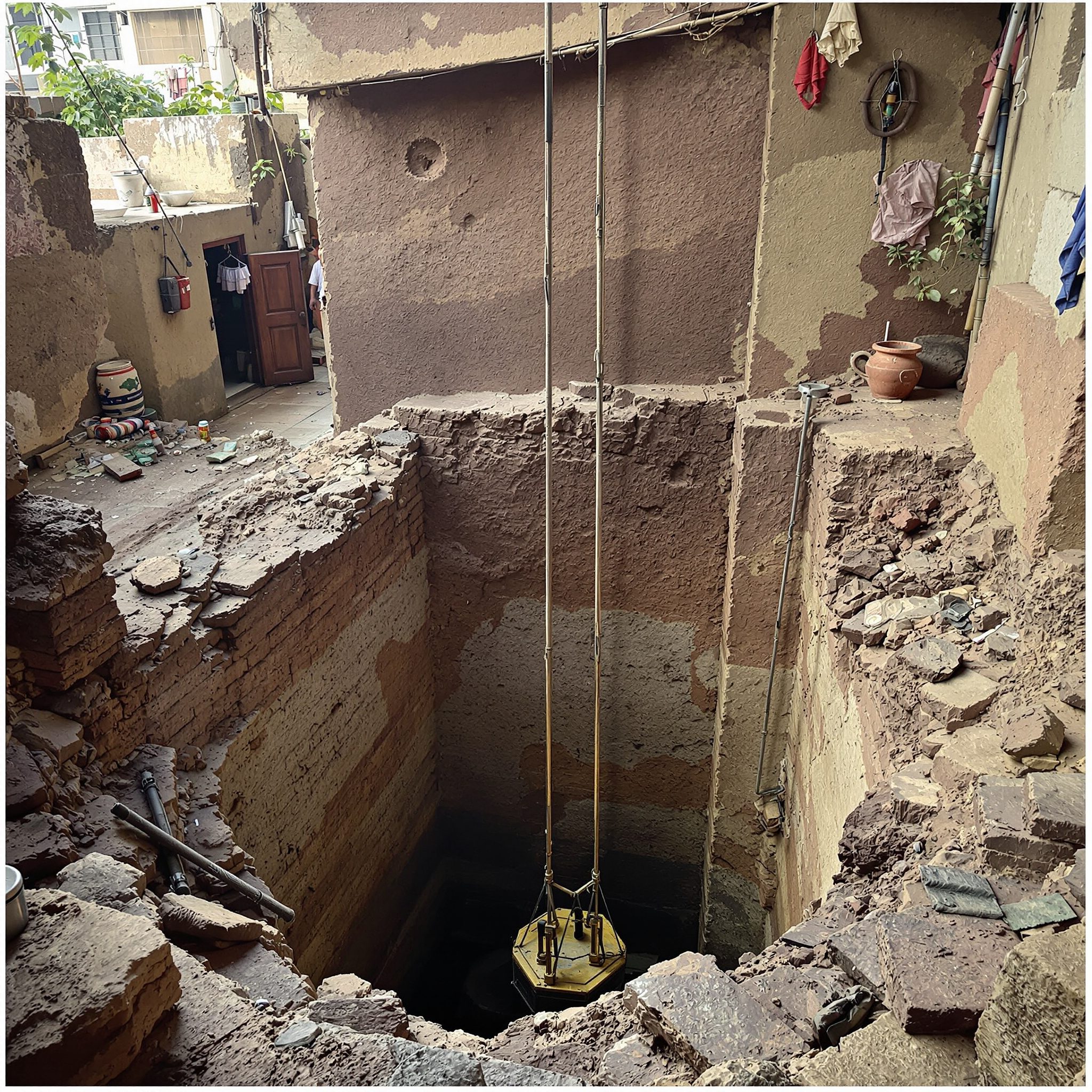

Pit · base

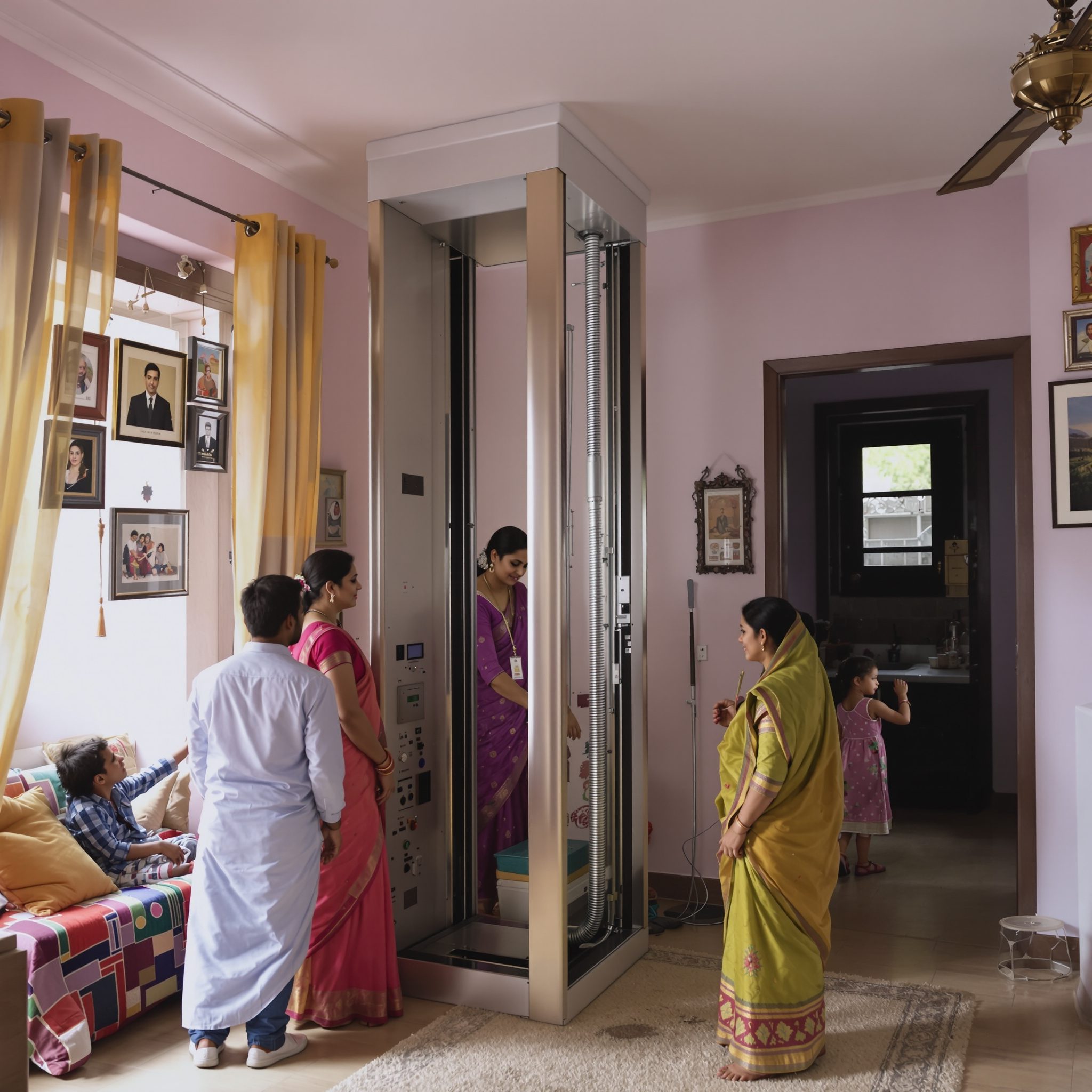

PVE · no shaft

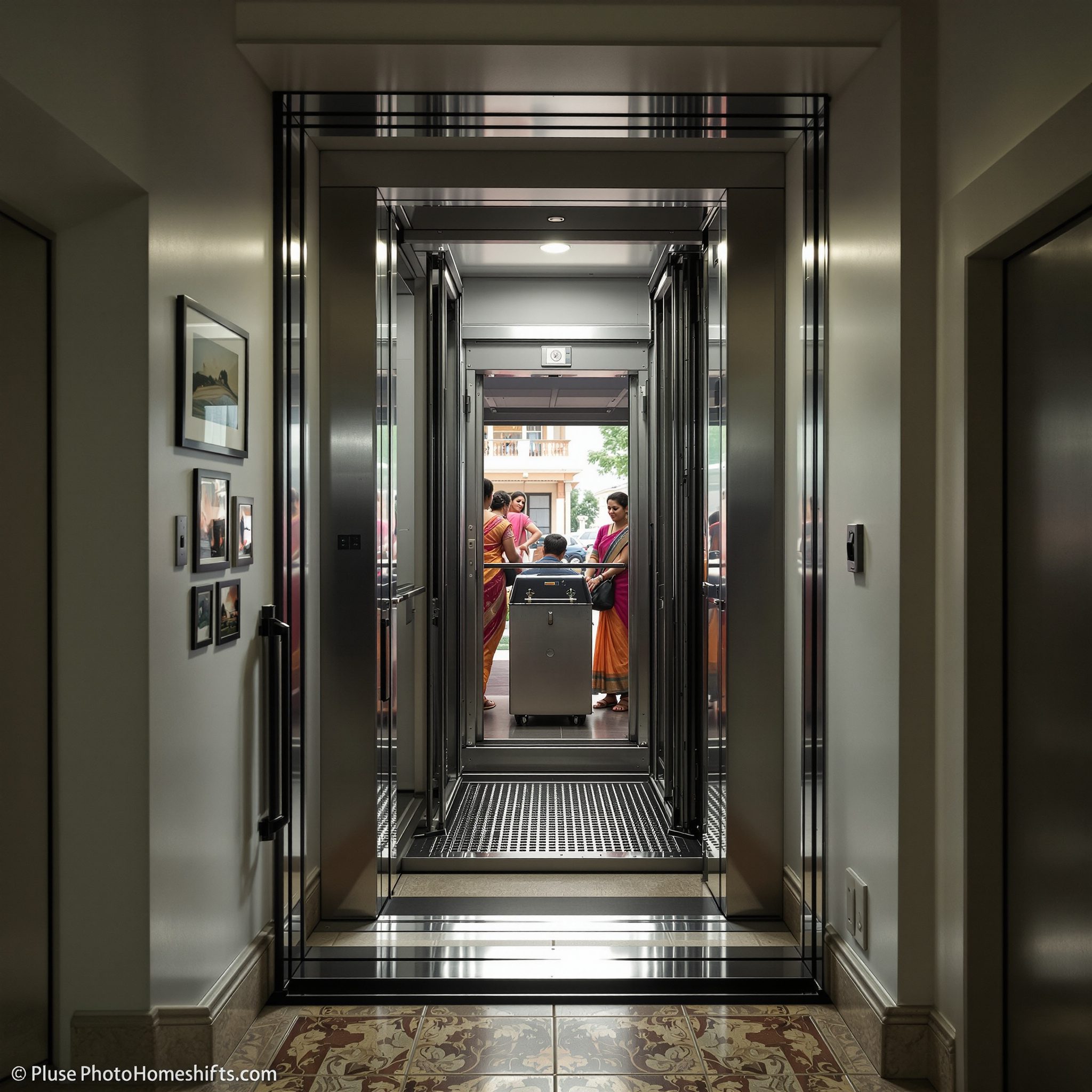

Car · inside
Design the shaft properly
Read the full lift shaft design guide — setting out, RCC walls, pit and headroom, plumb tolerances and GA drawings.
