Lift Pit Depth Calculator
Find the required pit depth below the lowest floor for a home lift in India — by drive type. Hydraulic and screw lifts need only a shallow pit; traction lifts need a deeper one; a pneumatic vacuum lift needs none.
Quick scenarios — lift type
Ropes + counterweight, machine in the hoistway (MRL is the 2026 norm). Energy-efficient, smooth, faster.
Required pit depth for Traction (Gearless MRL)
Minimum pit
0 mm
Maximum pit
0 mm
Required band
300-610 mm
The pit is the clear space below the lowest landing. Traction lifts need a 300-610 mm pit for the car buffers, the ARD/overspeed gear and safe maintenance clearance below the car.
Pit depth band by drive type
Each bar spans the minimum-to-maximum pit depth. Your choice is highlighted; vacuum needs no pit.

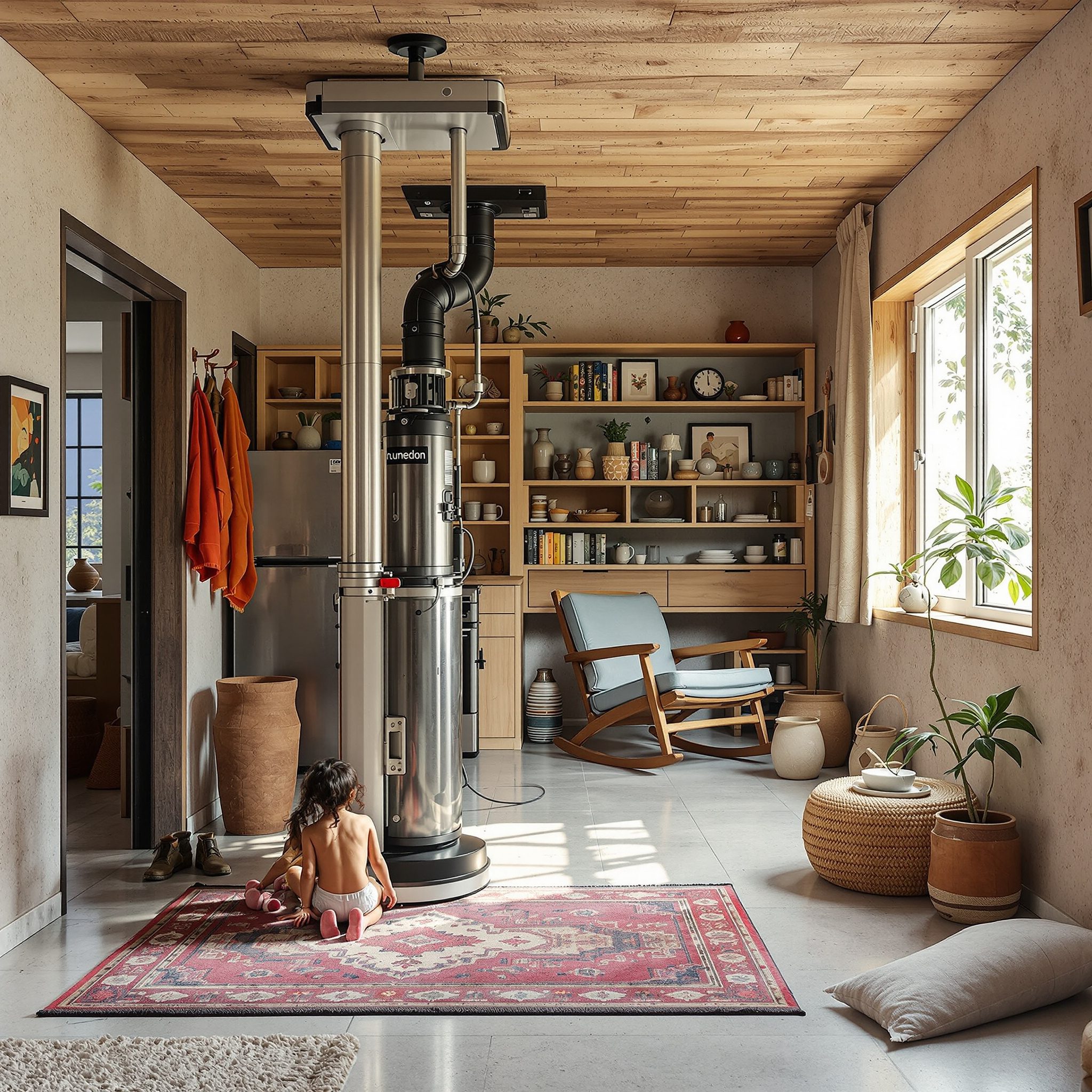

Hydraulic and screw lifts sit in the shallow 150-300 mm band; traction (gearless MRL) lifts need the deeper 300-610 mm band for buffers and counterweight clearance; a pneumatic vacuum lift needs no pit at all.
Bands are indicative. The exact pit depth depends on car speed, buffer type and the vendor's certified drawing.
Building the pit — a waterproof RCC box

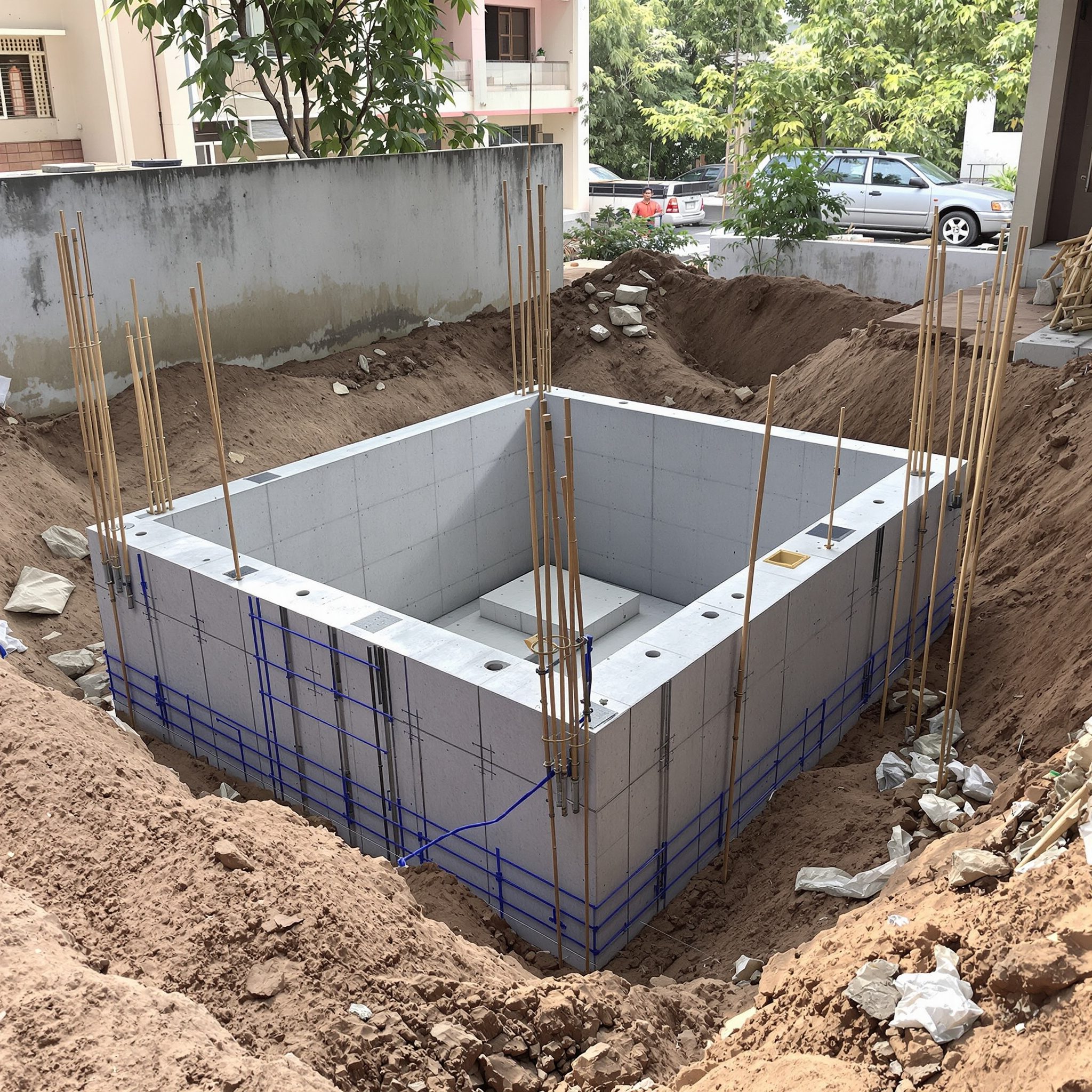

The pit is a watertight RCC (reinforced cement concrete) box cast below the lowest landing. Its walls and raft must be designed for lateral earth pressure pushing in from the surrounding soil, plus any groundwater (hydrostatic) load. Use a structural engineer's design — do not guess wall thickness.

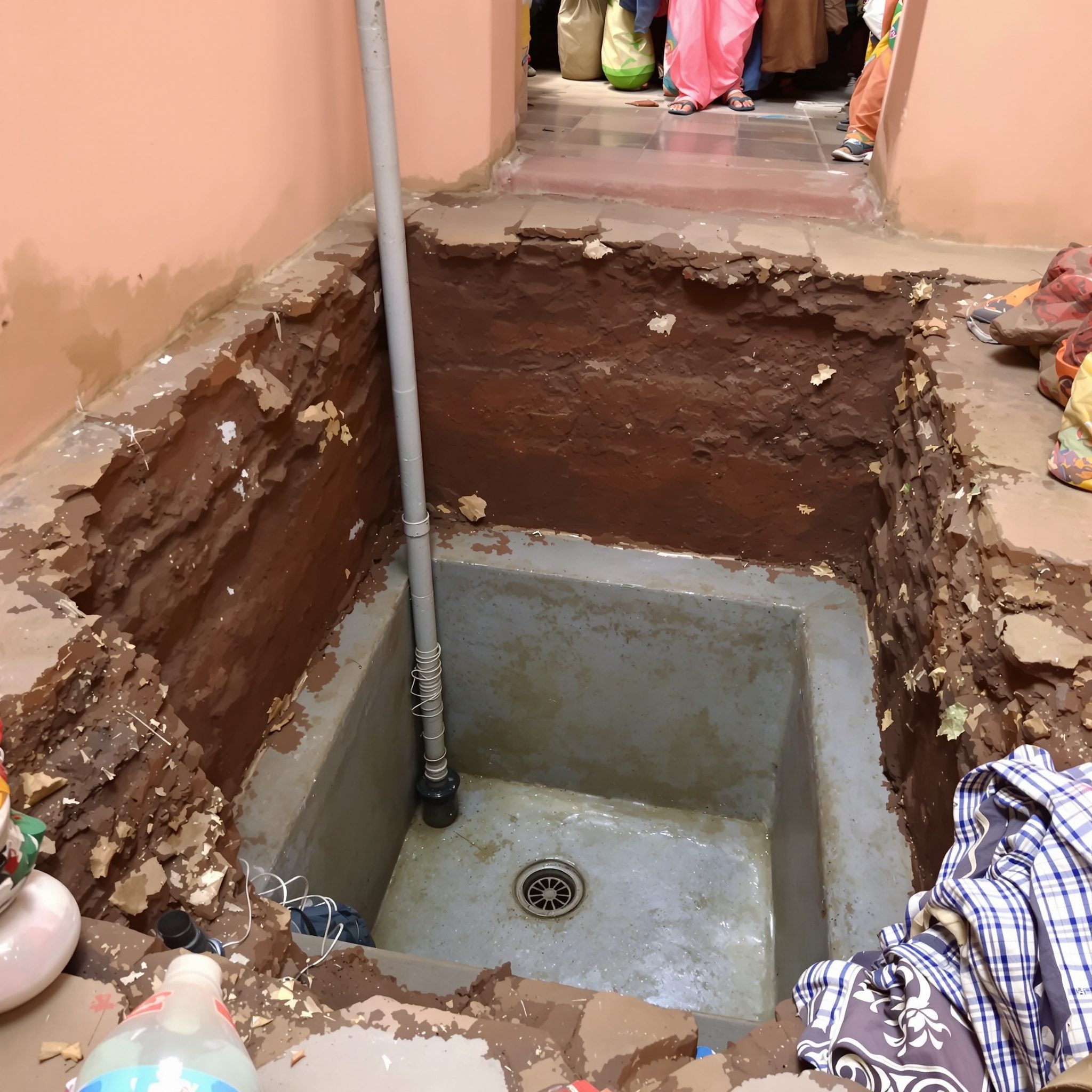

Tank the box with integral or membrane waterproofing, and add a sump (a small pocket with a drain or pump) wherever the water table is high or the basement can flood. The pit must stay dry — standing water corrodes the buffers, ropes and electricals and fails inspection.
Pit depth bands are indicative June 2026 figures derived from India lift practice. The certified vendor drawing and a structural engineer govern the final pit.
