Modular Kitchen Design Guide

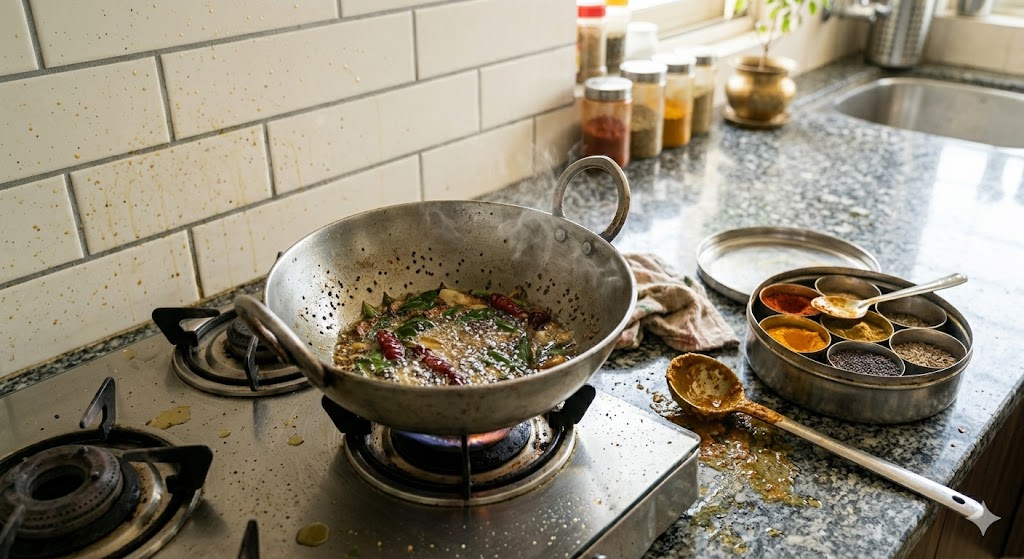

The kitchen is the hardest-working room in an Indian home. Indian cooking — with its high-heat tadkas, pressure cookers, deep frying, masala grinding, and simultaneous multi-burner operations — puts more stress on a kitchen than any Western cooking style. Add daily tiffin packing, water purifier management, wet grinding, and the fact that Indian kitchens often double as storage for everything from pickles to prayer items — and you understand why kitchen design in India is a specialised discipline.

Modular kitchens have transformed Indian homes in the last decade. But most homeowners navigate this expensive purchase with limited knowledge — relying on showroom salespeople who are incentivised to upsell, or contractors who use inferior materials behind decorative shutters.

This guide is a deep technical reference — covering kitchen ergonomics, layout science, every material option for carcass, shutters, and countertops, hardware specifications, appliance integration, plumbing and electrical rough-in, Indian cooking-specific design, and detailed cost breakdowns. Written for homeowners who want to make informed decisions and designers who want to specify correctly.

---

Kitchen Ergonomics — The Science of Comfortable Cooking

The Work Triangle

The work triangle connects the three primary work zones: Stove (cooking) → Sink (washing) → Refrigerator (storage). The triangle's efficiency determines how many steps you take while cooking.

Standard Kitchen Dimensions

Indian-Specific Ergonomic Considerations

---

Kitchen Layouts — Which One Fits Your Space?

L-Shaped Kitchen

U-Shaped Kitchen

Parallel (Galley) Kitchen

Straight (I-Shaped) Kitchen

Island Kitchen

Peninsula Kitchen

---

Carcass Materials — The Structural Box

The carcass is the box structure of the kitchen — the sides, top, bottom, back, and shelves of each unit. It is the most critical component because it bears the weight of countertop, utensils, and appliances.

Carcass Material Comparison

Rule of thumb: Use BWP plywood (IS 710) or HDHMR for kitchen carcass — never MDF or particle board below the countertop or near the sink. The few thousand rupees saved on cheap carcass material will cost lakhs when cabinets swell and collapse in 3-5 years.

Carcass Construction Details

---

Shutter Materials & Finishes

The shutter is the visible face of the kitchen — the door panel that gives the kitchen its aesthetic character.

Shutter Material Comparison

Shutter Recommendations for Indian Kitchens

---

Countertop Materials — The Workhorse Surface

Countertop Comparison

For Indian cooking: Granite remains the best countertop material — it handles hot kadais directly, resists turmeric and masala stains (when sealed), and costs a fraction of quartz. Quartz is excellent for low-heat cooking but never place a hot pan directly on quartz — it can crack.

Countertop Edge Profiles

---

Hardware — The Backbone of Functionality

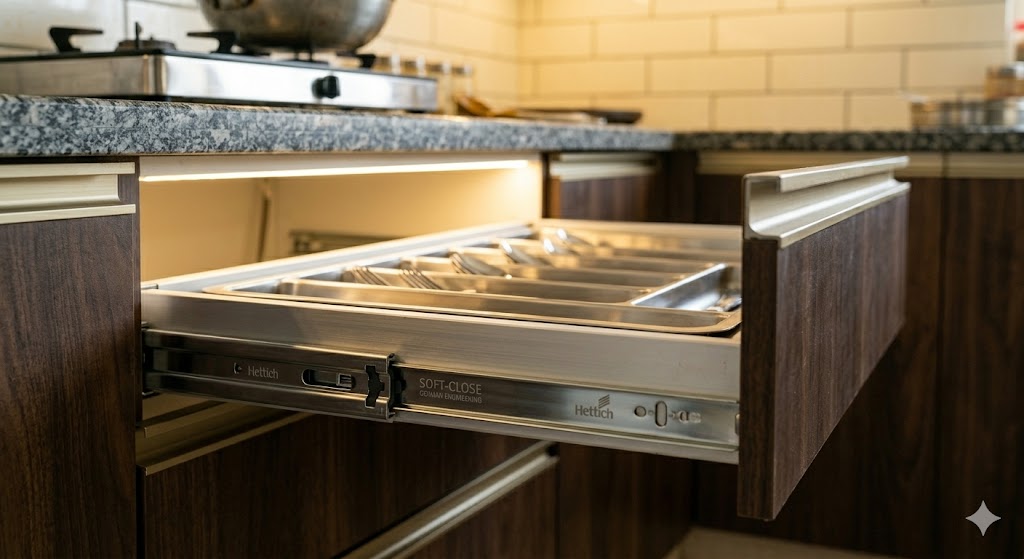

Kitchen hardware is where you should never cut corners. Cheap hardware fails within 2-3 years — hinges sag, runners jam, and carousels break. Premium hardware lasts 15-20 years with zero maintenance.

Essential Hardware Specifications

Hardware Brand Hierarchy

---

Appliance Integration

Built-In vs Freestanding

Appliance Rough-In Requirements

Plan appliance positions during electrical rough-in — not after kitchen installation. The most common kitchen regret is "I wish I had a socket there." Plan every socket, water point, and drain before the walls are plastered.

---

Plumbing & Electrical Rough-In Checklist

Before Plastering — Mark These Points

Electrical:

• [ ] Chimney socket (inside wall unit or behind chimney)
• [ ] Hob socket (below counter near hob cutout)
• [ ] Oven socket (in tall unit, behind oven)
• [ ] Microwave socket (in tall unit)
• [ ] Water purifier socket (under or above purifier location)
• [ ] Refrigerator socket (behind fridge location)
• [ ] Dishwasher socket (adjacent to dishwasher location)
• [ ] Mixer/grinder socket (at counter level — 15 amp)
• [ ] General counter sockets (minimum 3-4 along backsplash — 5 amp)
• [ ] Under-cabinet LED light wiring
• [ ] Exhaust fan socket (if no chimney)

Plumbing:

• [ ] Sink hot and cold water inlets (below sink, inside cabinet)
• [ ] Sink waste outlet (connect to drainage stack)
• [ ] Dishwasher hot/cold inlet + drain
• [ ] Water purifier inlet + drain
• [ ] Gas pipeline inlet (if piped gas)
• [ ] Floor trap near sink area (for overflow/leaks)

---

Kitchen Lighting

---

Modular Kitchen Brands in India

Modular vs Carpenter-Made

---

Detailed Cost Breakdown

Budget Kitchen (~100 sqft, L-shaped, 12 running feet)

Standard Kitchen (~100 sqft, L-shaped, 14 running feet)

Premium Kitchen (~120 sqft, U-shaped, 18 running feet)

---

Common Mistakes

1. Choosing shutters before carcass — the box must be strong; the face is secondary

2. No waterproofing below sink — the #1 cause of kitchen cabinet failure in India

3. Insufficient sockets — plan minimum 8-10 electrical points during rough-in

4. Ignoring the chimney duct — duct must go to exterior; recirculating chimneys are ineffective for Indian cooking

5. Countertop overhang too short — minimum 20mm overhang to prevent water dripping on carcass

6. Wrong countertop for Indian cooking — marble and Corian cannot handle hot kadais; granite or quartz only

7. Generic hardware — cheap hinges sag in 2 years; invest in Hettich/Hafele/Blum

8. No under-cabinet lighting — the most impactful and cheapest upgrade, yet always forgotten

9. Putting MDF near water — MDF swells irreversibly with moisture; use BWP ply or HDHMR in wet zones

10. Not planning for gas cylinder — if not using piped gas, the cylinder needs a ventilated 600mm-wide base unit

---

Key Takeaways

• The work triangle (stove-sink-fridge) determines kitchen efficiency — keep the total perimeter between 4-8 metres
• BWP plywood (IS 710) or HDHMR for carcass — never MDF or particle board below counter or near sink
• Laminate on HDHMR is the best value — durable, moisture-resistant, low-maintenance, and available in hundreds of finishes
• Granite is the best countertop for Indian cooking — handles direct heat, resists stains, costs less than quartz
• Never cut corners on hardware — Hettich/Hafele hinges and runners are the single best investment in kitchen longevity
• Plan all electrical and plumbing points during rough-in — before plastering, not after kitchen installation
• Modular kitchens cost 20-40% more than carpenter-made but offer precision, warranty, and consistent quality
• Under-cabinet LED lighting transforms the cooking experience — budget ₹3,000-5,000 for the highest-impact upgrade

---

References:

• IS 710:2010 — Marine Plywood (Boiling Water Proof)
• IS 303:1989 — Plywood for General Purposes (Boiling Water Resistant)
• IS 2046 — Decorative Thermosetting Synthetic Resin Bonded Laminated Sheets (HPL)
• IS 4990 — Plywood for Concrete Shuttering
• NBC 2016, Part 9 — Plumbing Services
• NKBA (National Kitchen & Bath Association) — Kitchen Planning Guidelines
• Hettich India — Product Specifications and Installation Guides
• Hafele India — Kitchen Fittings Catalogue 2025
• Blum — Fitting Solutions Technical Manual
• Sleek by Asian Paints — Product Range and Specifications
• CPWD Specifications Vol. 2 — Woodwork and Joinery
• Indian Plywood Industries Research & Training Institute (IPIRTI)
