Peak Flow Design in STPs: Why Plants Are Sized for the Rush, Not the Average

Ask most people what number decides the size of a sewage treatment plant and they will say the daily flow — so many kilolitres per day. That number matters, but it is not the one the tanks and pumps are actually built around. Sewage does not arrive politely spread across 24 hours. It comes in waves: a hard surge when a building wakes up and everyone showers and flushes before work, a lull through the working day, and a second peak in the evening. An STP that was only big enough for the average flow would be swamped and overflowing every single morning.

This is why engineers design STPs for peak flow — the highest rate at which sewage arrives, not the gentle daily average. Get the peak factor wrong and you either build a plant that floods, or one that is needlessly oversized and expensive. This guide explains what peak flow is, how the peak factor is chosen, why small plants peak harder than big ones, and how an equalisation tank quietly shrinks the peak the rest of the plant ever has to see.

An STP is sized like a road, not like an odometer. What matters is not how much traffic passes in a day, but how many cars arrive in the busiest hour — because that is the moment things back up.

Average flow versus peak flow

Start with the daily flow. If a building generates, say, 300 KLD of sewage, that is the total volume over 24 hours. Divide it evenly and you get an average flow of 12.5 kilolitres per hour. If sewage genuinely trickled in at that steady rate, you could build every tank, pump and pipe for 12.5 KL/hr and be done.

But it does not. Real inflow through a day looks like a mountain range, not a flat plain:

• Morning peak (roughly 6–9 a.m.) — the biggest surge, as an entire residential population bathes and flushes in a two-hour window.
• Daytime trough — flow drops sharply once people leave for work or school.
• Evening peak (roughly 7–10 p.m.) — a second, usually smaller rise from cooking, washing and bathing.
• Night — flow can fall close to zero in the small hours.

The peak flow is the rate during that busiest morning window — and it can be two to three times the daily average. This ratio is the single most important number in the hydraulic design of the plant.

The peak factor, explained

The peak factor (also called the peaking factor) is simply how many times bigger the peak flow is than the average flow:

Peak flow = Average flow × Peak factor

So a 300 KLD plant with a 12.5 KL/hr average and a peak factor of 3 must be able to pass 37.5 KL/hr through its screens, pumps and hydraulic path without flooding. That peak figure — not the average — sizes the inlet works, the pumps, the pipe diameters, the clarifier surface area and the plant's hydraulic capacity.

Here is the key rule of thumb every designer carries in their head:

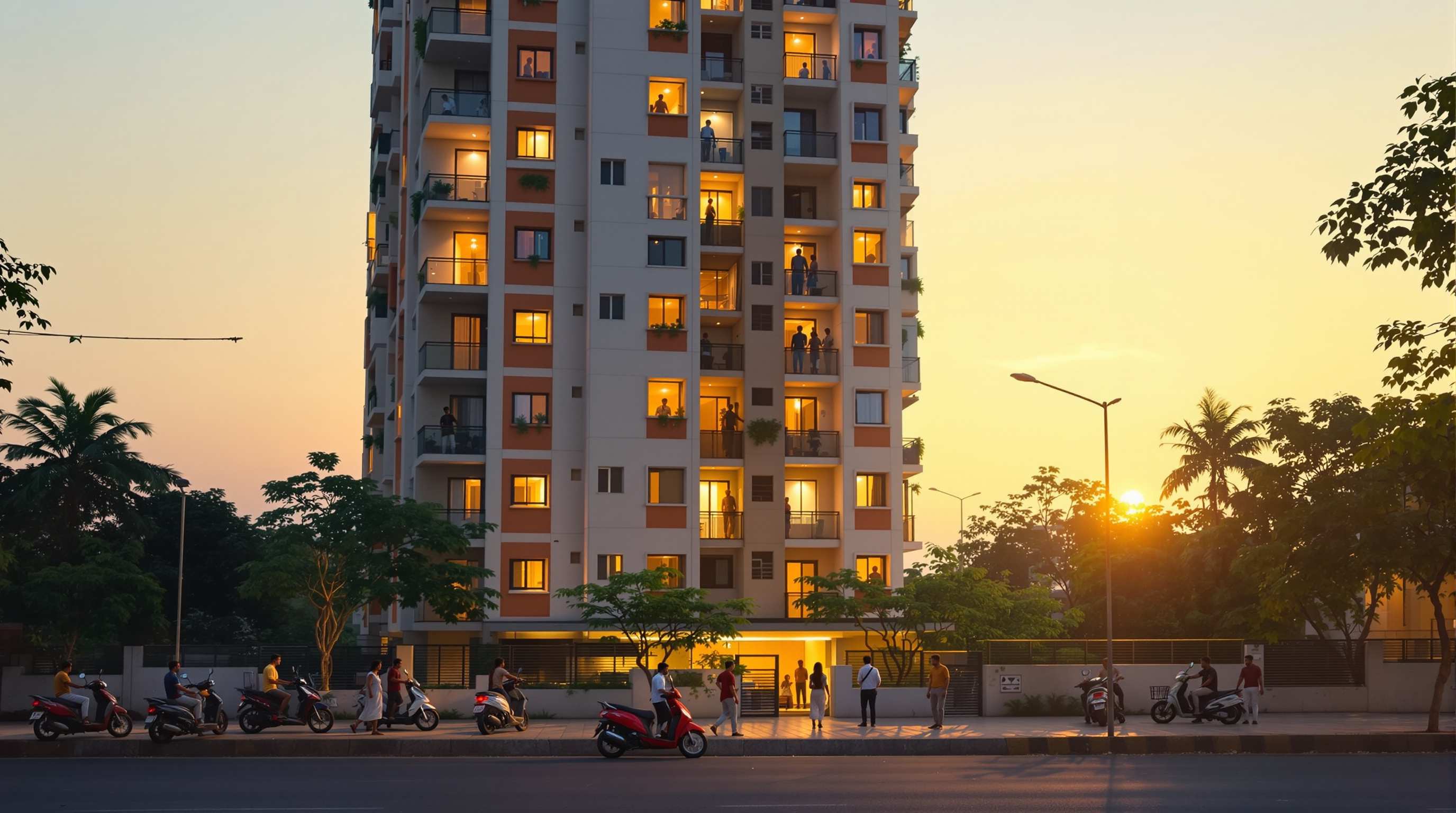

The pattern is worth internalising: the smaller the plant, the higher the peak factor. A hundred flats in one tower all run on the same clock, so their demand stacks into a tall, narrow spike. A whole city has offices, schools, shifts and long pipe runs that stagger arrivals, so the peaks blur into a gentler curve. This is why small building STPs are commonly designed around a peak factor of about 3, while a large municipal plant may use closer to 1.5.

What the peak actually sizes

It is worth being precise about which parts of the plant obey the peak and which obey the average, because that distinction is where a lot of design money is either well spent or wasted.

Sized by peak (hydraulic) flow:

• Bar screens and the inlet channel
• Raw sewage pumps and transfer pumps
• Pipe and channel diameters throughout

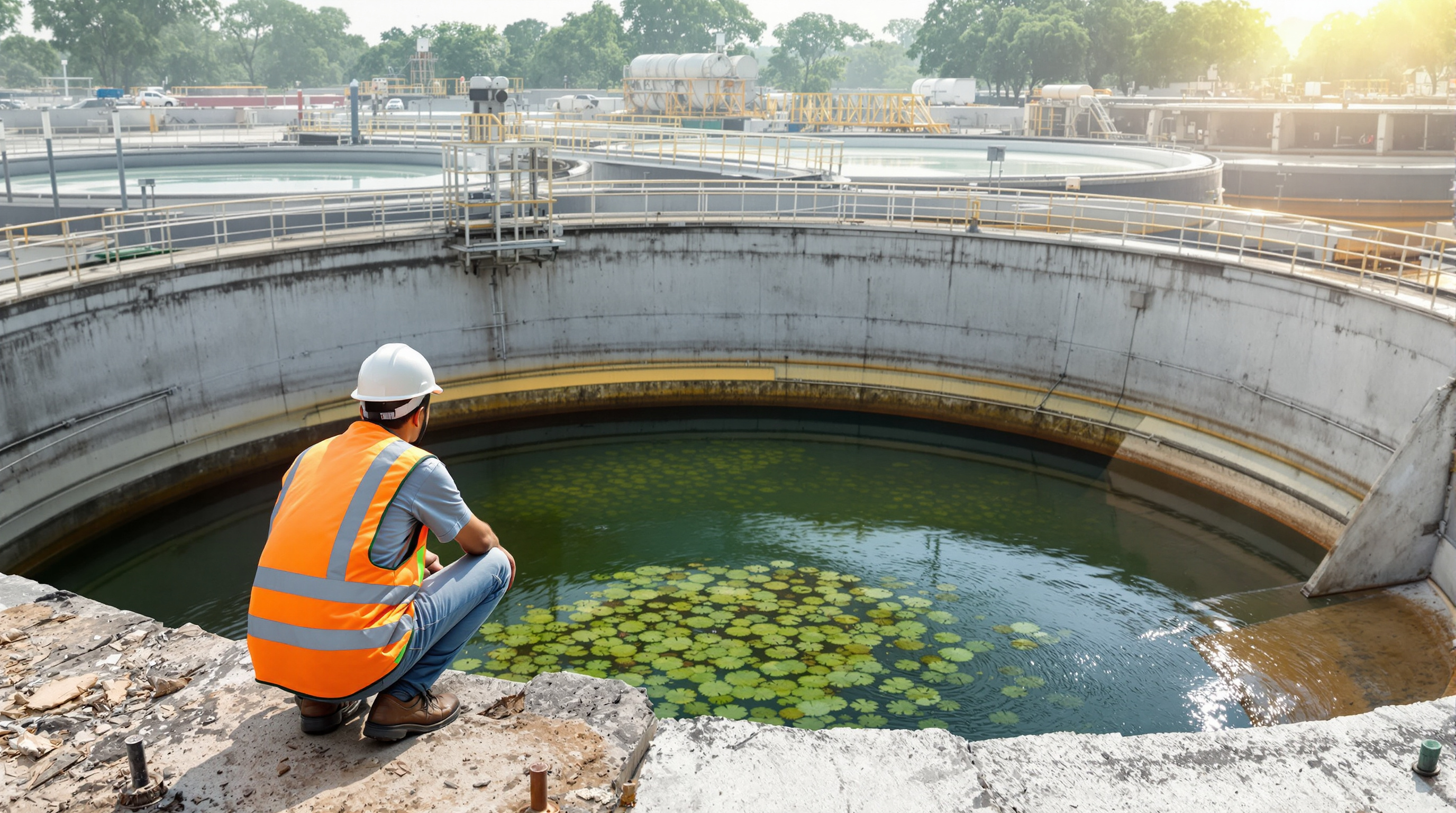

• The clarifier or secondary settling tank — its surface area is set by the peak surface overflow rate; push too much flow across it too fast and settled solids get carried out with the effluent
• Disinfection contact time and outfall

Sized by average flow and pollutant load, not peak:

• The aeration tank and the biological process — bugs care about how much food (BOD) arrives over a day, and the volume is set by hydraulic retention time and organic loading, which average out over hours
• Sludge handling and blower sizing (with a margin)

The biology is comparatively forgiving of short surges because a large tank of mixed liquor has hours of buffering built in. The hydraulic train is not — a clarifier hit with three times its design flow for two hours will simply flush solids over the weir. That is the failure mode peak flow design exists to prevent.

Equalisation: shrinking the peak before it hits the plant

Here is the elegant part. You do not have to build the whole plant for the full raw peak. You can absorb the surge first, in an equalisation tank — a buffer at the head of the works that catches the morning flood, holds it, and releases it downstream at a steady, controlled rate.

Think of it as a reservoir on a flashy river. Water pours in unevenly; it flows out evenly. The equalisation tank fills during the morning and evening peaks and draws down during the daytime and night troughs, so what the biological and settling stages ever see is close to the average flow, all day long.

The benefits compound:

• A smaller, cheaper downstream plant. Aeration tanks, clarifiers and filters can be sized for a flow near the average rather than 2–3× it — a large saving in concrete, steel and land.
• A stable, happier biology. Microbes dislike shock loads; a steady feed keeps the culture healthy and effluent quality consistent, exactly the calm inflow the process wants.
• Load balancing, not just flow balancing. Because it mixes several hours of sewage together, the tank also evens out spikes in BOD and pH, protecting the process from a slug of strong waste.

A well-sized equalisation tank is typically 4–8 hours of the average flow — enough to swallow the morning peak and pay it back over the quieter hours. The trade-off is honest: you spend tank volume and a set of transfer pumps up front to buy back capacity everywhere downstream, and on almost every real STP that trade is worth making. The full sizing method — including how to read a diurnal mass balance — is covered in the dedicated equalization tank guide.

Getting the numbers for your own plant

Peak flow design always starts from one honest input: how much sewage the building actually generates. That comes from occupancy and per-person water use, not guesswork — the Sewage Generation Calculator turns headcount into a daily flow in a minute, and the STP Capacity Calculator carries that through to a design capacity. Apply the right peak factor for your plant size to those, and you have the peak the hydraulic train must handle.

A sensible design sequence:

1. Estimate average daily flow from occupancy (Sewage Generation Calculator).

2. Choose a peak factor — around 3 for a single building, lower for larger catchments.

3. Compute peak flow = average × peak factor; size screens, pumps and clarifier for it.

4. Add an equalisation tank (4–8 hours) so the biology sees near-average flow.

5. Check retention and loading downstream with the HRT and organic loading calculators.

Note that this whole logic is for domestic sewage. An industrial stream — dye house, dairy, pharma — has its own violent flow and load swings that belong to an ETP, not a domestic STP; equalisation there is even more critical, but the design basis is different.

The bottom line

An STP lives or dies by the busiest two hours of its day. Design it for the daily average and it overflows every morning; design the whole plant for the raw peak and you overspend badly. The craft of peak flow design is to size the hydraulic path — screens, pumps, clarifier — for a realistic peak (a factor of about 2–3 above average, higher for smaller plants), then use an equalisation tank to flatten that peak so the expensive biological stages only ever meet a calm, steady, average flow. Do both, and the plant is neither drowned nor gold-plated — it is simply right-sized.

From here, see how these numbers feed a full design in how to size an STP, or step back to the Sewage Treatment Plants guide library for the whole series.
