Data Centre Flooring in India: Raised Access & Anti-Static Systems

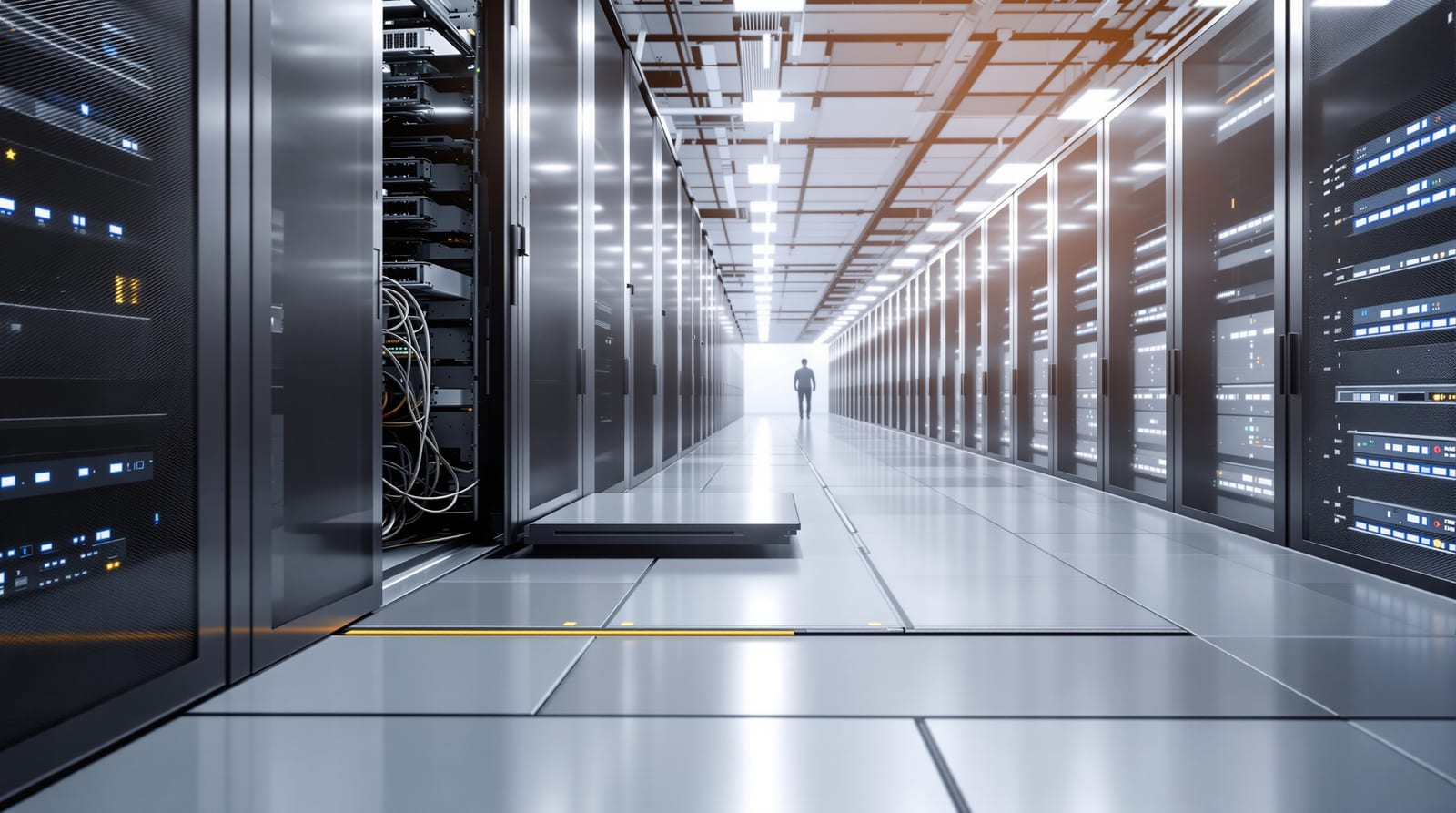

A data centre floor is not a finish — it is infrastructure. It carries multi-tonne racks, becomes the cooling air plenum that keeps servers alive, hides kilometres of power and data cabling, and drains static charge to earth before it can crash a board. Get it wrong and you do not get a scuff mark; you get a thermal shutdown or a fried server. This guide covers the specialised raised-access plus anti-static system that is standard for Indian data halls, and the simpler ESD path that suits a small server room.

What a data centre floor has to do

Server-grade spaces make demands no ordinary floor ever sees. Plan the floor against all of these at once, because each one constrains the others:

• Point load. A loaded rack can put 1,200-1,800 kg on four small castors. The floor panel and pedestal must take that without deflecting.
• Air plenum. In most Indian halls the void under the floor is the cold-air supply. CRAC/CRAH units pressurise the void; perforated tiles release cold air directly in front of the racks (the cold aisle).
• Cable management. Power, data and fibre run in the void on trays or baskets — kept separate from the air path or in dedicated cable plenum zones.
• Static control (ESD). Walking, trolleys and air movement build electrostatic charge. The floor finish must be dissipative and bonded to a grounding grid so charge bleeds to earth, not into a server.
• Fire and cleanliness. Panels must be non-combustible (steel/cementitious core), and the sub-floor must be sealed so it does not shed dust into the air the servers breathe.

Because the floor is doing structural, mechanical, electrical and electronic work simultaneously, it is specified by a facilities or MEP engineer, not chosen from a tile sample. This is a commercial flooring problem at its most demanding.

The standard system: raised-access floor

The dominant system in Indian data centres is the raised-access floor (RAF) — modular panels sitting on adjustable pedestals over the structural slab, creating an accessible void. We cover the system in depth in our raised-access flooring guide; here is how it is tuned for a data hall.

Anatomy

• Panels: 600 x 600 mm modules, typically 30-40 mm thick, with a steel-encased cementitious or all-steel core. They lift out individually with a suction tool so any spot can be opened for re-cabling.
• Pedestals: threaded steel posts glued and/or bolted to the slab, adjustable in height. They set the finished floor level precisely and carry the load down to the slab.
• Stringers: bolted bars connecting pedestal heads into a rigid grid for higher load classes and lateral (seismic) stability.
• Void: commonly 300-600 mm for cable-plus-air, and up to 800-1,000 mm in high-density halls that push large volumes of cooling air.
• Finish: a factory-bonded ESD high-pressure laminate (HPL) or conductive/dissipative vinyl, with a copper grounding strip linking panels to the earth grid.

Cable plenum vs air plenum

The single most important design decision is what the void is for. Two strategies dominate:

• Air plenum (down-flow cooling): the void is pressurised cold air; perforated tiles in the cold aisle deliver it to the rack intakes. Cabling is minimised in the void and run overhead so it does not block airflow. This is the classic raised-floor cooling model and still common in India.
• Cable plenum: cooling is delivered overhead or in-row, and the void is used only for power and data. The floor can sit lower and the ESD finish still matters, but airflow tuning is no longer the floor's job.

Mixing both in one void is possible but disciplined — cables on dedicated trays kept clear of the airflow grilles — or the hall is fed worse cooling than its design promised.

Hot aisle / cold aisle

Racks are arranged back-to-back and front-to-front so cold intakes face one aisle and hot exhausts face the other. The floor reinforces this: perforated tiles go only in the cold aisle, solid panels everywhere else. Knock-on rules for the floor team — never leave open or missing tiles in the hot aisle, and seal cable cut-outs with brush grommets so cold air is not wasted into the wrong zone.

ESD: draining static to earth

Static is the quiet killer in IT spaces, and the floor finish is the primary defence. Two related properties matter:

• Dissipative finish: the HPL or vinyl surface has a controlled electrical resistance (commonly in the 1,000,000 to 1,000,000,000 ohm band) — conductive enough to bleed charge away slowly, resistive enough to be safe to touch.
• Grounding grid: copper strips or tapes laid under the panels link every panel to a common earth, which ties into the building's earth pit. Without the bond to earth the dissipative finish has nowhere to drain to.

For the full material picture — HPL vs conductive vinyl, ohmic ranges, testing — see our dedicated anti-static (ESD) flooring guide. For small server rooms this same ESD principle is delivered without raised access (covered below).

Sub-floor sealing and dust control

The slab under the void is part of the air supply, so it cannot be left as bare, dusty concrete — particles get picked up by the moving air and deposited on boards and filters. Indian practice is to apply an anti-dust epoxy seal coat to the structural slab before the pedestals go down. It hardens the surface, stops dusting, and makes the void easy to clean. Pedestal bases are then bonded to the cured, sealed slab.

Load classes — match the panel to the rack

Panels and pedestals are rated to standards such as the BS EN / CISCA load classes. The point-load rating (the concentrated load on a small area, simulating a castor or jack foot) is the number that protects you from heavy racks. Indian data halls almost always specify the higher classes.

Always cross-check the rack delivery path too: a rack rolled across the floor imposes a rolling load, and the weakest panel on the route governs.

Costs in India (indicative, 2026)

Prices vary widely with panel core, load class, finish and void services. Treat these as planning bands and verify with vendors against your load schedule.

Run quantities and a budget through the raised-access floor calculator before you tender. For the broader cost picture across commercial spaces, our commercial flooring guide sets the context.

The simpler path: a small server room

Not every space needs a raised floor. A single rack or a small server/comms room in an office is usually better served by a flat ESD finish plus overhead or wall cable management:

• ESD vinyl (conductive/dissipative homogeneous vinyl) laid over a level screed and bonded to a copper grounding grid — clean, fast, and the most common small-room choice.
• Conductive epoxy for a seamless, easy-clean finish where the room doubles as a tidy plant room.
• Cable trays / baskets run overhead or along walls, so you skip the void entirely.

You lose the under-floor air plenum (so cooling is done by in-room or in-rack units), but you keep the two things that matter most for a small load: static control and cable order. Where the finish is a robust tile rather than ESD vinyl, anti-static-rated vitrified tile can serve very light comms rooms — but for anything carrying live servers, specify a genuine dissipative finish bonded to earth.

Design and install do/don't

• Do appoint an MEP/facilities engineer to own the floor spec — load class, void depth, airflow and earthing are interdependent.
• Do seal the slab before pedestals go down; retrofitting dust control later means lifting the whole floor.
• Do keep cabling off the airflow path and seal every cut-out with brush grommets.
• Don't leave perforated tiles in the hot aisle or open tiles where they steal cold air.
• Don't approve a panel on appearance — get the documented point-load and ESD test certificates.
• Don't forget seismic restraint (stringers, lateral bracing) in higher-risk zones; tall stacked floors can rock without it.

Frequently asked questions

Is a raised-access floor mandatory for a data centre?

No, but it is the standard for any real data hall because it doubles as the cold-air plenum and cable space. Small single-rack server rooms can use ESD vinyl or conductive epoxy with overhead cabling instead, and many modern high-density designs move cooling overhead and use the void only for cables.

What void depth should I plan?

For combined air-and-cable plenums, 300-600 mm is typical, rising to 800-1,000 mm in high-density halls that move large air volumes. If the void is cable-only (cooling delivered overhead or in-row), it can be shallower. The cooling design sets the number, so fix airflow before fixing void height.

Why is the floor finish anti-static?

Static discharge can corrupt data or damage electronics. A dissipative HPL or vinyl finish, bonded through a copper grounding grid to the building earth, bleeds charge away safely instead of letting it jump into a server. See our anti-static (ESD) flooring guide for the resistance ranges and testing.

How heavy a rack can the floor take?

That is the point-load rating. Server rooms typically use heavy-grade panels around 5-6 kN point load, and data halls extra-heavy panels of roughly 6.7-9 kN with a stringered grid. Always check the rack rolling path — the weakest panel on the route governs — and confirm the slab below can carry the total static load.

What does data centre flooring cost in India?

As a 2026 planning band, IT-grade raised-access floors run about ₹200-450 per sq ft and data-hall grade ₹400-650 per sq ft, plus the anti-dust slab seal and grounding grid. A small server room finished in ESD vinyl or conductive epoxy is far cheaper at roughly ₹120-350 per sq ft. Verify against your load schedule with the raised-access floor calculator.
