Openings: windows, doors, louvres
Every opening is a deliberate hole in the wall you worked so hard to make continuous - and the moment you let air, light and people through, you have to keep water out at a junction that moves.
You spent a whole module making the four layers continuous. An opening is where you cut them all - on purpose - and then have to make them whole again around the hole.

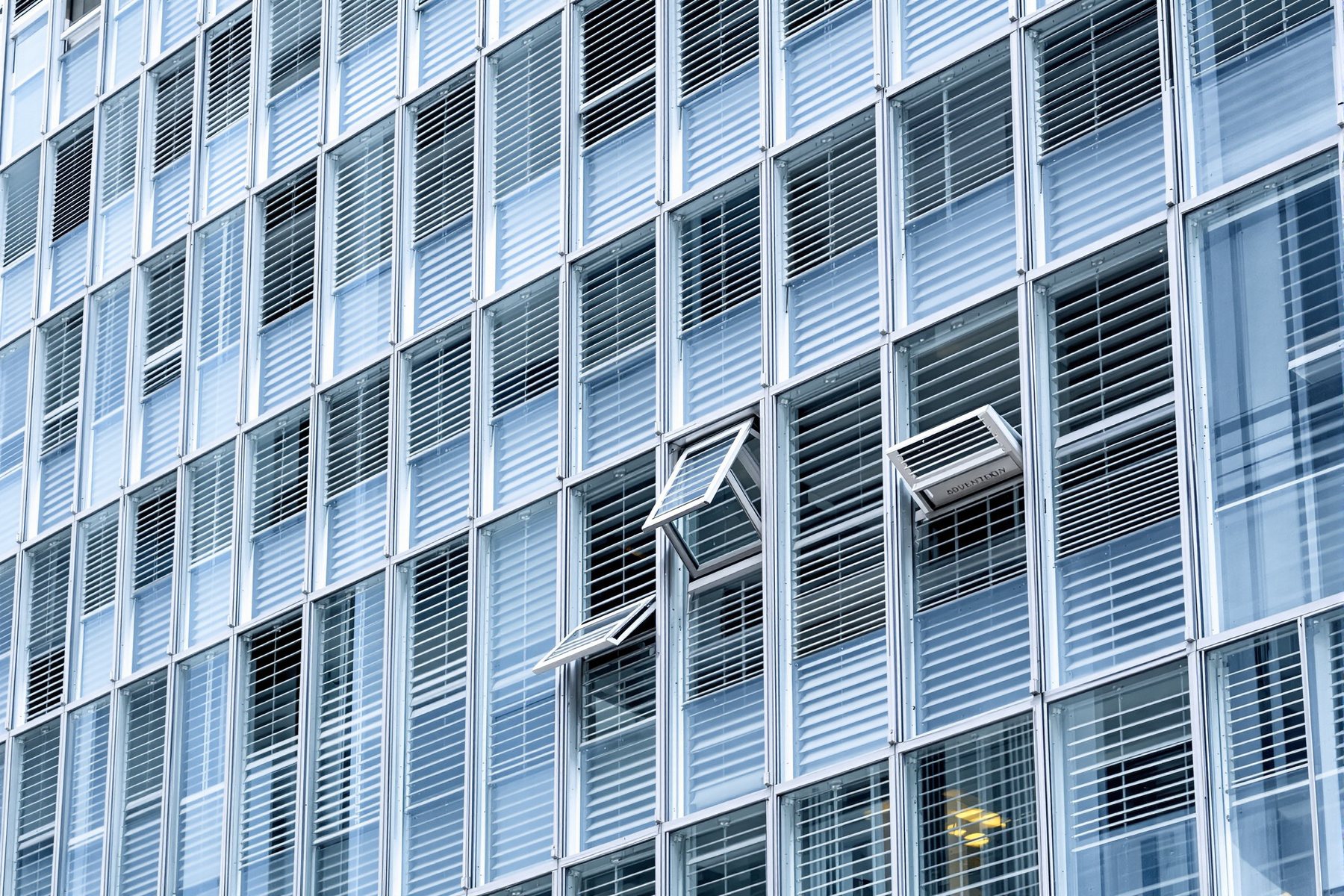

A facade with no openings would be easy and useless. The whole point of the skin is to let in light, air, view and people - and every one of those is a hole you punch through four control layers you just fought to keep continuous. An opening light, a door, a vent, a louvre: each is a deliberate breach, and each must carry water, air, thermal and vapour around its perimeter without leaking. The head must shed and flash, the jambs must seal and drain, the sill must collect and weep, and a louvre must let air in while throwing rain back out. In the Indian monsoon, where wind-driven rain hits a facade at pressure, openings are where most water actually gets in - so they are detailed, not just cut.
The opening as a managed breach: head, jamb, sill, and the louvre
Head sheds, jambs drain and seal, sill collects and weeps
Every opening - a window, a door, a vent - has three kinds of edge, and each does a different water job.
The head (top) is the most exposed: water runs down the wall above and arrives here, so the head needs a flashing or drip that throws water clear of the opening, and the cavity above must drain to outside rather than over the frame. The jambs (sides) must seal against air and water and, in a drained system, let any water that reaches them run down and out - the jamb is where the wall's drainage path and the opening's frame have to be reconciled. The sill (bottom) is the catchment: it collects whatever water reaches the opening and must slope outward, carry a back-upstand so water can't run inward over it, and weep to drain - the sill is the single most leak-prone edge of any opening.
The golden rule of opening detailing is the same as the parapet's: lap the layers like shingles, head over jamb over sill, so every overlap directs water outward and downward, never letting an upstream layer tuck behind a downstream one.
Shingle logic: the head flashing laps over the jamb seal, the jamb laps over the sill upstand. Water should never have to climb to get out.
Assume water gets in - then give it a sill pan, an upstand and a weep
Just like the typical detail, an opening is designed on the assumption that the outer seal will eventually be breached. The defence in depth is a sill pan (or sub-sill flashing): a continuous tray under the opening, with upturned end dams at both jambs and a back leg higher than the front, so any water that gets past the frame lands in the pan and is drained forward and out through weep holes, never inward to the room.
This is where catalogue details and Indian reality diverge. A window that passes a gentle test can still leak in a Mumbai cloudburst if its sill has no pan, no end dams, or weeps that are decorative rather than functional. The monsoon delivers wind-driven rain that finds every missing upstand. So: slope the sill out, dam the ends, lift the back leg, and make the weeps real and clear. And remember the thermal and vapour layers - the frame must carry a thermal break and the insulation and air barrier must seal continuously to the frame perimeter, or the opening becomes a thermal bridge and a condensation magnet around its whole edge.
Doors take traffic and threshold water; louvres must breathe and still defend
Doors add two problems to the opening: a threshold at floor level where water, foot traffic and accessibility all meet, and movement from constant use. The threshold must shed water outward, drain any that's blown in, and still meet step-free access requirements - a reconciliation that defeats many otherwise-good details. Drainage thresholds with a fall and a weep are the standard answer.
Louvres are the hardest opening of all because they must do two opposite things at once: let air through (for ventilation, plant intake/exhaust, or smoke extract) while throwing rain back out. A louvre is rated by two competing numbers - its free area (how much air it passes) and its rain-defence / water-penetration class (how much rain it stops at a given face velocity and wind-driven rain rate). You cannot maximise both: a high rain-defence louvre has deep, multi-bank blades that cost free area, while an open, high-free-area louvre lets more rain through. The engineering is choosing the class the application needs - a generator intake in a monsoon city needs serious rain defence even at the cost of a bigger louvre - and then draining the plenum behind the louvre, because the louvre is a screen, not a seal, and water will get behind it.
Openings are where your elegant minimal frames meet physics. A frameless, sill-less glazed slot looks beautiful and is a water trap unless there's room for a sill pan, end dams and weeps. A flush louvre that reads as solid still needs a drained plenum behind it. When you place an opening, leave the depth for its head flashing, its sill pan and its drainage - and decide early whether a louvre is decorative (then back it with a wall) or functional (then size it for free area _and_ rain class). The opening you draw as a clean cut is, behind the scenes, the most detailed part of the facade.
Detail every opening as head-jamb-sill with shingled laps and a continuous sill pan with end dams and weeps. Seal the air and vapour layers to the frame perimeter and carry a thermal break through the frame so the opening doesn't become a perimeter thermal bridge. For louvres, specify the water-penetration class and free area for the duty (e.g. a tested Class A/B rain-defence louvre for a wet-climate plant intake) and always drain the plenum. Then prove the opening on the mock-up under dynamic wind-driven rain - openings are exactly what the PMU exists to test.
The sill is where openings leak, so install the sill pan as drawn: continuous, with the end dams turned up at both jambs and the back leg higher than the front, and keep the weep holes clear - never seal them shut to 'tidy' the detail. Lap flashings the right way (upper laps over lower, like roof shingles) so water sheds outward. Behind a louvre, make sure the plenum can drain and isn't dammed by debris or a misplaced seal. An opening detailed perfectly and built with blocked weeps leaks exactly as if it had no pan at all.
IS 16231 (India)
Fenestration / window performance
Indian standard for windows and doors - air, water and wind performance for fenestration. It sets test classes for the unit but the wall-to-frame interface (the sill pan, the flashing) is still down to your detail.
ASTM E2112
Water-managed window/door installation
Standard practice for installing windows and doors with sub-sill flashing and drainage - the source of the sill-pan-and-end-dam discipline. It's a practice standard, so it guides the detail rather than certifying the product.
AAMA / EN 13030 (louvre rain defence)
Louvre water-penetration & free area
EN 13030 classifies louvre rain defence (Class A-D) against free area; AAMA covers North-American louvre performance. They let you pick a rated louvre, but you must still drain the plenum behind it - the louvre is a screen, not a seal.
Eco-Niwas Samhita 2018 / ECBC
Opening thermal performance (U, SHGC, WWR)
Sets U-value, SHGC and window-to-wall-ratio limits the openings must meet - and the frame thermal break the detail must carry. The codes target the unit's performance, not the perimeter thermal bridge, which good detailing must also control.
“A good window is a well-sealed window - run a thick bead of sealant around the whole frame perimeter and water can't get in.”
A perimeter sealant bead is one line of defence and the one most likely to fail first, because frames move, sealant ages and one breach lets water sit against the frame with nowhere to go. Reliable opening detailing assumes water will get past the frame and manages it: a sloped sill, a continuous sill pan with upturned end dams and a raised back leg, and clear weep holes that drain the captured water back outside. Geometry and drainage keep windows dry; sealant alone does not.
Worked example - size a monsoon plant-intake louvre (free area vs rain defence)
A louvre is the one opening where two numbers fight: the air you must pass and the rain you must stop. Let's size a generator-room intake louvre for a coastal Indian city and see the trade-off bite.
The given data, a calculator, and the free-area / face-velocity vocabulary for louvres.
GIVEN - generator room fresh-air intake, coastal monsoon city: Required airflow Q = 4.0 m3/s Max face velocity (rain) v = 2.0 m/s (to stay within a good rain-defence class) Gross-to-free area ratio R = 0.45 (deep multi-bank rain-defence louvre) Rain-defence class wanted = high (heavy wind-driven rain) Free area needed Af = Q / v Gross louvre area Ag = Af / R
- 1Free area required for the airflow at the rain-safe face velocity: Af = Q / v = 4.0 / 2.0 = 2.0 m2 of actual open area for the air to pass through.
- 2Gross louvre size, accounting for the blades blocking part of the opening: Ag = Af / R = 2.0 / 0.45 = 4.44 m2 of louvre on the elevation. The deep rain-defence blades mean the louvre is more than double its free area.
- 3See the trade-off: if you'd chosen an open, high-free-area louvre (say R = 0.65) for the same air, the gross would shrink to 2.0 / 0.65 = 3.08 m2 - smaller and cheaper - but its rain-defence class drops, and in a coastal monsoon that means water blown straight through onto the genset. The bigger louvre is the price of keeping the plant dry.
- 4Check the face velocity discipline: pushing the same 4.0 m3/s through a smaller free area raises face velocity, and rain-defence class falls sharply as face velocity rises - so you cannot simply shrink the louvre to save the elevation without losing rain performance. The 2.0 m/s cap is doing real work.
- 5Detail the plenum: the louvre is a screen, so design the chamber behind it to collect and drain the rain that still gets through - a sloped sill, a drain, and an upstand before the air reaches the equipment. A louvre with no drained plenum floods the room it was meant to ventilate.
- 6Decide: specify a ~4.5 m2 high-rain-defence louvre (EN 13030 high class) at <= 2.0 m/s face velocity, with a drained plenum - bigger than the architect hoped, but the only version that ventilates the genset and survives the monsoon.
You’ll walk away with
A sized louvre - ~4.5 m2 gross for 4.0 m3/s at a rain-safe 2.0 m/s face velocity - and the explicit free-area-versus-rain-defence trade-off, the exact judgement a facade engineer makes on every functional louvre in a wet climate.
Two quick opening checks.
- 01Find a window with a stained wall directly below its sill corners. End-dam failure or a missing sill pan shows up exactly there - water escaped at the jamb-sill junction instead of weeping out the front.
- 02Look at a louvre on a building near you and guess its job: shallow open blades (ventilation, low rain risk) or deep multi-bank blades (serious rain defence, probably a plant intake). The blade depth tells you which number won.
An opening is a managed breach of the four control layers: the head sheds and flashes, the jambs seal and drain, the sill collects and weeps through a pan with end dams, and the layers lap like shingles so water always runs outward and down. Louvres add a built-in conflict - free area versus rain defence - that you resolve by choosing the class the duty needs and draining the plenum behind. Detail the hole as carefully as the wall.
Every opening has three edges doing three water jobs: the head sheds and flashes, the jambs seal and drain, the sill collects and weeps. Defence in depth is a continuous sill pan with upturned end dams, a raised back leg and clear weeps. Lap layers like shingles. Carry the thermal break and seal air/vapour to the frame. Doors add a threshold; louvres trade free area against rain-defence class and need a drained plenum. In the monsoon, openings are where most water gets in.
How do you stop a facade window from leaking?
Don't rely on the perimeter sealant alone - design the opening to manage water. Slope the sill outward, install a continuous sill pan (sub-sill flashing) with upturned end dams at both jambs and a back leg higher than the front, and provide clear weep holes so any water that gets past the frame is drained back outside rather than into the room. Flash the head to throw water clear, and lap the head over the jambs over the sill like shingles so water always runs outward and downward.
What is the difference between free area and rain defence on a louvre?
Free area is how much open area a louvre offers for air to pass through (so it sets the airflow), while rain defence is how well it stops wind-driven rain at a given face velocity (its water-penetration class, e.g. EN 13030 Class A to D). They conflict: deep, multi-bank rain-defence blades cost free area, while open, high-free-area louvres let more rain through. You size a functional louvre by choosing the rain-defence class the duty needs - high for a monsoon plant intake - and accepting the larger louvre that requires.
Why does a louvre need a drained plenum behind it?
Because a louvre is a screen, not a seal - even a high rain-defence louvre lets some wind-driven rain past in heavy weather. The chamber (plenum) behind it must therefore be able to collect and drain that water, typically with a sloped sill, a drain and an upstand, before the air reaches the equipment or room beyond. A louvre installed over an undrained plenum will flood the very space it was meant to ventilate, which is a common cause of water damage to plant rooms in monsoon climates.
Peer-reviewed journals & authoritative standards
- 01Li, X. & Wu, Y. A review of complex window-glazing systems for building energy saving and daylight comfort. — Journal of Building Physics (SAGE), 2025.
- 02Ventilated facade system: A review (water control, drainage and the rainscreen principle). — ScienceDirect (Elsevier), 2025.
- 03Squadroni, F., De Michele, G., Mazzucchelli, E.S. et al. Analysis of condensation and ventilation phenomena for double skin facade units. — Journal of Building Physics (SAGE), 2022.
_Openings, interfaces and typical details all share one unspoken enemy: everything moves and nothing is built to the millimetre. Reconciling a skin made to +/-2 mm with a frame built to +/-25 mm - while the building expands, sways and settles - is the last piece of detailing, and it's next._
