Home Lift Size Planner

Tell us the clear width and depth you can spare for the shaft. We show which home lift capacities fit, the largest that fits, and the car size you would actually get inside.

2 to 8 personClear shaft sizingCar size you getShaftless optionFree Tool

Largest capacity that fitsFits up to 0 person1,500 mm wide x 1,750 mm deep available

Available clear width — 1,500 mm

Available clear depth — 1,750 mm

Lift type

Ropes + counterweight, machine in the hoistway (MRL is the 2026 norm). Energy-efficient, smooth, faster.

Quick scenarios — available footprint

What fits your space

Largest that fits

0 person

Rated load

0 kg

Car width

0 mm

Car depth

0 mm

Clear door opening for the 4-person car is about 900 mm — wheelchair friendly (CPWD/RPwD).

Capacity-by-capacity fit

2 person

Shaft 1,220 mm x 1,220 mm

Fits

3 person

Shaft 1,300 mm x 1,450 mm

Fits

4 person

Shaft 1,500 mm x 1,750 mm

Fits

6 person

Shaft 1,600 mm x 2,100 mm

Too big

8 person

Shaft 1,900 mm x 2,150 mm

Too big

Fit map — required shaft area vs available

Each bar is a capacity's required shaft footprint. The amber line is your available 2.63 sq m. Bars under the line fit.

Green bars sit under your available-area line and fit; grey bars need a bigger shaft. Footprint is the deciding factor — a bigger car also needs deeper pit and headroom, which vary by drive type.

Shaft dimensions are clear internal sizes. Always leave finishing tolerance and confirm pit and headroom for the Traction (Gearless MRL) drive on site.

Tight on space? A shaftless option

Pneumatic vacuum (PVE)

Air-pressure cabin. No pit, no shaft, no machine room — easiest retrofit. Panoramic glass; 2-3 persons. It is self-supporting and needs no shaft, pit or machine room — the cylinder is the structure — so it slots into a footprint a masonry shaft cannot.

Compact MRL traction

A gearless machine-room-less traction lift removes the separate machine room and runs in a slim hoistway — a good pick when you want a few more persons than the very smallest shaft allows.

All dimensions are indicative June 2026 planning figures. Final clear sizes, pit and headroom must come from the vendor's approved GA drawing.

Home lift footprints in Indian homes

Compact · 2 person

Accessible · 4 person

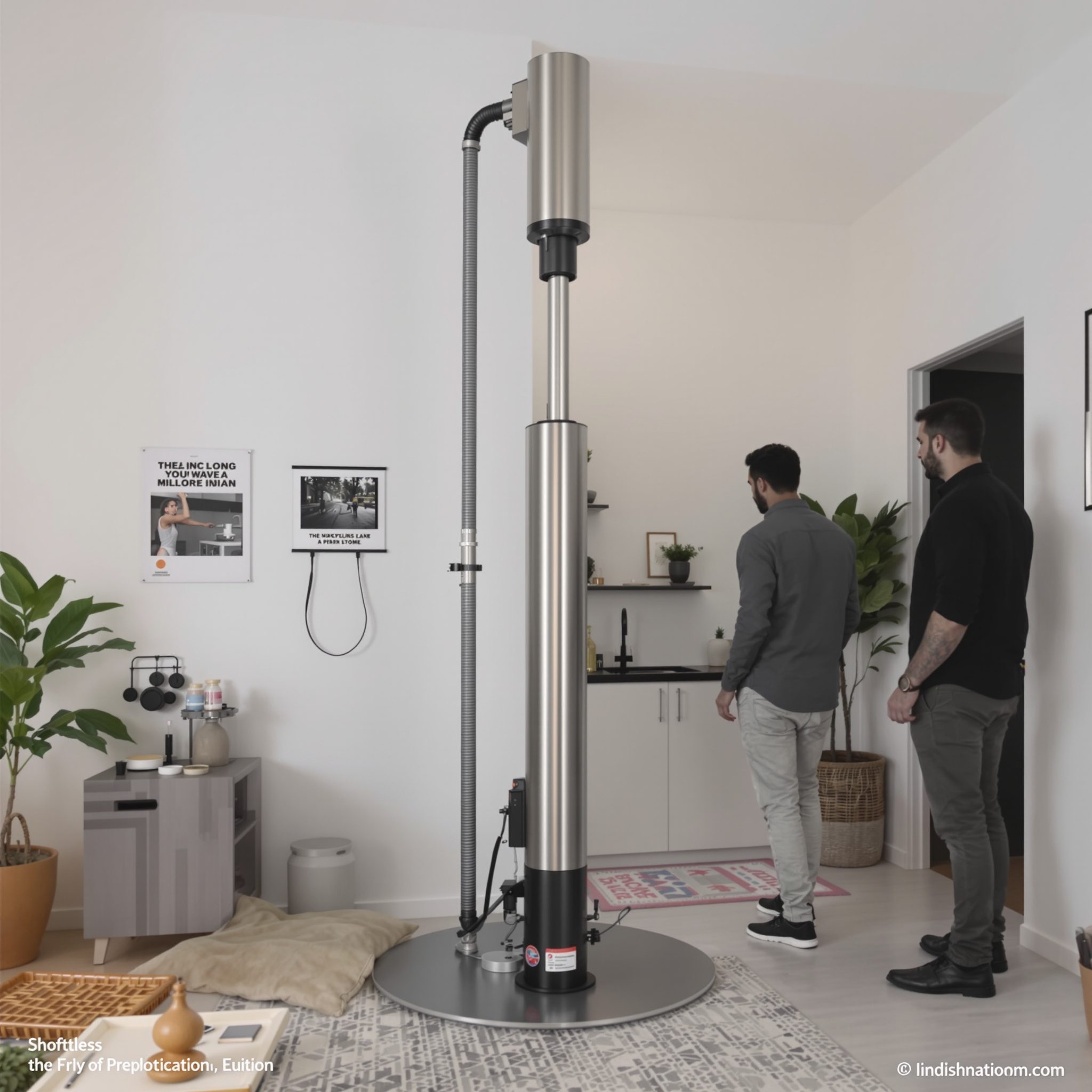

PVE · shaftless

MRL · slim hoistway

Get the shaft right before you build

Read the full space-requirements guide — clear shaft, pit, headroom and door sizes for every home lift capacity in India.

Space requirements guide
