The art of the facade detail
A facade lives or dies in a few hundred millimetres of section. The typical detail is where intent becomes a thing that sheds water, drains, moves and can actually be built.
Nobody photographs a window sill detail. But that sill is where a fifty-crore facade quietly decides whether the boardroom below it stays dry.
An architect's elevation can be flawless and the building can still leak, overheat and crack - because the elevation is a picture and the facade is a section. The truth of a facade lives in its details: the head, the sill, the slab edge, the corner, drawn at 1:5 or 1:2, where every one of the four control layers either continues or stops dead. A good detail is not a pretty drawing. It is a tiny machine that sheds water at the top, drains whatever gets in, lets the wall move without tearing, keeps water, air, heat and vapour continuous - and can be made by a fabricator and a crew in the rain. This lesson teaches you to read and judge that machine.
The anatomy of a typical section - and the five rules of a good detail
A typical detail is the four control layers, the structure and the movement strategy, all in 200 mm of section
Open any serious facade drawing set and the most important sheets are the typical sections - the head, jamb, sill and slab-edge details drawn large. Learn to read one as a stack, outside to inside, exactly like Lesson 0.2 taught you: cladding, drained cavity, water/air barrier line, insulation, vapour plane, structural frame, internal finish.

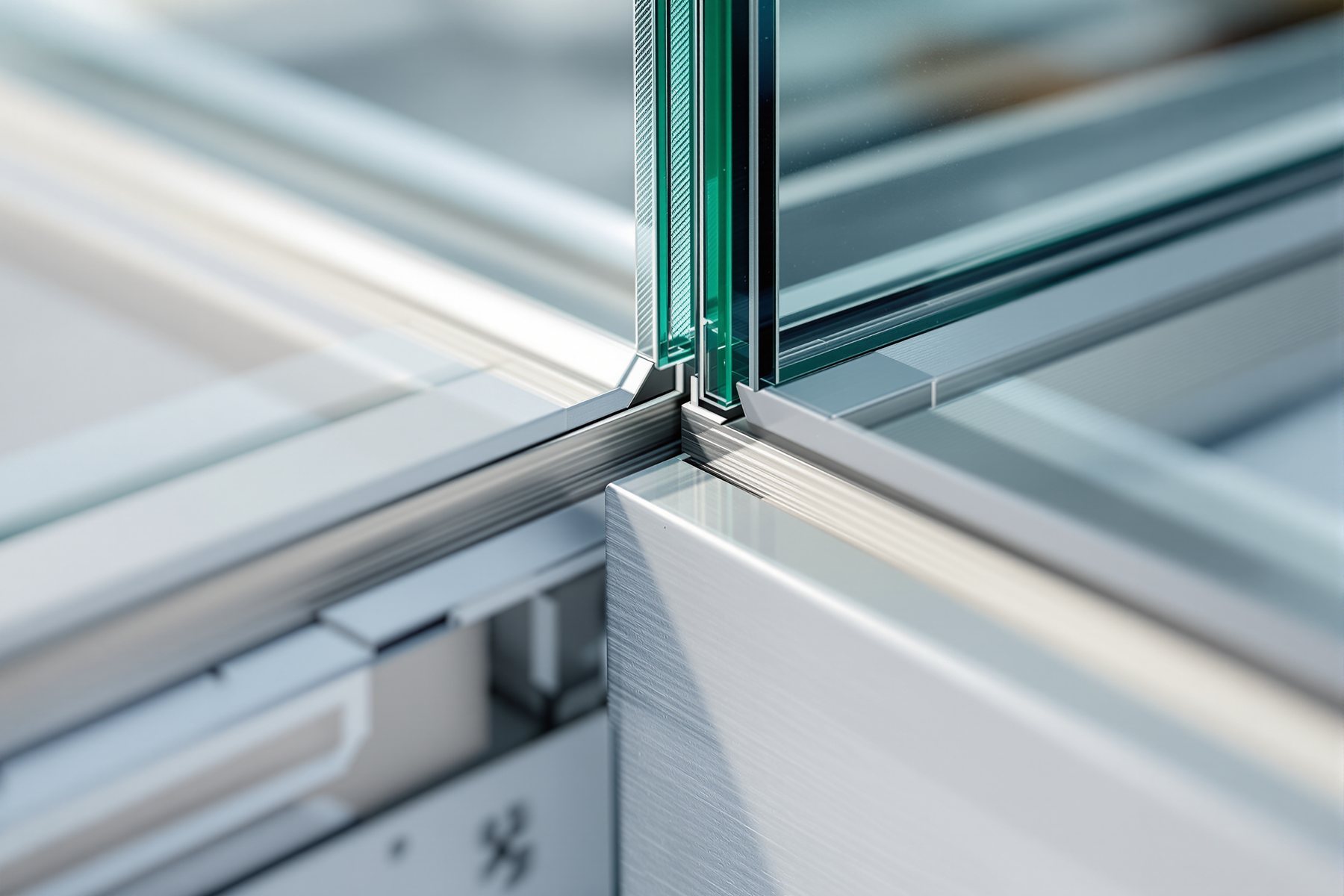

On a unitized curtain wall the transom (horizontal) and mullion (vertical) profiles carry the glass, and inside those profiles the detail hides its real work - a gutter to collect water, a pressure-equalisation slot, a primary and a secondary gasket line, a thermal break splitting the aluminium so heat can't short-circuit through it, and a setting block the glass sits on.
The discipline is to point to each control layer in the section and follow it. Where is the real waterproof line? (Usually the inner gasket and gutter, not the visible outer seal.) Where is the air seal? Where is the insulation, and what punctures it? A detail you cannot decompose this way is a detail you cannot trust.
If you cannot point to the water line, the air line, the thermal line and the drainage path on a detail, the detail is not finished - it is just drawn.
Shed, drain, move, keep continuous, build it
Every good facade detail obeys five principles, in priority order.
Shed water. Geometry beats sealant. Slope every horizontal surface outward (a sill, a coping, a transom face) so gravity carries water away before it can sit, pool and find a path in. A flat sill is a future stain.
Drain what gets in. Assume the outer seal will be breached - it always is, eventually. So provide a drained, pressure-equalised cavity with a gutter at each transom and weep holes to let collected water back out. This is the rainscreen principle made physical (Module 5).
Allow movement. The detail must let the wall expand, contract and flex without tearing a seal or cracking glass - via gaskets that compress, joints that open and close, and slip planes. Keep the four control layers continuous. Water, air, thermal and vapour must each cross the detail without a gap; the thermal break must not be bridged by an unbroken aluminium bracket. And make it buildable - a detail that needs a third hand, a dry day and a 0.5 mm tolerance will not survive the site.
The middle of the panel is easy; the junction is where the money is lost
Surveys of facade defects find the same thing every time: leaks, draughts and thermal bridges cluster at junctions and transitions, not in the middle of a flat panel. The reason is simple - a control layer is easy to make continuous across a uniform panel and hard to carry around a transom, a bracket, a corner or the slab edge.
This is why detailing gets its own module. A panel is a manufactured, repeatable, tested thing. A junction is a one-off negotiation between geometry, tolerance, sequence and three different trades. The art of the facade detail is resolving that negotiation on paper, at 1:2, before it becomes a leak you have to find by hose-testing forty floors up.
In Indian conditions the stakes rise further: the monsoon delivers wind-driven rain at pressures that expose every lazy detail, and the diurnal temperature swing in a place like Delhi or Jaipur drives real daily movement through the joints. A detail that survives a European spec sheet can still fail here if it was never asked to shed a Mumbai cloudburst.
Your elevation implies a hundred details you may never draw - but you must leave room for them. A flush, reveal-less junction that looks pure on the elevation often leaves nowhere for a gutter to sit, a gasket to compress or a barrier to lap. Before you fall in love with a razor edge, ask your facade engineer to sketch the 1:2 behind it. The most elegant detail is the one that is honest about water: it sheds and drains rather than relying on a perfect bead of silicone that you are quietly trusting for forty years.
You own the typical section and every principle in it. Draw the four control layers as continuous coloured lines through every detail, then stress-test continuity at each junction. Make drainage explicit - show the gutter, the weep, the slope - never leave water management to 'the sealant'. Specify the thermal break and verify nothing bridges it. And design to be built: dimension the tolerances, show the sequence, and ask of every detail 'can a tired crew make this, in the wind, and will it still perform?'. The cleverest detail that cannot be built is a defect waiting to happen.
Read a detail as a set of jobs, not lines: this slope sheds water, this hole drains it, this gasket seals air, this gap lets the wall move. On site, the temptations that kill details are the hidden ones - a weep hole painted over, a gasket left short at a corner, a setting block missing so the glass bears wrong. Learn where the drainage path runs in your system and never block it. The detail on the drawing only works if the version you build keeps every slope, every hole and every seal that the drawing showed.
CWCT Standard for Systemised Building Envelopes (UK)
Detailing & performance benchmark
The de-facto international benchmark for facade detailing, drainage and performance criteria; widely written into Indian premium-project specs. It sets the bar but doesn't tell you how to draw your specific junction - that is engineering judgement.
NBC 2016, Part 6 (India)
Structural & cladding provisions
Frames how cladding and facades are designed in India and is referenced by most state bye-laws, but is light on the fine-grain drainage/movement detailing that premium facades need - hence the reliance on CWCT-grade specs.
ASTM E2112 / IS 16231
Installation & fenestration performance
ASTM E2112 gives water-managed installation practice for windows/doors; IS 16231 sets Indian fenestration performance. Useful for openings, but a full curtain-wall detail still needs the system manufacturer's tested sections.
“A good facade detail is one that seals the water out completely - the more sealant and the tighter the joint, the better the detail.”
The best facade details barely rely on sealant for the primary defence. They assume water will breach the outer line and they _shed_ it with slopes and _drain_ it through a pressure-equalised cavity and weep holes. A detail that depends on a single perfect, permanent seal is a fragile detail, because every sealant degrades and every joint moves. Manage water by geometry and drainage; use sealant as one layer of defence, not the only one.
Worked example - audit a typical sill detail against the five rules
You don't need a wind tunnel to judge a detail - you need the five rules and a careful eye. Score a real (or system-catalogue) sill detail and you have done a facade engineer's daily quality check.
A 1:2 or 1:5 sill/transom detail (a system manufacturer's catalogue section works), a printout, and a red pen.
Take a 1:2 transom / sill detail and score it 0-2 on each rule: RULE SCORE (0/1/2) EVIDENCE IN THE DETAIL 1 SHED water (slope out) ___ outward slope on sill = ___ deg 2 DRAIN (gutter + weeps) ___ gutter shown? weeps @ ___ mm c/c? 3 MOVE (gasket / joint) ___ primary + secondary gasket? slip? 4 CONTINUITY (4 layers) ___ water/air/thermal/vapour unbroken? 5 BUILDABILITY ___ tolerance, sequence, access ok? TARGET: every rule scores 2. Any 0 is a defect; any 1 is a risk.
- 1Score Rule 1 (shed): find the outward slope on the sill face. A horizontal surface scores 0; a clear fall (aim for at least 5 deg, ~1:12) scores 2. A flat sill is the single most common detail defect - water sits, then wicks in.
- 2Score Rule 2 (drain): look for a continuous gutter in the transom and weep holes venting it to outside, typically at 400-600 mm centres. No gutter or no weeps = score 0; the cavity has nowhere to shed collected water and will flood inward at the next breach.
- 3Score Rule 3 (move): confirm a primary outer gasket and a secondary inner gasket / gutter line, and that at least one is a compression gasket that can take the panel's thermal movement. A single rigidly-bonded seal scores low - it tears when the wall moves.
- 4Score Rule 4 (continuity): trace each of the four control layers across the detail. Pay special attention to the thermal break - if an aluminium bracket or the same profile bridges inside to outside unbroken, the thermal layer is shorted and you score 0 on continuity even if everything else is perfect.
- 5Score Rule 5 (buildability): ask whether the crew can install it in sequence, reach every seal, and hit the tolerances shown. A detail needing a seal applied from a position no one can reach scores 0 - it will be skipped on site.
- 6Total the five. A detail scoring 10/10 is shippable; anything below 8 goes back to the board. Write one sentence per rule scoring less than 2 saying exactly what you'd change - that sentence is the redline a facade engineer issues every day.
You’ll walk away with
A scored, redlined sill detail - the five-rule audit that turns 'looks fine' into a defensible engineering judgement, and the exact habit you'll apply to every facade detail in this module.
Two quick ways to train your detail eye.
- 01Find a stained or streaked facade near you and trace the stain to the nearest horizontal detail above it - a flat sill, a coping, a transom. Nine times out of ten the water sat where it should have been shed.
- 02Pull any window sill detail from a system catalogue and try to colour the four control layers continuously through it. The layer you cannot trace without lifting your pen is the detail's weak point.
A facade detail is a small machine, not a drawing: it must shed water by geometry, drain what gets in, allow the wall to move, keep all four control layers continuous, and be buildable in the rain. Most facade failures live at the junctions where those rules get broken, so the typical section - drawn large and judged hard - is where facade engineering is really done.
The typical section is the four control layers, the structure and the movement strategy in 200 mm. A good detail obeys five rules in order: shed water (slope out), drain what gets in (gutter + weeps + pressure equalisation), allow movement (compression gaskets, slip joints), keep the four layers continuous (don't bridge the thermal break), and be buildable. Failures cluster at junctions, which is why detailing is its own module.
What makes a good facade detail?
A good facade detail does five things at once: it sheds water by sloping surfaces outward, drains whatever gets past the outer face through a pressure-equalised cavity with weep holes, allows the wall to expand, contract and flex without tearing a seal, keeps the four control layers (water, air, thermal, vapour) continuous across the junction, and is buildable by a real crew to real tolerances. A detail that relies only on a perfect bead of sealant is a weak detail.
Why are facade details drawn at such large scales like 1:5 or 1:2?
Because the work of a facade happens in a few millimetres that are invisible at 1:50 - the gutter, the weep hole, the thermal break, the primary and secondary gaskets, the setting block. At a large scale you can show and dimension each control layer, the drainage path and the tolerances, which is exactly where leaks and thermal bridges are designed in or out. The big detail is the contract between design intent and what gets fabricated.
Where do most facade leaks actually happen?
At junctions and transitions - slab edges, corners, window heads and sills, parapets and the base - not in the middle of a flat panel. A control layer is easy to make continuous across a uniform panel and hard to carry around a junction where geometry changes, tolerances collide and trades meet. That is why detailing the interfaces (Lesson 7.2) carries so much of the risk on any facade.
Peer-reviewed journals & authoritative standards
- 01Squadroni, F., De Michele, G., Mazzucchelli, E.S. et al. Analysis of condensation and ventilation phenomena for double skin facade units. — Journal of Building Physics (SAGE), 2022.
- 02Ventilated facade system: A review (water control, drainage and the rainscreen principle). — ScienceDirect (Elsevier), 2025.
- 03Su, Z. et al. Multi-Disciplinary Characteristics of Double-Skin Facades for Computational Modeling Perspective and Practical Design Considerations. Buildings, 12(10):1576. — Buildings (MDPI), 2022.
_If the typical detail is the machine, the interfaces - slab, parapet and base - are the corners where that machine has to bend around the building, and where the leaks and thermal bridges concentrate. That's next._
