Storage & Modular Furniture
The 32 mm grid, the hardware families, and a tested ranking of joints
Most storage is built one of two ways — a carcass box or a frame with a floating panel — and the modular version runs on a shared grid measured in 32 millimetres. This unit covers that system, the hardware families an Indian designer specifies, and a published destructive test of wood joints that puts the humble biscuit last and shows why a dovetail’s real strength is not a crush number at all.
Learning objectives
By the end of this lesson, you will be able to — mapped to the course outcomes for the Wood, Cane & Bamboo Workshop:
Distinguish carcass construction from frame-and-panel, and say which accommodates wood movement.
Explain the 32 mm system and why it makes modular hardware interchangeable.
Choose the right hardware family — hinge, runner, KD fitting — for a modular job.
Rank wood joints by tested strength, and say which joint is for alignment, not load.
Explain why a dovetail's real strength is a tension interlock, not a crush number.
Weigh material grade, hardware tier and finish as the honest drivers of furniture cost.
How storage is built
Carcass box or frame-and-panel — and the 32 mm system that makes modular hardware interchangeable, which, honestly, is the European frameless standard, not a Blum invention.[1, 2]
Carcass box versus frame-and-panel
Storage furniture is built one of two ways. Carcass (box) construction assembles flat panels into a box — it is the basis of all modular work, fast and repeatable. Frame-and-panel is the traditional solid-wood answer: a rigid frame holding a panel that floats free in its grooves, so the panel can move with humidity without splitting the piece — the direct application of Unit I's lesson that wood moves. Modern fitted furniture is overwhelmingly carcass construction in engineered board; frame-and-panel survives where solid wood and its movement are in play. Knowing which logic a piece uses tells you how it will behave over a decade.[1]
Hardware and joints
The hinge, runner and knock-down families and what each is for — and the joints, ranked by a destructive test, where the biscuit belongs last and the dovetail does a job a crush number cannot describe.[4, 5]
What each fitting is for
An Indian designer specifies from a few clear families, and the skill is matching the fitting to the job. Concealed European hinges mount frameless doors, adjust in three axes and hide completely. Ball-bearing side runners are the economy drawer slide; undermount soft-close runners are the premium quiet drawer. Cam-lock or Minifix fittings — a cam that draws a dowel tight — are the knock-down joint of flat-pack modular, assembled and re-opened with a screwdriver. These come from the brands actually present in India — Hettich, Häfele, Blum and the Indian maker Ebco — and prices are deliberately left out here, because they are unverifiable and volatile; specify by TYPE and grade, not by a number that will be stale by the time it is built.[3, 4]
Rank the joints
See the joinery family ranked by a real destructive test. The strong frame joints top it; the biscuit sits at the bottom where it belongs; and the dovetail and the knock-down cam-lock stand apart, because their job is a tension interlock and a re-openable fitting, not a crush number.
Joint explorer · strength, tested to destruction
Not a crush number — a different job
Dovetail · Drawer corners
Not the highest crush number — but its wedged pins mechanically resist being PULLED APART, which is exactly the load a drawer front sees. A different job from a crush test.
Cam-lock / Minifix (KD) · Knock-down modular carcass
A cam-and-dowel fitting that draws two panels tight and can be UN-done. Moderate strength, but its purpose is flat-pack assembly and re-opening, not maximum rigidity.
Pound-forces are from a published destructive test in 3/4-inch cherry — a RELATIVE ranking, not universal constants (they shift with species, tenon size and rig). Tap a bar for where each joint belongs.
At a glance
| Aspect | The fact | The other side |
|---|---|---|
| Carcass vs frame-and-panel | CARCASS: flat panels in a box — the modular basis | FRAME-AND-PANEL: a floating panel that accommodates wood movement |
| The 32 mm system | A shared grid → interchangeable hardware, adjustable shelves | MYTH: a Blum invention. It's the European frameless standard |
| Carcass grade | Dry: pre-lam particleboard/MDF. Wet: BWR/BWP ply | The commonest failure is an MR/particleboard box swelling at a sink |
| Strongest joints (tested) | Half-lap, mortise-and-tenon, loose tenon (~1,400–1,600 lb) | Biscuit is LAST (~545 lb) — an alignment joint, not a strength one |
| The dovetail | Resists being PULLED APART — the load a drawer sees | MYTH: judged by crush strength. Its job is tension |
| Hardware | Specify by TYPE and grade — hinge, runner, KD fitting | Prices left out — unverifiable and volatile |
| Cost drivers | Material grade, hardware tier, finish, labour | Present typology as context, not a state-by-state stereotype |
Key terms
Assembling flat panels into a box — the basis of all modular furniture. Fast, repeatable, and how most fitted furniture is built.
A rigid frame holding a panel that floats free in its grooves, so it can move with humidity without splitting. The traditional solid-wood answer to wood movement.
The European frameless standard: holes on a 32 mm grid (5 mm dia, front row 37 mm back) so hinges, pins and runners are interchangeable. Not a Blum invention.
A hidden, three-axis-adjustable hinge for frameless doors. The default modular door hinge.

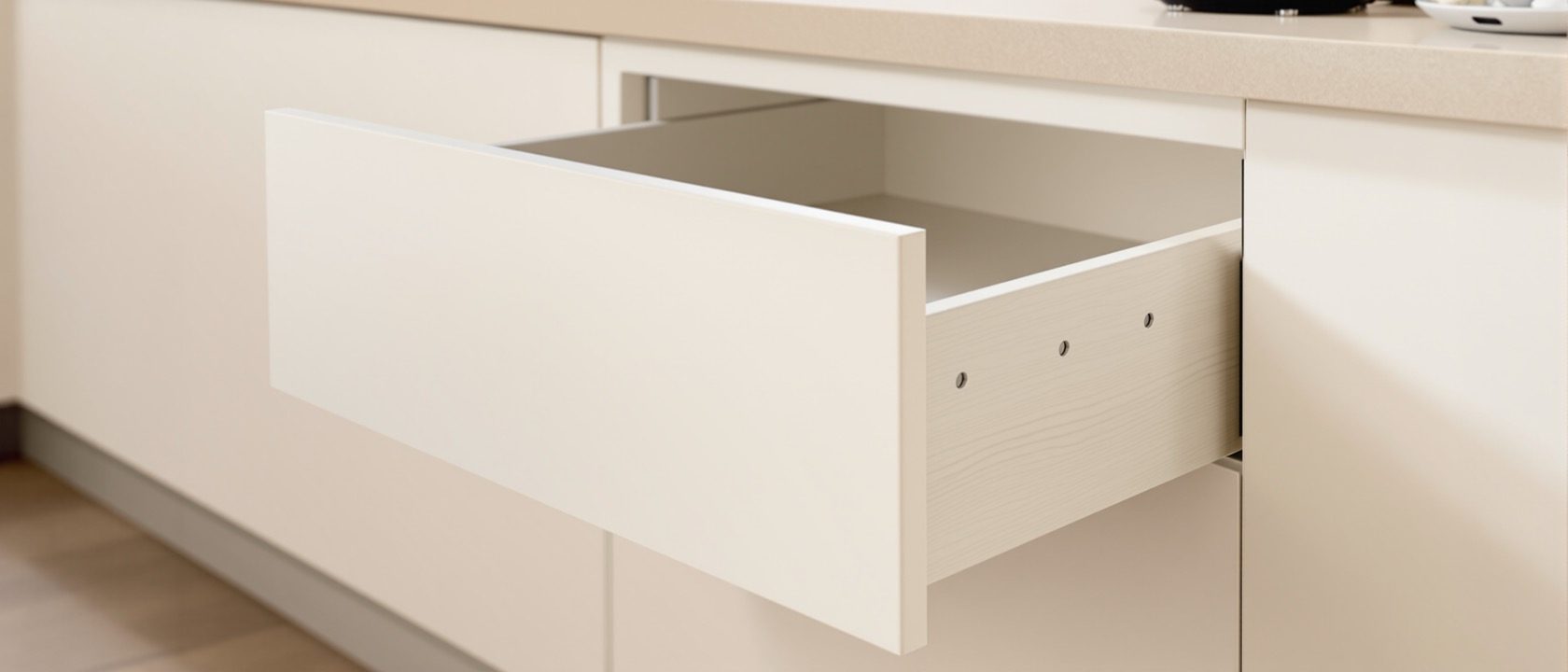

A drawer slide hidden beneath the drawer box, usually soft-close — the premium quiet drawer. Ball-bearing side runners are the economy option.
A knock-down fitting — a cam that draws a dowel tight — for flat-pack modular that assembles and re-opens with a screwdriver.
A PVC or ABS strip applied to a raw panel edge to finish it and seal the vulnerable core against moisture.
The benchmark strong frame joint — a tenon housed in a mortise. Tops the tested ranking with the half-lap and loose tenon.
A flat oval spline in matching slots. An ALIGNMENT aid — the weakest in the strength test — not a load-bearing joint.
Interlocking wedged pins that resist being pulled apart — the right joint for a drawer, judged on tension, not a crush number.
Study task
Design one cabinet — a base unit, a wardrobe, a bookcase — as a modular piece on the 32 mm grid, and specify it honestly: the carcass board and grade for its zone, the hinge and runner family by type (not brand or price), and the joint used at each connection, justified by the load that connection actually sees. Where two panels meet in a knock-down way, say which fitting and why; where a drawer front takes the pull of daily use, say why it is dovetailed and not biscuited. Then name one place you deliberately chose a weaker, cheaper joint because the load allowed it. Matching the joint and the hardware to the real load — not over-building everything — is the judgement this unit builds.
Self-assessment
1. What is the 32 mm system, and who invented it?
2. In a published destructive test, which joint came LAST — and what does that tell you?
3. Why are drawers dovetailed if the dovetail isn't the strongest joint by crush test?
4. A kitchen sink base cabinet is specified in MR plywood. What's the risk?
Recap
References & further reading
- [1]Ching, F. D. K. & Binggeli, C. — Interior Design Illustrated; and standard cabinetmaking references on carcass vs frame-and-panel construction and storage typology.
- [2]The 32 mm cabinetmaking system (System 32): holes on a 32 mm vertical grid, 5 mm diameter, front row 37 mm from the edge. The European frameless standard, productised by Blum ('Process 32'), Hettich and Häfele. (Wikipedia, '32 mm cabinetmaking system'.) https://en.wikipedia.org/wiki/32_mm_cabinetmaking_system
- [3]Carcass materials and grade selection follow IS 303 / IS 710 (see Unit I); edge-banding (PVC/ABS) seals the panel core. Pre-laminated particleboard/MDF (IS 3087 / IS 12406) in dry zones, BWR/BWP ply in wet.
- [4]Cabinet hardware families available in India — Hettich, Häfele, Blum and Ebco (Indian, est. 1963): concealed European hinges, ball-bearing and undermount soft-close runners, cam-lock/Minifix knock-down fittings. Prices omitted (unverifiable/volatile).
- [5]Fine Woodworking — destructive strength test of 18 wood joints (3/4-inch cherry): half-lap ≈ 1,603 lb, bridle ≈ 1,560, splined miter ≈ 1,498, mortise-and-tenon ≈ 1,444, loose tenon ≈ 1,396; multi-dowel ≈ 759, pocket screw ≈ 698, Domino ≈ 597, biscuit ≈ 545. Corroborated by woodgears.ca. Relative ranking, not universal constants. https://www.finewoodworking.com/
Further reading
- Bird, L., Jewitt, J., Lie-Nielsen, T. et al. — Taunton's Complete Illustrated Guide to Woodworking. Taunton Press, 2005. The joinery reference.
- Jackson, Albert & Day, David — The Complete Manual of Woodworking. Alfred A. Knopf.
- Ching, F. D. K. & Binggeli, C. — Interior Design Illustrated. John Wiley & Sons. For storage typology and cabinet planning.
- Hardware technical literature — Hettich, Häfele, Blum, Ebco (India). For hinge, runner and KD-fitting selection by type.
Sources gathered and fact-checked June 2026. Published values vary by source, sample and method — treat as indicative and confirm against the cited standard before structural use.
