Symbols, Pictograms & Arrows

A pictogram is a simple, stylised picture that stands for a thing or an idea - a figure for toilets, a cross for first aid, an aeroplane for the airport, a running figure and a door for the way out. Its two great advantages over words are worth stating plainly, because they drive a lot of wayfinding decisions. First, it is language-independent: one pictogram communicates to speakers of every language and to people who cannot read at all, where a word serves only those who read that particular language and script. Second, it is often faster than reading: a recognised symbol is grasped as a whole image almost instantly, while a word must be scanned letter by letter - which matters enormously for a moving, glancing, stressed reader who has a second or two.

These advantages are not academic in India, they are decisive. A single Indian airport, railway station, hospital or metro serves people who between them read English, Hindi in Devanagari, and any of a dozen major regional scripts - and a meaningful proportion who read no script confidently. Printing every word in three or four languages is necessary but bulky, slow to scan and still leaves people out. A good pictogram reaches all of them at once, which is why pictograms are not a nice addition to Indian signage but a structural necessity - the element that makes a genuinely inclusive, multilingual system possible. The same logic applies anywhere with international or diverse users: transport hubs, hospitals, tourist places, the Olympics that drove so much symbol design.

But the power has a hard limit: a pictogram only works if it is actually understood, and comprehension is not automatic. Some things picture easily and near-universally (toilets, food, phone, a direction); many ideas do not (abstract concepts, specific departments, 'customer service', 'this way for onward connections'), and a symbol that is not genuinely recognised is worse than useless because it looks like it means something while conveying nothing, or the wrong thing. Culture matters too: a gesture or object that reads one way in one place reads differently in another. So pictograms are paired with words as often as used alone, tested for real comprehension, and - the subject of the next section - drawn from proven, standard sets rather than invented, precisely because recognition is everything.

Because a pictogram lives or dies by recognition, the single most important rule is: use recognised, standard symbols wherever they exist, rather than designing your own. Over decades, a shared visual language of public symbols has been developed, tested and adopted worldwide, and a traveller has learned to read it without realising. Reaching for that shared set buys you instant recognisability that no freshly invented icon can match - and consistency with every other place the user has ever navigated.

Two reference sets anchor this. ISO 7001 is the international standard for public information symbols - graphical symbols for things like toilets, information, first aid, baggage, telephones and many more - developed and tested for comprehension and adopted internationally; it is the first place to look for a needed symbol. The AIGA symbol signs are a set of 50-odd symbols created by the American Institute of Graphic Arts with the US Department of Transportation in the 1970s, originally for transport hubs; they are clear, public-domain, hugely influential and widely used, and much of the modern vocabulary descends from them. Many countries and standards also maintain their own public-symbol sets that align with these. For safety symbols specifically (fire, hazard, mandatory and prohibition signs, the green running-man exit symbol), there are separate safety-sign standards, and those are binding - defer to them and the fire authority rather than designing your own.

The practical workflow follows from this. When you need a symbol, look for a standard one first; adopt it faithfully, keeping its recognisable form rather than restyling it into illegibility for the sake of the brand. Where your symbol set and a standard one overlap, match the standard. Only design an original symbol when no standard exists for that specific meaning - and then design it to sit consistently within the same visual system (same weight, same level of detail, same style) as the standard symbols around it, and test it hard for comprehension before you commit. Restyling standard symbols for brand reasons is a common and damaging temptation: a heavily stylised, clever toilet icon may win a design award and still leave a desperate stranger unsure, which is a total failure of the symbol's only job. Recognition beats originality every time; the brand can live in the environmental graphics, not in confusing the working symbols.

Whether you are adopting standard symbols or designing the occasional new one, a few principles keep a symbol set working. Consistency of style is first: every symbol in the system should look like it belongs to the same family - the same visual weight, the same level of simplification, the same treatment of the human figure, the same stroke logic. A set that mixes a thin-line icon here, a solid silhouette there and a detailed illustration elsewhere looks chaotic and reads slower, because the eye cannot settle into one visual grammar. Pick a style and hold it across the whole set, standard and custom symbols alike.

Simplicity and boldness come next, for the same reason type needs a tall x-height and open counters: a symbol is read small, far and fast, so it must be a strong, simple silhouette that survives distance, blur and poor light. Fine detail, thin lines and fussy internal features vanish exactly when needed. The best pictograms are almost crude up close and crystal clear across a hall. Design (or judge) them the way you judge signage type - shrink them, blur them, and see if the meaning holds. Clear figure-ground and adequate size relative to the type complete the legibility picture.

Comprehension, tested on real people, is the decider, because the designer is the worst judge of whether their own symbol is understood - you know what it means, so it always looks obvious to you. A genuinely good symbol has been shown to people who do not already know, ideally across the range of cultures and literacy levels who will use the place, and understood without a caption. This is precisely why standard sets are so valuable: they have already survived that testing. For anything custom, do a quick comprehension test before committing, and be ruthless - if people do not get it, the symbol has failed, however elegant. Finally, pair symbol and word where it helps: for many wayfinding messages the symbol and the text label together are stronger than either alone - the symbol for the fast, language-independent, across-the-hall read, the word to confirm and to carry meanings that do not picture. The redundancy is a feature, serving both the reader who cannot read the script and the reader who wants certainty, which is the inclusive habit this whole course keeps returning to.

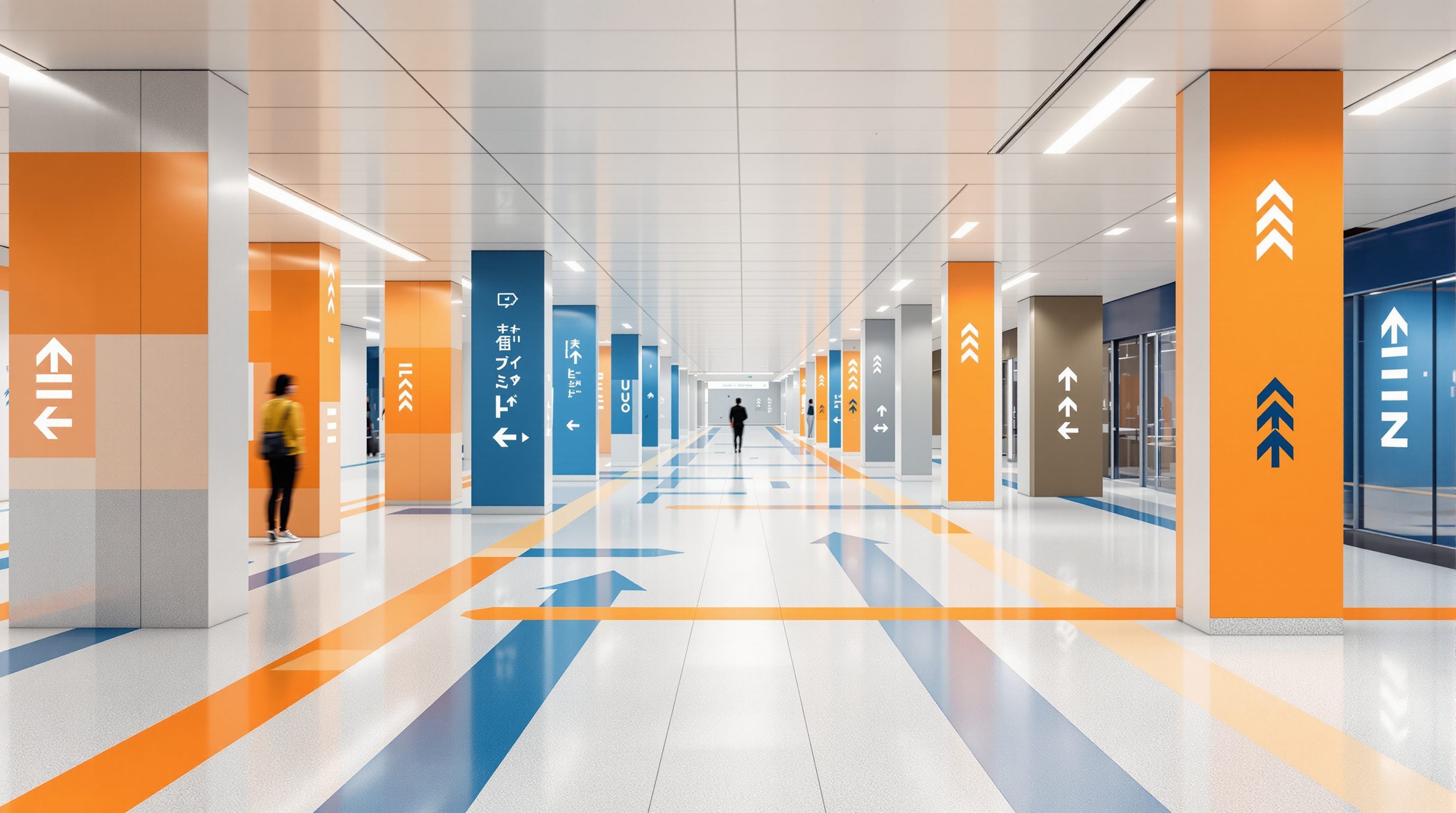

No element is more used in wayfinding than the arrow, and few are more often got wrong - not because arrows are difficult, but because their grammar is treated casually. An arrow has to answer one question unambiguously: which way do I go? And it fails whenever the system lets it be read two ways. The fixes are simple but must be applied with iron consistency across the whole place, because the moment a building uses arrows two different ways, it has taught its users to distrust every arrow.

The first issue is meaning, especially the up arrow. A left or right arrow is unambiguous; the vertical arrow is the troublemaker. Does an up arrow mean 'go straight ahead / forward' or 'go up' (a floor above, up the stairs)? In most pedestrian directional signage the convention is that an up arrow means straight ahead - you are telling a walker to continue forward, which in their view of the world is 'up' the sign - while 'up a level' is usually shown differently (an explicit stair or lift symbol, or a dedicated treatment). The down arrow similarly tends to mean 'down to this level / down here' or, on an overhead sign, 'the thing is below this point'. Whatever conventions you choose, choose them explicitly, document them, and never contradict them - the single worst arrow failure is a system where up sometimes means ahead and sometimes means upstairs.

The second issue is placement relative to the text. An arrow and the destination it points to are one unit and must be unmistakably paired - the reader must never have to guess which label an arrow belongs to on a crowded sign. A robust, widely used convention is to put the arrow on the side of the sign corresponding to the turn: left-pointing arrows and their text grouped on the left, right on the right, so the layout itself reinforces the direction. Keep each arrow tight to its label, and do not let one arrow appear to serve two messages. The third issue is consistency of the arrow itself - one arrow style, weight and size throughout, sized to match the type so it reads at the same distance. Arrows also belong only where a decision is made or confirmed: an arrow at every junction the route turns, and crucially a confirming continuation where a nervous walker needs reassurance ('yes, still this way'), but not a clutter of arrows where none is needed. Get the arrow's grammar right - consistent meaning, paired placement, one style, used at decisions - and you have fixed the most common, most frustrating wayfinding failure there is.
