Unit IIIInterior Materials & Construction II

Ceiling Systems & Lighting

The plenum, the two systems, and the reflected ceiling plan.

≈ 55 min + an RCPByAmogh N P· Architect & interior designer

A suspended ceiling creates a plenum that hides services, houses lighting and controls acoustics — so every ceiling decision is a coordination decision. Learn the two dominant systems (the exposed lay-in T-grid with its removable tiles, and the concealed gypsum-board ceiling framed and taped seamless), the services coordination and access panels, the acoustics of absorption versus attenuation, and the lighting integration pulled together on the reflected ceiling plan.

Learning objectives

By the end of this lesson, you will be able to — mapped to the course outcomes for Interior Materials & Construction II:

CO3 · Understand

Explain the plenum and why every ceiling decision is a coordination decision.

CO3 · Analyse

Distinguish the exposed-grid and concealed-gypsum ceiling systems.

CO3 · Apply

Coordinate services and access panels, and explain acoustic NRC versus CAC.

CO3 · Create

Integrate cove and recessed lighting and set it out on a reflected ceiling plan.

Grid or gypsum

The two ceiling systems

The plenum as a coordination decision, the exposed lay-in grid, and the concealed gypsum-board ceiling framed and taped seamless.^{[1, 2, 3]}

DiagramThe exposed lay-in T-grid ceiling with removable tiles versus the concealed gypsum board ceiling framed and taped seamless

DiagramSection of a concealed gypsum ceiling — soffit cleats, suspension rods, GI channels, gypsum board and a taped seamless joint

A coordination decision

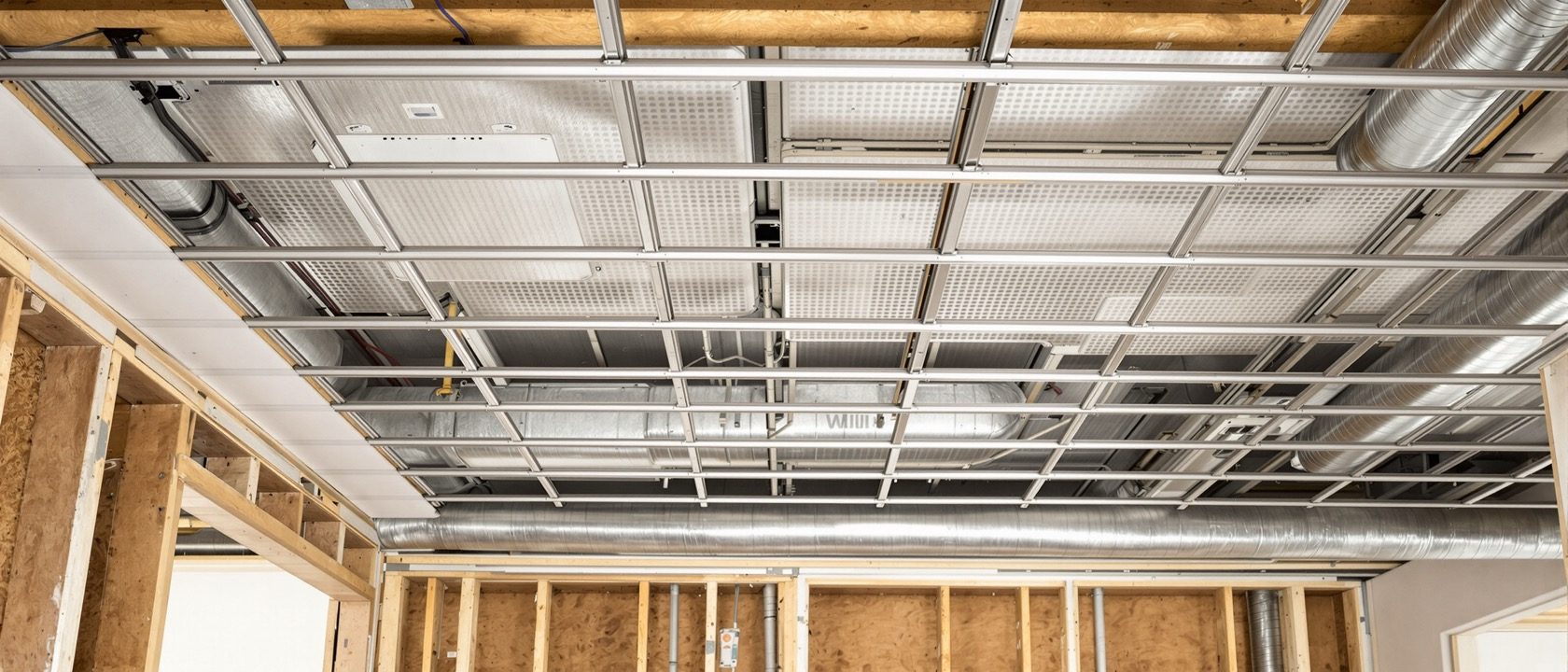

A suspended ceiling creates a PLENUM — the void between the structural soffit and the finished ceiling — that hides ducts, wiring, pipes and sprinklers, houses lighting, and controls acoustics and ceiling height. So every ceiling decision is a COORDINATION decision with the mechanical, electrical and plumbing services. The plenum depth is set by the deepest duct plus the light fittings plus clearance.^{[1, 3]}

The RCP coordinates it all

Services, acoustics & lighting

Services and access panels, absorption versus attenuation, and integrating cove and recessed lighting on the reflected ceiling plan.^{[1, 3]}

DiagramThe plenum holds services; the reflected ceiling plan coordinates grilles, lights, sprinklers and access panels

DiagramCove lighting — an LED strip hidden in a plaster cove washing the ceiling, with a designed profile depth, lip and driver access

Set out together

The ceiling plane carries AC supply and return GRILLES, sprinkler heads, smoke detectors, speakers, CCTV, recessed and profile LIGHTING, and ACCESS PANELS to reach valves and dampers above. All of it must be set out TOGETHER so grilles align with the grid/joints and fittings don't clash with framing or ducts. And you MUST leave access panels wherever a serviceable device (a fire damper, a valve, a junction box) sits above a sealed gypsum ceiling — or maintenance means cutting it open.^[1]

Myth vs reality

At a glance

Aspect	One side	The other
Gypsum vs POP ceiling	POP: wet-cast on mesh/wood frame	Gypsum: factory board on GI, taped seamless
Acoustic tile ceiling	Myth: it soundproofs the office	Reality: NRC absorbs in the room; CAC blocks between rooms
Sealing the ceiling	Myth: seal it all, cleaner look	Reality: leave access panels at every serviceable device
Cove lighting	Myth: just an LED strip up there	Reality: a designed cove profile with driver access
The RCP	Myth: optional for a home	Reality: the coordination drawing that aligns everything

Vocabulary

Key terms

Plenum

The void above a false ceiling that holds services and light fittings — sets the ceiling drop.

Lay-in / T-grid ceiling

An exposed metal grid with removable drop-in tiles — full plenum access, in 600×600 modules.

Concealed gypsum ceiling

A GI-framed board ceiling, joints taped seamless — enables coves, curves and multi-level forms.

Access panel

A removable panel to reach a serviceable device above a sealed ceiling — mandatory or you cut it open.

NRC vs CAC

Absorption within a room versus attenuation of sound between rooms — absorption is not isolation.

Reflected ceiling plan (RCP)

The mirror-plan of the ceiling coordinating levels, fittings, grilles, coves and access — the key drawing.

Apply it

Detailing task

Draw a sectional detail of a concealed gypsum-board false ceiling with a lighting cove — showing the soffit cleats, suspension, GI channels, the boarding, the taped joint and the cove profile with its LED strip and driver access. Then draw a simple reflected ceiling plan (RCP) of one room, setting out the AC grilles aligned to the ceiling, the recessed downlights, a sprinkler and at least one access panel, with a legend — and note where you would use the exposed grid instead and why.

Check your understanding

Self-assessment

1. The concealed gypsum-board ceiling differs from a POP ceiling in that it is —

2. An acoustic tile ceiling with a high NRC will —

3. The single drawing that coordinates ceiling levels, fittings, grilles, coves and access panels is the —

In a nutshell

Recap

A suspended ceiling creates a plenum that hides services and houses lighting — so every ceiling decision is a coordination decision.

The exposed lay-in T-grid gives removable tiles and full plenum access; the concealed gypsum-board ceiling is GI-framed, boarded and taped seamless for coves, curves and multi-level forms.

Set services out together and leave access panels at every serviceable device above a sealed ceiling.

Acoustics: NRC absorbs sound within a room, CAC blocks it between rooms — absorption is not isolation.

Integrate cove, recessed and profile lighting and pull it all together on the reflected ceiling plan (RCP), the single coordination drawing.

The evidence

References & further reading

[1]Drew Plunkett, Construction and Detailing for Interior Design, Laurence King (ceilings, coves, service integration, RCP thinking).
[2]Francis D.K. Ching, Building Construction Illustrated (suspended ceilings and lighting integration).
[3]Saint-Gobain Gyproc / USG Boral / Armstrong ceiling technical manuals (framing spacings, board specs, NRC/CAC data); BIS IS 2095, IS 2547.
[4]National Building Code of India (NBC) 2016, Part 8 (building services, lighting and HVAC integration reference).
