Form and Structure — Primitives, construction lines, and drawing through
Lesson 05Module 1 · The visual vocabulary

Form and Structure

Primitives, construction lines, and drawing through

3 hours studioByAmogh N P· Architect & interior designer

Learning objectives

By the end of this lesson, students will be able to:

  • Construct complex objects from geometric primitives (boxes, cylinders, wedges) using light construction lines.
  • Draw through forms — showing hidden edges lightly — to keep volumes honest.
  • Apply analytical drawing to a piece of furniture and to a small building, revealing its underlying geometry.
  • Maintain consistent proportional relationships when combining multiple forms.
Building a Kettle in Four Stages 1 primitives cylinder + sphere 2 drawn-through scaffold spout handle 3 refined contour 4 finish: varied line weight Block the big masses first; commit to a contour only once the proportions sit right; save line-weight for the very end.
DiagramFour-stage build of a kettle: primitives → scaffold → refined contour → finish.
A Chair, Reduced to Boxes and Cylinders See the simple solids first; draw through them so the hidden edges keep the form honest. seat box backrest box legs = cylinders box (slab) thin box Construction lines (dashed) pass through each solid; keep the four leg cylinders parallel and vertical.
DiagramA chair reduced to boxes and cylinders.
Why the Centreline Matters A single vertical axis keeps both ellipses symmetric and the sides truly parallel. centreline equal equal sides parallel · ellipses level GOOD no centreline ellipse tilts sides splay bottom too round WOBBLY Always lay the axis first, then mirror each ellipse and side against it.
DiagramCylinders drawn with and without centerlines — good vs. wobbly.

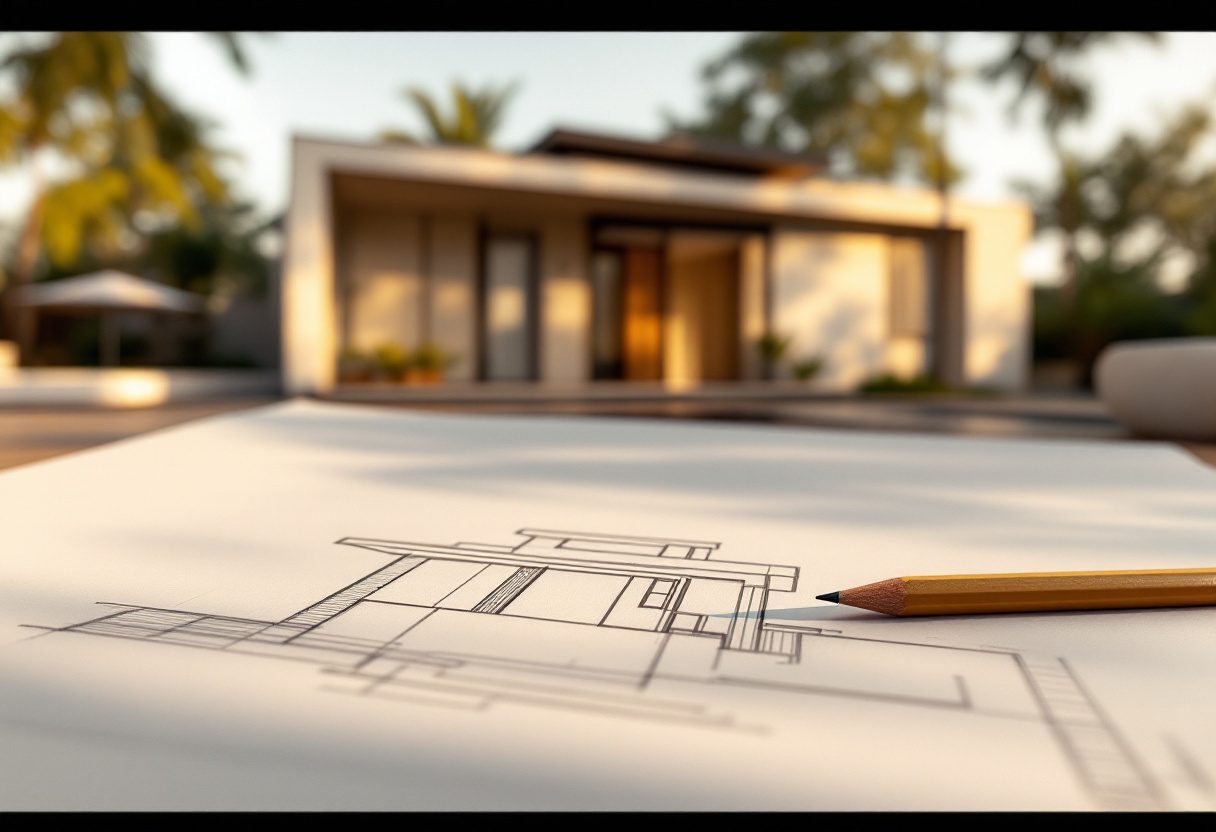

A simple house beside its three-primitive massing sketch.
PhotoA simple house beside its three-primitive massing sketch.

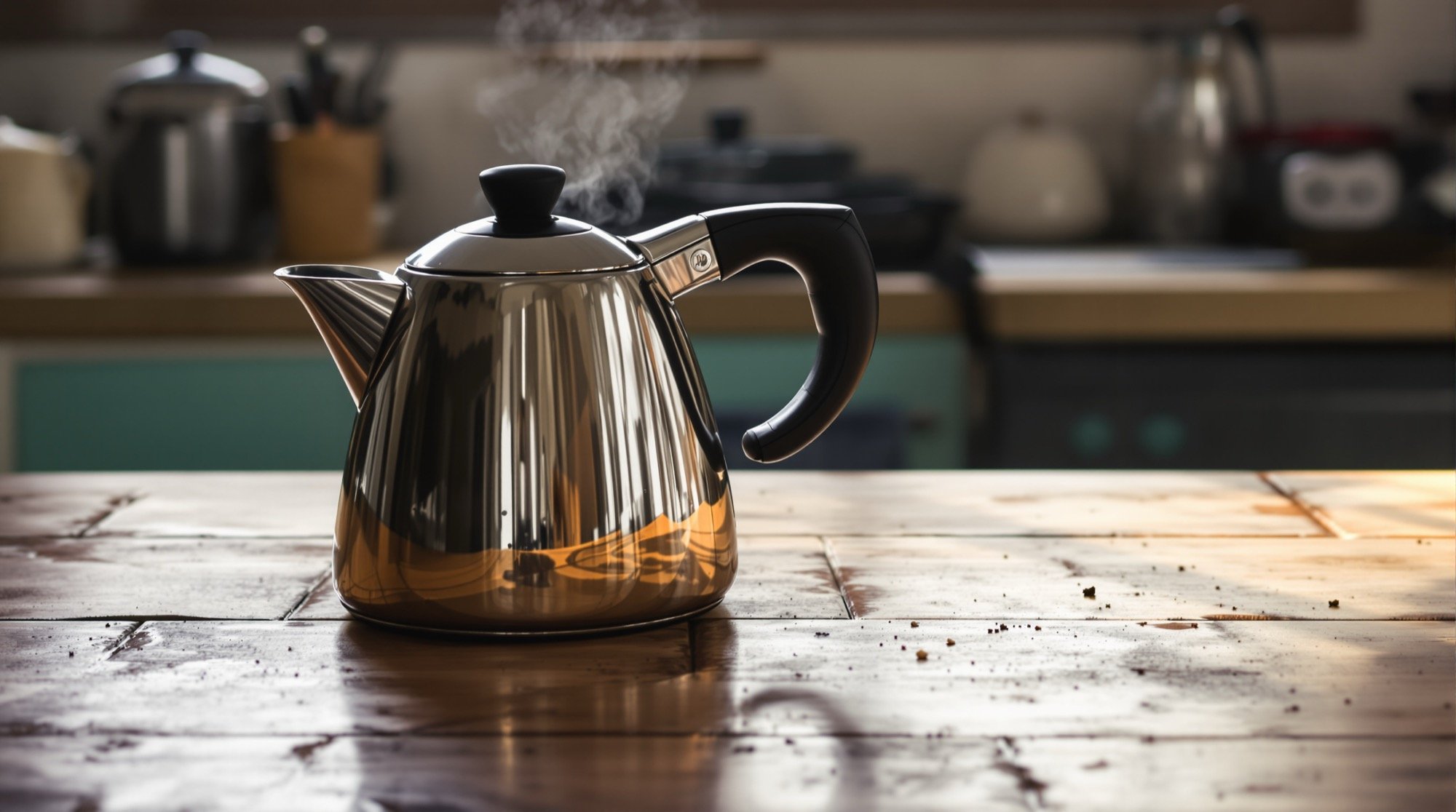

A kettle in directional light — find its primitives.
ReferenceA kettle in directional light — find its primitives.
Interactive · step through it

Build the kettle, stage by stage

Start with primitives and step forward — each stage adds to the last, just as you would on paper.

1 / 4
Primitives — cylinder, dome, spout

Stage 1 — Primitives — cylinder, dome, spout

Key concepts

  • Every object can be reduced to primary solids; drawing the geometry first prevents distorted results.
  • Construction lines are scaffolding: kept light, never erased, they record the thinking.
  • Drawing through (transparent construction) as a discipline for understanding volume.
  • Axis, symmetry, and centerline discipline for cylinders and rounded forms.

In-class activities & exercises

Primitive drills (30 min)Freehand boxes and cylinders in varied orientations, drawn through.
Object deconstruction (45 min)A desk lamp or kettle drawn first as primitives, then refined over the scaffold on tracing paper.
Furniture analysis (45 min)A studio chair drawn analytically — axes, boxes, and joints exposed.
Building blocking (40 min)From a photograph of a simple local house, students extract its massing as three to five primitives.
Desk critiques (20 min)Running feedback throughout the session.

Worked example sketches

How the technique looks in practice — loose, hand-drawn examples. Scroll to watch each one draw in; click to zoom.

Desk lamp — solids first, then contour construct the masses resolve the contour
DiagramA desk lamp analysed as cylinders and boxes, then refined.
Studio chair — drawn through its structure keep the axes and joints — let the build show
DiagramA studio chair drawn analytically — axes and joints exposed.
A house as four masses 1 2 3 4 block in the primitives draw it as one house
DiagramA simple house reduced to four massing primitives.
Camera — boxes first, then contour find the masses resolve the contour
DiagramA camera reduced to boxes and cylinders, then refined.

Homework / studio assignment

Analytical drawing of a household appliance: one sheet showing the primitive scaffold, one overlay showing the refined object.

Assessment

Rubric on structural accuracy, visible construction thinking, and proportional control.
