Unit IVArchitectural Design V

Site, Massing & Services

Placing the complex on its land — and weaving structure, services and circulation through it.

≈ 40 min + studio task

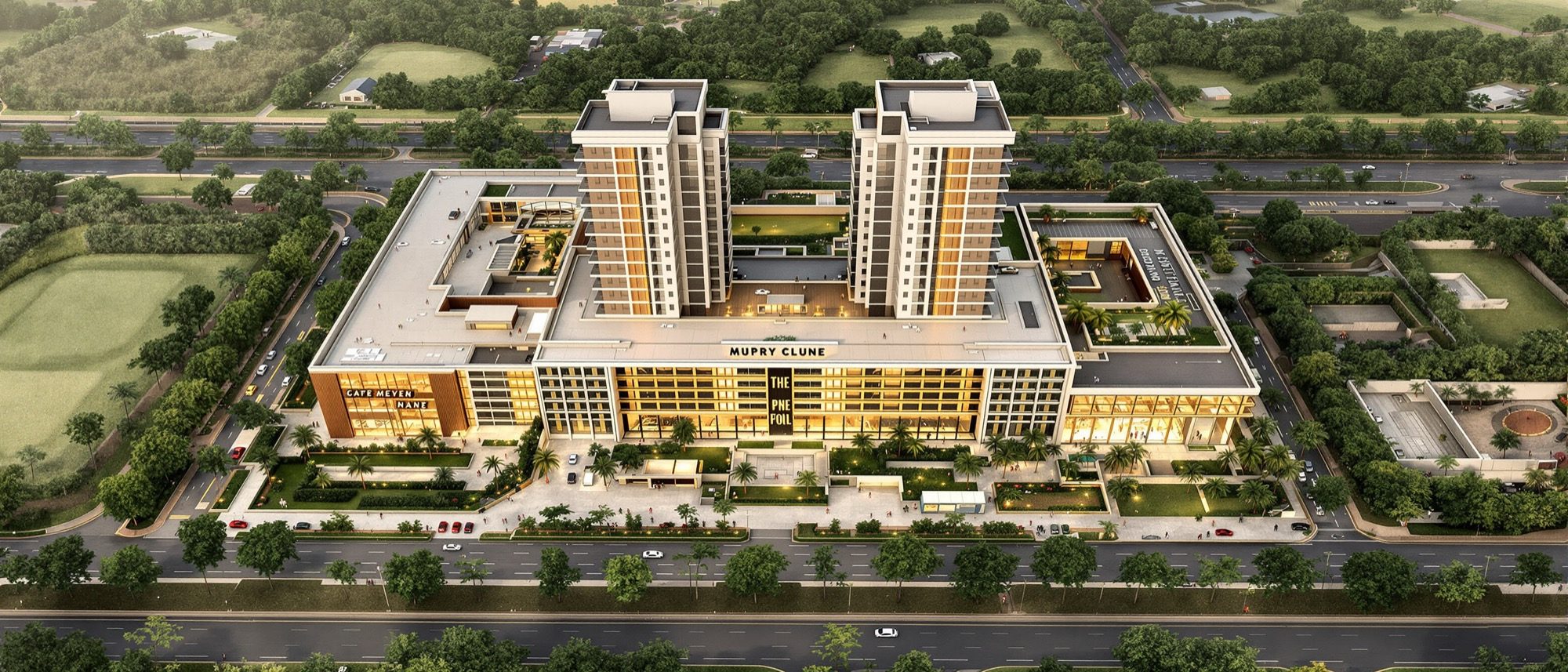

A complex does not float; it sits on a site and is held up and served by systems. This unit covers site-planning fundamentals after Lynch and Hack, the analysis of massing and circulation and the placement of cores (Kahn's served and servant), and the integration of building services — which must be coordinated with the massing from the first sketch, not added on.

Learning objectives

By the end of this lesson, you will be able to — mapped to the course outcomes for Architectural Design V:

CO2 · Understand

Carry out site analysis and zone a site for a mid-scale complex.

CO2 · Apply

Separate vehicular and pedestrian circulation and lay out parking and landscape.

CO4 · Analyse

Analyse massing and circulation, and place cores using the served-and-servant idea.

CO4 · Apply

Integrate building services with the massing and core from the schematic stage.

Analyse, zone, separate

Planning the site

Site design begins with analysis — sun, wind, topography, access, context — then zones the site and separates vehicular from pedestrian circulation, laying out parking and landscape.^[2]

DiagramA site-analysis diagram — a plot read for sun path, prevailing wind, vehicular access, contours and views

Read the land first

Site planning is, in Lynch's words, 'the art of arranging structures on the land and shaping the spaces between them.' It begins with ANALYSIS — natural factors (sun path, prevailing wind, rainfall, topography and drainage, soil, vegetation), cultural and contextual factors (existing use, density, regulatory controls, adjacencies, views), access and movement (vehicular and pedestrian), and services capacity (water, sewerage, power, drainage). The analysis, not the plan, is where a good site design starts.^[2]

DiagramA site plan separating vehicular circulation — approach, drop-off, parking — from a safe pedestrian network to the entrance

Hold it up, serve it through

Massing, cores & services

Analyse massing and circulation together; place cores for egress and a flexible plate, organised by Kahn's served-and-servant idea; and integrate services from the schematic stage — not as an afterthought.^[3]

DiagramA plan distinguishing served spaces — the primary rooms — from a servant core of lifts, stairs, shafts and toilets

Vertical zoning, clear flow

Analyse the MASSING as the stacking of uses by publicness, and the CIRCULATION as the flow of people through it — entry, vertical movement, horizontal distribution. Test travel distances and egress early. The massing and the circulation are two readings of the same decision: where each use sits and how you reach it.^{[1, 3]}

The site facts

At a glance

Aspect	One	The other
Start of site design	Site analysis (sun, wind, topo, access, context)	Then zoning and circulation
Circulation	Vehicular: approach → drop-off → parking	Pedestrian: a separate, safe, accessible network
Core placement	For egress + efficient travel distance	Frees a flexible, well-lit floor plate
Kahn's idea	Served: the primary occupiable rooms	Servant: cores, ducts, toilets, plant
Services	Myth: added at the end	Reality: coordinated from the schematic stage

Vocabulary

Key terms

Site planning

Arranging structures on the land and shaping the spaces between them (Lynch & Hack).

Site analysis

Reading the natural, cultural, access and service factors of a site before designing.

Site zoning

Allocating the site into use/activity areas by access, sun and noise.

Circulation separation

Keeping vehicular movement clear of a safe, continuous pedestrian network.

ECS

Equivalent Car Space — the unit by which parking is counted (size and count set by local bye-laws).

Core

The vertical bundle of lifts, fire stairs, shafts, toilets and plant in a building.

Served & servant

Kahn's distinction between primary occupiable rooms (served) and service zones (servant).

Set-back

The required margin from a plot boundary — a local development-control figure, not universal.

Apply it

Studio task

Draw a site-analysis diagram for your plot (sun, wind, access, context), then a site plan that separates vehicle and pedestrian routes and places the massing — and mark where the cores and main service shafts will run.

Check your understanding

Self-assessment

1. Site planning, per Lynch & Hack, begins with —

2. Kahn's 'served and servant' spaces distinguish —

3. Building services should be —

In a nutshell

Recap

Site design starts with analysis (sun, wind, topography, access, context), then zones the site and separates vehicular from pedestrian circulation.

Lay out parking off the pedestrian paths, shape the landscape and open space, and place the massing for orientation and views (set-backs per local rules).

Analyse massing and circulation together; place cores for egress and a flexible plate, organised by Kahn's served-and-servant idea.

Integrate building services with the massing and core from the schematic stage — they are the architecture, not an afterthought.

The evidence

References & further reading

[1]William M. Peña & Steven A. Parshall, Problem Seeking (5th ed.). Wiley, 2012.
[2]Kevin Lynch & Gary Hack, Site Planning (3rd ed.). Cambridge, MA: MIT Press. https://mitpress.mit.edu/9780262037389/site-planning/
[3]Francis D.K. Ching, Architecture: Form, Space, and Order (4th ed.). Wiley, 2015.
[4]Harmonised Guidelines and Space Standards for Universal Accessibility in India, 2021. CPWD / MoHUA.
