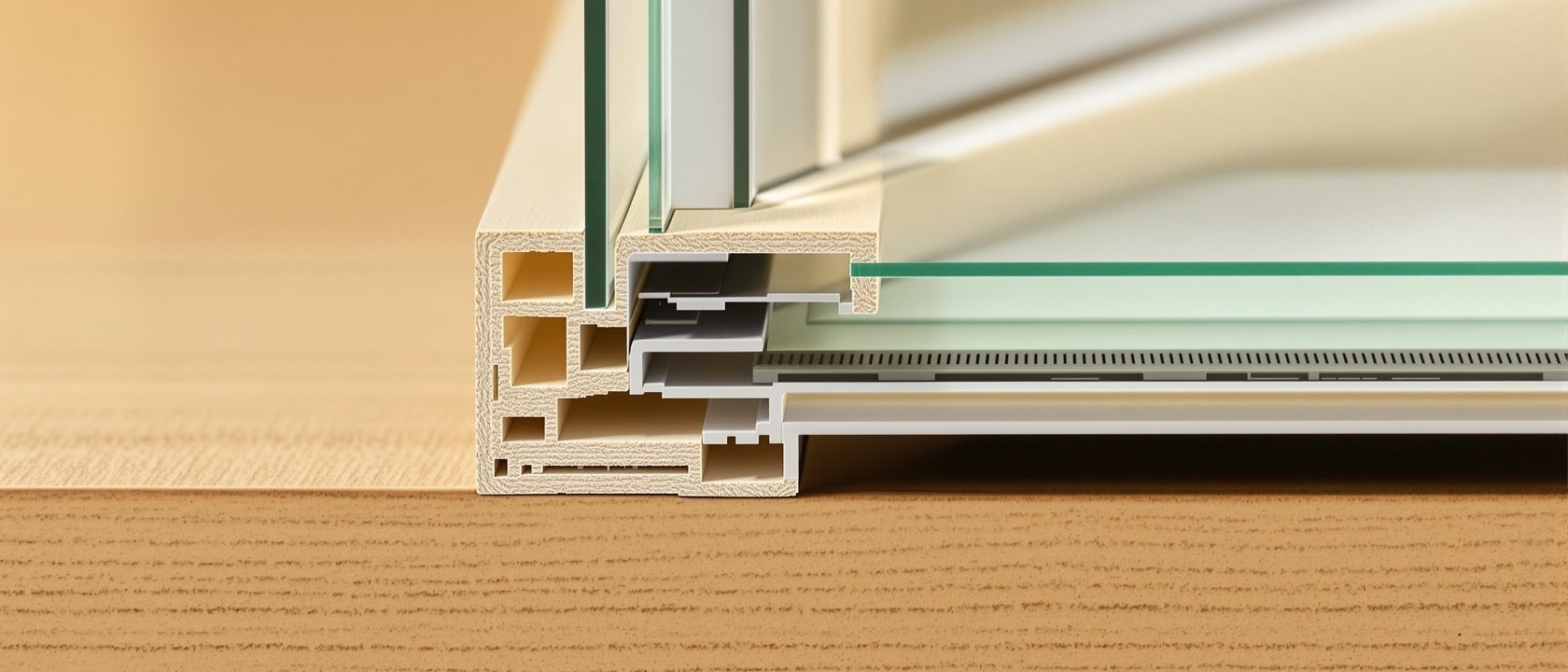

A large-scale technical section model of a window head, jamb and sill showing the frame, wall fixing and seal in layered materials, on a designer's desk in warm focused light, tactile and precise, no legible text
Unit IVAdvanced Materials & Applications

Detailing & Opening Schedules

Where material and operation choices become buildable, priceable instructions

45 min readByAmogh N P· Architect & interior designer

Detailing is where the material and operation choices of the earlier units become buildable, priceable instructions. This unit covers the professional deliverable the syllabus project asks for: the door, window and ventilator schedules that tabulate every opening so nothing is forgotten, the ironmongery schedule where fire and accessibility become orderable items, and the head-jamb-sill and partition details where a design proves it actually assembles, seals and drains.

Learning objectives

By the end of this lesson, you will be able to — mapped to the course outcomes for Advanced Materials & Applications:

1
CO6 · Understand

Explain what a door, window and ventilator schedule tabulates and why.

2
CO6 · Apply

Read and build an ironmongery/hardware schedule for a set of openings.

3
CO6 · Understand

Describe the head, jamb and sill detail of an opening and what each junction resolves.

4
CO6 · Create

Coordinate opening marks on a plan with schedule rows for a small commercial space.

5
CO1 · Apply

Turn a material and operation choice into a buildable, priceable schedule entry.

Every opening, tabulated

Opening schedules

A schedule pins down every opening — mark, size, material, operation, glazing, finish, fire rating and hardware set — so a contractor can price and build it. If it is not scheduled, it is not ordered.[1, 2]

The door schedule. MARK SIZE MATERIAL OPERATION FINISH FIRE HARDWARE D1 900×2100 timber flush single swing veneer 30 min lever + latch D2 1200×2100 aluminium sliding anodised — lock + pull D3 ... If it is not scheduled, it is not ordered. The drawing shows one door; the schedule is what the fabricator actually reads and prices. Every column is a decision someone must make — a blank cell is a site query.
DiagramA door schedule table with columns for mark, size, material, operation, finish, fire and hardware, and rows D1 and D2
The mark links plan to table. the plan D1 plan says WHERE same mark the schedule MARK what it is D2 aluminium slide D1 timber, 30 min D3 ... schedule says WHAT The mark is the key that joins the two. One D1 on the plan, one D1 row — break that link and the wrong door arrives.
DiagramA plan with a door marked D1 and an arrow pointing to the D1 row of a schedule table, showing the plan says where and the schedule says what

Every opening, tabulated so nothing is forgotten

A SCHEDULE is a table that pins down every opening in a project so a contractor can price and build it without guessing. A DOOR SCHEDULE lists each door by a mark or type reference and gives its size, material, operation (swing, slide, fold), glazing, finish, fire rating and the hardware set. A WINDOW SCHEDULE and VENTILATOR schedule do the same for the glazed openings. The point is completeness and coordination: if it is not in the schedule it will not be ordered, and the schedule is where the material and operation choices from Units I–III stop being ideas and become a buildable, priceable list. A drawing shows WHERE; the schedule says WHAT — together they leave no ambiguity.[1]

Where a design proves it works

The detail drawing

The head, jamb and sill details resolve the fixing, the air and water seal, the finish junction and the drainage; and the partition detail shows the floor, ceiling and wall junctions where an acoustic rating is won or lost.[3, 4]

Head, jamb, sill. the three junctions of an opening HEAD top — carries the load over JAMB side — fixes & seals the frame SILL bottom — sheds water OUT The detail resolves fixing, seal & drainage. Each junction answers a question: how it is held, how it stays dry, where water goes. Slope the sill outward, or the opening becomes a gutter into the wall.
DiagramA window opening section labelled at three junctions, head, jamb and sill, with the sill shedding water outward
The rating is won at the junctions. FLOOR: sealed track WALL: sealed abutment an unsealed gap at the ceiling head A gap loses the STC. A perfect wall with a leak at the head performs like the leak, not the wall.
DiagramA partition meeting floor, ceiling and wall with each junction circled, one showing an unsealed gap at the ceiling leaking sound and losing the STC

The detail resolves the junction

The DETAIL DRAWING draws an opening at large scale where it meets the wall — at the HEAD (top), the JAMB (side) and the SILL (bottom) — to show what a plan cannot: the frame, how it is fixed to the wall, the seal against air and water, the junction of the finishes, and how weather and sound are kept out at each edge. The sill in particular has to shed water outward and stop it tracking back in; the head has to carry or clear the load above; the jamb has to fix true and seal. A good detail is where a designer proves the opening actually works — not just that it looks right in elevation, but that it assembles, seals, drains and finishes cleanly at every edge.[3]

Fact vs folklore

At a glance

AspectThe factThe folklore
Drawing vs scheduleThe drawing shows WHERE; the schedule says WHAT — together, no ambiguityMYTH: the drawing alone is enough to order and build
If it's not scheduledIt won't be ordered — the schedule is the completeness checkAssuming the contractor will infer the missing items
The hardware setWhere fire/accessibility become orderable items (rated closer, lever handle)MYTH: hardware is a site afterthought
The opening detailHead/jamb/sill resolve fixing, sealing, drainage, finishMYTH: a clean elevation means the opening works
The partition junctionWhere STC/fire ratings are won or lost (seal floor, ceiling, wall)MYTH: a good wall build is quiet even with gaps at the edges
Vocabulary

Key terms

Schedule

A table pinning down every opening (or partition) by mark, size, material, operation, finish, fire rating and hardware — so nothing is forgotten or unpriced.

Door / window mark

The reference (e.g. D1, W3) on the plan that points to the opening's row in the schedule. The link between drawing and table.

Ironmongery / hardware set

The scheduled group of hinges, lock, closer, handles, seals and threshold for a door type — where fire and accessibility land as orderable items.

Head / jamb / sill

The top, side and bottom junctions of an opening, drawn as large-scale details to resolve fixing, sealing, drainage and finish.

Detail drawing

A large-scale drawing of a junction showing how it is built, fixed, sealed and finished — where a design proves it works.

Partition junction

Where a partition meets floor, ceiling and wall — the make-or-break points for acoustic and fire performance.

Apply it

Study task

Take a small commercial space — a shop, a clinic, a café — and build a short DOOR SCHEDULE for it: give each door a mark keyed to a rough plan, and a row with its size, material, operation, finish, fire rating and a hardware-set reference. Then pick one opening and sketch its head, jamb and sill in words: what fixes the frame, what seals it against air and water, how the sill sheds water, and how the finishes meet. Finally, name one junction of a partition where you would take special care to keep its acoustic rating. Turning your earlier material and operation choices into a complete, coordinated schedule and a resolved detail — not a pretty elevation — is what this unit is teaching.

Check your understanding

Self-assessment

1. What is the job of a door schedule?

2. Why draw the head, jamb and sill of an opening at large scale?

3. A partition is built to a good STC but performs poorly. Where does the detail most likely fail?

In a nutshell

Recap

A schedule tabulates every opening (door, window, ventilator) by mark, size, material, operation, glazing, finish, fire rating and hardware — so nothing is forgotten or unpriced.
The plan shows WHERE (via the opening mark); the schedule says WHAT. The mark links the two.
The ironmongery/hardware schedule is where fire and accessibility become orderable items — a rated closer, intumescent seals, an accessible lever handle.
The head, jamb and sill details resolve fixing, air/water sealing, finish junctions and drainage — where a designer proves the opening works.
The partition detail shows frame, board, insulation and the FLOOR/CEILING/WALL junctions where acoustic and fire ratings are actually won or lost.
Detailing is where the material and operation choices of Units I–III become buildable, priceable instructions.
The evidence

References & further reading

  1. [1]Kent, David (2010). Interior Detailing: Components of Construction. Wiley. Schedules, opening details and the detailing process.
  2. [2]Plunkett, Drew (2014). Construction and Detailing for Interior Design. Laurence King. Door/window scheduling and ironmongery.
  3. [3]Ching, Francis D. K. (2014). Building Construction Illustrated (5th ed.). Wiley. Head, jamb and sill details and partition junctions.
  4. [4]Postell, Jim & Gesimondo, Nancy (2011). Materiality and Interior Construction. Wiley. Detailing partitions and junctions for performance.

Further reading

  • Kent, David — Interior Detailing: Components of Construction. Wiley.
  • Plunkett, Drew — Construction and Detailing for Interior Design. Laurence King.
  • Ching, Francis D. K. — Building Construction Illustrated. Wiley.
  • Postell, Jim & Gesimondo, Nancy — Materiality and Interior Construction. Wiley.

Sources gathered and fact-checked June 2026. Published values vary by source, sample and method — treat as indicative and confirm against the cited standard before structural use.
