Signage Design: Putting It Together
A consistent, accessible, multilingual system — not one-off boards
The capstone brings every lesson together on one sign — the right content in a clear hierarchy, a legible open typeface sized for the distance at the reading eye level, standard pictograms and unambiguous arrows, high tonal contrast, a suitable non-glare material, and tactile provision. The deepest quality of a sign system is consistency — one language on every sign. Larger buildings add coding and room identification, and India’s many languages mean multi-script signs. Done well, a sign system is almost invisible — it just guides.
Learning objectives
By the end of this lesson, you will be able to — mapped to the course outcomes for Signage & Graphics:
Resolve eye level, type, pictograms, arrows, colour and contrast into one consistent sign.
Design coding and room identification, and handle India's multilingual, multi-script reality.
Deliver a sign system that is consistent, accessible and designed together, not one-off boards.
The design synthesis
A good sign resolves every lesson together — content, type, size, eye level, pictogram, arrow, contrast, material and accessibility. And a sign system’s deepest quality is consistency: one language on every sign, held by the master plan.[1, 2]

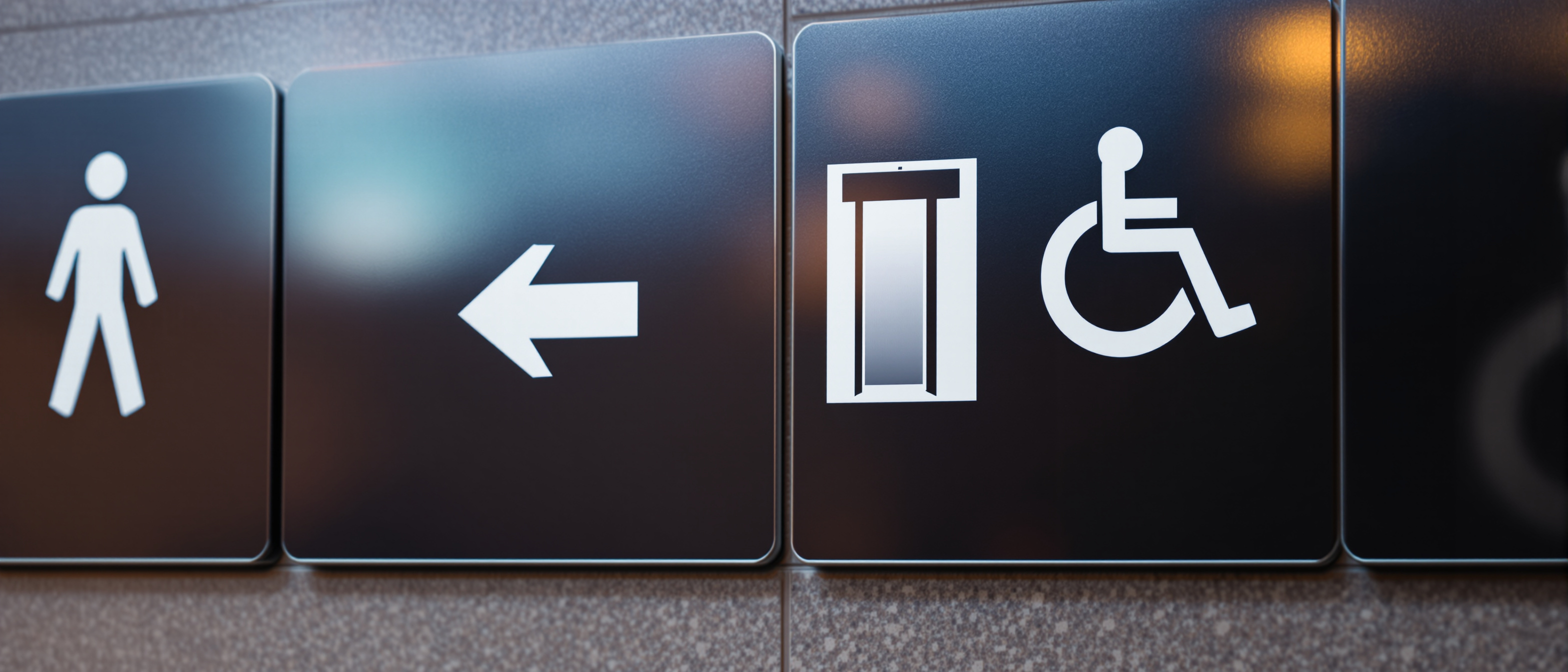

Everything at once, on one sign
Designing a sign brings every lesson together AT ONCE: the right content in a clear HIERARCHY, a legible OPEN typeface sized for the viewing distance and set at the reading EYE LEVEL, standard PICTOGRAMS and unambiguous ARROWS, high tonal CONTRAST, a suitable material, finish and (if needed) lighting, and tactile provision for accessibility. A good sign is where all of these are resolved together; a bad one is usually where one was forgotten — beautiful type at the wrong height, or perfect content in poor contrast.[1]
Coding & room identification
Larger buildings use coding — colour zones, logical room numbering — to aid memory, backed by text and pictogram (never colour alone). And India’s many languages mean multi-script signs plus standard pictograms, making saying less essential.[1]
Systems that aid memory
Larger buildings use CODING to help memory and navigation — colour-coding a zone or floor, numbering rooms in a logical sequence, or lettering wings — so a person can hold their location in mind ('the blue zone, room 3-14'). ROOM IDENTIFICATION signs then confirm arrival, carrying the room's name or number (and tactile/Braille) at the door. Coding is powerful but must be BACKED by text and pictogram, never colour alone (colour-blindness), and the numbering logic must be genuinely learnable, not arbitrary.[1]
The honest close
A sign system is designed for the real world — privacy, durability, ease of updating — and, the lesson the course has built to, it is a system designed together and for everyone, supporting a legible building. Good environmental graphic design is almost invisible when it works.[1, 2]
The practical finish
A sign system is also designed for the real world: PRIVACY and PROTECTION where needed (not signposting a secure or private area to the public), DURABILITY and vandal-resistance in the material and mounting, and ease of UPDATING (a room may be renamed, a department moved), which favours replaceable inserts over fully custom signs where content changes. These practical considerations, resolved in the design, are what keep a sign system working years after it is installed, not just handsome on opening day.[1]
At a glance
| Aspect | The fact | The folklore |
|---|---|---|
| Designing a sign resolves | Content, type, size, eye level, pictograms, contrast, material — together | One thing at a time, in isolation |
| A sign system's deepest quality | CONSISTENCY — one language on every sign | Each board individually nice |
| Coding (colour, number) | Aids memory — backed by text and pictogram | Colour alone |
| India's languages | Multi-script signs + standard pictograms; say less | One script for all |
| A sign system is designed | TOGETHER and for EVERYONE — accessible, from the start | As one-off boards at the end |
| Good signage, when it works | Is almost invisible — it just guides | Shouts for attention |
Key terms
Resolving content hierarchy, legible type at the right size and eye level, standard pictograms and arrows, tonal contrast, material, finish and accessibility together in one sign.
The same typeface, colours, arrows, heights and naming on every sign, so learning one sign lets you read them all — held together by the master plan; inconsistency destroys trust.
Colour-coding zones or floors and numbering rooms logically to aid memory and navigation — powerful but must be backed by text and pictogram, never colour alone.
The sign confirming arrival at a room, carrying its name or number and tactile/Braille at the door — the end of a directional chain.
Carrying two or more scripts (a state language, English, sometimes Hindi) for India's public, which fills a sign fast — so saying less and using standard pictograms is essential.
Good environmental graphic design guides, reassures and includes without being noticed; it is designed together and for everyone, not assembled as one-off boards at the end.
Study task
Design a small but complete sign system for one floor of a public building. Set the graphic standards once — the typeface, the colour palette and tonal-contrast rule, the arrow style, the mounting heights — and apply them consistently to at least four signs (an identification, a directional, an informational and a regulatory). Add a simple coding scheme (colour zones or room numbering) backed by text and pictogram, and make every relevant sign accessible and, for India, multi-script. Present them together so a stranger could learn to read one and read them all. Close with the honest verdict: where your system quietly guides without being noticed, and where it still shouts. The test is one coherent, accessible language — not a set of one-off boards.
Self-assessment
1. What does designing a single good sign require?
2. What is a sign system's deepest quality?
3. How should colour-coding be used?
4. How does India's multilingual reality shape sign design?
5. What is good environmental graphic design like when it works?
Recap
References & further reading
- [1]Signage design synthesis — resolving type, pictograms, colour, contrast, coding, room identification and multi-script content into one consistent system (Chris Calori & David Vanden-Eynden, Signage and Wayfinding Design; Andreas Uebele, Signage Systems). https://segd.org/
- [2]System consistency and the invisible quality of good wayfinding design (David Gibson, The Wayfinding Handbook; Craig Berger, Wayfinding). https://segd.org/
Further reading
- Chris Calori & David Vanden-Eynden, Signage and Wayfinding Design.
- Andreas Uebele, Signage Systems and Information Graphics.
- David Gibson, The Wayfinding Handbook.
Sources gathered and fact-checked June 2026. Published values vary by source, sample and method — treat as indicative and confirm against the cited standard before structural use.
