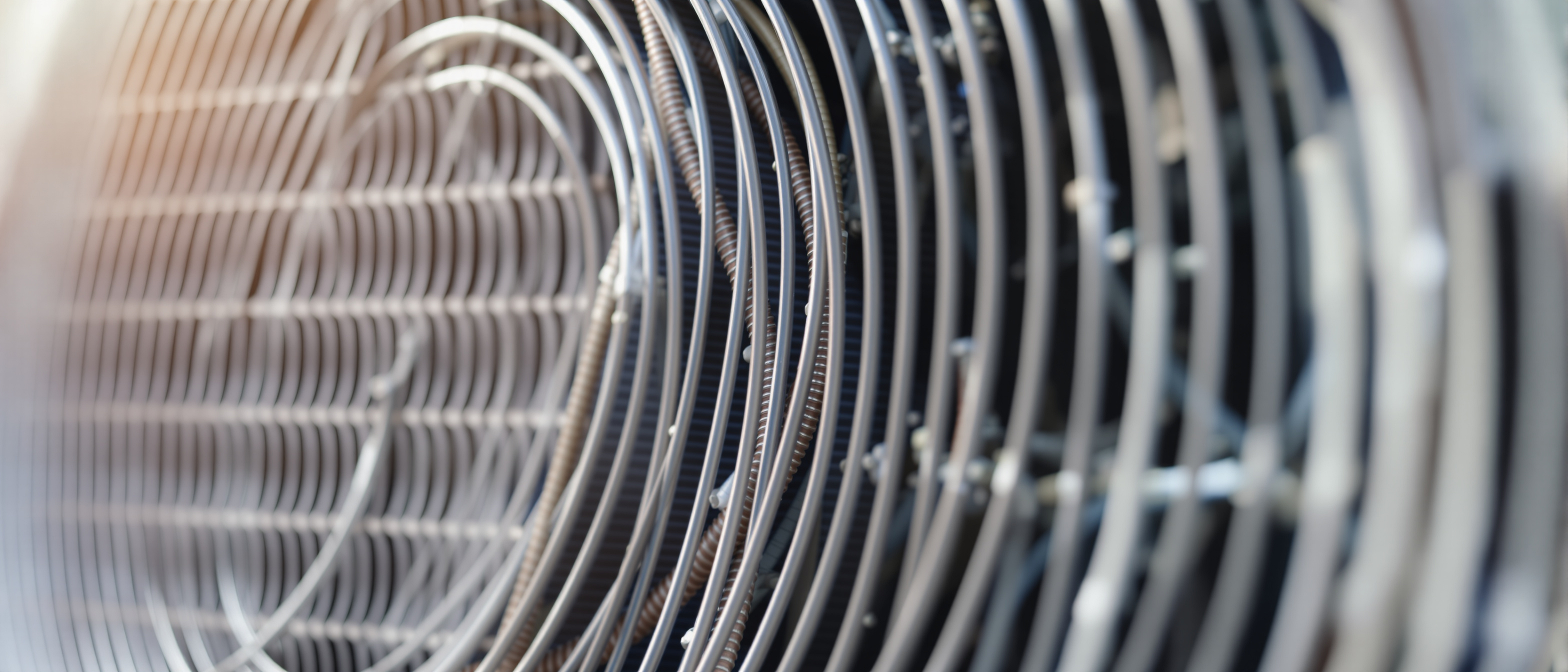

The finned coil and copper pipework of an air-conditioning outdoor unit in clean daylight, close and technical, no text
Unit IInterior Services II — Electrical, Lighting & AC

Air Conditioning: How It Works

AC doesn't create cold — it moves heat (and dumps more of it outside)

50 minByAmogh N P· Architect & interior designer

Start with the fact that undoes most air-conditioning folklore: an AC does not make cold. There is no such thing as cold to make — only heat, and more or less of it. An air conditioner moves heat, pumping it from inside a room to the outside through a refrigerant cycle, and it actually dumps more heat outdoors than it removes indoors, which is why a street full of outdoor units genuinely warms the city. This unit builds that foundation — the cycle, the components, and what HVAC and ventilation really mean — and puts passive design before the machine.

Learning objectives

By the end of this lesson, you will be able to — mapped to the course outcomes for Interior Services II:

1
CO1 · Understand

Explain that AC moves heat (it does not create cold) via the refrigerant cycle, and that it dumps more heat outside.

2
CO1 · Understand

Name the components of the vapour-compression cycle — compressor, condenser, expansion device, evaporator.

3
CO1 · Analyse

Define HVAC and ventilation, distinguish ventilation from air conditioning, and put passive cooling first.

It doesn't create cold

AC moves heat

An AC is a heat pump: a refrigerant evaporates to absorb heat from the room and condenses to release it outside. It relocates heat — and dumps more outdoors than it removed indoors, because the compressor’s work is added too.[1]

An AC moves heat — it doesn’t make cold INSIDE (room) OUTSIDE (hot street) warm room air indoor coil heat pumped OUT outdoor coil dumps heat here “it makes cold” cold = absence of heat
DiagramAn AC pumping heat out of a room to the hot outside, with a struck-out 'makes cold' myth
The refrigeration cycle refrigerant carries heat around a closed loop 1. Compressor raises pressure & temp 2. Condenser HOT — releases heat 3. Expansion valve drops pressure → cold 4. Evaporator absorbs room heat heat OUT heat IN (from room) same refrigerant, round and round — nothing is used up
DiagramThe four-step refrigeration loop: compressor, condenser, expansion valve, evaporator
More heat OUT than removed IN the outdoor unit rejects room heat PLUS the compressor’s work INDOORS OUTDOORS (hotter street) heat removed (Q) heat dumped (Q + W) compressor + work (W) from the plug street warms up a city full of ACs is a city heating its own outdoors
DiagramAn AC removing some heat indoors but dumping more heat plus the compressor's work outside, warming the street

Not a cold-making machine

'An AC makes cold' is a MYTH. There is no such thing as cold to make — there is only heat, and more or less of it. An air conditioner MOVES heat: it uses a refrigerant that EVAPORATES to absorb heat from the room air (at the indoor coil) and CONDENSES to release that heat outside (at the outdoor coil). It is a heat PUMP running one way. Reversed, the very same machine heats — which is exactly what a heat pump does in winter.[1]

Compressor to cooling tower

The components

Every system has four core parts — compressor, condenser, expansion device, evaporator — plus air- and water-movers on bigger systems (the air handling unit, the cooling tower). A heat pump is the same machine run in reverse to heat.[1]

The parts of an HVAC system Compressor Condenser Evaporator Air-handling unit (AHU) Cooling tower a large central plant chains these together
DiagramLabelled components: compressor, condenser, evaporator, air-handling unit and cooling tower

Compressor to evaporator

Every refrigeration system has the same four: COMPRESSOR (the pump and the power draw), CONDENSER (rejects heat outside), EXPANSION device (a valve or capillary that drops pressure and temperature), and EVAPORATOR (absorbs heat from the space). The REFRIGERANT is the working fluid cycling between them; modern refrigerants are chosen to avoid ozone damage and lower global-warming impact.[1]

Passive first

HVAC & ventilation

HVAC is Heating, Ventilation and Air conditioning. Ventilation (fresh-air exchange) is a different job from AC — a room needs it whether cooled or not — and the honest first move is passive design to shrink the cooling need before sizing any machine.[1, 2]

Ventilation is not air conditioning VENTILATION — air exchange fresh air in stale air out renews the AIR, does not chill it MYTH “a fan cools the room” a fan only moves air past skin — no heat leaves the room
DiagramVentilation as fresh-air exchange beside a struck-out claim that a fan air-conditions the room

Heating, ventilation, air conditioning

HVAC stands for Heating, Ventilation and Air Conditioning — the whole business of controlling a building's air: its temperature, its humidity, its freshness and its movement. Air conditioning is only one part; VENTILATION (supplying fresh air and removing stale air) is a separate, vital job, and the two are constantly confused.[1]

Fact vs folklore

At a glance

AspectThe factThe folklore
What an AC doesMOVES heat from inside to outside (a heat pump)Creates or makes cold
Total heatDumps MORE heat outside than it removes insideDestroys the heat
Where cooling happensAt the evaporator, by phase changeAt the compressor
HVACHeating, Ventilation AND Air conditioningJust the cooling unit
VentilationFresh air exchange — a different job from ACThe same as air conditioning
The first movePassive design to shrink the cooling needA bigger AC
Vocabulary

Key terms

Refrigeration cycle

The loop — compress, condense, expand, evaporate — by which a refrigerant absorbs heat indoors (evaporating) and releases it outdoors (condensing); AC moves heat, it doesn't make cold.

Compressor / condenser / evaporator

Compressor pumps and pressurises the refrigerant (the power draw); condenser rejects heat outside; evaporator absorbs heat from the room — where cooling actually happens.

Refrigerant

The working fluid that cycles between liquid and gas to carry heat; chosen now to protect the ozone layer and limit global-warming impact.

HVAC

Heating, Ventilation and Air Conditioning — the whole control of a building's air temperature, humidity, freshness and movement; AC is only one part.

Ventilation

Exchanging stale indoor air for fresh outdoor air (natural or mechanical) — a separate job from air conditioning; a room needs it whether cooled or not.

Heat pump

An AC running in reverse to heat a space by moving heat inward — far more efficient than resistance heating because it moves heat rather than making it.

Apply it

Study task

Draw the refrigeration cycle for a simple split AC as a labelled loop — compressor, condenser, expansion device, evaporator — and mark, with arrows, where heat is ABSORBED (indoors) and where it is RELEASED (outdoors). In a sentence beside it, explain why the outdoor unit blows out more heat than the room lost, and what that means for a city full of ACs. Then, for one real room you know, list three PASSIVE moves (shading, orientation, insulation, cross-ventilation) that would shrink its cooling need before any AC is chosen — and note the difference between ventilating that room and air-conditioning it.

Check your understanding

Self-assessment

1. What does an air conditioner actually do?

2. What happens to the total heat when an AC runs?

3. Where does the cooling actually happen in the cycle?

4. How does ventilation differ from air conditioning?

5. What is the honest first move in cooling a room?

In a nutshell

Recap

Air conditioning does not create cold — it MOVES heat, using a refrigerant that evaporates indoors (absorbing heat) and condenses outdoors (releasing it).
An AC dumps MORE heat outside than it removes inside (the compressor's work is added) — a real contributor to the urban heat island.
The vapour-compression cycle: compressor, condenser, expansion device, evaporator — cooling happens at the EVAPORATOR by phase change, not at the compressor.
HVAC is Heating, Ventilation AND Air conditioning; ventilation (fresh-air exchange) is a separate job from AC and is needed whether the room is cooled or not.
Put PASSIVE design first — shade, insulate and ventilate to shrink the cooling need before sizing any machine.
The evidence

References & further reading

  1. [1]Air-conditioning fundamentals — the vapour-compression refrigeration cycle, components, heat pumps, HVAC and ventilation (M.H. Lulla, Air Conditioning; ASHRAE fundamentals). https://www.ashrae.org/
  2. [2]Passive cooling before mechanical cooling — orientation, shading, ventilation (BEE/ECBC and passive-design references). https://beeindia.gov.in/

Further reading

  • M.H. Lulla, Air Conditioning.
  • ASHRAE Handbook — Fundamentals (refrigeration and HVAC).
  • Francis D.K. Ching, Building Construction Illustrated — mechanical systems overview.

Sources gathered and fact-checked June 2026. Published values vary by source, sample and method — treat as indicative and confirm against the cited standard before structural use.
