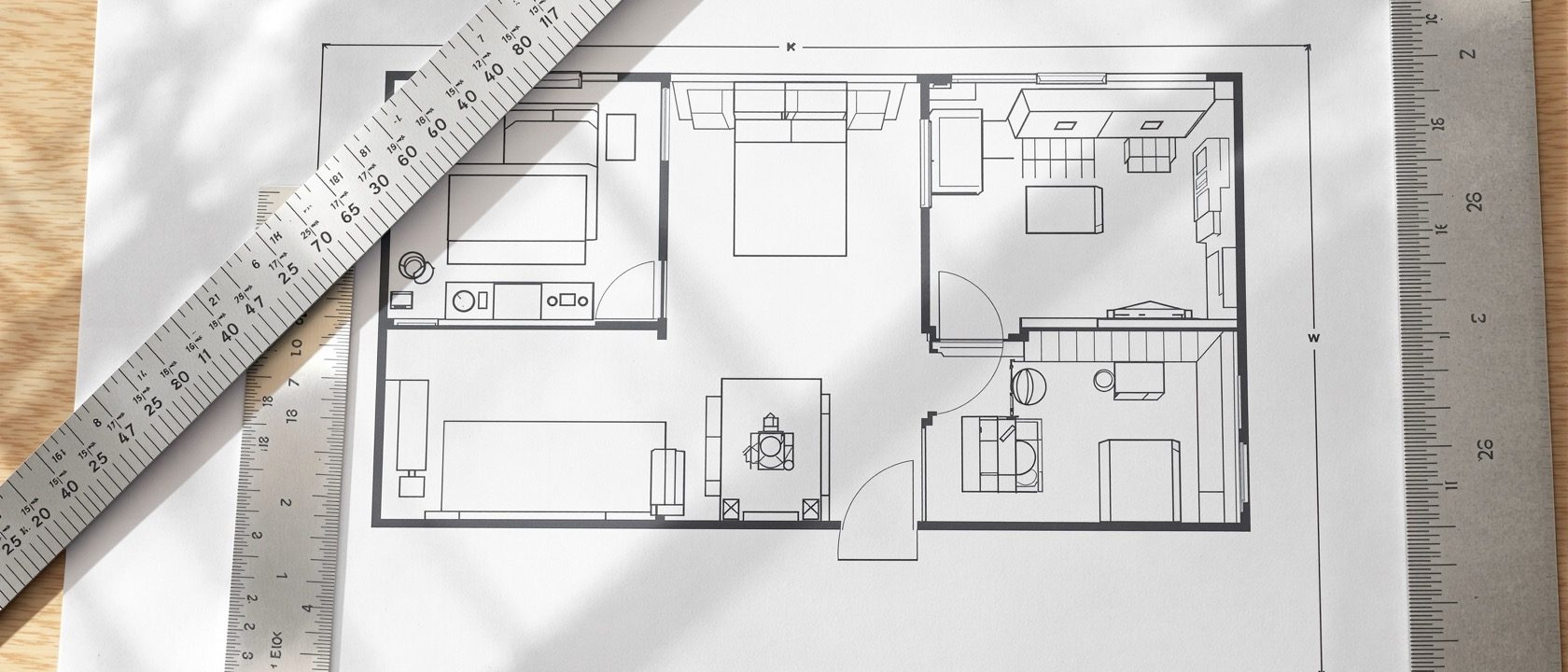

A dimensioned furniture-layout plan of a one-bedroom apartment on a drafting desk — walls, a sofa, bed, dining table and kitchen drawn to scale with a scale rule and set square, warm daylight, no people, no legible text.
Unit IIIInterior Design Studio II

Developing the Layout

From bubbles to a resolved, dimensioned plan — room by room.

≈ 55 min + layout exercisesByAmogh N P· Architect & interior designer

Now translate the diagram into a real plan — bubble to block plan (fitted to the actual shell) to furniture-layout plan (every zone furnished with correctly-sized pieces AND their clearances), comparing two or three alternatives against the goals before committing. Learn furniture-arrangement principles, space-planning a residential interior room by room (the kitchen work triangle), and the multifunctional and storage-led thinking that compact Indian urban homes demand.

Learning objectives

By the end of this lesson, you will be able to — mapped to the course outcomes for Interior Design Studio II:

1
CO3 · Create

Translate a bubble diagram into a block plan and a furniture-layout plan.

2
CO3 · Apply

Arrange furniture by focal point, conversation and circulation.

3
CO3 · Create

Space-plan living, bedroom, kitchen, bath and storage with correct dimensions.

4
CO3 · Apply

Plan small and multifunctional spaces, using grids and ordering principles.

Test options, room by room

From bubbles to a resolved plan

Bubble to block to furniture plan, arranging furniture by focal point and conversation, and space-planning room by room with the kitchen work triangle.[1, 2, 3]

Bubble → block plan → furniture plan 1 bubble (relationships) 2 block plan (in the shell) 3 furniture layout + clearances Produce 2–3 alternative block plans and evaluate them against the goals — the first fit is rarely the best fit. Iterate where furniture won’t fit.
DiagramFrom bubble diagram to block plan to furniture-layout plan, iterating
The kitchen work triangle sink cooktop fridge work path aisle ≥ 1050 Each leg 1.2–2.7 m Sum of 3 legs ≤ 7.9 m No appliance interrupts a leg. Three work zones: wet/clean, dry/prep, hot/cook. India: add utility/wash & provision storage.
DiagramThe kitchen work triangle — sink, cooktop and fridge, each leg 1.2 to 2.7 metres, sum of legs no more than 7.9 metres

Test options, don't find 'the' answer

The sequence: BUBBLE diagram (relationships) → BLOCK PLAN (bubbles pushed into the actual shell, made roughly rectangular, scaled, fitted to real dimensions, structure and window/door positions — still no furniture) → FURNITURE-LAYOUT PLAN (every zone furnished with correctly-sized pieces AND their clearances, testing whether the block sizes actually work) → ITERATE where furniture won't fit or circulation collides. Produce TWO or THREE alternative block plans and evaluate them against the design goals before committing — the first fit is rarely the best fit.[1, 3]

Room by room Living: focal group focal wall / view seats face the focus; path at the edge Bedroom 700–900 wardrobe (≥750 to open) Bath: WC & basin fronts ~600, fixtures on wet walls; entry: room to pause + shoe storage.
DiagramRoom-by-room space planning — living with a focal conversation group, and a bedroom with bedside clearance and a wardrobe
Layer, don't delete

Small spaces, order & constraints

Multifunctional and small-space planning for Indian homes, grids and ordering principles, and respecting the fixed constraints.[1, 3, 4]

Small = layered, not fewer, functions storage wall = partition sofa ↔ bed (convertible) fold-out dining loft above (use height) Zone by FURNITURE and LEVEL, not walls. Storage-led design: full-height, under-bed, over-door, loft. Think VERTICALLY — free the floor to feel larger. The India-critical skill for compact urban homes.
DiagramSmall-space planning — a studio apartment zoned by furniture and level, with convertible furniture, a storage wall and a loft

Layer, don't delete

In compact Indian homes small means LAYERED, not fewer, functions. The STUDIO apartment (one volume for sleeping, living, dining, cooking, storage) is zoned by FURNITURE and LEVEL rather than walls, with CONVERTIBLE furniture (sofa-bed, wall bed, folding table) and a loft where height allows. The CONVERTIBLE room changes function by time of day — plan the transformation and where things stow. STORAGE-LED design treats storage volume as a primary driver — full-height and built-in storage, under-bed and under-seat, loft and over-door, and storage walls that double as partitions. Think VERTICALLY — use wall height, free the floor.[1, 3]

Myth vs reality

At a glance

AspectOne sideThe other
The layoutMyth: the first fit is the designReality: compare 2–3 alternatives against the goals
Living-room seatingMyth: push furniture to the wallsReality: focal, grouped arrangement
Small homesMyth: fewer functionsReality: layered, multifunction, storage-led
StorageMyth: chosen at the endReality: a primary planning driver, planned with the layout
Wet roomsMyth: move them wherever it looks niceReality: keep them near the existing stack
Vocabulary

Key terms

Block plan

The bubbles fitted to the real shell as scaled rectangles — structure and openings, but no furniture yet.

Furniture-layout plan

Every zone furnished with correctly-sized pieces and their clearances, testing the block plan.

Focal point

The focus a room's main grouping orients to — a view, a feature; rooms without one feel aimless.

Work triangle

Sink–cooktop–fridge; each leg 1.2–2.7 m, sum ≤ 7.9 m, no appliance interrupting a leg.

Storage-led design

Treating storage volume as a primary planning driver — vital in compact Indian homes.

Planning grid

A structural or modular (~600 mm) grid that coordinates the layout and elements.

Apply it

Studio task

Develop your flat into TWO alternative furniture-layout plans at 1:50 — each fitted to the shell, fully furnished with correctly-sized pieces and their clearances, with a working kitchen (draw and check the work triangle) and edge-routed circulation. Evaluate the two against your design goals and pick one, noting why. Then, if the flat is compact, add at least three small-space moves — a convertible piece, a storage wall that doubles as a partition, and a use of vertical height — and show them in the plan.

Check your understanding

Self-assessment

1. The correct sequence from diagram to plan is —

2. The kitchen work triangle guidance is —

3. Planning a compact Indian studio apartment means —

In a nutshell

Recap

Translate the bubble diagram into a block plan fitted to the real shell, then a clearance-tested furniture-layout plan — comparing 2–3 alternatives against the goals.
Arrange furniture by focal point and conversation grouping, with the path around groupings and doors and windows kept clear.
Space-plan room by room with the standard dimensions — the kitchen work triangle, bedside and wardrobe clearances, WC and basin fronts, living-room gaps.
Plan small and multifunctional spaces by layering functions — convertible furniture, level and furniture zoning, and storage-led design; think vertically.
Use a planning grid, proportion and Ching's ordering principles for order — and respect fixed constraints, keeping wet rooms near the stack.
The evidence

References & further reading

  1. [1]Maureen Mitton & Courtney Nystuen, Residential Interior Design: A Guide to Planning Spaces (room-by-room residential planning with dimensions).
  2. [2]Julius Panero & Martin Zelnik, Human Dimension & Interior Space (applied clearances per room and activity).
  3. [3]Ernst Neufert, Architects' Data (room-by-room layouts, minimum dimensions, small-space and kitchen/bath).
  4. [4]Francis D.K. Ching, Architecture: Form, Space, and Order (grids, proportion, ordering principles).

Further reading

  • Maureen Mitton & Courtney Nystuen — Residential Interior Design.
  • Julius Panero & Martin Zelnik — Human Dimension & Interior Space.
  • Ernst Neufert — Architects' Data.

Sources gathered and fact-checked June 2026. Published values vary by source, sample and method — treat as indicative and confirm against the cited standard before structural use.
