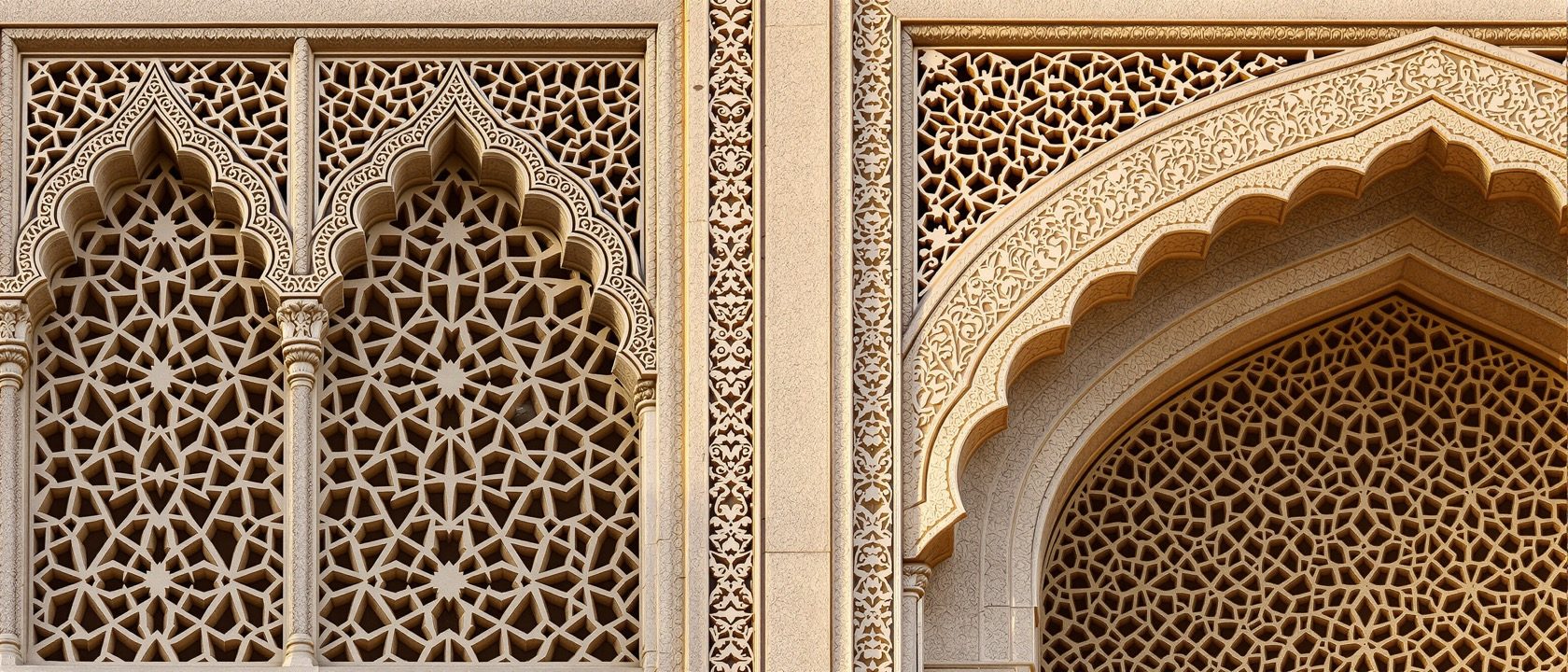

Reading & Documenting a Building
Seeing a building truly by recording it
You come to know a building most completely by recording it — documentation’s deepest value is that recording is understanding. ‘Documentation is just taking photographs’ is a myth: it is a measured, analysed, multi-aspect record that interprets a building. A study may take a contemporary, heritage or vernacular building or a settlement — and the ordinary matters, not only monuments. It follows a method at a chosen level of detail, needs no CAD polish to be honest, and carries duties of permission and respect.
Learning objectives
By the end of this lesson, you will be able to — mapped to the course outcomes for Field Study & Documentation:
Explain what architectural documentation is and why recording is understanding.
Choose a building — contemporary, heritage, vernacular or a settlement — and a level of recording.
Document ethically — with permission, respect and honesty about what can be seen.
Recording is understanding
Field study RECORDS a building to understand it — seeing what a casual visitor never notices. ‘Just photographs’ is a myth. And a study may take a contemporary, heritage or vernacular building or a settlement; ‘only monuments matter’ is a myth too — the ordinary is often the fastest lost.[1, 2, 3]
Read a building by drawing it
FIELD STUDY and DOCUMENTATION is going out to STUDY a real building and RECORD it — by measured drawing, photography, sketches and written analysis. Its deepest value is that recording is UNDERSTANDING: you come to know a building most completely by documenting it carefully, seeing what a casual visitor never notices. 'Documentation is just taking photographs' is a MYTH — it is a measured, analysed, multi-aspect record that INTERPRETS a building, not merely copies it. Learning to read a building this way is a skill behind every good design: you cannot design well in a tradition you have never truly seen.[1, 2]
Documentation decoder · the vocabulary of building documentation
Method, heritage, the five aspects, and the report — graded VERIFIED, NUANCED or MYTH.
Architectural documentation
Recording to understand
Means: The systematic recording of a building — by measured drawing, photography, sketches and written analysis — to understand and preserve knowledge of it.
Honestly · Documentation is not just taking photographs: it is a measured, analysed, multi-aspect record. Its deeper purpose is understanding — you learn a building most completely by recording it carefully.
Measured drawing
Drawn to scale from reality
Means: A drawing of an existing building made from actual measurements taken on site, produced to scale as plans, sections and elevations.
Honestly · The core method of documentation. A measured drawing turns a real building into an accurate, scaled record — the discipline of measuring and drawing honestly teaches you how the building is made.
'Must be CAD-perfect'
Honesty over the tool
Means: The belief that a measured drawing is only useful if produced to CAD precision.
Honestly · A MYTH: a careful, honest HAND survey is real, valuable documentation. Accuracy, consistency and honesty about what was and was not seen matter far more than the tool — a precise drawing of a guessed measurement is worse than a rough drawing of a true one.
Survey tools
Tape to laser to scan
Means: The instruments of building survey — a measuring tape and folding rule, a laser distance meter, and, for complex or heritage work, photogrammetry and 3D laser scanning.
Honestly · Simple tools, used carefully, record most buildings well; advanced ones (photogrammetry, LiDAR) capture complex or fragile fabric fast. Choose the tool for the job and the accuracy needed — the method matters more than the gadget.
Level of recording
Chosen depth of detail
Means: The chosen DEPTH of a record — from a quick visual note, through a measured record, to a full analytical record (as in graded heritage-recording levels).
Honestly · NUANCED: documentation is not all-or-nothing. You decide, up front, how deep to go for the purpose and time — a rapid record of many buildings, or a deep record of one. Naming the level keeps the work honest and useful.
Heritage recording
Before it is lost
Means: The documentation of historic buildings and places — for understanding, conservation, and as a record should the fabric be altered or lost (the work of bodies like INTACH, ASI and ICOMOS).
Honestly · Heritage recording is often a race against time and change. A good record made now may be the only trace of a building later — documentation is, at its most serious, an act of conservation and memory.
'Only monuments matter'
The ordinary matters too
Means: The belief that only grand, old monuments are worth documenting.
Honestly · A MYTH: VERNACULAR, ordinary and even contemporary buildings matter — they are often the most under-recorded and the fastest lost. India's havelis, nalukettu, bhungas and Chettinad mansions hold deep design knowledge that vanishes unrecorded.
Contemporary, heritage, vernacular
What to document
Means: The kinds of subject a field study may take — a CONTEMPORARY building, a HERITAGE (historic) building, a VERNACULAR (traditional, local) building, or a SETTLEMENT or small urban area.
Honestly · Each teaches something different: contemporary work shows current practice; heritage shows craft and history; vernacular shows climate-wise, rooted design; a settlement shows how buildings make a place. All are worth the eye.
Ethics & permission
Respect and honesty
Means: The duties of documentation — seeking permission to record, respecting the building and its users, and recording honestly what is there without inventing what cannot be seen.
Honestly · You cannot enter or record any building freely; permission and respect come first, especially in lived-in and sacred spaces. And an honest record marks what was inferred or hidden — never dresses a guess as a fact.
History & cultural impact
Aspect 1 — the story
Means: Reading a building's HISTORY — when and why it was built, who used it, how it changed — and its CULTURAL IMPACT on its community, through archives, dating and oral history.
Honestly · A building is a document of its time. Its history and cultural role are read from records, from the fabric itself, and from the people who know it — giving the record depth beyond mere geometry.
Style & function
Aspect 2 — what and why
Means: Reading a building's STYLE — its architectural language and period — and its FUNCTION — what it was for and how its form served that use.
Honestly · Style names a building in the history of architecture; function explains its form. Together they answer what a building is and why it takes the shape it does — the interpretive heart of the study.
Form & spatial studies
Aspect 3 — shape and space
Means: Reading a building's FORM (massing, proportion) and its SPACE (plan organisation, spatial sequence, circulation) — recorded by measured drawing in plan, section and elevation.
Honestly · This is where documentation is most drawn: the plan, section and elevation record the form and space precisely, and analysing them reveals how the building is organised and experienced.
Key elements & features
Aspect 4 — the parts
Means: Recording the distinctive ELEMENTS and FEATURES — columns, arches, roofs, doors, windows, staircases, brackets and ornament — that give a building its character.
Honestly · The parts carry the design and the craft. Documenting the key elements closely — measured and drawn, not just glimpsed — captures what makes this building itself, and where its designer's or maker's skill shows.
Materials & technology
Aspect 5 — how it's built
Means: Recording the MATERIALS (stone, brick, timber, lime, concrete) and the CONSTRUCTION technology and technique — the structural system and how the building is actually made.
Honestly · Materials and making are where a building meets physics and craft. Recording them — often the least visible aspect — is what turns a pretty survey into real understanding of how the building stands and lasts.
The documentation report
Assembled and analysed
Means: The architectural report that assembles the study — introduction, history, measured drawings, photographs, analysis across the five aspects, and conclusions, with references.
Honestly · The report is not a scrapbook: it is an ordered, analysed account that tells the building's story and shows understanding. Structure, clear drawings and honest analysis turn raw records into documentation.
Documentation photography
Systematic, not pretty
Means: Photographing a building for record — systematic coverage, controlled perspective, a scale reference, context and detail shots — as opposed to flattering 'pretty' photography.
Honestly · NUANCED: documentation photography serves the RECORD, not the eye. It covers everything methodically, keeps verticals true, includes a scale, and captures detail and condition — a beautiful but incomplete set of images is not documentation.
Presentation
Report, slideshow, video
Means: Communicating the study — as a written report, a slideshow / presentation and a video — so others can understand the building through your record.
Honestly · Documentation that no one can follow has failed half its purpose. Presenting it clearly — a good report, a well-sequenced slideshow, an honest video walk-through — is how the understanding is shared and preserved.
Documentation is the discipline of truly seeing a building — and, at its most serious, an act of conservation.
The method and its levels
The method is a loop — observe, measure, photograph, sketch, draw, analyse — at a chosen level of detail. And ‘a measured drawing must be CAD-perfect’ is a myth: a careful, honest hand survey is real documentation, judged by accuracy, consistency and honesty.[1, 4]
Observe, measure, draw, analyse
The METHOD runs a loop: OBSERVE (look, and look again), MEASURE (survey accurately), PHOTOGRAPH and SKETCH (record fabric and detail), DRAW (to scale), and ANALYSE (interpret across the aspects). And documentation is done at a chosen LEVEL of detail — from a rapid visual note, through a measured record, to a full analytical record. It is not all-or-nothing: you decide up front how deep to go for the purpose and time. Naming the level keeps the work honest and useful — a clear, shallow record of many buildings, or a deep record of one, each has its place.[1, 4]
Ethics and conservation
Documentation carries duties: permission and respect come first, and you record honestly, never inventing what cannot be seen. And at its most serious it is an act of conservation — a good record made now may be the only trace of a building later (the work of INTACH, ASI, ICOMOS).[2, 3]
Respect comes first
Documentation carries DUTIES. You cannot enter or record any building freely — PERMISSION and RESPECT come first, especially in lived-in homes and sacred or working spaces; ask, explain, and honour the answer. Record HONESTLY: mark what was measured and what was inferred, and never invent what cannot be seen — a hidden foundation drawn as if surveyed is a lie in the record. Treat the building and its people with care; you are a guest studying something precious to someone. Ethical documentation is not a formality but the difference between a trustworthy record and a pretty fiction.[2, 3]
At a glance
| Aspect | The fact | The folklore |
|---|---|---|
| Documentation is | A measured, analysed, multi-aspect record — interpreting | Just taking photographs |
| Recording a building | Is how you truly UNDERSTAND it | Is mere copying |
| Worth documenting | Contemporary, heritage, vernacular AND ordinary buildings | Only grand old monuments |
| A measured drawing | An honest hand survey is real documentation | Must be CAD-perfect to count |
| What matters most | Accuracy, consistency and honesty | Polish and the fanciest tool |
| Documentation requires | Permission, respect and no inventing what's unseen | Free access and a good guess |
Key terms
The systematic recording of a building — measured drawing, photography, sketches and analysis — to understand and preserve knowledge of it; not just photography.
Going out to study and record a real building on site — a contemporary, heritage or vernacular building, or a settlement — reading it by documenting it.
The chosen depth of a record, from a rapid visual note to a full analytical record — decided up front for the purpose and time, and named to keep the work honest.
Traditional, local building shaped by climate, materials and culture rather than a named architect — often under-recorded and fast-vanishing, and rich in design knowledge.
The duties of recording — permission, respect for the building and its users, and honesty about what was measured versus inferred, never inventing what cannot be seen.
The role of a record as memory and a guide to care — a good record made now may be the only trace of a building later (the work of INTACH, ASI, ICOMOS).
Study task
Choose a building to document, and plan the study honestly. Pick a subject you can access — a contemporary, heritage or vernacular building, or a small settlement — and say why it will teach you. Decide the level of recording you will attempt, given your time. Sketch the method you will follow, from observation to analysis. Then write down the ethics: whose permission you need, how you will respect the building and its users, and how you will mark what you infer versus measure. Use the documentation decoder to check your vocabulary. The goal is to begin a field study as a deliberate, honest act of truly seeing a building.
Self-assessment
1. What is architectural documentation, really?
2. Which buildings are worth documenting?
3. Must a measured drawing be CAD-perfect to be useful?
4. What does ethical documentation require?
Recap
References & further reading
- [1]Architectural documentation and measured drawing — recording existing buildings (measured-drawing and building-recording guides; Historic American Buildings Survey, HABS). https://www.nps.gov/hdp/
- [2]Reading and studying buildings, and documentation as a design skill (Francis D.K. Ching, Architecture: Form, Space, and Order; architectural-graphics references). https://www.wiley.com/
- [3]Heritage documentation and conservation in India and internationally (INTACH — Indian National Trust for Art and Cultural Heritage; Archaeological Survey of India; ICOMOS recording guidance). https://www.intach.org/
- [4]Levels of recording and building-recording practice (Historic England, Understanding Historic Buildings: A Guide to Good Recording Practice). https://historicengland.org.uk/
Further reading
- Historic England, Understanding Historic Buildings: A Guide to Good Recording Practice.
- Francis D.K. Ching, Architecture: Form, Space, and Order.
- INTACH heritage-documentation resources.
