B.Arch Curriculum · Semester 6 · Studio

Estimation and Specification

Before a single brick is laid, someone must answer two questions: how much will it cost, and to what quality will it be built? This studio is the craft of answering them. You learn to forecast cost — quick approximate methods at sketch stage, then the detailed estimate that measures every item from the drawings to IS 1200 rules. You learn to analyse a rate from its materials, labour and overheads; to write the specifications that define quality where a drawing cannot; and to value a finished property. Estimating is where a design meets its budget.

5Units

6Outcomes

4Credits

FreeForever

Start with Unit I All student courses

Unit III · Where the money is built

Analysis of Rates

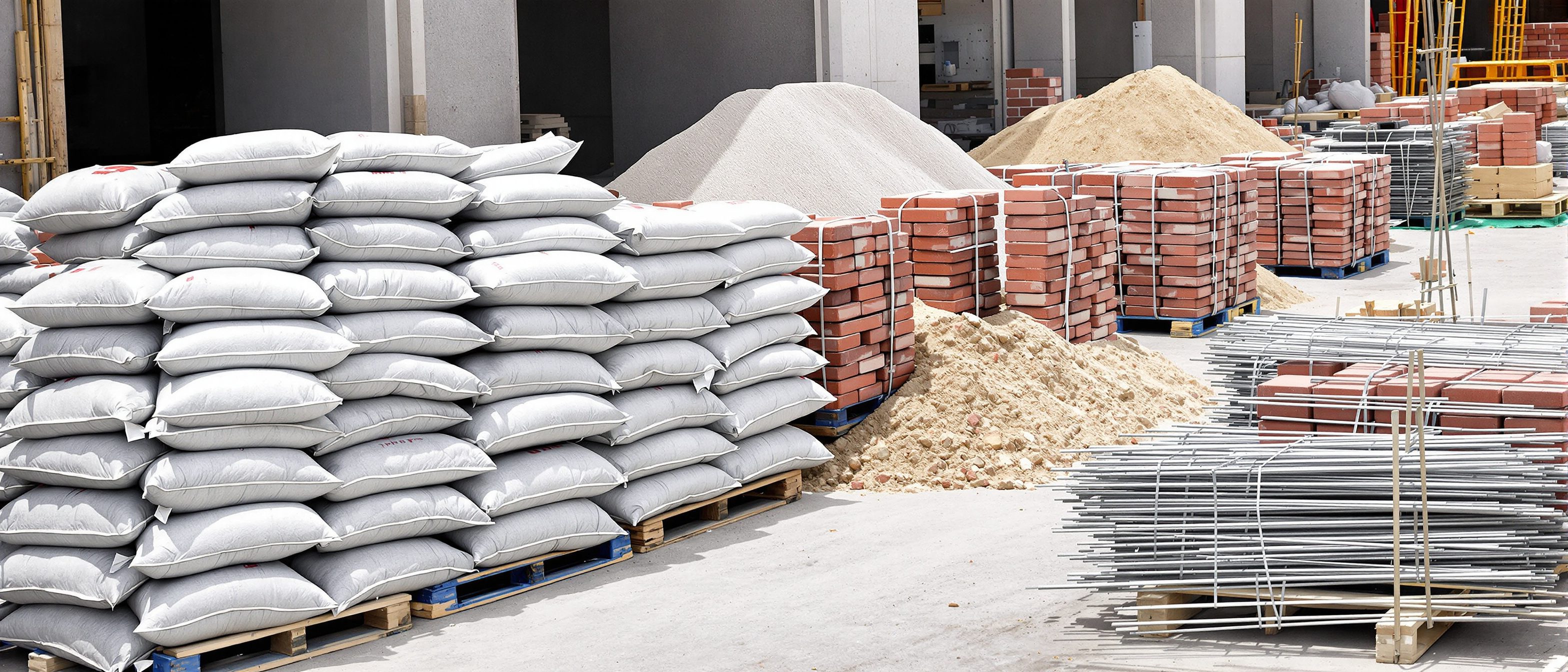

The rate of an item is the price per unit used in the estimate. Rate analysis builds that rate up from its constituents for a defined quantity of work — 1 m³ of brickwork, 100 m² of plaster — by quantifying the materials consumed, the labour expended and the plant, then adding overheads and the contractor's profit (~15% together). Learn the components, the out-turn (task-work) and lead/lift that fix the coefficients, the standard data in the CPWD Analysis of Rates and DSR, and how the dry-volume factor and coefficients build a rate. Try the rate-analysis explorer.

Materials + labourDry factor 1.5228.8 bags/m³Out-turnOH & profit ~15%

Open the lesson

The studio

Five units, from the rough budget to the bill of quantities.

Transcribed from the official B.Arch syllabus. All 5 units are live as full interactive lessons, each with original diagrams, a self-assessment quiz and a studio task.

Unit 1 — Introduction to Estimation

Live

Why we estimate; approximate vs detailed estimates; the plinth-area (₹/m²), cube-rate (₹/m³) and service-unit methods and when each is used; what a detailed estimate contains (details sheet, abstract, report); the units of measurement for different items; and contingencies and work-charged establishment.

CO1

Unit 2 — Methods of Measurement

Live

The detailed take-off and the measurement-sheet format; the long-wall / short-wall method (out-to-out / in-to-in) and the centre-line method, with worked examples for earthwork, PCC, footings and brickwork; the centre-line junction correction; deductions for openings; and the IS 1200 mode of measurement.

CO2CO6

Unit 3 — Analysis of Rates

Live

What rate analysis is and why; the components of a rate — materials, labour, plant, overheads and contractor's profit; out-turn/task-work, lead and lift; the standard data (CPWD Analysis of Rates, DSR); and worked rate build-ups for brickwork, PCC and plastering with realistic coefficients.

CO3CO6

Unit 4 — Specifications

Live

Why specifications exist (quality the drawing can't show); general vs detailed (item) specifications; the anatomy of an item spec — materials, proportion, workmanship, measurement, rate; the spec ↔ BOQ ↔ rate link; sample specifications (brickwork, flooring); and the standard CPWD Specifications.

CO4

Unit 5 — Valuation & Documents

Live

Valuation — its purpose, gross/net income, the methods (cost, rental/capitalisation with Year's Purchase, profit, development), depreciation, and market vs book value; and the documents the estimate becomes — the abstract of cost, the Bill of Quantities and the Measurement Book — and how they feed tendering.

CO5CO6

Course outcomes

What you should be able to do after completing all five units (CO1–CO6, from the syllabus).

Apply

Prepare approximate estimates (plinth-area, cube, unit) and explain estimate types.

Apply

Measure quantities by the centre-line and long-/short-wall methods to IS 1200.

Apply

Analyse rates from materials, labour, plant, overheads and profit.

Apply

Write general and detailed specifications for common building items.

Analyse

Value property and prepare the abstract, BOQ and measurement-book documents.

Evaluate

Apply India-correct conventions and avoid the common estimating pitfalls.

The quantity-surveying studio (L2 · T0 · S4; 200 marks). Every diagram is original Studio Matrx work; the figures (IS 1200 deductions, 28.8 bags/m³, the 1.52 dry factor, YP = 100/rate) are referenced to the codes and the schedule of rates. This course is the estimator's craft — measurement, rates, specs and valuation; the managerial and legal side (tendering, contracts, FIDIC) lives in the separate Project Cost & Contract Management course. Pairs with the Detailing studio.

How much, and to what quality?

Estimating cost, analysing rates, writing specifications and valuing property. Read the five units, study the worked examples, then test yourself.
