Tension Members
Three ways a tie can fail — and the lowest one governs.
Tension is the kindest load on steel — the whole cross-section works at once, and there is no buckling to worry about. But a bolted tension member can fail three different ways, and design means finding all three and taking the lowest: ductile gross-section yielding, brittle net-section rupture at the holes, and block shear, where a chunk of metal tears clean out of the bolt group.
Learning objectives
By the end of this lesson, you will be able to — mapped to the course outcomes for Design of Structures I:
Identify the types and sections used as tension members and where they occur.
Compute the gross-yielding, net-rupture and block-shear strengths and take the minimum as the design tension.
Find the net area with bolt holes and the staggered-hole s²/4g rule, and account for shear lag in a single angle.
Design a plate or angle tension member and check its slenderness limit.
Where tension lives, and in what
Ties, bracing and truss bottom chords carry pure tension, in rods, angles, channels, plates and built-up members. Even a tie has a slenderness limit to control sag and vibration.[1, 3]
Ties, bracing, chords

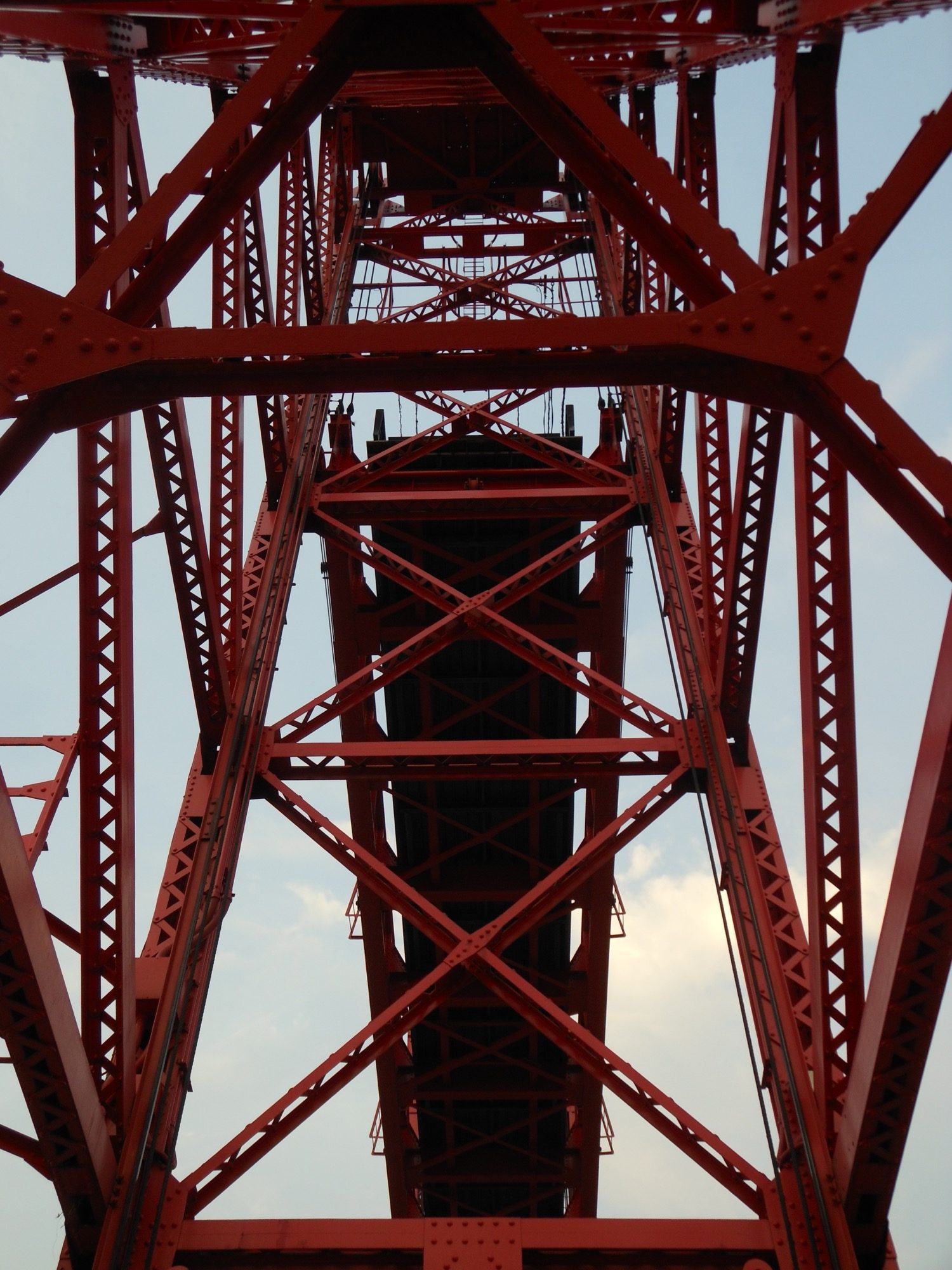

Tension members carry pure axial tension: truss bottom (tension) chords and web ties, X/diagonal bracing, sag rods and tie rods, hangers and suspension elements. Tension is the most efficient way to use steel — the whole section works at once.[3]
Three modes of failure
Gross yielding (Ag·fy/γm0) is ductile and preferred; net rupture (0.9·An·fu/γm1) and block shear are brittle. Net area deducts the holes, with the s²/4g add-back for staggered holes.[1]
Gross-section yielding (cl. 6.2)
The whole gross cross-section reaches the yield stress and stretches — a ductile, deformation-tolerant failure. Tdg = Ag·fy / γm0, with γm0 = 1.10. Designers PREFER this mode to govern because it gives visible warning.[1]
Tension-member calculator
Enter the plate size and the bolt holes; the tool returns the yielding and rupture strengths and flags which governs. A 200×10 plate with two M20 holes is yielding-governed at about 455 kN.[1]
Tension member · plate (IS 800 cl. 6)
Hole = bolt + 2 mm. Yielding Tdg = Ag·fy/γm0; rupture Tdn = 0.9·An·fu/γm1. Design tension = the lower. Fe410.
0.0 kN
Design tension Td (yielding governs)
0 mm²
Gross area Ag
0 mm²
Net area An
Block shear (not shown) must also be checked — it often governs short end connections.
At a glance
| Aspect | One | The other |
|---|---|---|
| Stress used | Yielding: fy on gross area, γm0 = 1.10 | Rupture: fu on net area, γm1 = 1.25, ×0.9 |
| Failure character | Yielding: ductile, gradual, warns | Rupture/block shear: brittle, sudden |
| Area | Gross (full section) | Net (holes deducted) |
| Plate vs single angle | Plate: no shear lag — 0.9·An·fu/γm1 | Angle one-leg: shear lag — β on outstanding leg |
| Which governs | Take the MINIMUM of the three | Block shear often governs short connections |

Key terms
Full cross-sectional area, no hole deductions — used for yielding.
Gross area minus bolt holes (with the s²/4g add-back for stagger) — used for rupture.
Ductile failure when the whole section reaches fy: Tdg = Ag·fy/γm0.
Brittle fracture at the holes reaching fu: Tdn = 0.9·An·fu/γm1.
A block of metal tears out of the bolt group along shear + tension planes (cl. 6.4).
Stress lag in the unconnected (outstanding) leg of a one-leg-connected member; the β reduction.
Transverse spacing between bolt lines (g) and longitudinal stagger spacing (s).
The LOWEST of yielding, rupture and block-shear strengths.
Worked example
A 200×10 plate, Fe410, with two 22 mm holes: Ag = 2000 mm², An = (200 − 2×22)×10 = 1560 mm². Yielding Tdg = 2000×250/1.10 = 454.5 kN; rupture Tdn = 0.9×1560×410/1.25 = 460.5 kN. The lower — 454.5 kN, yielding — is the design tension. Then confirm block shear does not undercut it.
Self-assessment
1. The design tension capacity of a member is —
2. Gross-section yielding uses the partial safety factor —
3. In the staggered-hole net-area chain rule, the term added back for the diagonal path is —
Recap
