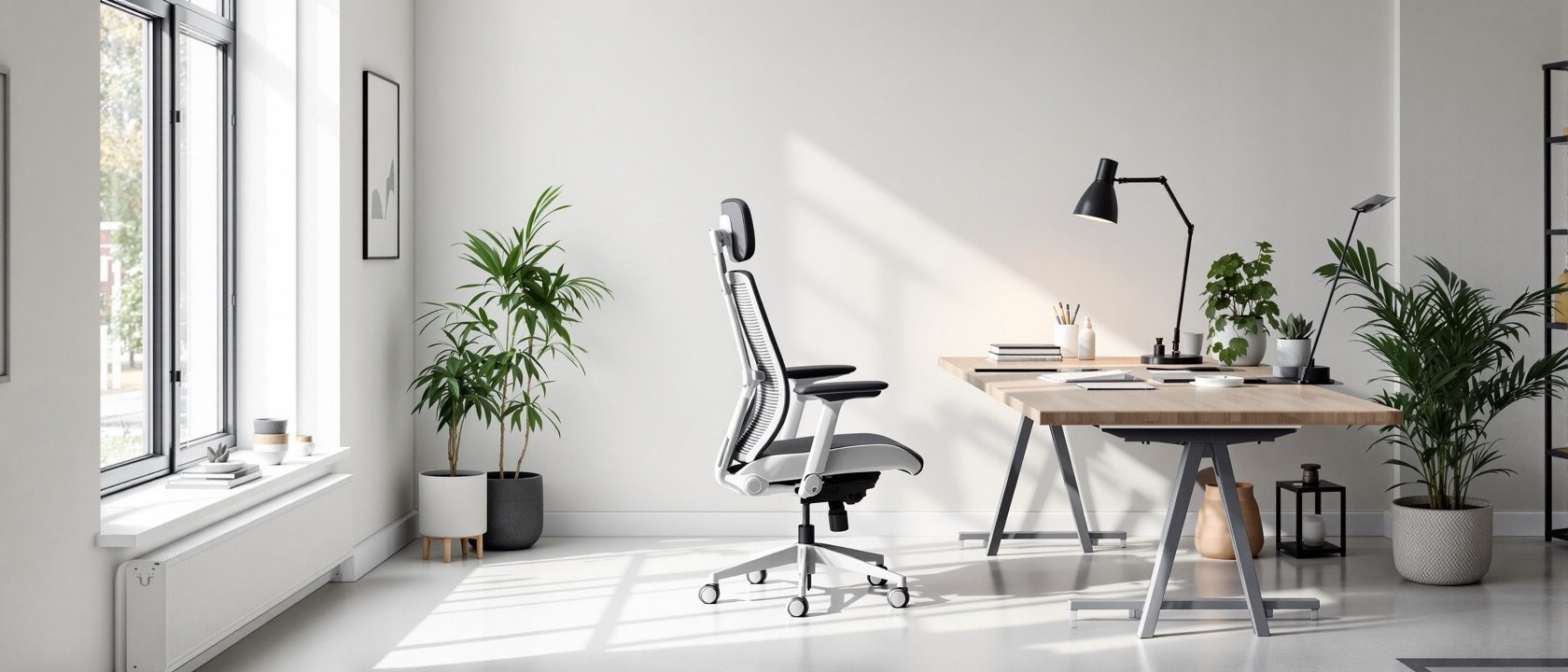

An ergonomic study corner — an adjustable task chair drawn up to a height-adjustable desk in a bright modern design studio, side-on, showing the neutral seated posture it is shaped for.
Unit VDesign Fundamentals

Ergonomics

Fitting the task to the human — measurement applied to real design.

≈ 45 min + studio taskByAmogh N P· Architect & interior designer

Ergonomics is the discipline of fitting the task, tool and environment to the human — not the reverse. If anthropometry is the measurement, ergonomics is the application. And its foundational lesson is a warning: there is no average person (Daniels, 1952), so we design for the range.

Learning objectives

By the end of this lesson, you will be able to — mapped to the course outcomes for Design Fundamentals:

1
CO6 · Understand

Define ergonomics and its three domains — physical, cognitive, organisational.

2
CO6 · Analyse

Explain the relationship between anthropometrics (measurement) and ergonomics (application).

3
CO6 · Apply

Apply Norman's principles — affordance, signifier, mapping, feedback, constraints — to design.

4
CO6 · Evaluate

Justify designing for the range using Daniels's 'no average person' evidence.

Fit the task to the human

What ergonomics is

Data versus application; the three domains — physical, cognitive, organisational; and why the “average” person fits no one.[1, 2, 3]

Ergonomics has three domains Physical posture, anthropometry, furniture, fixtures Cognitive attention, workload, error, displays, controls Organisational work systems, teams, scheduling, communication A confusing interface is an ergonomic failure just as much as an uncomfortable chair.
DiagramThe three domains of ergonomics — physical, cognitive and organisational

Fit the task to the human

Ergonomics (Greek ergon 'work' + nomos 'law'), also called human factors, is the science of fitting the task, tool, product and environment to the human — not forcing the human to adapt to bad design. The International Ergonomics Association defines it as the study of interactions among humans and the other elements of a system, applied to optimise human well-being AND overall system performance. The maxim: fit the task to the human, not the human to the task.[1, 2]

There is no average person (Daniels, 1952) 10 body dimensions → the 'average' band Every airman was average on SOME dimensions — not ONE was average on all ten. Even on just three dimensions, fewer than 5% were average on all three. So design for the RANGE — and make it adjustable.
DiagramDaniels 1952 — measuring airmen on ten dimensions, no one was average on all of them
Affordance · signifier · mapping

Applying it — furniture and Norman's principles

Ergonomics at the point where the body meets the design — and Norman’s toolkit: affordances, signifiers, mapping, feedback and constraints.[1, 4]

Fit the chair to the body ~90° ~90° seat height = popliteal (behind knee) Seat height to thepopliteal, depth to thebuttock–knee, lumbarsupport, elbows & kneesnear 90–100°. Anthropometry supplies the numbers; ergonomics turns them into a chair that fits.
DiagramAn ergonomic seated posture — seat height to the popliteal, roughly 90-degree elbow and knee angles

Where the body meets the design

FURNITURE — chair seat height to the popliteal, seat depth to the buttock–knee, lumbar support, desk knee-clearance, roughly 90–100° elbow/knee angles as a target. TOOLS — grip diameter, handle length, weight, vibration, left/right-hand use. FIXTURES — switches, sockets and controls within the 5th-percentile reach; taps and levers operable with limited hand strength. MATERIALS — slip resistance, tactile comfort, thermal feel, radiused edges: material choice is an ergonomic decision, not only aesthetic.[1, 5]

Affordance vs signifier — the 'Norman door' a pull handle on a door you must PUSH — mismatch PUSH a flat plate + label affordance (push) + signifier (says how) Affordance =what's possible.Signifier =the cue for how.Added by Normanin the 2013 ed.
DiagramNorman's distinction — affordance is what actions are possible, signifier is the cue for how to act
Mapping · feedback · constraints Mapping knobs laid out like the burners Feedback the click confirms it acted Constraints the plug fits only one way Good mapping, honest feedback and physical constraints prevent error before it happens.
DiagramThree more of Norman's principles — natural mapping, feedback and constraints
Myth vs reality

At a glance

AspectA common beliefThe reality
DisciplineAnthropometry: measurement (data)Ergonomics: application of the data
ScopeMyth: ergonomics = chairs & posture onlyReality: physical, cognitive AND organisational
Affordance vs signifierAffordance: what actions are possibleSignifier: the cue for where/how to act
The 'average'Myth: design for the average personReality: no one is average — design for the range (Daniels)
AestheticsMyth: ergonomics is separate from beautyReality: usable AND pleasurable (Emotional Design)
Vocabulary

Key terms

Ergonomics / human factors

Fitting the task, tool and environment to the human.

Physical / cognitive / organisational

The three domains of ergonomics (IEA).

Affordance

The actions an object offers, given the user's capabilities.

Signifier

A perceptible cue that communicates where and how to act (Norman, 2013).

Mapping

The correspondence between a control and its effect.

No average person

Daniels (1952): no individual is average on all dimensions — design for the range.

Apply it

Studio task

Find one “Norman door” or badly-mapped control near you (a confusing switch bank, a push/pull door, an oven dial). Photograph it, identify the affordance/signifier mismatch or the poor mapping, and redesign it in a sketch — then say which of Norman’s principles your fix uses.

Check your understanding

Self-assessment

1. The difference between anthropometry and ergonomics is —

2. In Norman's terms, a 'PUSH' label on a door is a —

3. Daniels's 1952 study of ~4,000 airmen showed that —

In a nutshell

Recap

Ergonomics (human factors) fits the task, tool and environment to the human — not the reverse.
Anthropometry is measurement (the data); ergonomics is the applied discipline that uses it.
It has three domains — physical, cognitive and organisational — not chairs and posture alone.
Norman: affordances define what's possible; signifiers communicate how to act; add good mapping, feedback and constraints.
Daniels (1952): there is no average person — design for the range (clearance, reach, adjustability).
The evidence

References & further reading

  1. [1]R. S. Bridger, Introduction to Ergonomics, 2nd ed., Taylor & Francis, 2003 (definition, domains, application).
  2. [2]International Ergonomics Association — definition and the physical/cognitive/organisational domains.
  3. [3]Gilbert S. Daniels, The 'Average Man'?, USAF WADC Technical Note 53-7, 1952 (~4,000 airmen, none average on all).
  4. [4]Donald A. Norman, The Design of Everyday Things, rev. ed., Basic Books, 2013; and Emotional Design, 2005.
  5. [5]Anthropometry, Apparel Sizing and Design (Gupta & Zakaria, eds.), Woodhead Publishing.

Further reading

  • Donald A. Norman — The Design of Everyday Things (rev. ed., 2013).
  • R. S. Bridger — Introduction to Ergonomics.
  • Gilbert S. Daniels — The 'Average Man'? (1952).

Sources gathered and fact-checked June 2026. Published values vary by source, sample and method — treat as indicative and confirm against the cited standard before structural use.
