Lesson 2.1Lesson 2.1 · Hot-Dry Strategies
Thermal Mass and Time Lag
A wall heavy enough to turn the afternoon's heat into the evening's — arriving too late to matter.
Cool at 2pm, warm at 2am — the wall that runs eight hours late

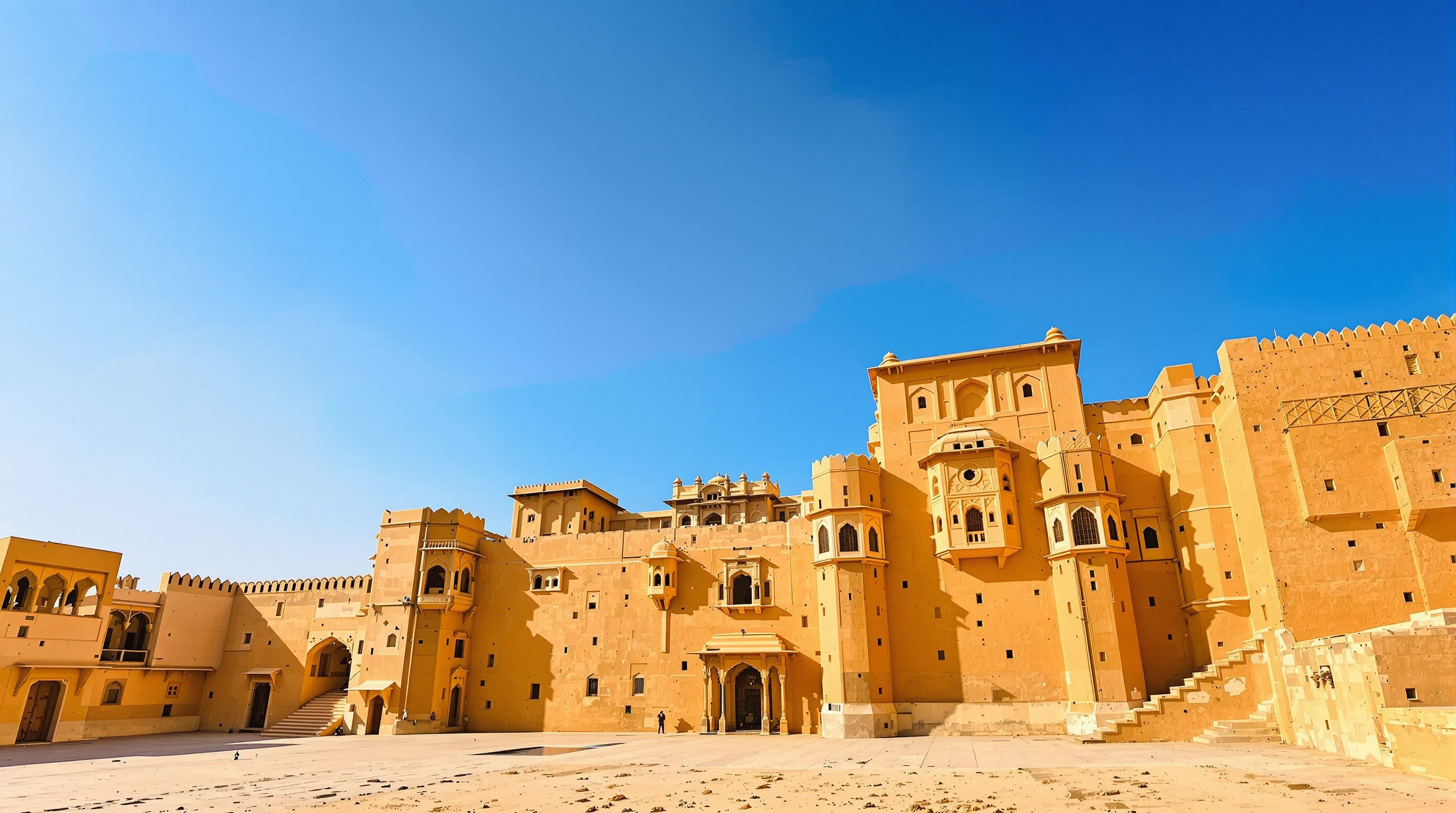

Step into a Jaisalmer haveli at 2pm, when it is 44 °C in the lane outside, and the room is startlingly cool. Return at 2am, when the desert air has dropped to 26 °C, and the same room is gently warm. Nothing was switched on. The thick sandstone wall simply delivered the afternoon's peak about eight hours late — into the cool night, where it is easily flushed away. This is the physics promised back in Lesson 0.1, finally derived: a wall that defers heat rather than blocking it.
Store the afternoon, release it into the night — but only if the night is cool. Mass is a loan the desert can repay and the coast cannot.
Time lag and decrement factor
A heavy wall does two things to the daily temperature wave, and two numbers capture both.
Time lag (φ) is the number of hours the wall delays the outdoor peak from reaching the inside face. A 2pm peak with φ = 8 h arrives indoors around 10pm.
Decrement factor (f) is the fraction of the outdoor swing that survives the trip — f = 0.3 means a 10 °C swing arrives as a 3 °C one, flattened to under a third.
Both come from heat physically working its way through the mass, charging the material as it goes. Heavier, thicker and slower-conducting walls give a longer lag and a smaller decrement. The two are not the same property: rigid foam has a large decrement but almost no lag, while mass delivers both. And it is the lag — not the flattening — that lets the desert night do the actual cooling.
Lag is when the heat arrives; decrement is how much of it arrives. Foam shrinks the swing but barely delays it — only mass delays it.
The time-lag simulator — a reusable instrument
Picture two curves over one 24-hour day. The red curve is the outdoor temperature wave, swinging from a 2pm high to a pre-dawn low. Pick a wall material and a thickness, and the blue indoor curve appears — the same wave, shifted right by φ and squashed by f.
Push the thickness up and watch the blue peak slide later and flatter, sliding toward the cool middle of the night. Switch from sandstone to a lightweight block and the curve changes character: the lag may stay long, but for a different reason — insulating rather than storing.
This is not a one-lesson toy. The same instrument returns in Module 6, where the heavy roof slab is the wall lying flat and the time lag becomes a problem instead of a gift — a ceiling that re-radiates the afternoon down into the rooms after dark.
Desert wins, coast loses — the night decides
The lag matters only because of what the delayed heat arrives *into*.
In Jaisalmer, the 10pm release lands in 26 °C air; a night breeze flushes it out and the mass discharges, ready to absorb tomorrow's heat. The flywheel completes its cycle.
In Mangalore, 10pm is still 28 °C and saturated. The flywheel never unloads — the charged mass simply radiates its stored heat into the bedroom all night, exactly when the occupant wants to sleep.
Mass does not cool; it *defers*. Deferral only helps if a cool night arrives to collect the debt. The same wall that is a battery in the desert is a slow night-radiator on the coast — which is why mass is the hot-dry signature and a warm-humid liability.
Mass doesn't cool — it postpones. Ask what the night is doing before you trust the wall.
Three altitudes on the same idea
Read the band that fits you — or all three.
Thick walls earn their cost in dry places with cool nights — western Rajasthan, the interior Deccan — where the night flushes out the heat the wall stored all day. On a humid coast, the same thick wall makes your bedroom hotter at night, because there is no cool night for it to dump into. If that is your climate, spend the money on shade and cross-ventilation instead, not on heavier masonry. Don't copy the Rajasthan haveli look onto a Mangalore plot — it will quietly work against you.
Target a time lag of about φ ≈ 8–10 h so a bedroom's indoor peak lands in the occupied cool hours, and pair it with sized night ventilation (Lesson 2.4). Mass without a night-flush path is half a strategy — you have built a heat store with no discharge cycle. Never specify heavy mass in a warm-humid zone expecting it to cool; with no cool night, the wall becomes a permanent low-grade radiator. Treat lag as a tuning target, not a by-product of wall thickness.
Start from thermal diffusivity alpha = k / (rho c). The daily wave reaches a characteristic penetration depth d = sqrt(alpha P / pi) with period P = 86400 s. Then the two outputs follow:
phi ~= (L / d) (P / 2pi) and f ~= exp(-L / d).
Work 450 mm sandstone (k = 1.8 W/mK, rho = 2200 kg/m3, c = 710 J/kgK): alpha = 1.15e-6 m2/s, so d ~= 0.178 m. Then L/d ~= 2.53, giving phi ~= 9.7 h and f ~= exp(-2.53) ~= 0.08. Real assemblies sit higher on f because of surface resistance and joints — a practical 450 mm stone wall lands nearer f ~= 0.3. Compare 300 mm concrete (~phi 9.8 h). Note the trap: 100 mm AAC also gives a long lag, but by *insulating*, not *storing* — low k, low rho, so it resists heat rather than banking it.
“A thicker wall is always cooler, so maximum thickness is best.”
Run the method yourself
Run the simulator before the next lesson, and watch where the indoor peak lands.
- 1Set the wall to sandstone and find the thickness that puts the indoor peak between 9pm and midnight.
- 2Note the decrement factor at that thickness — how much of the 44-to-26 °C outdoor swing actually reaches the room?
- 3Switch to AAC at the same thickness — does the lag still land in the cool hours, and is it storing or just insulating?
- 4Drag thickness to the maximum — find the point where added mass stops improving f. That diminishing return is your design ceiling, not a target to exceed.
↳ Use the worksheet below to record your answers.
Take it with you
The desert's flywheel
A heavy wall handles the sun that strikes it — but what about the harsh light pouring into the plan, and the still, hot air collecting indoors? The hot-dry tradition answers both with one device: the courtyard ringed by carved jaalis, a shaded well that pulls cool night air down and filters the glaring day light. Next: the courtyard as a climate machine, and how to size it.
