Steel Doors, Windows & Partitions
Steel at the human scale — openings, shutters and screens.
Steel reaches the human scale in the openings and screens you touch every day. This unit covers the steel window — slim, strong, fire-resistant; the steel door and its specialised cousins — safety, dock, cold-storage, revolving, the collapsible gate and the rolling shutter; and the steel partitions and furniture that shape the interior.
Learning objectives
By the end of this lesson, you will be able to — mapped to the course outcomes for Building Materials & Construction III:
Identify steel window types and the merits and limits of steel windows.
Name the special steel doors — safety, dock, cold-storage, revolving, shutters, gates.
Describe steel partitions, framing and furniture in interiors.
Choose a steel opening or screen for a given use.
Windows, doors & partitions

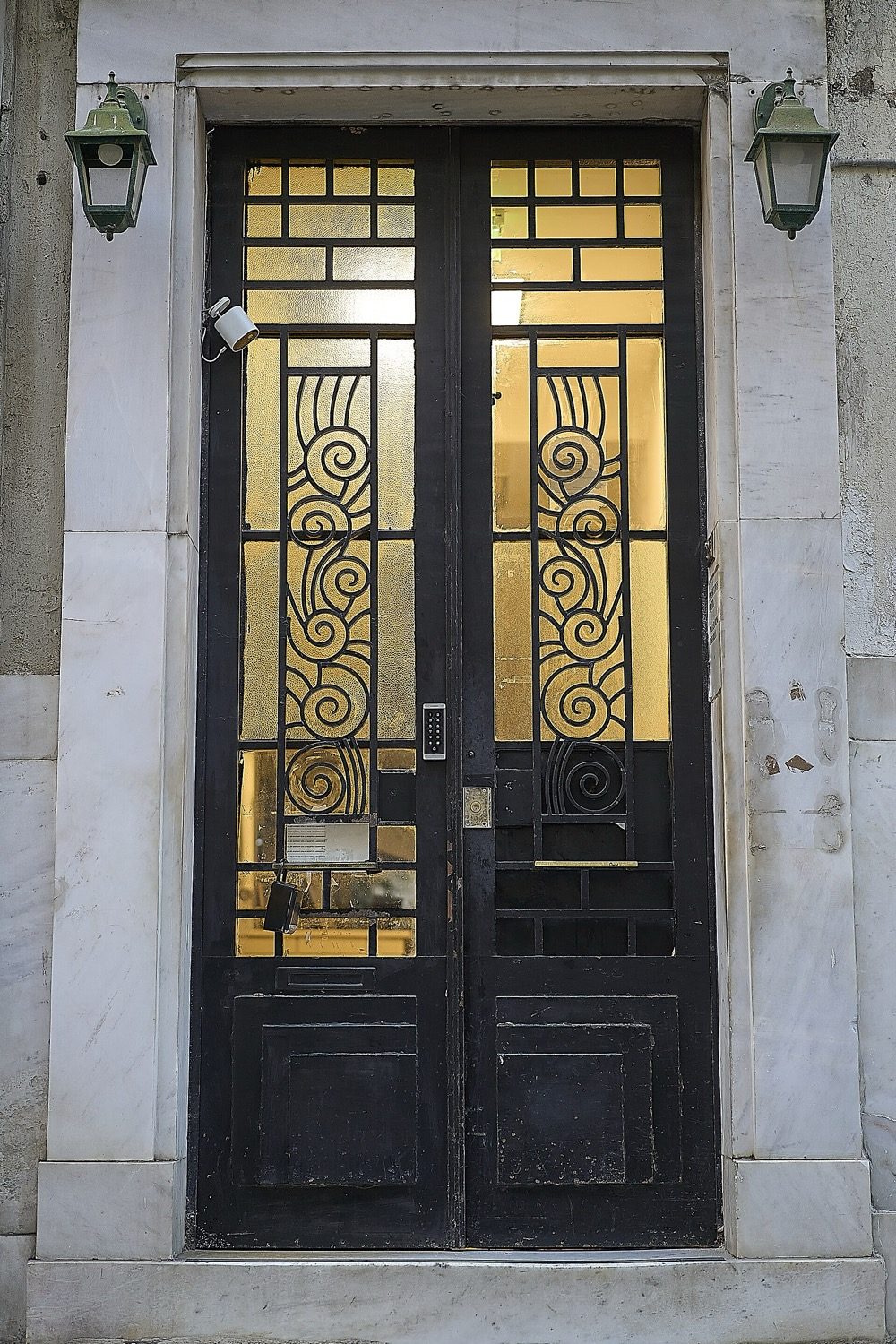

Steel windows (casement, fixed, pivoted, louvred) are slim and durable but bridge heat; steel doors range from flush and fire-rated to the special doors — and rolling shutters and collapsible gates secure openings. Steel partitions and furniture finish the interior.[5, 6]
Slim and durable

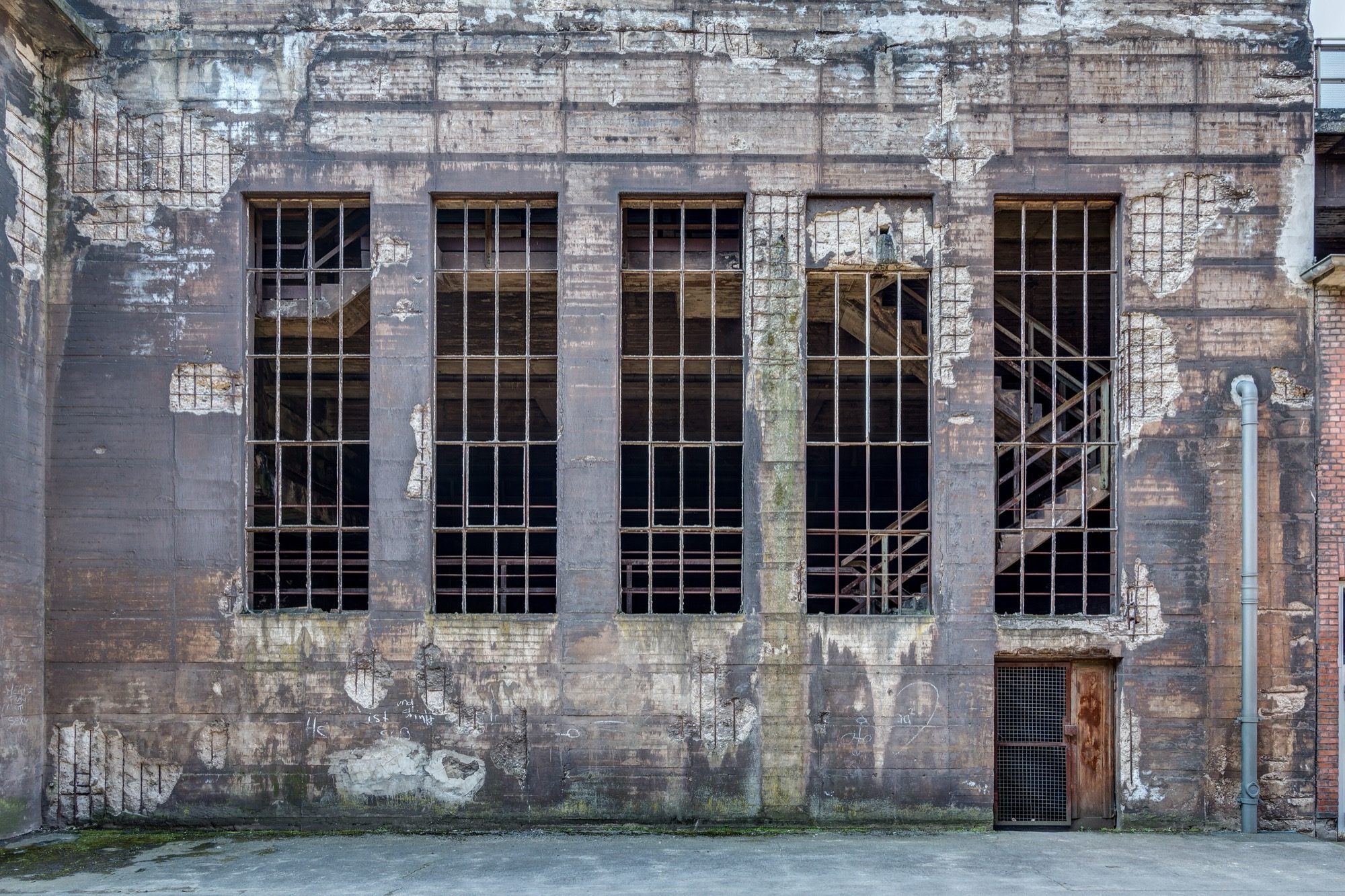

Steel windows use pressed-steel or rolled-steel sections (IS 1038): casement (side-hinged), fixed (light only), pivoted (rotating on central pivots) and louvred (slatted for air). They give slim sightlines, strength, fire resistance and stability — but conduct heat (thermal bridging, condensation) and can corrode if the coating fails.[5]
Openings & screens
| Aspect | One | The other |
|---|---|---|
| Window operation | Casement: side-hinged, swings | Pivoted: rotates on central pivots |
| Closure | Rolling shutter: solid laths on a drum | Collapsible gate: folding see-through lattice |
| Steel window | Merit: slim, strong, fire-resistant | Limit: thermal bridging, corrosion |
| Special door | Cold-storage: insulated, gasketed | Revolving: air-lock, energy-saving |
| Interior steel | Demountable partition: flexible space | Steel furniture: durable, fire-safe |
Key terms
A side-hinged window that swings open like a door.
A window rotating on central horizontal or vertical pivots.
A door or window frame cold-pressed from steel sheet.

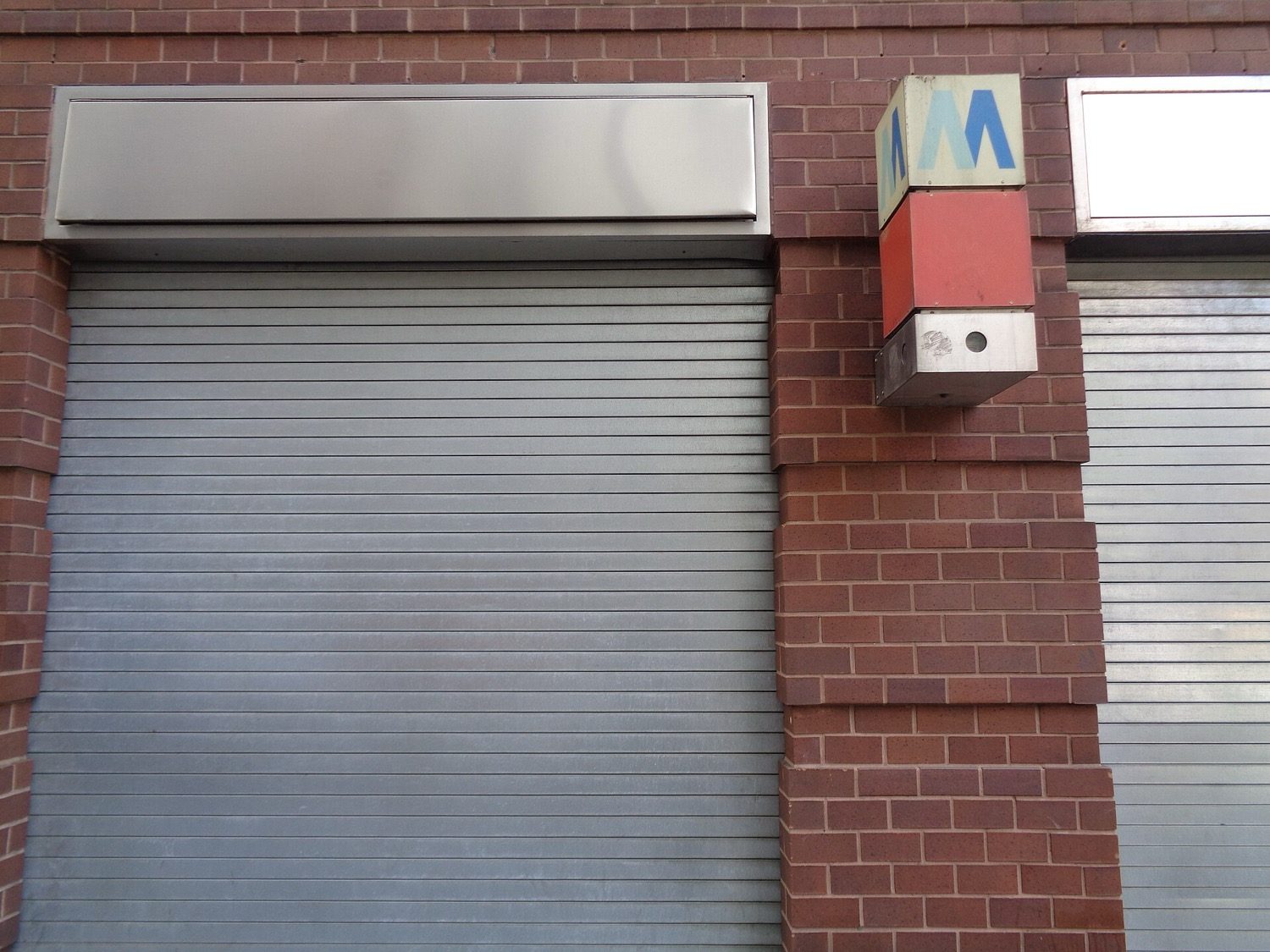

Interlocking steel laths rolling onto a top drum (IS 6248).
A folding expanding-lattice steel gate that stacks to one side.
A rotating multi-leaf door acting as an air-lock at busy entrances.
A heavily insulated, gasketed door for freezers and cold rooms.
A re-locatable steel-framed (often glazed) office partition.
Drafting task
Draw a rolling shutter (laths on a drum) and a collapsible gate, and in one line each say where you would use them. Then list which special steel door suits a cold room, a busy hotel entrance and a loading bay, and why.
Self-assessment
1. The IS code for metal rolling shutters is —
2. A key limitation of steel windows compared with timber or aluminium is —
3. A door that acts as an air-lock to cut draughts at a busy entrance is a —
Recap
References & further reading
- [3]B.C. Punmia, A.K. Jain & A.K. Jain, Building Construction. Laxmi Publications.
- [5]IS 1038 — Specification for Steel Doors, Windows and Ventilators. Bureau of Indian Standards.
- [6]IS 6248 — Metal Rolling Shutters and Rolling Grills. Bureau of Indian Standards.
Further reading
- B.C. Punmia, Building Construction. Laxmi Publications.
- Roy Chudley & Roger Greeno, Building Construction Handbook.
- S.K. Duggal, Building Materials. New Age International.
Sources gathered and fact-checked June 2026. Published values vary by source, sample and method — treat as indicative and confirm against the cited standard before structural use.
