Acoustics, Fire Safety & Sustainable Services
Absorption is not insulation — and passive comes before mechanical
The services that finish a room carry their own stubborn myth. Sticking foam on a wall does not soundproof it: absorption and insulation are two different jobs. Foam and acoustic panels absorb reflections to cut the echo inside a room; blocking sound from passing through to the next room needs mass and decoupling — the mass law. This closing unit sorts that out, sets fire safety in the building bye-laws and the National Building Code, and pulls the whole set of services together as one coordinated, right-sized, passive-first system.
Learning objectives
By the end of this lesson, you will be able to — mapped to the course outcomes for Interior Services II:
Distinguish acoustic absorption from insulation and apply the mass law to block sound between rooms.
Apply fire-safety principles from the building bye-laws and the National Building Code to services.
Design sustainable, right-sized, coordinated services — passive first, efficient equipment, daylight and LED.
Acoustics
Absorption (foam, panels) cuts echo inside a room; insulation blocks sound to the next room, which needs mass and decoupling (the mass law) and sealed gaps. Decibels are logarithmic — a ~10 dB rise roughly doubles loudness.[1]
The great confusion
'Foam on the wall soundproofs the room' is the single biggest acoustics MYTH. There are two DIFFERENT jobs. ABSORPTION (soft, porous materials — foam, fabric, acoustic panels, carpet) soaks up sound reflections to reduce ECHO and reverberation INSIDE a room, making it sound less harsh. INSULATION (blocking sound passing THROUGH a wall or floor to the next room) is a different problem entirely — and foam does almost nothing for it. Egg-boxes and thin foam make a room sound nicer; they do not stop your neighbour hearing you.[1]
Fire safety
Fire safety follows the building bye-laws and the National Building Code — means of escape, compartmentation, detection and material choice, designed in at planning. Services (especially electrical) are a fire origin and path.[2]
The law, not an option
Fire safety in interiors is governed by the building BYE-LAWS and the NATIONAL BUILDING CODE (NBC) of India — not by preference. Services are a major fire ORIGIN and PATH: electrical faults start fires (Unit IV's correct wiring and protection is fire safety), and ducts and voids can spread smoke. The designer must respect means of escape, travel distances, fire-rated compartmentation, and not block or compromise exits with furniture or finishes.[2]
Sustainable services
Sustainable services shrink the load with passive design and daylight first, then right-size and choose efficient kit (inverter AC, high-efficacy LED). And the services are one coordinated system, planned together and early — not add-ons squeezed in late.[3]
Shrink the load
Sustainable services start by making the loads SMALLER before making the machines efficient: passive cooling and daylight (from the vernacular and space-planning courses) cut the AC and lighting demand at source; then right-SIZE the equipment (never oversize — Unit II); then choose EFFICIENT kit — inverter AC with good BEE stars, LED with high efficacy, sensors and controls. The greenest kilowatt-hour is the one the design never needed.[3]
At a glance
| Aspect | The fact | The folklore |
|---|---|---|
| Foam / acoustic panels | ABSORB reflections — cut echo INSIDE a room | Soundproof / block sound to the next room |
| Blocking sound between rooms | Needs MASS, decoupling and sealed gaps | Needs foam on the wall |
| The decibel scale | Logarithmic — a 10 dB rise ~doubles loudness | A simple linear scale |
| Fire safety | The bye-laws and NBC — designed in at planning | Signage added at the end |
| Sustainable services | Shrink the load (passive) first, then efficient kit | Just buy 5-star machines |
| Services in a room | A coordinated system planned early together | Add-ons squeezed in late |
Key terms
Absorption (soft/porous materials) cuts ECHO inside a room; insulation blocks sound passing THROUGH to the next room. Foam absorbs — it does not soundproof.
The heavier a barrier, the more sound it blocks; blocking transmission needs mass, decoupling (a break in the path) and sealing every gap — not soft foam.
A logarithmic measure of sound level — a ~10 dB rise roughly doubles perceived loudness, so small numbers hide big changes; rooms have target ambient levels.
India's building code (with local bye-laws) governing fire safety, means of escape, compartmentation and services — a legal requirement, not a preference.
Fire-rated walls and doors that contain fire and smoke to buy escape time, plus smoke/heat detection and alarms — designed in at planning, not added at the end.
Shrinking the cooling and lighting loads with passive design and daylight before choosing efficient, correctly-sized (never oversized) equipment — the core of sustainable services.
Study task

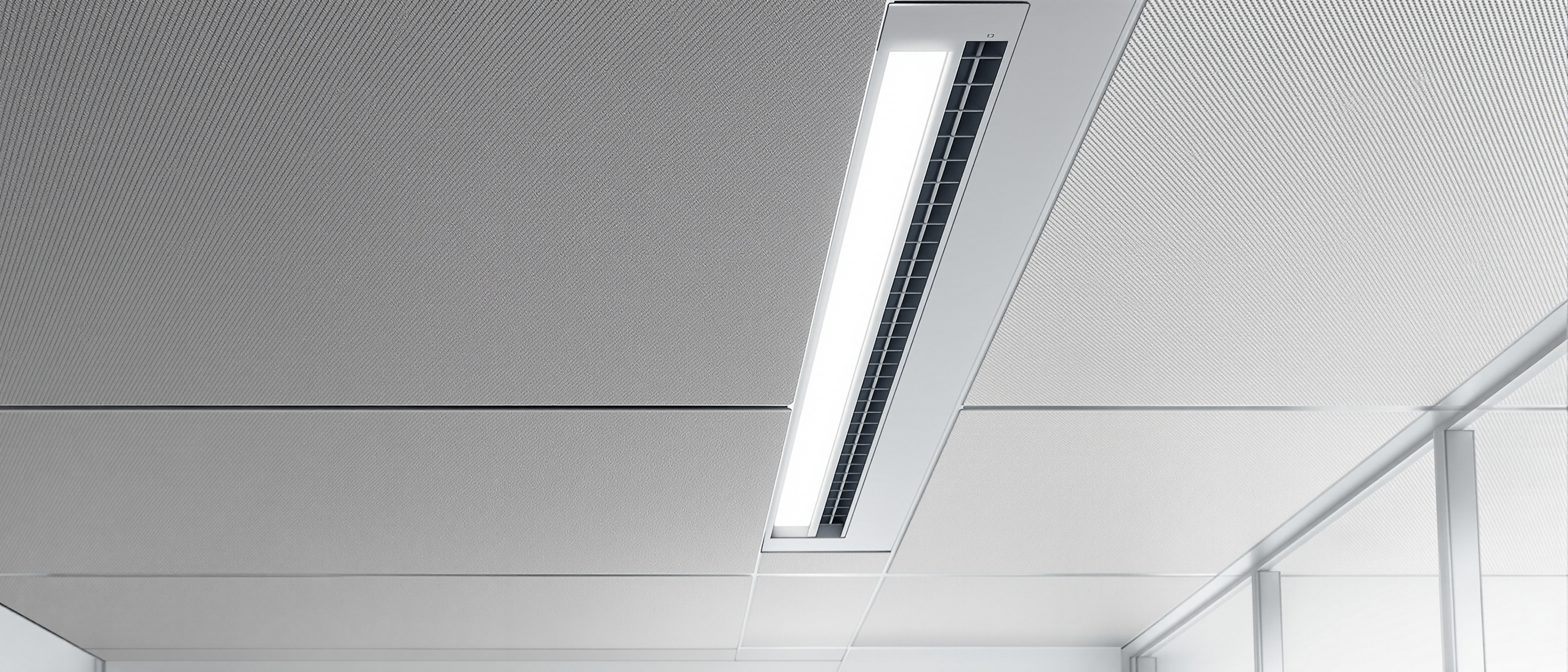

Take one room and coordinate its services on a single reflected-ceiling and services plan. Show the AC (grille or unit and its route), the layered light points, the electrical circuits and the acoustic treatment, and make them share the ceiling void and walls without fighting. For acoustics, state clearly which surfaces get absorption (to tame echo) and which construction gives insulation (mass, decoupling, sealed gaps) — and never confuse the two. Note the fire-safety essentials that apply (escape route kept clear, detection, no flammable finish on the escape path), and finish with the sustainability logic: the passive moves that shrank the loads before any machine was sized. The whole point is that good services are invisible because they were designed, not squeezed in.
Self-assessment
1. What does acoustic foam on a wall actually do?
2. What actually blocks sound passing between rooms?
3. What is true about the decibel scale?
4. Where does fire safety in interiors come from?
5. What is the first move in sustainable services?
Recap
References & further reading
- [1]Architectural acoustics — absorption vs insulation, the mass law, decoupling, reverberation and decibels (Peter Templeton & David Saunders, Acoustic Design; acoustics references). https://www.acoustics.org/
- [2]Fire safety in buildings — the National Building Code of India and local bye-laws, means of escape, compartmentation and detection (V.K. Jain, Fire Safety in Buildings; NBC). https://www.bis.gov.in/
- [3]Sustainable, right-sized and coordinated building services — passive first, efficiency (BEE), daylight and LED, and services coordination (ECBC / green-building references). https://beeindia.gov.in/
Further reading
- Peter Templeton & David Saunders, Acoustic Design (Architectural Press).
- V.K. Jain, Fire Safety in Buildings.
- National Building Code of India (BIS) and ECBC — fire safety and energy efficiency.
Sources gathered and fact-checked June 2026. Published values vary by source, sample and method — treat as indicative and confirm against the cited standard before structural use.
