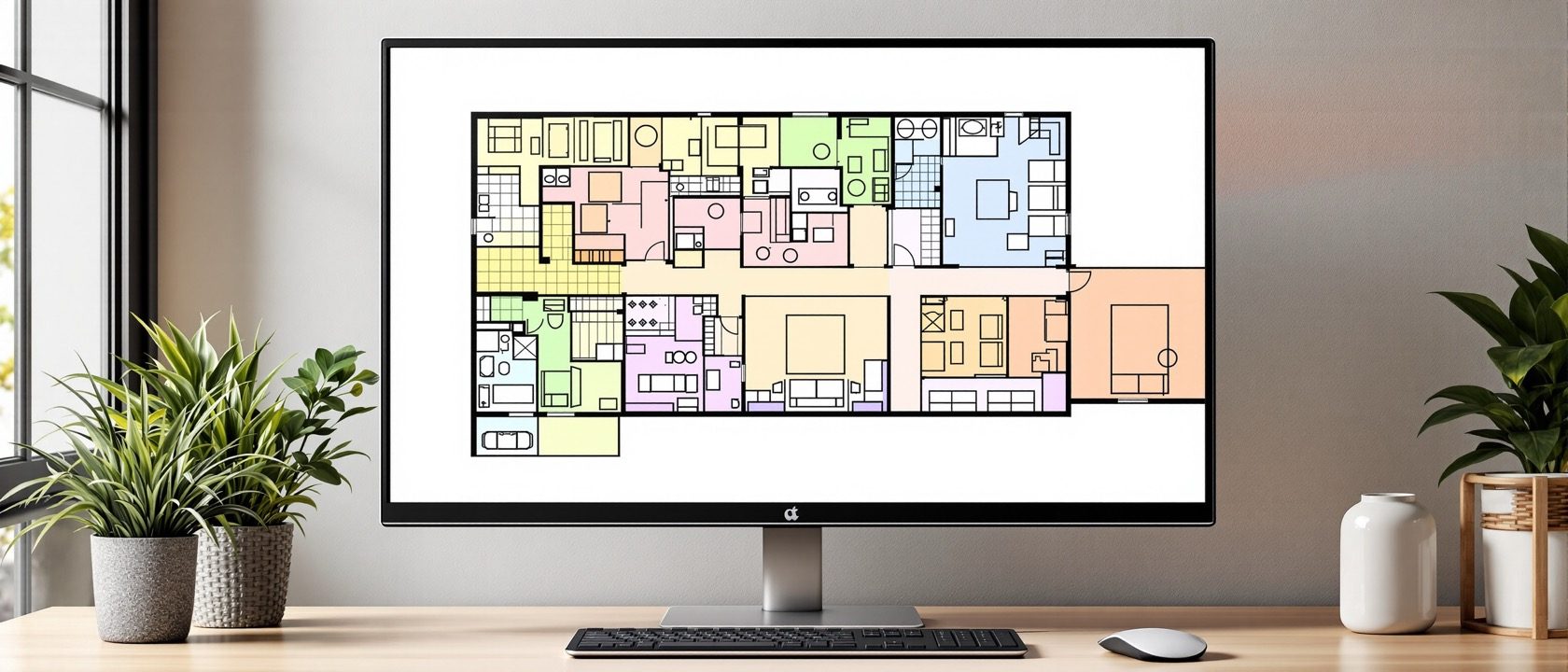

A monitor showing a fully organised CAD interior floor plan with furniture symbols, dimensions, hatched walls and layered colours, neatly annotated, warm office light, no people, no legible text.
Unit IIIComputer Studio I

Layers, Blocks & Annotation

Where a drawing becomes a managed document.

≈ 55 min + practiceByAmogh N P· Architect & interior designer

A professional drawing is not just correct lines — it is organised lines. This is where CAD stops being “a drawing” and becomes a managed document: layers (the single most important organisational concept), reusable blocks, annotation done to standard, associative dimensions, and hatching — with the line conventions carried straight over from Interior Graphics I.

Learning objectives

By the end of this lesson, you will be able to — mapped to the course outcomes for Computer Studio I:

1
CO3 · Apply

Organise a drawing with layers by function and the ByLayer principle.

2
CO3 · Apply

Build and insert blocks as a reusable furniture/fixture library, with attributes.

3
CO3 · Apply

Annotate with text styles, annotative scaling, associative dimensions and dimension styles.

4
CO3 · Understand

Use hatching and carry linetypes and lineweights over from hand drafting.

Organise the drawing

Layers, blocks & line conventions

Layers as transparent overlays with the ByLayer rule, blocks as a reusable furniture library, and linetypes and lineweights bridging from hand drafting.[1, 2, 3]

Layers: transparent overlays by function A-WALL (thick) A-DOOR A-FURN A-DIMS (thin) Each element on its own layer → show, hide, protect, restyle or plot a whole category at once. ON/OFF · FREEZE · LOCK Golden rule: ByLayer colour/linetype/lineweight come from the layer, never per object.
DiagramLayers are transparent overlays by function — walls, doors, furniture, dimensions — controlling colour, linetype and lineweight
Blocks: draw once, reuse everywhere block library sofatableWCdoor INSERT inserted at any scale & rotation Redefine the block ONCE → every instance updates. Attributes (a tag, a code) extract to a schedule. A block is one definition — not just a group of lines.
DiagramBlocks are reusable symbols — furniture, doors, fixtures — drawn once, inserted anywhere, updated globally, and carrying attributes for schedules

Transparent overlays by function

Layers are the single most important organisational concept — transparent overlays, one per category (walls, doors, furniture, dimensions, ceiling), exactly the old drafting-film idea made digital. Every object lives on a layer that controls its COLOUR, LINETYPE and LINEWEIGHT and its visibility. States: ON/OFF (hide/show), FREEZE/THAW (hide and skip regeneration, can't be selected), LOCK/UNLOCK (visible but un-editable — protect the walls while placing furniture). The golden rule is BYLAYER: set object colour/linetype/lineweight to ByLayer and control appearance from the layer, never object-by-object — this is the professionalism marker beginners miss. Offices follow layer STANDARDS (AIA/NCS, BS 1192, ISO 13567) so files interoperate.[1, 2]

Annotate to standard

Text, dimensions & hatch

Text styles and annotative scaling, associative dimensions set by a style, and hatching for materials and poché.[1]

Annotation: associative & to a style 3600 edit the wall → the value follows ASSOCIATIVE: dimensions are measured from & LINKED to geometry — never typed by hand. Annotative scaling text auto-sizes to print at, say, 2.5 mm at ANY viewport scale. Set the dimension STYLE once; string overall → rooms → openings, outside the drawing.
DiagramAssociative dimensions are linked to geometry and self-update, set by a dimension style; annotative scaling prints text at a fixed size
Hatch & line conventions carry over poché (SOLID) ANSI31 (diagonal) brick / tile thick → visible / cut edges thin → dimensions, hatch dashed → hidden edges The intent is identical to Interior Graphics I — put hatch on its own layer, at plot scale.
DiagramHatching shows materials and wall poché; linetypes and lineweights carry the hand-drafting line hierarchy into CAD

The right size on paper

Use MTEXT for notes and TEXT STYLES (named font and height) so text is consistent. The classic puzzle — 'how big is text if I draw at 1:1 but plot at 1:50?' — is solved by ANNOTATIVE objects: text, dimensions and hatches can auto-size to print at a fixed height (say 2.5 mm on paper) whatever the viewport scale. MULTILEADERS give consistent arrow-and-note callouts, and TABLES build schedules (door, window, finishes), optionally linked to block attributes.[1]

Myth vs reality

At a glance

AspectOne sideThe other
LayersMyth: optional / all on one layerReality: mandatory — hide, protect, restyle, plot by category
Object appearanceMyth: set colour/weight per objectReality: ByLayer — control from the layer
A blockMyth: just a group of linesReality: one definition — redefine once, all update
DimensionsMyth: text you type inReality: associative — measured from and linked to geometry
Hatch layerMyth: same layer as wallsReality: its own layer, faint, at plot scale
Vocabulary

Key terms

Layer

A transparent overlay by function controlling colour, linetype, lineweight and visibility.

ByLayer

The golden rule — objects inherit appearance from their layer, not set object-by-object.

Freeze vs Off / Lock

Freeze also skips regeneration and selection; Lock leaves a layer visible but un-editable.

Block

A reusable named symbol that inserts at any scale, updates globally, and can carry attributes.

Annotative scaling

Text/dimensions/hatch that auto-size to print at a fixed height at any viewport scale.

Associative dimension

A dimension linked to geometry, so its value self-updates when the object changes.

Apply it

Practice task

Design a layer scheme for an interior floor plan — list at least six layers by function (walls, doors, furniture, dimensions, hatch, text) with a sensible colour and lineweight for each, and state which are set to ByLayer. Then explain how you would turn a sofa into a block, what attribute you would attach for a furniture schedule, and why a block beats copying-and-pasting the same sofa forty times.

Check your understanding

Self-assessment

1. The golden rule for object appearance in CAD is —

2. A block differs from a mere group because a block —

3. Proper CAD dimensions should be —

In a nutshell

Recap

Layers are transparent overlays by function controlling colour, linetype and lineweight, with on/off, freeze and lock — and the golden ByLayer rule.
Blocks are reusable symbols (furniture, doors, fixtures) that insert at any scale, update globally, and carry attributes for schedules.
Annotate with text styles and annotative scaling so notes print at a fixed height whatever the viewport scale.
Dimensions must be associative and set by a dimension style; carry the hand-drafting dimensioning standards over.
Hatch shows materials and poché — keep it on its own layer at the right pattern scale; linetypes and lineweights bridge straight from Interior Graphics I.
The evidence

References & further reading

  1. [1]Autodesk, AutoCAD Help — 'Control the Properties of Objects / Layers', 'Work with Blocks', 'Create and Edit Dimensions', 'Add Text', 'Hatches and Fills'.
  2. [2]AIA CAD Layer Guidelines / US National CAD Standard (NCS); BS 1192 / ISO 13567 (layer-naming standards).
  3. [3]George Omura & Brian C. Benton, Mastering AutoCAD and AutoCAD LT (layers, blocks, attributes, dimension styles, hatching).
  4. [4]Beverly L. & James M. Kirkpatrick, AutoCAD for Interior Design and Space Planning (blocks as furniture libraries; interior dimensioning and schedules).

Further reading

  • George Omura & Brian C. Benton — Mastering AutoCAD and AutoCAD LT.
  • US National CAD Standard / AIA CAD Layer Guidelines.
  • Kirkpatrick — AutoCAD for Interior Design and Space Planning.
