Lesson 3.4Lesson 3.4 · Warm-Humid Strategies
Mould and Driving-Rain Defence
The humid coast's second enemy is water — hurled sideways at the walls by day, and growing quietly in the still cool corners by night.
The mould behind the wardrobe — no leak, no drop of water

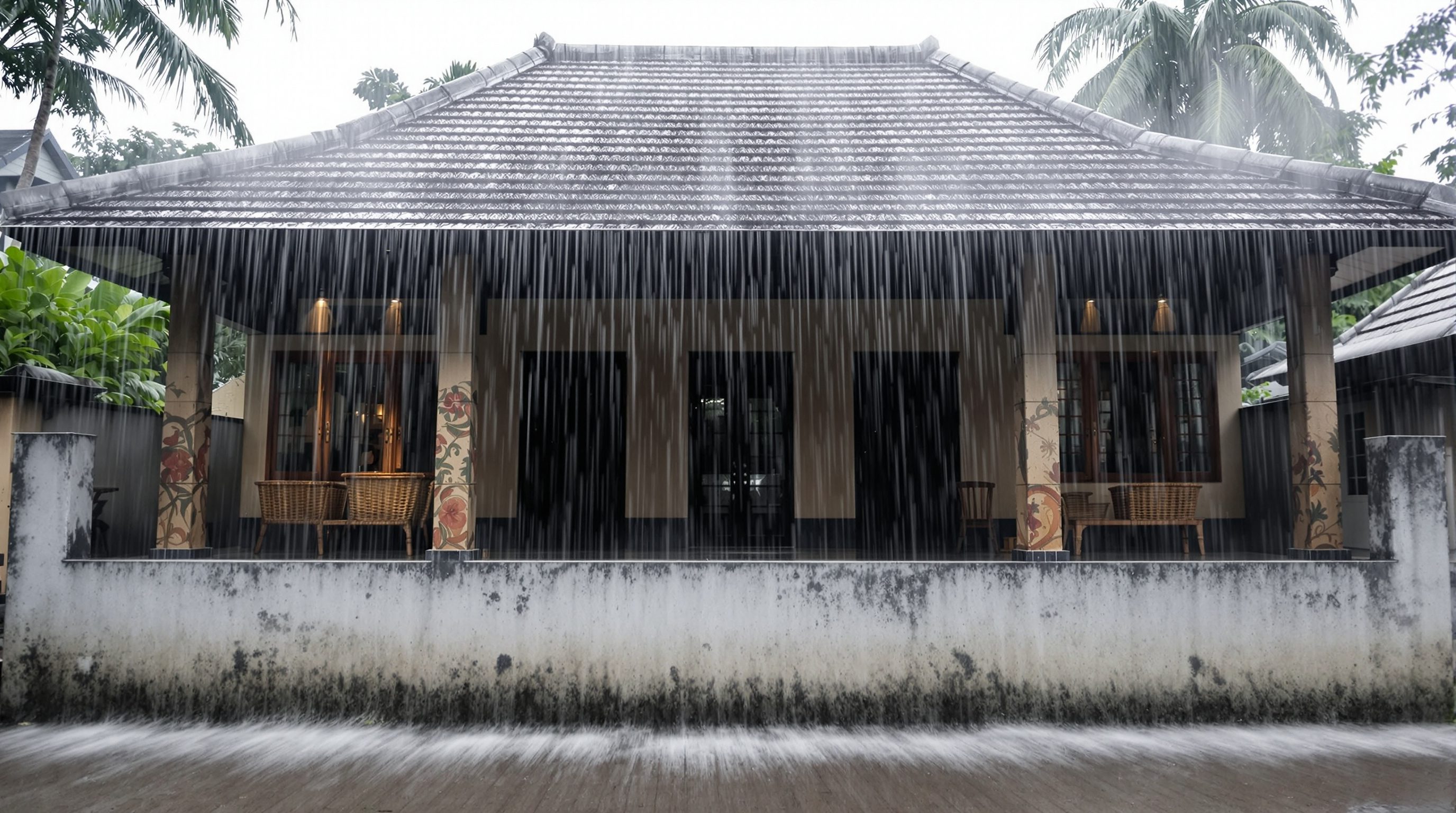

A coastal house only a few monsoons old reads its battle with water in stains: a tide-line where ground damp rose, black spotting in a still north corner, blistered paint where driving rain found the west wall, a rusted hinge, a swollen door. None of it is heat — it is water, liquid and vapour, as relentless as the desert sun. And the cruelest stain is the one with no leak behind it at all: the mould blooming on a cool wall behind a wardrobe, fed by nothing but humid, unmoving air. Defeating water is a discipline through the whole building: keep rain off, keep air moving, and never give damp a still cool surface to settle on.
Keep rain off, keep air moving. Mould isn't a leak to chase — it's a cold still corner to warm and ventilate.
Driving rain and mould — the dramatic enemy and the patient one
Water attacks the warm-humid house in two forms, and each has its own defence.
Driving rain is monsoon rain blown horizontally onto walls and openings rather than falling vertically. It is dramatic — sheets of water to be shed — and the defence is geometry: deep overhangs and chajjas sized to the local driving-rain angle, recessed and protected openings, sloped roofs with generous eaves, and drainage that carries water away from the walls.
Mould and rot are the patient enemy. Mould is insidious because it needs no leak — it grows wherever surface humidity stays high for long enough: any surface cooler than the room air, or any still, stagnant pocket. The defence is environmental: move the air, eliminate cold spots, use breathable materials, and never trap damp.
The humidity that makes you uncomfortable is the same humidity that rots the building — and the cure for both the person and the structure is identical: move the air.
Driving rain is the enemy you can see; mould is the one you can't. One you shed with geometry, the other you starve with moving air.
The mould-risk and rain-defence explorer — a reusable instrument
Picture the lesson's explorer. Set the room humidity and how much cooler the wall surface runs than the room air, and a gauge reads the *surface* relative humidity. When that surface RH climbs past about 80%, the mould-risk zone lights up red — and it does so while the surface is never visibly wet.
Now add the two defences and watch them work. Deepen the overhang and the driving rain stops wetting the wall in the section view. Raise the air movement across the surface and the surface humidity falls back below the threshold, the red zone fading.
The lesson hidden in the gauge is that the room can feel "only" 75% humid while a cool corner sits well past 85% locally — growing mould in plain sight of a comfortable room. This is not a one-lesson toy: the same surface-RH logic returns in Module 6, where an uninsulated lintel or beam becomes a thermal bridge — a locally cold surface that invites condensation and mould inside the construction.
The same moving air cools the person and protects the building
The air movement designed in Lesson 3.1 to cool occupants is the very same thing that protects the structure. Moving air keeps surface humidity from lingering, dries out monsoon dampness, and prevents the still, cool pockets where mould takes hold. A well-ventilated humid house is healthy for people and for fabric at once.
The great mistake of "modernising" a tropical house is to seal it and air-condition it. The air-conditioner chills a wall below the dew point of the humid air leaking in around it, and the sealing kills the air movement — so cold surfaces and still air breed hidden mould inside walls and behind furniture, unseen until it stains through. The traditional breathing house had almost no mould precisely because it never stopped moving air.
This is why ventilation in the warm-humid zone is not only a comfort strategy. It is the building's immune system.
Seal and chill the humid house and you build the perfect mould factory: cold surfaces and still air, hidden behind the wardrobe.
Three altitudes on the same idea
Read the band that fits you — or all three.
Two rules defend a humid-coast house from water. Keep rain off: deep overhangs and chajjas, sloped roofs, and ground that drains away from the walls, not toward them. Keep air moving: cross-ventilate, run fans, and never let a bathroom, a north corner or a cupboard sit sealed and still — those are exactly where mould blooms. If you use an air-conditioner, ventilate the rooms regularly anyway; a permanently sealed, chilled room traps damp and breeds unseen mould on its cool walls. And don't chase a leak that isn't there — most coastal mould is a cold surface and stagnant air, not a hole in the roof.
Detail against both threats. Driving rain: size overhangs and chajjas to the local driving-rain angle (Lesson 1.5), recess and protect openings, throat the sills and add drips, slope roofs with generous eaves, and provide a clear drainage plane. Mould: maximise ventilation, avoid cold surfaces and dead-air pockets, favour breathable finishes over impermeable assemblies that trap vapour, raise and ventilate floors (Lesson 3.2), and detail wet rooms to dry. Watch the AC-plus-humid-infiltration trap — an uninsulated cold surface reaches the dew point and grows mould *inside* the construction, where no one sees it until it telegraphs through. Specify rot- and corrosion-resistant materials and fixings throughout.
Mould risk is governed by *surface* RH, not room RH. Because saturation vapour pressure rises steeply with temperature (Magnus, Lesson 1.2), a cooler surface sees a higher local RH for the same moisture: RH_surface ~= RH_room * p_sat(T_room) / p_sat(T_surface).
Work a room at 30 C / 75% with a surface 4 C cooler (26 C). With p_sat(30) = 4.24 kPa and p_sat(26) = 3.36 kPa: RH_surface ~= 75% * 4.24 / 3.36 ~= 95% — well past the ~80% mould threshold, though the room felt "only" 75%. Mould forms where the surface is coldest, because that is where local RH is highest; cool the surface all the way to the dew point and RH_surface hits 100% and condensation begins. Two levers starve it: warm the surface (insulate, kill thermal bridges) and move the air past it.
“Mould means there's a leak — find and fix the leak and the mould goes away.”
Run the method yourself
Run the explorer and the surface-RH maths before crossing into Module 4.
- 1Set room humidity to 75% and the wall surface 4 °C cooler. Read the surface RH — is it already above the mould threshold, even at "only" 75% in the room?
- 2Raise the air movement, then separately reduce the surface-temperature gap (insulation). Which lever pulled the surface RH down faster?
- 3Compute the surface RH for 30 °C / 75% with the surface 4 °C cooler using RHsurface ≈ RHroom × psat(30)/psat(26). Does it match the gauge?
- 4Deepen the overhang in the section until driving rain no longer wets the wall, then sketch the section showing both defences — rain shed off, air moving past the surface.
↳ Use the worksheet below to record your answers.
Take it with you
Shed the rain, and never let the air go still
That completes Module 3: you can now design for the warm-humid coast end to end, as a complete inversion of the desert — organise the plan around a cross-ventilation path, lift the floor into the faster breeze and off the wet ground, wrap the envelope in permanent deep shade, build it light and reflective, and defend against water by shedding rain and never letting the air go still. Two opposite extremes of the Indian spectrum, each reasoned from its own sky. But most of India lives in neither extreme. The **composite zone** — Delhi, Lucknow, Nagpur — and the **temperate zone** — Bengaluru, Pune — swing through hot-dry, warm-humid and even cold seasons in turn, so no single fixed strategy can serve a place that is three climates at once. Module 4 introduces the idea that resolves it: the **switching building**, one that changes its behaviour with the seasons.
