ICU, NICU, PICU & Critical Care Design in India

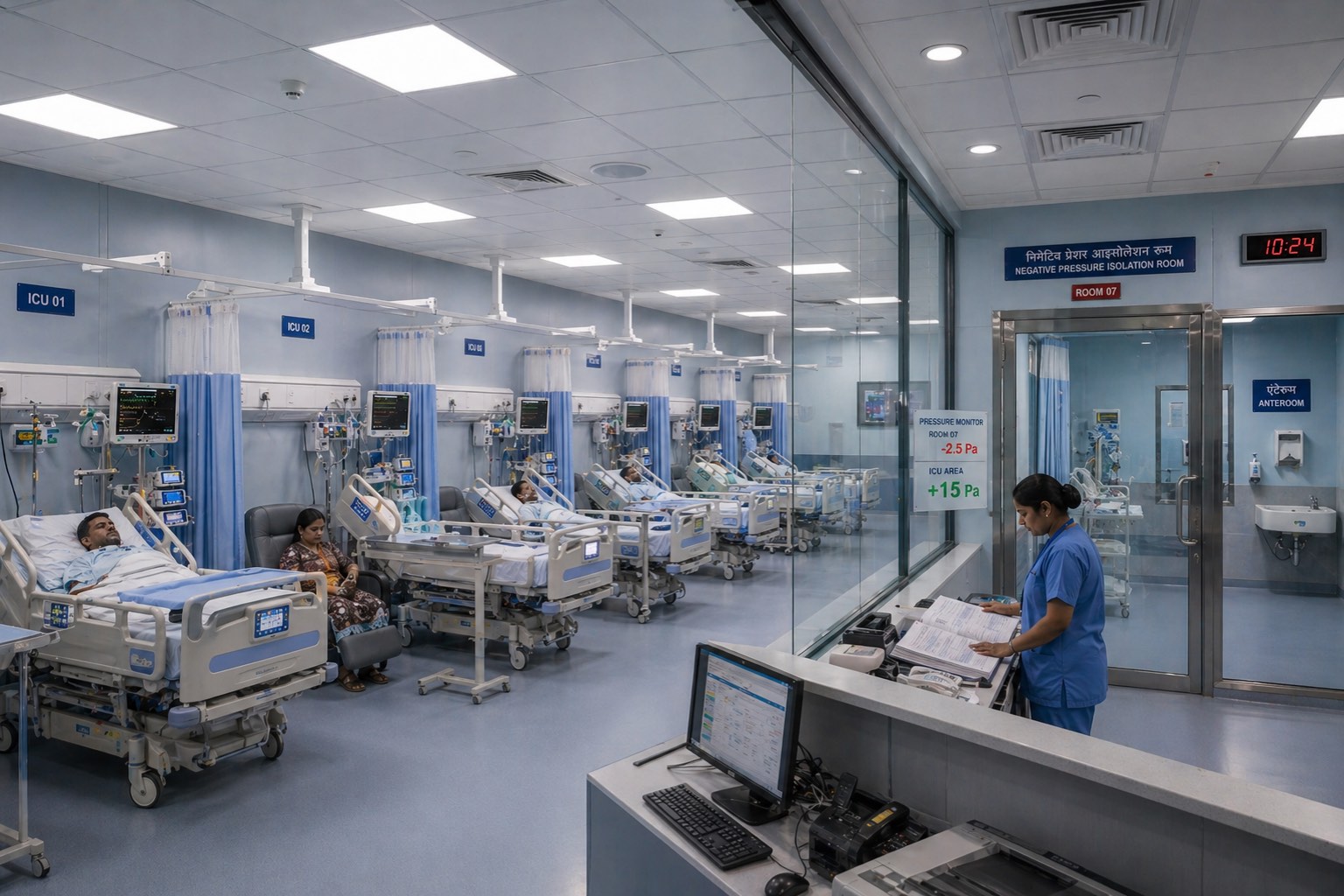

Critical care units are the most monitored, most equipped, and most family-occupied spaces in a hospital. They are also the architectural typology where international and Indian practice diverge most consistently — international tertiary practice has moved decisively toward single-room ICU and single-room NICU; Indian practice continues to operate predominantly open-bay configurations for cost, observation efficiency, and the joint-family caregiving culture. The architect on a critical-care commission must make this choice consciously rather than by default, with awareness of the outcomes evidence on either side.

This guide is the third in the design-focused series. It covers adult ICU, NICU (neonatal), PICU (paediatric), specialty critical-care variants (cardiac ICU, neuro ICU, BMT, isolation cluster), and the family-centred care framework that has emerged as the dominant international design paradigm and is now informing the better Indian projects. The guide assumes the reader has read the pillar regulatory reference, the regulatory deep-dives, and the preceding design-series articles on clinical adjacencies and OT suite design.

"The intensive care unit is where the building's mechanical systems and the patient's biology meet. It is not a room. It is a machine — a machine into which a small number of human beings are temporarily inserted." — Dr. Devi Shetty (b. 1953), cardiac surgeon and founder Narayana Health, paraphrased from a 2014 design review

"Critical care medicine has improved survival to such a degree that the next frontier is no longer mortality but morbidity, and architecture has a direct role in morbidity — through noise, light, sleep, infection, and family stress." — Dr. Hannah Wunsch, intensivist and researcher, paraphrased from Critical Care Medicine (2014)

1. The ICU Architectural Spectrum

Critical care is not a single typology. It spans an architectural spectrum from low-acuity HDU to ultra-isolation BMT, with distinct design requirements at each level.

Unit	Acuity	Patient Population	Architectural Pattern
HDU (High Dependency Unit)	Step-down from ICU	Stable but monitored	8–10 m²/bed; open bay or 4-bed cubicle
General Adult ICU (MICU/SICU)	High	Medical / surgical critically ill	9–14 m²/bed; open bay (Indian) or single (intl.)
Cardiac ICU (CCU/CTICU)	High	Post-cardiac surgery; cardiac event	12–14 m²/bed; cardiac-specific monitoring
Neuro ICU	High	Neuro-surgery, stroke	12–14 m²/bed; quiet; reduced light
Burns ICU	High	Burn injury	14–18 m²/bed; HEPA; humidity 60%
Trauma ICU	High	Trauma; multi-organ	14 m²/bed; ED-adjacent
NICU	Highest (neonatal)	Newborns < 28 days, premature	10–14 m²/bay; 4–6 bay open or single room
PICU	Highest (paediatric)	Children critically ill	12–16 m²/bay; family presence
BMT (Bone Marrow Transplant)	Highest (immunocompromised)	Transplant patients	16–20 m²/room; HEPA + positive pressure
Isolation (negative-pressure)	High (infectious)	TB, COVID-type, multi-drug-resistant	16 m²/room; anteroom + HEPA exhaust

A 100-bed hospital typically has: 8–12 ICU beds (general), 4–6 HDU, 1–2 isolation, 4–6 NICU (if obstetric); a 200-bed adds: 6–8 cardiac, 2–4 neuro, 4–6 PICU. A 500-bed tertiary adds: BMT 6–8, burns 6–10, expanded ICU clusters.

2. Open-Bay vs Single-Cubicle vs Single-Room — The Architectural Spectrum

Three distinct adult-ICU architectural patterns exist; the choice is consequential.

Pattern	Bay Size	Beds per "room"	Visibility	Privacy	Cost	Indian Use
Open bay	9–12 m²/bed	6–12 beds in one space	High (single nurses' station sees all)	Low (curtains only)	Low	Most common; default
Cubicle / pod	10–12 m²/bed	4–6 beds with low-wall partition	Moderate	Moderate	Moderate	Increasingly common
Single room (with glazed front)	14–18 m²/room	1	Direct via glass front	High	Higher	Tertiary private; growing
Single room (closed)	16–20 m²/room	1	Via monitor / wall window	Very high	Highest	International norm; rare in India

The evidence:

Single-room ICU outcomes (international studies: Stiller, 2008; Gabor, 2003) — lower cross-infection, reduced delirium, better sleep, higher family satisfaction; higher staff walking distance, longer time-to-bedside.
Open-bay ICU — faster nursing response, easier sharing of equipment and senior oversight, lower capex; higher cross-infection risk, lower sleep quality, lower privacy, higher noise.

The Indian calculus: open-bay is operationally efficient and matches the joint-family caregiving culture (where families want to see other patients and other nurses, not isolation); single-room is clinically superior for outcomes and aligns with international tertiary practice. The architect's recommendation depends on the project's positioning — tier-2 community hospital favours open-bay; tertiary specialty hospital favours single-room or cubicle; teaching hospital often hybrid (open-bay for teaching, single-room for isolation).

3. Adult ICU — Architectural Specifications

Element	Specification
Bed area (open bay)	9 m² minimum (NABH); 12 m² preferred
Bed area (single room)	14–18 m² with toilet, family chair, sink
Inter-bed clearance	1.8 m minimum (NABH); 2.4 m preferred
Foot clearance	1.2 m minimum for cart access
Headwall	Per bed: O2 ×2, Air ×1, Vacuum ×3, gas outlets to NIST/DIN; 14–18 power outlets (UPS-backed); 2× nurse-call; data port; lighting controls; suction
Lighting	Ambient 200–400 lux; examination 1000 lux; reading 500 lux; circadian (warmer evening); patient-controlled
Floor finish	Welded vinyl; antimicrobial; coved skirting; impact-resistant
Wall finish	PVC panel or epoxy-painted; antimicrobial; impact-resistant at trolley height
Ceiling	Sealed; gypsum with epoxy or modular metal; sprinkler-compatible
Ceiling height	3.0 m minimum; 3.3 m preferred for ceiling-mounted equipment
Doors	Glazed sliding doors for single rooms; manual swing for open bay
Glazing	Full-height to nurses' station / corridor for visibility
Privacy	Curtain (open bay); blind/curtain (single); glazed shutter
Hand-wash	Sensor-tap basin per 2 beds (open bay); 1 per single room
Hand-rub dispenser	At each bed entry
Toilet	En-suite for single rooms; cluster toilets for open bay
Family chair	One recliner per bed; pull-out for sleep optional
Patient lift / hoist	Ceiling-mounted track per bed (preferred) or mobile
Isolation provision	At least 1 negative-pressure isolation per ward unit (NABH)
BMT cluster	4–6 beds in HEPA + positive-pressure cluster

Headwall design:

The headwall is the architectural-mechanical interface where most ICU services converge. Modern best practice uses a modular pre-fabricated headwall (metal panel with integrated gas outlets, power, lighting, monitor mount) that is delivered as a single unit and installed against a structural wall. Field-built headwalls (gas outlets installed individually in plastered wall) are cheaper but less reliable.

4. The ICU Nurses' Station — Visual Control Geometry

The nurses' station is the architectural pivot of the ICU. Its placement determines visibility, response time, and family / staff interaction.

Pattern	Placement	Visibility	Application
Central	Centre of open bay	All beds visible	Open-bay 6–10 beds
Pod-and-station	One station per 4–6 bed pod	Each pod independently observed	Cubicle / pod
Linear corridor	Stations along corridor	Single rooms via glazed front	Single-room ICU
Decentralised micro-stations	One mini-station per 2–4 rooms	Highest staff proximity	Newer single-room designs

Sizing:

Central station: 12–18 m² for 6–10 beds; nurse computer × 2, patient monitor wall, charting space, telephone, supplies
Per-pod micro-station: 4–6 m² with workstation + medication trolley parking
Visual control rule: every patient bed must be visible from at least one nurses' station with a sight line ≤ 12 m and ≤ 5 second walk

5. NICU — The Most Specialised Critical Care

Neonatal intensive care is the architectural typology that has changed most over the last 20 years. International practice has moved from the open ward (Florence-Nightingale-derived) to single-family rooms (developmental care).

NICU Pattern	Layout	Patient Density	Family Provision
Open bay (4-bay or 6-bay)	Cots in one room with curtains	Higher	Low — visiting hours
Single-family room (SFR)	One room per baby, family 24×7	Lower	High — overnight
Hybrid	Mix of open and SFR	Moderate	Moderate

The developmental-care evidence (Lasky 2009, White 2013):

Single-family room reduces noise, light, parental stress
Improved infant weight gain, earlier discharge
Higher staff walking distance, requires more nurses
Family presence increases breastfeeding, reduces re-admission

Indian context: SFR NICU is rare due to footprint and operational cost; most Indian NICUs are open-bay 4-6 cot. The architect designing a new NICU should evaluate hybrid (4-cot open bay + 4 single rooms for special cases).

NICU specifications

Element	Specification
Cot area (open bay)	6–8 m² per cot
Cot area (single room)	14–18 m² per room with parent chair
Inter-cot spacing	1.8 m minimum; 2.4 m preferred
Overhead lighting	Dimmable to ≤ 5 lux for sleep; 200 lux for procedures; circadian
Examination lighting	2000 lux at cot for procedure
Sound	Average ≤ 45 dB; peak ≤ 65 dB; sound-absorbing ceiling and walls
Temperature	24–26°C
Humidity	45–60%
Air changes	≥ 6 ACH outside; positive pressure
HEPA	H13 filtration
Hand-hygiene	Sensor basin at every 2 cots; alcohol-rub at every cot
Family seating	Recliner chair adjacent to every cot; kangaroo-care space
Breast-feeding / pumping room	9–12 m²; private; comfortable
Milk preparation	6 m²; pasteurisation, refrigerator, sealed
Phototherapy area	If used; eye-protection signage
Resuscitation cot	Adjacent to delivery suite
Step-down nursery	For graduating babies; 4–6 cots
Isolation NICU room	1 minimum; HEPA exhaust

The kangaroo-care space: unique to NICU — a parent-and-baby skin-to-skin contact zone with reclining chair, blanket warmer, and privacy. Indian context has high cultural fit (extended family supports prolonged kangaroo presence). Architect designs 2–4 m² per cot for this.

6. PICU — Paediatric Specifics

Element	PICU Specification
Bed area	12–16 m²; family chair + study area
Inter-bed	1.8 m minimum
Layout	Mix of open bay and single rooms; older children prefer single
Wall finish	Cheerful colours; child-friendly graphics (institutional grade)
Lighting	Lower intensity at night; child-controllable for older patients
Headwall	Same as adult ICU
Toy / activity space	If extended stay
Family room	Adjacent; sleeping arrangement
Bath / shower	Family-accessible
Dietary	Child-friendly menu space

PICU sits between NICU's developmental specifics and adult ICU's clinical generality. Architect treats it as an adult ICU with paediatric overlays.

7. Isolation Cluster and BMT Architecture

Type	Pressure	HVAC	Application
Negative-pressure isolation	− 5 to − 15 Pa	HEPA exhaust to roof; 12+ ACH	TB, COVID-type, MDR
Positive-pressure isolation	+ 8 to + 15 Pa	HEPA supply; positive	BMT, immunocompromised, post-transplant
Combined / convertible	Switchable	Bi-directional dampers	Dual-purpose

Negative-pressure isolation room

Element	Specification
Room area	14–18 m² + anteroom 4.5–6 m²
Anteroom	Always required; PPE donning/doffing; hand-wash basin
Air changes	≥ 12 ACH; HEPA H14 exhaust to roof
Pressure differential	≥ 2.5 Pa negative to anteroom
Door	Self-closing; sealed gasket
Window	Sealed; double-glazed
En-suite toilet	Pressure-negative; sealed
Pressure monitor	Continuous, visible at door
Communication	Intercom + phone

Positive-pressure BMT room

Element	Specification
Room area	16–20 m² + anteroom 5 m²
Anteroom	Always required; gowning
Air changes	≥ 12 ACH supply; HEPA H14
Pressure differential	≥ 2.5 Pa positive to anteroom
Filtration	HEPA + ULPA at terminal
Surfaces	Smooth, jointless; epoxy or PVC panel
Furniture	Sealed, washable
Family chair	Optional; restricted visiting
Reverse-isolation toilet	Pressure-positive; sealed
Diet	HEPA-handled

The BMT cluster of 4–6 rooms is typically a separate unit within ICU or as a dedicated wing. Its HVAC and structural requirements are higher than general ICU.

8. Pressure Cascade and HVAC for Critical Care

Critical-Care Space	Pressure (Pa)	ACH	Filtration
Adult ICU general	+ 5	≥ 6	HEPA H13 preferred
Cardiac ICU	+ 5	≥ 6	HEPA H13
Neuro ICU	+ 5	≥ 6	HEPA H13
NICU	+ 5 to + 8	≥ 6	HEPA H13
PICU	+ 5	≥ 6	HEPA H13
BMT positive	+ 8 to + 15	≥ 12	HEPA H14 + ULPA
Isolation negative	− 5 to − 15	≥ 12	HEPA H14 exhaust
Anteroom (BMT)	Intermediate positive	≥ 6	HEPA
Anteroom (isolation)	Intermediate negative	≥ 6	HEPA
ICU corridor	Neutral / 0	≥ 6	HEPA H13
Soiled utility	− 5	≥ 6	Standard

The pressure cascade is the architectural-engineering core of critical-care HVAC. Architect coordinates with HVAC consultant at preliminary design.

9. Acuity-Adaptable Rooms — The Future Direction

International best practice is increasingly moving toward acuity-adaptable patient rooms — single rooms that can scale from general ward (low acuity) to ICU (high acuity) without patient transfer. The patient stays; the equipment changes.

Acuity-Adaptable Element	Specification
Room area	18–24 m² (ICU-sized)
Headwall services	Full ICU spec (can scale up)
Floor / wall finish	ICU spec
Lighting	Full ICU spec
Patient lift	Ceiling-mounted track
Family chair / sleep	Full ICU spec
HVAC	ICU spec; adjustable pressure
Equipment delivery	Modular; rolled in for upgrade
Cost	30–50% above general ward; 10–20% below dedicated ICU

Argument for: reduces inter-unit transfers (associated with morbidity), reduces family disruption, future-proofs the building for evolving care patterns.

Argument against: higher upfront capex, equipment under-utilisation if patient stable, requires nursing skill range.

Indian context: acuity-adaptable is rare; tertiary private hospitals are starting to provision a small "convertible" cluster of 4–6 rooms. Architect should propose this for new tertiary projects.

10. Family Presence and Family-Centred Care

Indian critical-care is uniquely family-intensive. The architect's design must accommodate this rather than design against it.

Family Provision	Specification
Family chair / recliner per bed	Yes — comfort, sleeping if needed
Family overnight space	Within ICU (single room) or adjacent (open bay)
Family lounge per ICU	25–60 m² with seating, water, TV, charging, restroom
Family education room	12–18 m² for counselling, end-of-life discussions
Spiritual / prayer space	Adjacent to ICU (at least multi-faith room)
Visitor toilets / shower	Per ICU
Pantry / refreshment	Per ICU
Family-staff communication	Daily updates, scheduled rounds, white-board, language access

The family-centred care framework, articulated by the Society of Critical Care Medicine and adopted in NABH 5th edition, treats the family as a member of the care team rather than a visitor. Indian practice has always treated the family this way; international practice is converging.

11. Common Critical-Care Failure Modes

#	Failure	Prevention
1	Bed area < 9 m²	NABH minimum 9 m²; design 12 m²
2	No isolation in ICU	At least 1 negative-pressure per ICU
3	No anteroom for isolation / BMT	Anteroom always required
4	Single-corridor ICU without service-side access	Service corridor for trolleys
5	Nurses' station without sightlines to all beds	Visual-control rule
6	Headwall field-built rather than modular	Pre-fabricated headwall
7	Family seating absent	Recliner per bed minimum
8	Hand-hygiene basin frequency < 1 per 2 beds	NABH spec
9	Lighting not dimmable / circadian	Patient-controlled, dimmable
10	Floor not welded vinyl	Welded; coved skirting
11	NICU lighting not dimmable to ≤ 5 lux	Dimmable for sleep
12	NICU sound > 45 dB	Sound-absorbing surfaces
13	BMT without HEPA + positive pressure	Full BMT spec
14	Acuity-adaptable absent in tertiary	Provision a 4-6 room cluster
15	Family lounge undersized or absent	25–60 m² per ICU
16	Multi-faith / prayer / counselling room absent	Required ≥ 100 beds
17	Pressure monitor absent at isolation door	Continuous monitor
18	Patient lift absent — manual lifting	Ceiling-mounted track

12. The Architect's Critical-Care Design Toolkit

#	Step	Output
1	Define units: ICU, NICU, PICU, isolation, BMT counts	Critical-care brief
2	Choose layout: open bay / cubicle / single room / hybrid	Layout decision
3	Size each bed area per spec	Floor area allocation
4	Plan visibility: nurses' station(s) with sightlines	Station placement
5	Specify headwall — modular pre-fab	Headwall schedule
6	HVAC pressure cascade for each unit	HVAC scheme
7	Isolation and BMT cluster locations	Special-pressure rooms
8	Family presence — recliner per bed; lounge per unit	Family provision
9	Multi-faith prayer / counselling	Cultural space
10	Floor / wall / ceiling finishes specification	Material schedule
11	Lighting scheme — circadian, dimmable	Lighting schedule
12	Acuity-adaptable cluster (tertiary)	Future-proofing provision

References

ASHRAE (2021) Standard 170-2021: Ventilation of Health Care Facilities. Atlanta: ASHRAE.
Bartick, M. and Reyes, C. (2012) 'Las dos cosas: an analysis of attitudes of Latina women on non-exclusive breastfeeding', Breastfeeding Medicine, 7(1), pp. 19–24.
Brown, J., Tomita, R. and Iqbal, M. (2013) 'Designing the ICU of the future', Critical Care Clinics, 29(2), pp. 251–263.
Davidson, J.E., Aslakson, R.A., Long, A.C., Puntillo, K.A., Kross, E.K., Hart, J., Cox, C.E., et al. (2017) 'Guidelines for family-centered care in the neonatal, pediatric, and adult ICU', Critical Care Medicine, 45(1), pp. 103–128.
Facility Guidelines Institute (2022) Guidelines for Design and Construction of Hospitals. St. Louis: FGI.
Gabor, J.Y., Cooper, A.B., Crombach, S.A., Lee, B., Kadikar, N., Bettger, H.E. and Hanly, P.J. (2003) 'Contribution of the intensive care unit environment to sleep disruption in mechanically ventilated patients and healthy subjects', American Journal of Respiratory and Critical Care Medicine, 167(5), pp. 708–715.
Gulia, A. and Salecha, S. (2019) 'NICU design and developmental care', Indian Journal of Pediatrics, 86(2), pp. 169–174.
Hamilton, D.K., Orr, R.D. and Raboin, W.E. (2008) 'Organizational transformation: a model for joint optimization of culture change and evidence-based design', HERD, 1(3), pp. 40–60.
Joseph, A. and Ulrich, R. (2007) Sound Control for Improved Outcomes in Healthcare Settings. Concord: Center for Health Design.
Kobus, R.L., Skaggs, R.L., Bobrow, M., Thomas, J. and Payette, T.M. (2008) Building Type Basics for Healthcare Facilities. 2nd edn. Hoboken: Wiley.
Lasky, R.E. and Williams, A.L. (2009) 'Noise and light exposures for extremely low birth weight newborns during their stay in the NICU', Pediatrics, 123(2), pp. 540–546.
NABH (2020) Standards for Hospitals, 5th Edition. New Delhi: NABH.
Stiller, A., Sroka, R., Gastmeier, P., Marik, P.E., et al. (2008) 'Single-room contact precautions for the prevention of transmission of multi-resistant organisms', Infection Control and Hospital Epidemiology, 29(5), pp. 408–412.
Thompson, D.R., Hamilton, D.K., Cadenhead, C.D., Swoboda, S.M., Schwindel, S.M., Anderson, D.C., Schmitz, E.V., et al. (2012) 'Guidelines for intensive care unit design', Critical Care Medicine, 40(5), pp. 1586–1600.
Ulrich, R.S., Zimring, C., Zhu, X., DuBose, J., Seo, H.B., Choi, Y.S., Quan, X. and Joseph, A. (2008) 'A review of the research literature on evidence-based healthcare design', HERD, 1(3), pp. 61–125.
White, R.D., Smith, J.A. and Shepley, M.M. (2013) 'Recommended standards for newborn ICU design, 8th edition', Journal of Perinatology, 33, pp. S2–S16.
Wunsch, H., Gershengorn, H. and Scales, D.C. (2014) 'Economics of ICU organization and management', Critical Care Clinics, 30(4), pp. 703–711.

Author's Note: Critical-care design has matured rapidly over two decades — international tertiary practice has decisively moved toward single-room ICU, single-family-room NICU, and acuity-adaptable patient rooms; Indian practice is in transition, with operational and cost considerations sustaining the open-bay default in most projects. The architect's role is to translate the international evidence into Indian-context decisions — projecting where single-room is justified, where open-bay remains appropriate, and where hybrid configurations make sense. Subsequent guides in this series will go deeper on emergency department design, EBD principles, and HVAC specifics.

Disclaimer: This article is for informational and educational purposes only and does not constitute professional architectural or clinical advice. Critical-care design depends on the specific clinical scope, patient population, regulatory framework, and operational context that must be assessed project-by-project by qualified architects, healthcare planners, and intensivists. Studio Matrx, its authors, and contributors accept no liability for decisions made on the basis of the information in this guide.
